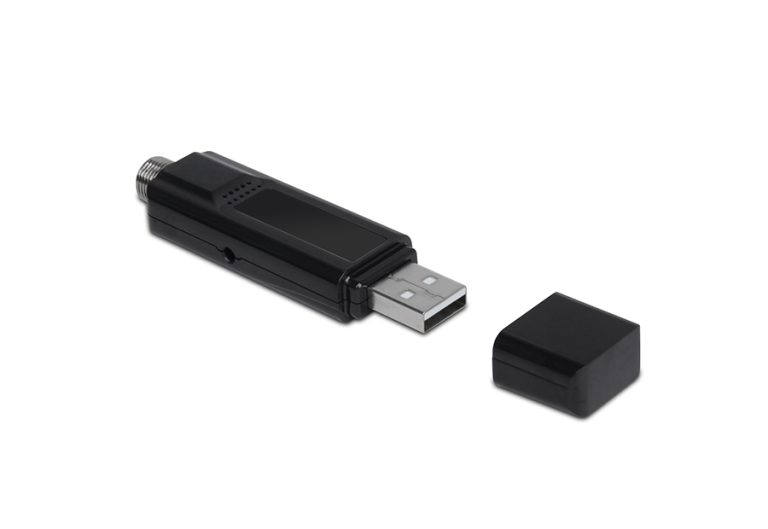

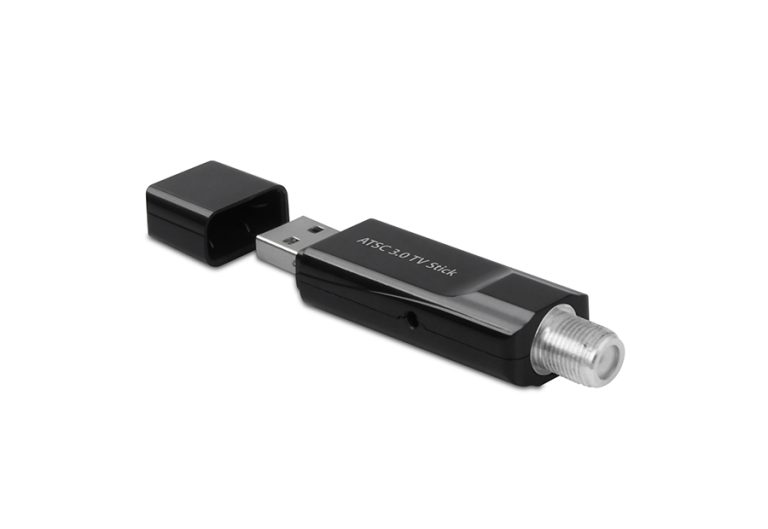

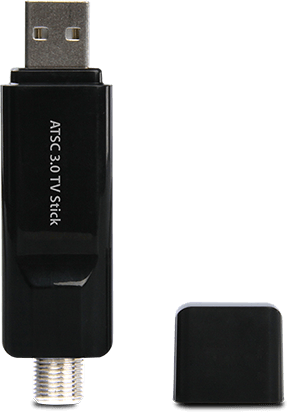

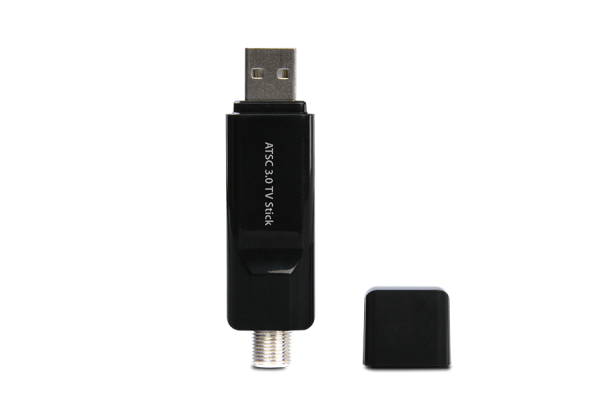

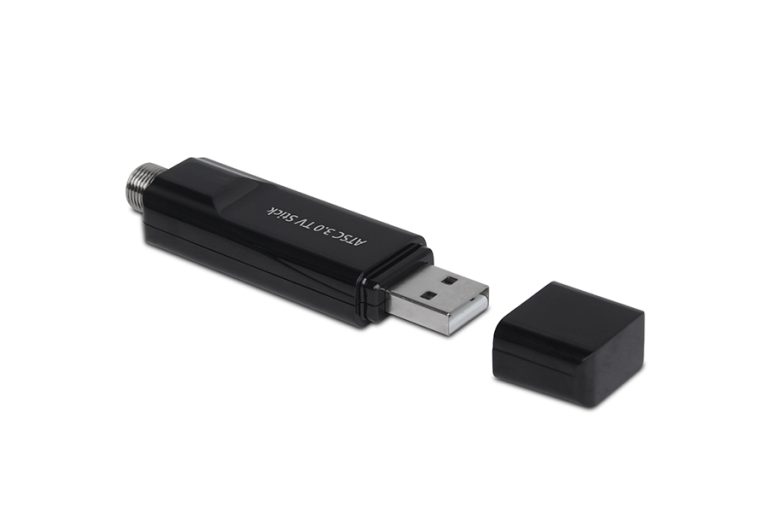

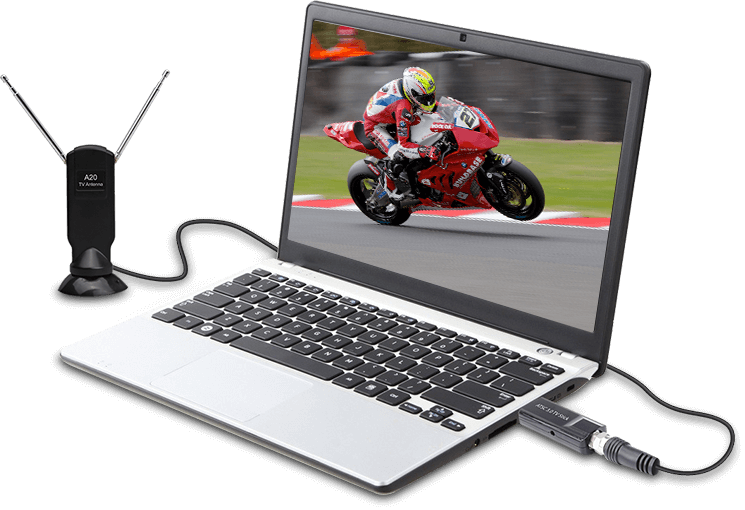

金亚太A683支持ATSC 3.0广播技术标准，提供超清晰视频（最高支持2160p 4K分辨率，120帧/秒）。只需通过USB2.0接口将其连接至电脑、笔记本、Linux机顶盒或安卓设备等智能终端，即可同步收看ATSC 3.0与ATSC 1.0直播节目。无需WiFi或3G/4G网络——即插即用！
NextGen TV A683 can deliver much higher video quality, including HDR metadata. Broadcasts in 4K resolution are already possible.ATSC 3.0 will use a new audio codec (Dolby AC-4) that will send ultra-high quality audio.

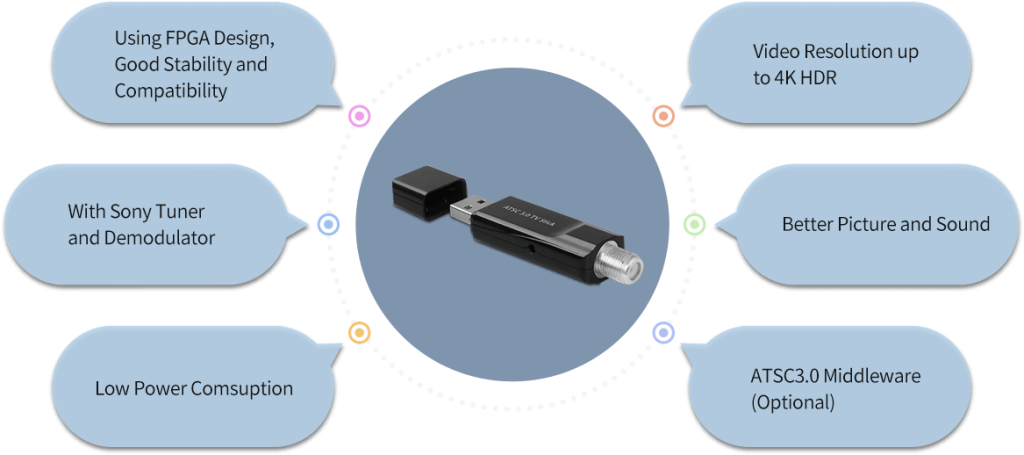

A683 supports multi-system and multi-platform, can be used as a development board, plug and play, easy to use, you can use A683
for driver debugging and software development on Windows/Android/Linux and other platforms,
great for developing your own custom NextGen TV solutions.

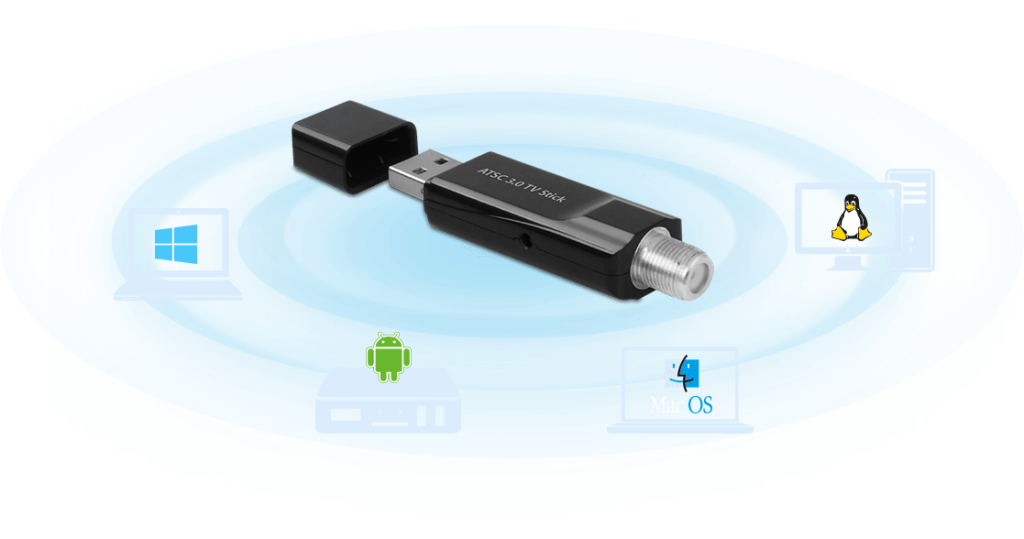

It can be connected to the Android OTT Box/PC /Smart Phone/Tablet to realize watch ATSC 1.0/3.0 live TV programes.
Your secondary development can be carried out based on the SDK/API provided by our company, which greatly saves development time and cost and promotes rapid product launch.
Provide long-term technical support and timely after-sales service.
In-depth software customization including UI, APK icon, software function addition or deletion can be provided.
| 产品型号 | A684 | A683B | A683 |
| 电视标准 | ATSC3.0/ATSC1.0 | ATSC3.0/ATSC1.0 | ATSC3.0/ATSC1.0 |
| 接收频率 | 电视频段 42~1002MHz | 电视频段 42~1002MHz | 电视频段 42~1002MHz |
| 输入电平 | -83dBm~-10dBm | -83dBm~-10dBm | -83dBm~-10dBm |
| 带宽 | 6M | 6M | 6M |
| Tuner | 4 | 2 | 1 |
| 支持操作系统 | Android/Windows/linux（Windows播放器当前支持ATSC1.0，ATSC3.0播放器正在开发中） | Android/Windows/Linux（Windows播放器当前支持ATSC1.0，ATSC3.0播放器正在开发中） | Android/Windows/Linux（Windows播放器当前支持ATSC1.0，ATSC3.0播放器正在开发中） |
| 尺寸 | 86×30×16.5毫米 | 86×30×16.5毫米 | 76.4×20.7×13.8毫米 |
