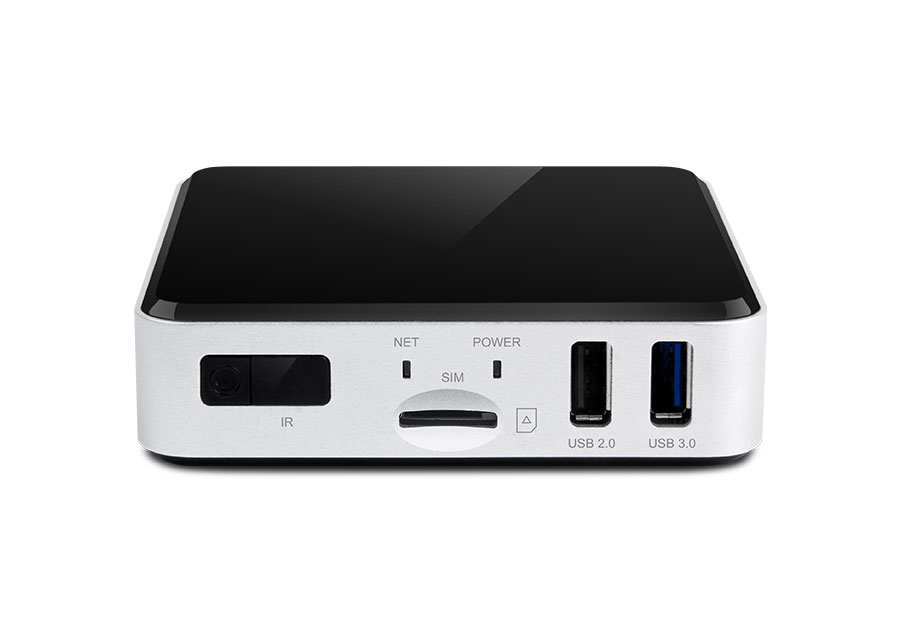

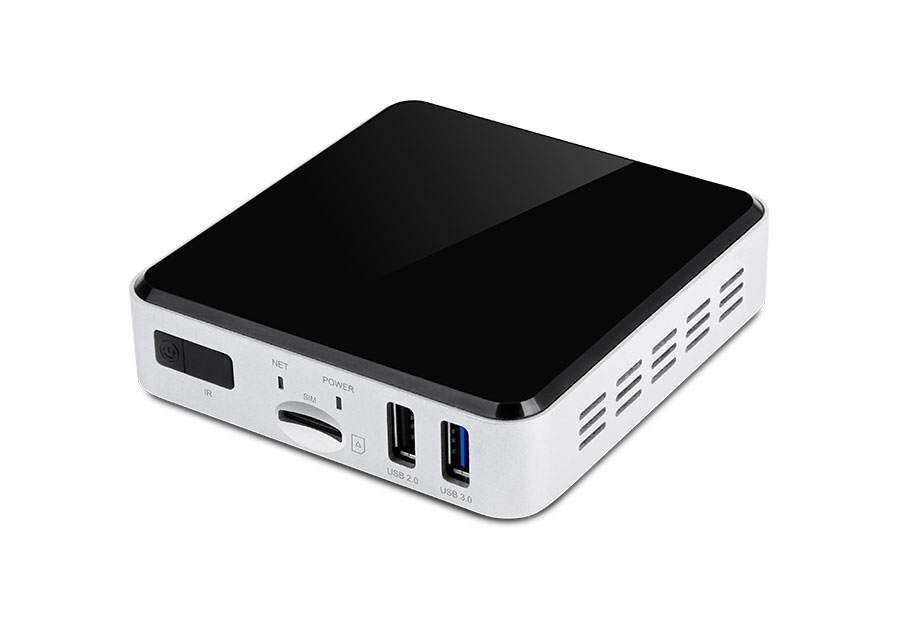

APC329L

4G LTE Android TV Box

APC329L is a quad-core 4K Android OTT TV box featuring a 4G LTE SIM Card Slot and powered by Amlogic S905X4.

  • Quad-core ARM Cortex-A55 CPU @ 1.0GHz, ARM G31™ MP2 GPU
  • Supports Android 11.0 OS
  • 2GB LPDDR4 (4GB optional) and 8GB eMMC (16GB/32GB optional)
  • 3G/4G LTE functionality with a standard 6 PIN SIM card interface
  • Ethernet 1000M support
  • Dual-band WiFi (2.4G & 5.8G) and BT support
  • Optional Watchdog & RTC support
  • Ports: HDMI® out (Max to 4KP60), USB2.0, USB3.0, IR reception
Contact Sales
Buy Now

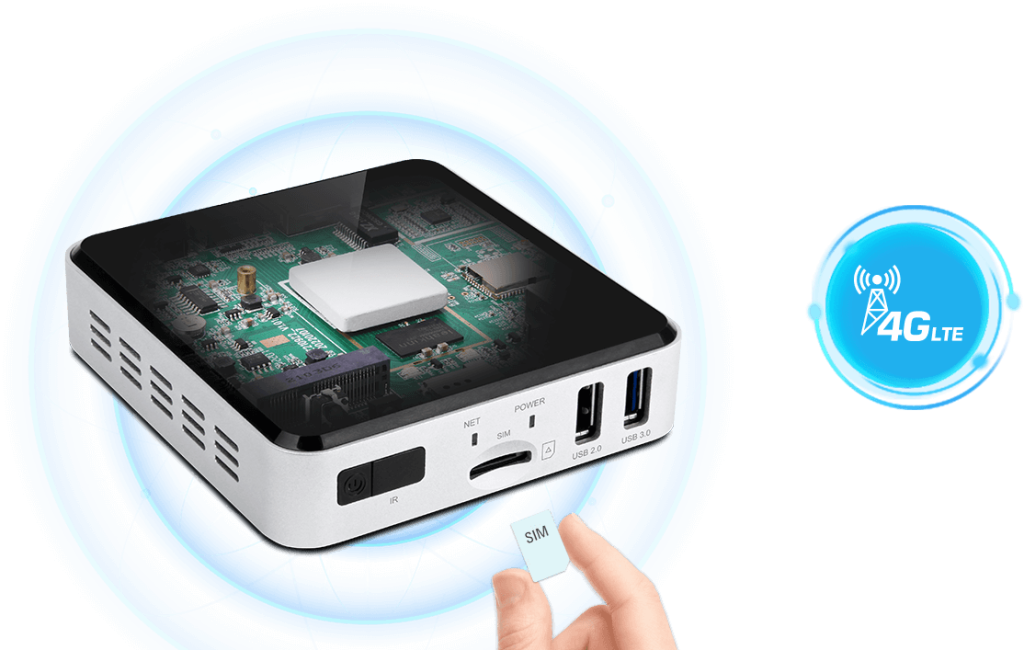

Better network connectivity

built-in 4G LTE module can support global cellular networks, so that the product has better network connectivity

Higher reliability

built-in hardware watchdog can monitor the running status of the system in real time to ensure that the product can work stably and continuously for 7x24h

Extensible IoT interface

Reserve IoT interface, can expand IoT module according to customer requirements, such as Zigbee/BT

Greater decoding ability

Support MVC, MPEG-1/2/4, VC-1/WMV, AVS,AVS+, AVS2 RealVideo, MJPEG stream, AV1, H.264, H265-10 and also JPEG Pictures are not limited in size

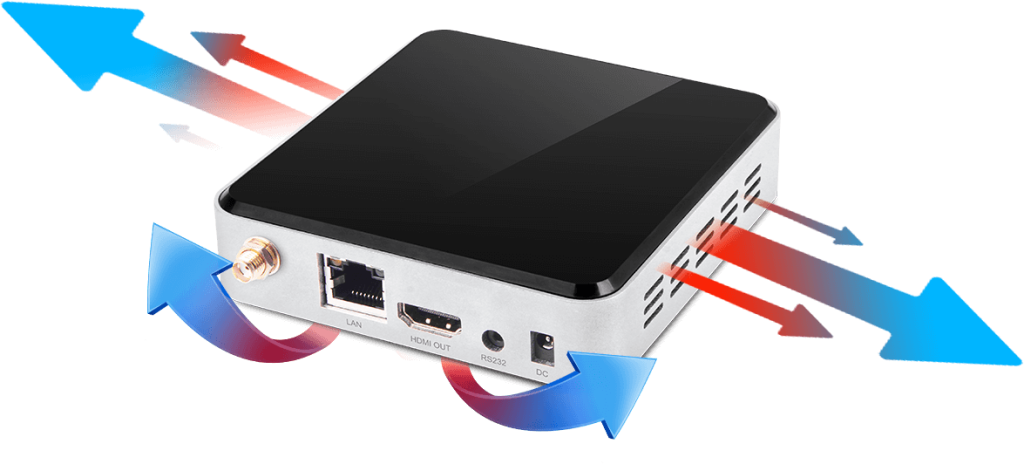

Excellent heat dissipation performance

metal bottom shell and the plastic upper shell in the middle frame are equipped with vents on both sides to form internal ventilation circulation, so that the heat dissipation effect of the whole machine is better

Superior processing power

Quad ARM Cortex-A55，ARM G31™ MP2 GPU，2G/4GB RAM，8G/16G/32GB ROM

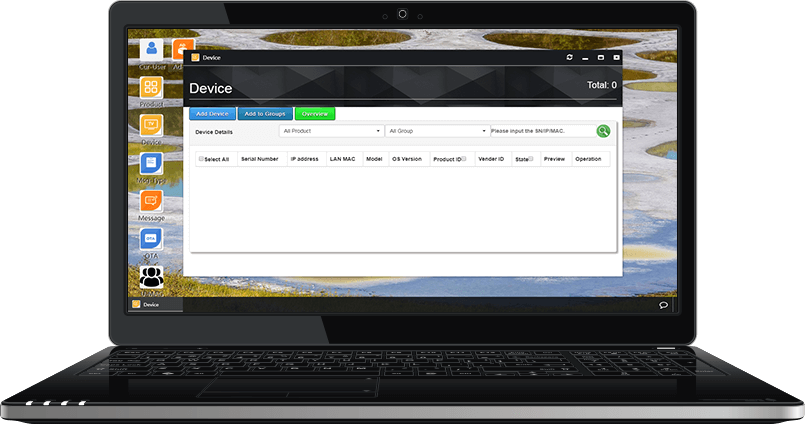

Remote Device Management System (MDM)

MDM application has been preset for remote device management and monitoring

Support Personalized Customization

The hardware configuration is optional

CPU/ memory/storage /WIFI+ Bluetooth

Provide secondary SDK development

Provide SDK secondary development customers can compile their own sensitive requirements

MDM Customization (Remote device Management)

Remote collection of device status information and control of the device (firmware update, uninstall/install APK, restart, standby/wake up, real-time advertising……)

The APP customization

It is safe, fast and low cost to easily meet the requirements of customers

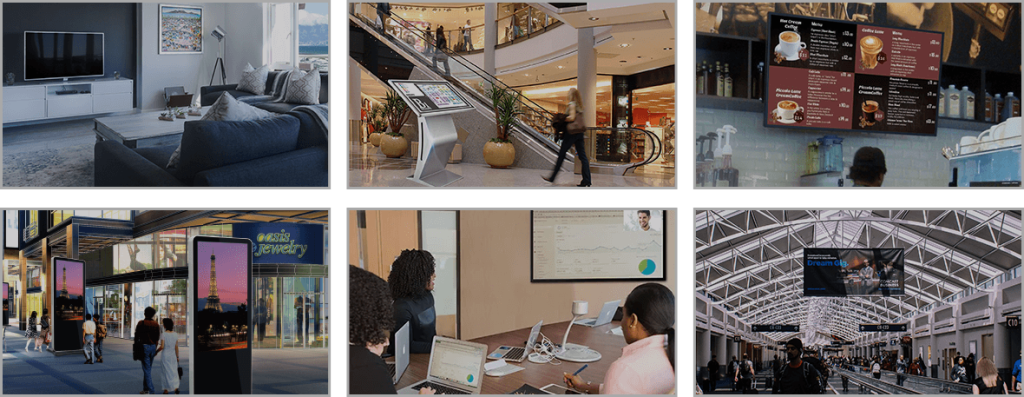

Application Scenarios

It is suitable for OTT/IPTV media player boxes, commercial display media player boxes, commercial Android hosts, etc.

APC329L3 APC329L4
CPU Amlogic S905X3 64 Bit Quad Core ARM Cortex-A55 Amlogic S905X4 64 Bit Quad Core ARM Cortex-A55
OS Android 9.0 Android11.0
GPU ARM G31™ MP2
RAM 2GB LPDDR4(4GB optional)
ROM 8GB EMMC(16GB/32GB optional)
Network 1000M Ethernet / 2×2 MIMO 2.4GHz/5GHz 802.11 a/b/g/n/ac / BT4.0 or above
I/O USB3.0 x 1/USB2.0 x 1/HDMI®OUT/SIM Card Slot/RS-232/IR IN
DRM Playready/Widewine
Power Adapter 5V/2A
Appearance 108mm x 104mm x 28mm，280g
Environment Operation temperature:0~ +50℃, 10%≤Relative humidity≤90%

APC329L4 Specification
Download
APC329L4 User Guide
Download
