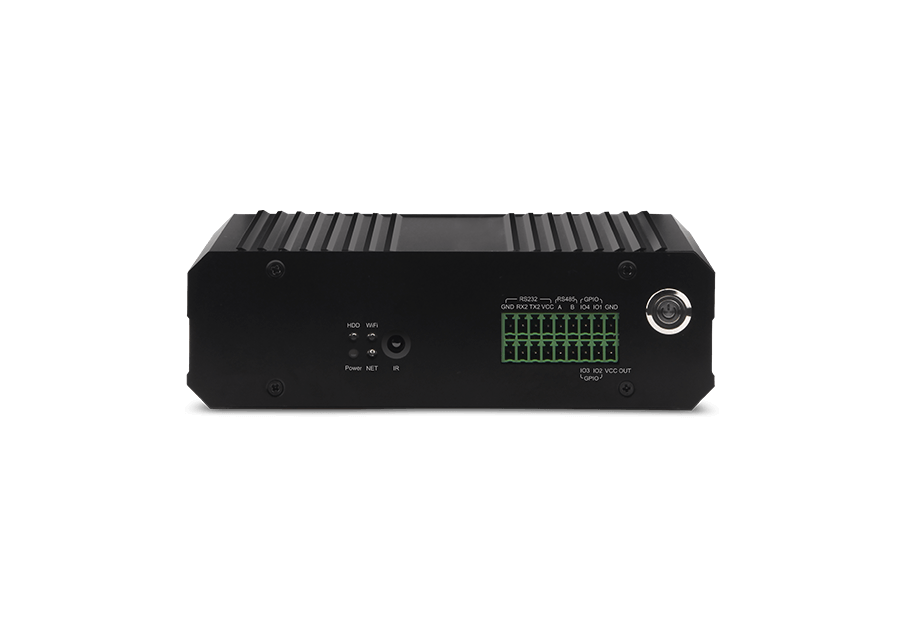

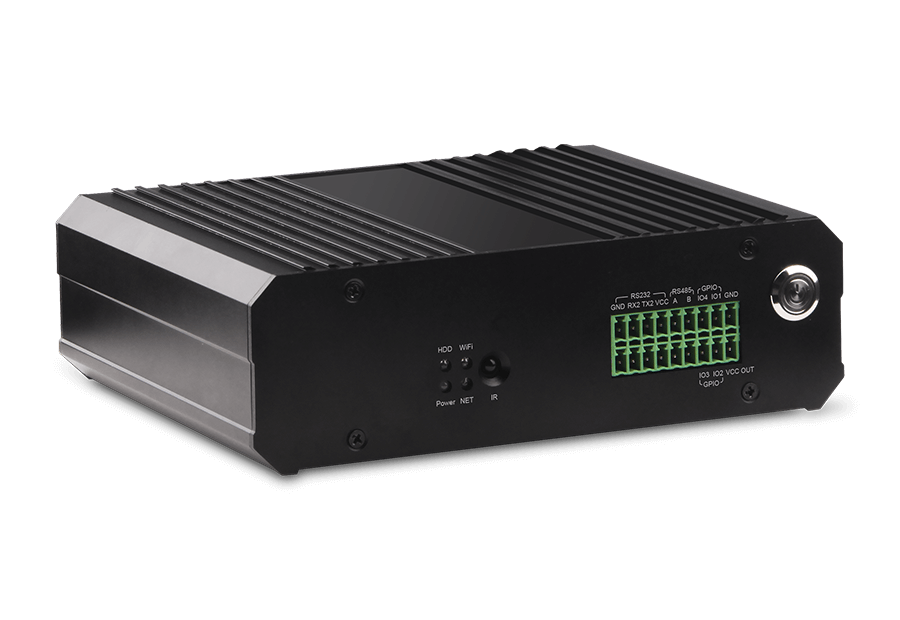

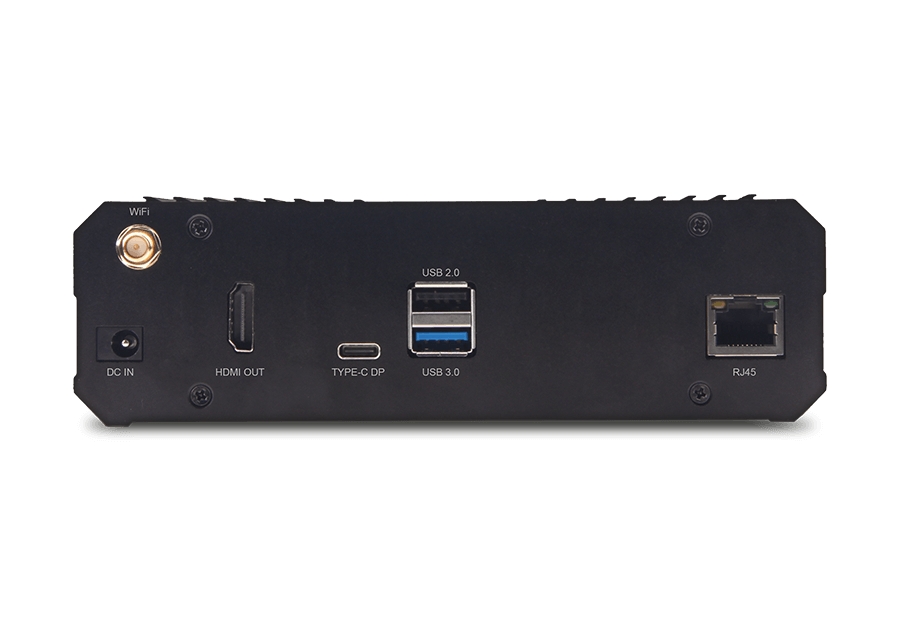

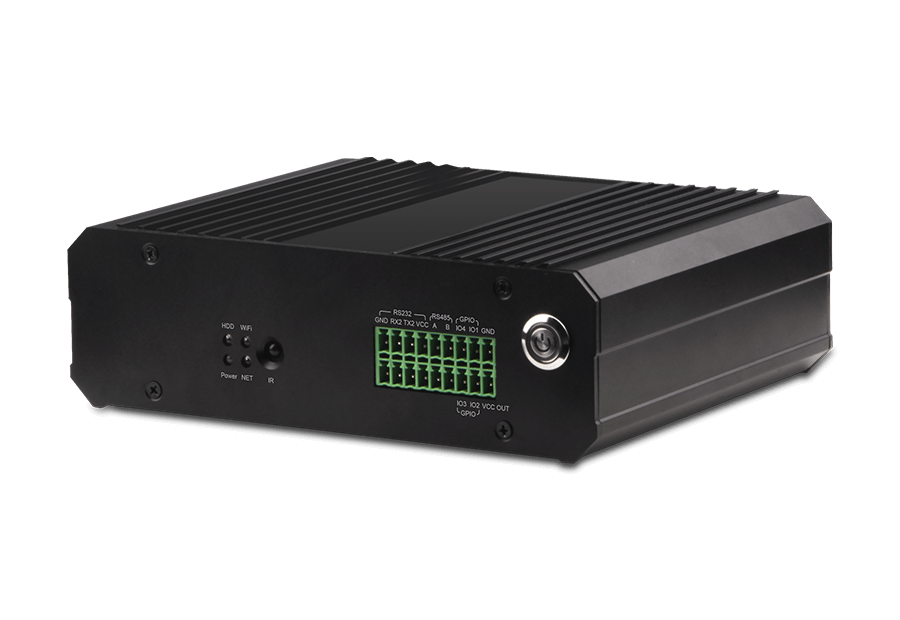

APC3576

Edge AI Mini PC

Geniatech APC3576 is an edge computing box powered by Rockchip RK3576, featuring an octa-core CPU (4×A72 + 4×A53) with 6 TOPS NPU. It supports Android 14, 32-channel 1080P decoding, 8K video processing, and rich interfaces like HDMI®, Type-C, RS232/RS485, and dual-band Wi-Fi. Ideal for NVR, industrial control, and multimedia applications.

  • Octa-core CPU with 6 TOPS NPU for AI tasks.
  • Supports 32-channel 1080P@30FPS and 8K video editing/decoding.
  • Provides 4K HDMI® output and DisplayPort output via Type-C.
  • Features Gigabit Ethernet, dual-band Wi-Fi (2.4G/5G) and Bluetooth.
  • Industrial I/Os: RS232, RS485, GPIO, SATA3.0, and UART.
  • Supports LPDDR up to 16GB and EMMC up to 256GB.
  • Ensures 24/7 stable operation with a built-in watchdog and RTC battery.
Contact Sales
CPU Rockchip RK3576, Cortex-A72 and quad-core Cortex-A53
GPU Mali-G52 MC3
RAM 4GB LPDDR4(8/16GB optional)
ROM 32GB EMMC(64GB/128GB/256 optional)
Network 1000M Ethernet / 2.4GHz/5GHz 802.11 a/b/g/n/ac/ax / BT5.2 or above
I/O USB3.0 x 1/TYPE-C x 1/HDMI OUT x 1/RS-232 x 1/ RS485*1/GPIO x 4/IR IN
OS Android 14
Power Adapter 12V/2A
Appearance 160 mm *125.5 mm *48mm
Environment Operation temperature: commercial (0°C~ +50℃)/ Extended commercial (-40 °C ~ 85°C), 10%≤Relative humidity≤90%

APC3576 Specification
