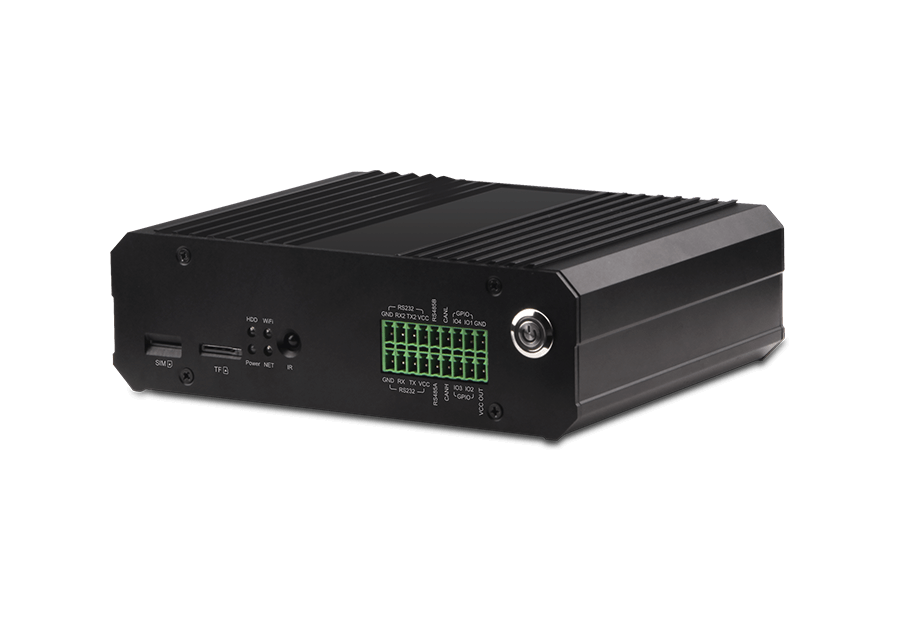

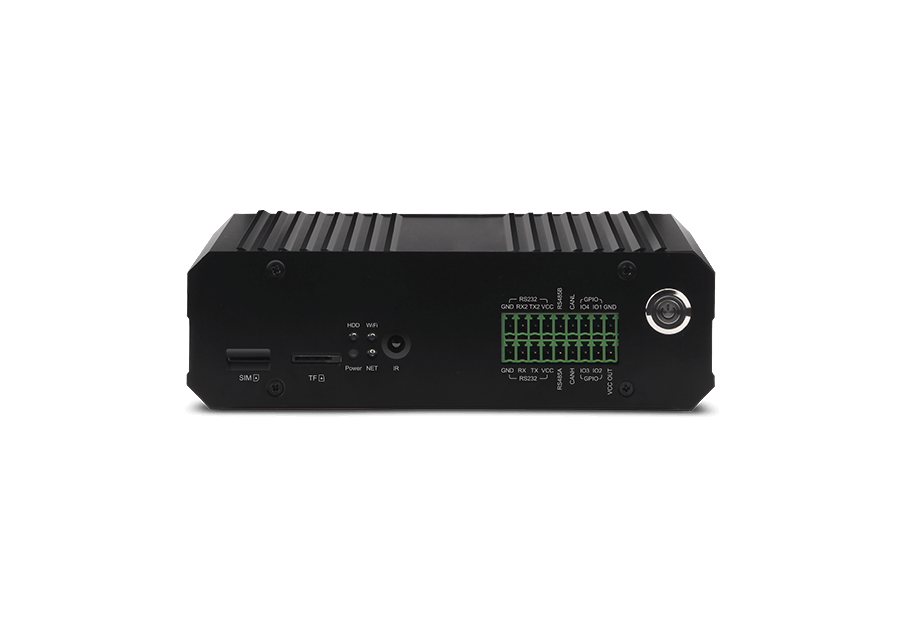

APC3588 is an industrial-grade embedded computer solution featuring Rockchip 3588 Octa-Core processor, versatile connectivity, and support for various operating systems. With rich I/O ports and integrated 4G/5G, it revolutionizes industrial landscapes.
APC3588 adopts Rockchip high-end 8nm flagship chip RK3588, supports up to 32GB of memory, 8K video encoding/decoding, and a range of interfaces, including Gigabit Ethernet, WiFi6, 5G/4G expansion. and various video inputs/outputs. With a wide temperature range of -40~85°C, and compatibility with Android, Debian, Buildroot, RTLinux, it suits applications in industrial control, edge computing, AI, cloud computing, blockchain, smart home, smart security, and VR/AR.

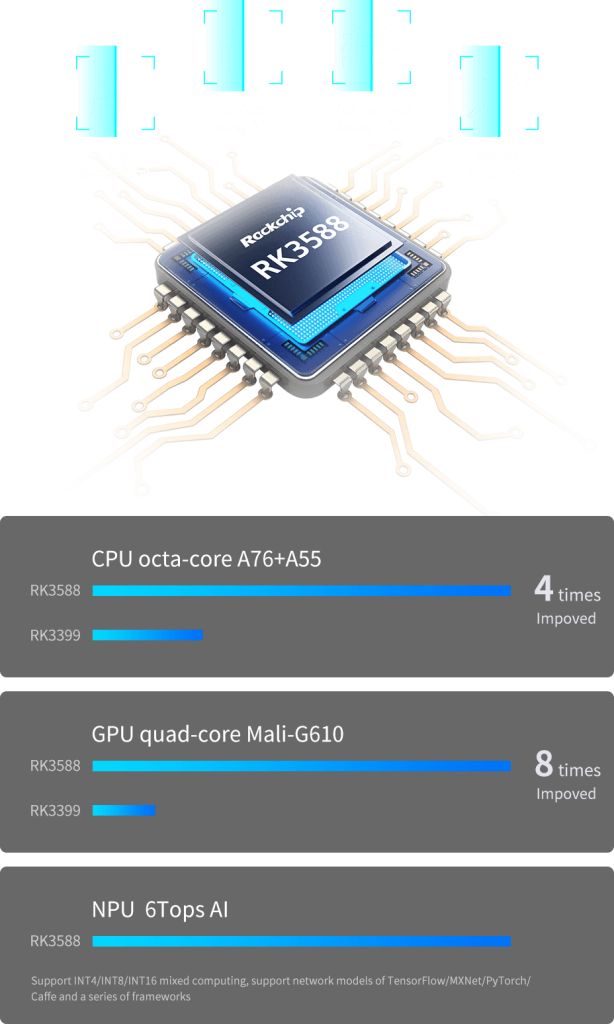

8nm RK3588 chip, ARM Mali-G610 GPU, and 6TOPs AI NPU for exceptional performance in AI applications.
Experience 8K@60fps decoding, 8K@30fps encoding, and multi-screen display through HDMI®2.1 and DP interfaces, delivering immersive visuals.

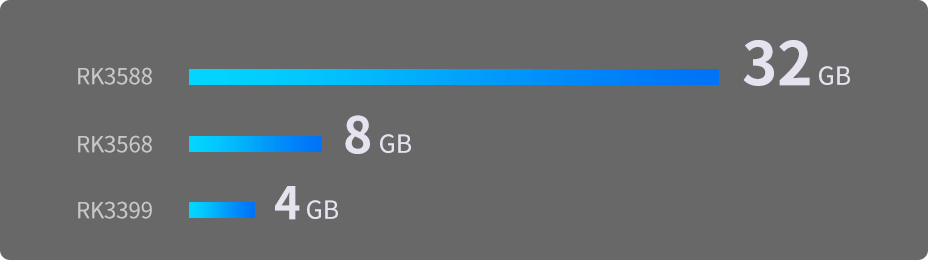

APC3588 supports up to 32GB RAM, onboard M.2 PCIe 2.0, and expandable SSD storage for large memory and storage applications.

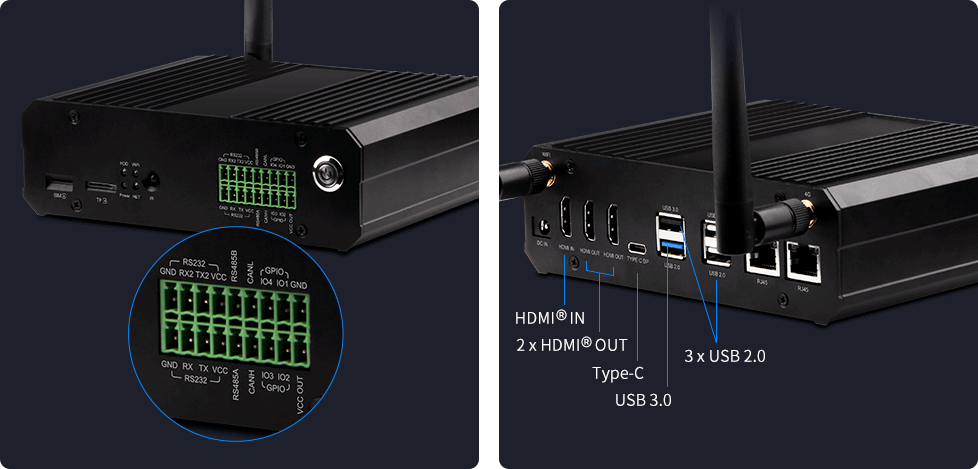

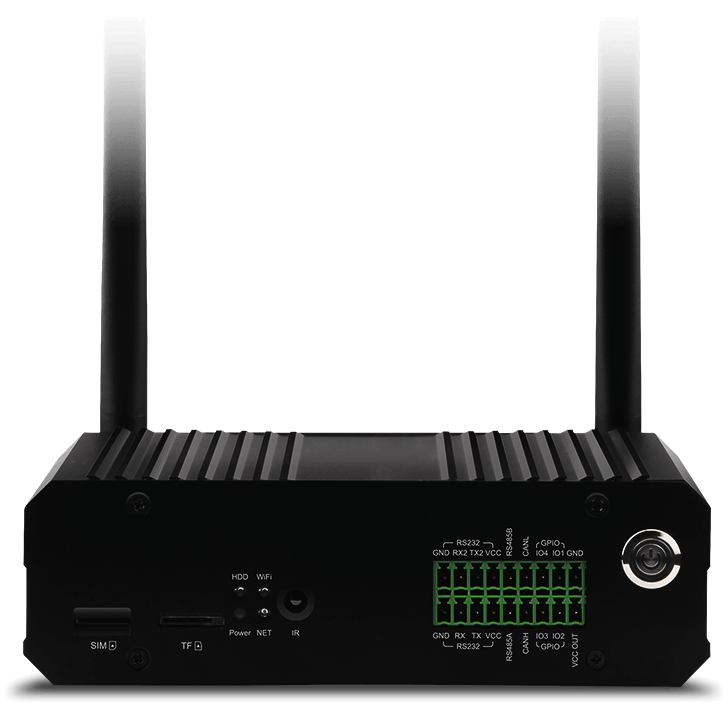

Rich interface options, including USB 3.0, HDMI®2.1, DP, GPIO, RS485, RS232, TTL, and CAN, it offers unparalleled peripheral connectivity for diverse industrial applications.
Put a product interface description diagram
APC3588 excels in network communication, featuring a 1000M Ethernet interface, 2.4GHz/5GHz dual-frequency WiFi, and reserved slots for 5G/4G LTE expansion. This enables uninterrupted access, accommodating various indoor and outdoor network requirements.

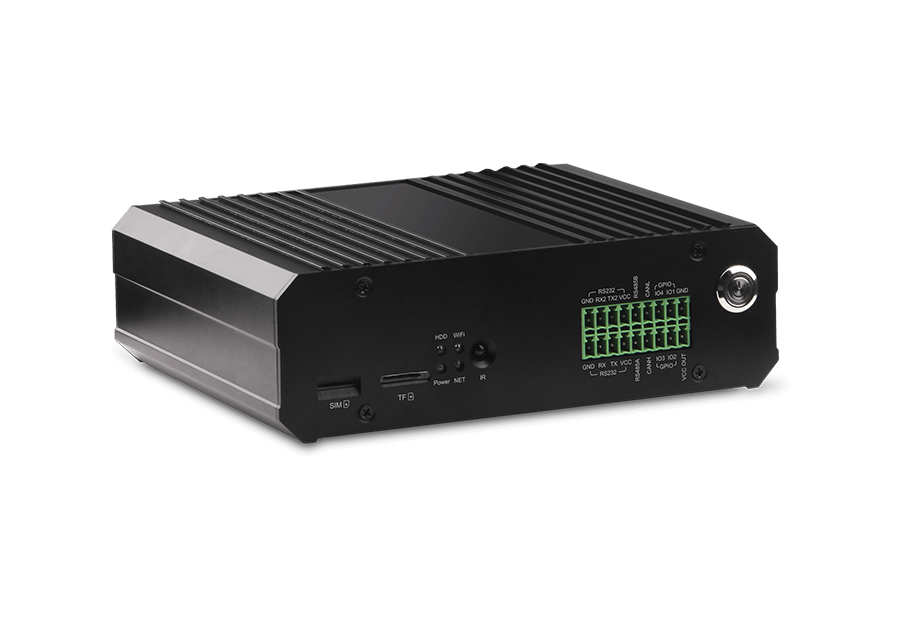

Solid aluminum alloy construction, fanless design, and -40~85°C operating temperature for reliable performance in harsh environments.
APC3588 supports various operating systems: including Android 12.0, Debian11, Buildroot, RTLinux kernel. Additionally, it allows for deep customization and service layer development based on the Linux system kernel, enabling remote device upgrades and management for improved operational convenience and efficiency.
Ensures a 10+ years ultra-long life cycle protection. Beyond hardware, we commit to traceable Linux Kernel maintenance, ensuring stability throughout the extended lifespan of the product.

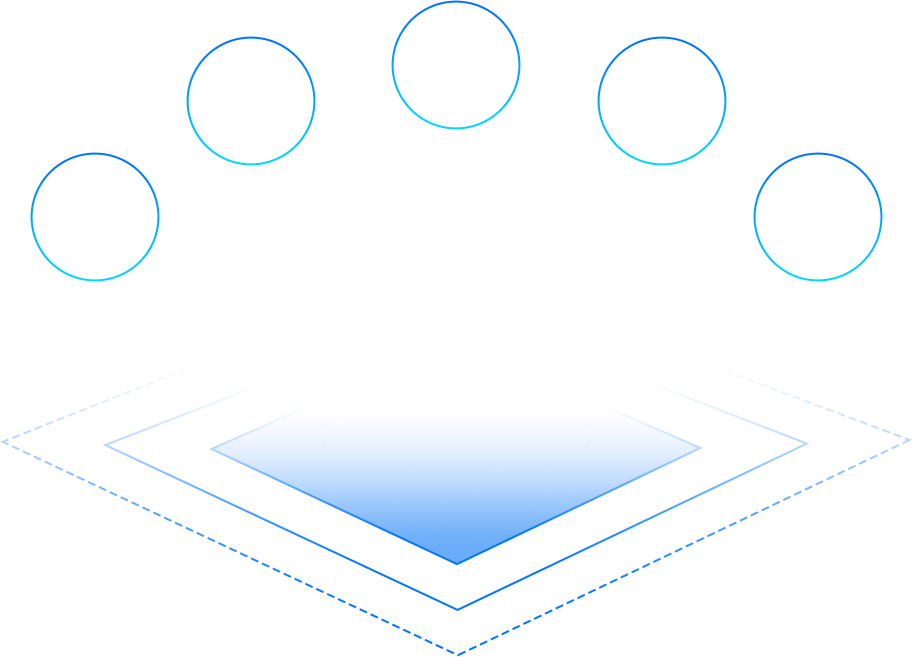

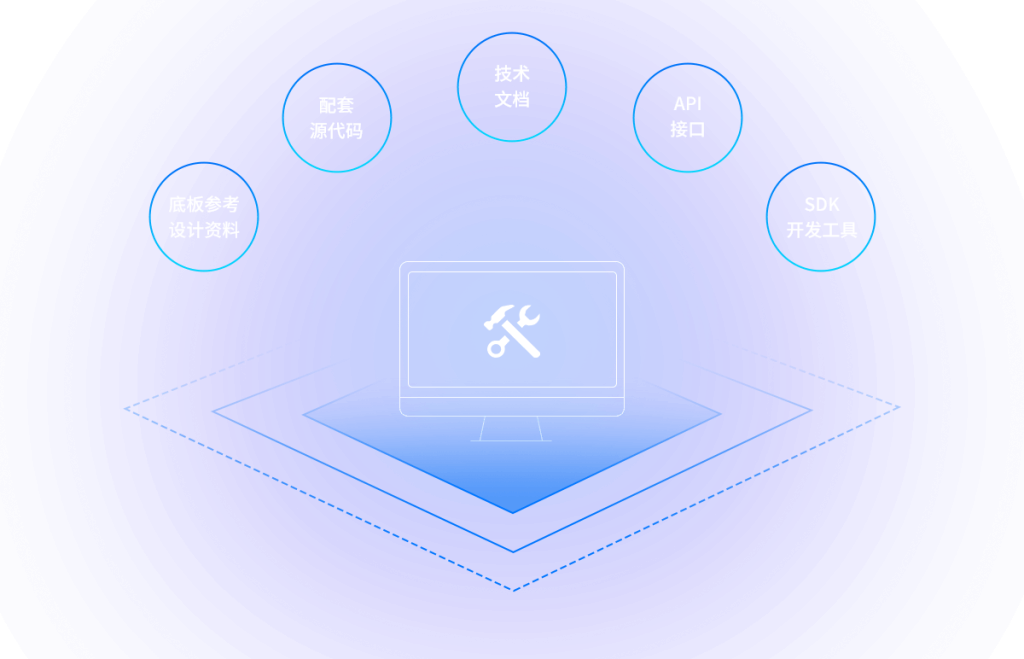

Accelerate your projects with comprehensive technical data, including baseboard reference design, source code, technical documents, API interfaces, and SDK development tools. This empowers efficient secondary development, enabling you to create bespoke solutions effortlessly.

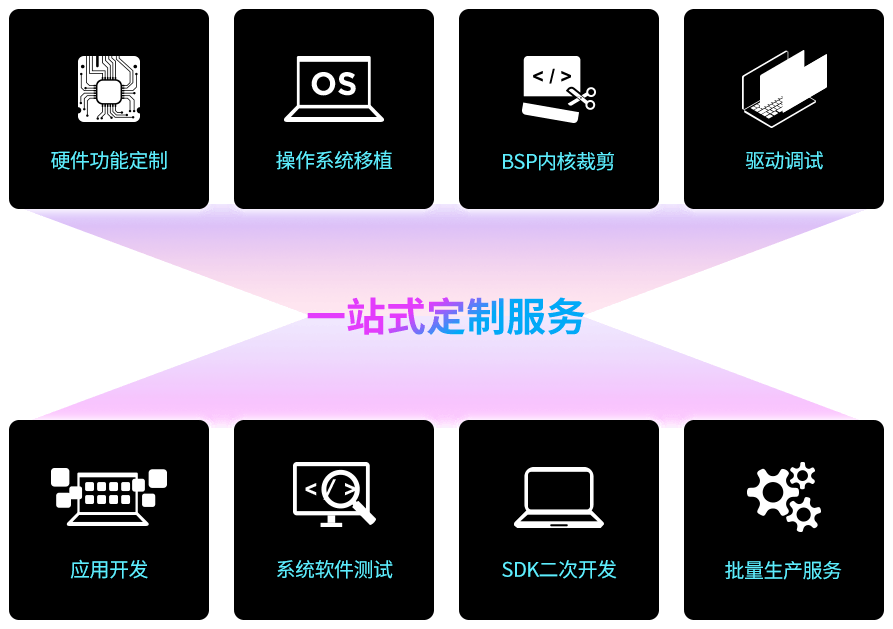

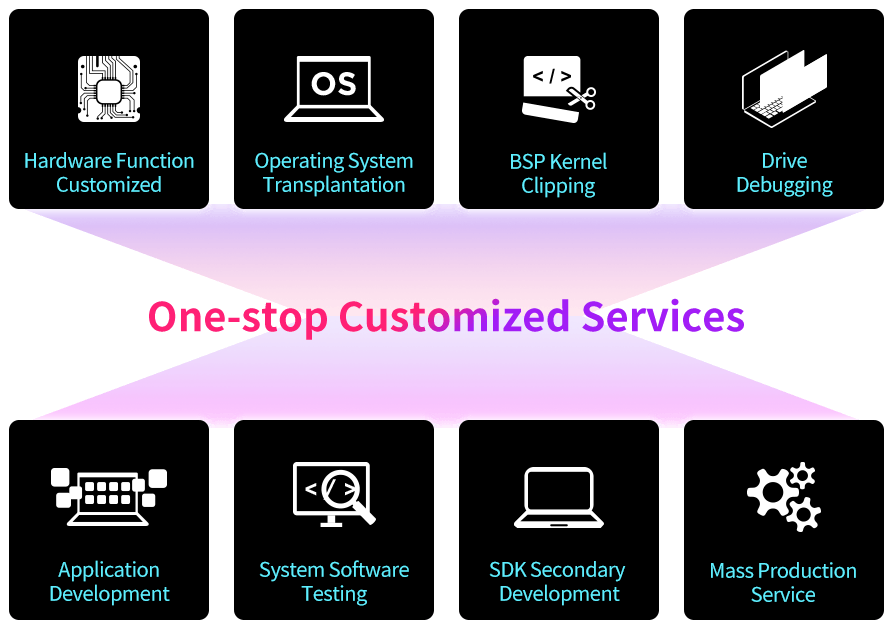

With 25 years of ARM R&D expertise and strong partner resources, Geniatech offers tailored hardware design and one-stop services, including OS porting across SoC platforms, BSP kernel cutting, driver debugging, system testing, scenario-based application software development and SDK/API. Our in-house production facility ensures improved product quality and an expedited cycle from product selection, R&D project, small trial production to mass production and delivery, helping clients seize market opportunities swiftly.
Widely used in edge computing, cloud computing, artificial intelligence, VR/AR, blockchain, intelligent security, industrial control, smart home and other fields.
| CPU | Rockchip RK3588, Quad-core Cortex-A76 and Quad-core Cortex-A55 |
| GPU | Mali-G610 MP4 (4x256KB L2 Cache) |
| RAM | 4GB LPDDR4(8/16/32GB optional) |
| ROM | 32GB EMMC(64GB/128GB/256GB optional) |
| Network | 2x1000M Ethernet / 2×2 MIMO 2.4GHz/5GHz 802.11 a/b/g/n/ac/ax / BT5.2 or above |
| I/O | USB3.0 x 1/USB2.0 x 3/HDMI OUT x 2/HDMI IN x 1/SIM Card Slot/TF Slot/RS-232 x 2/RS-485/CAN/GPIO x 4/IR IN |
| OS | Android 13/Debian 11/Ubuntu |
| Power | Adapter 12V/2A |
| Appearance | 160 mm *125.5 mm *48mm |
| Environment | Operation temperature: commercial (0°C~ +60℃)/ Extended commercial (-40 °C ~ 85°C), 10%≤Relative humidity≤90% |
