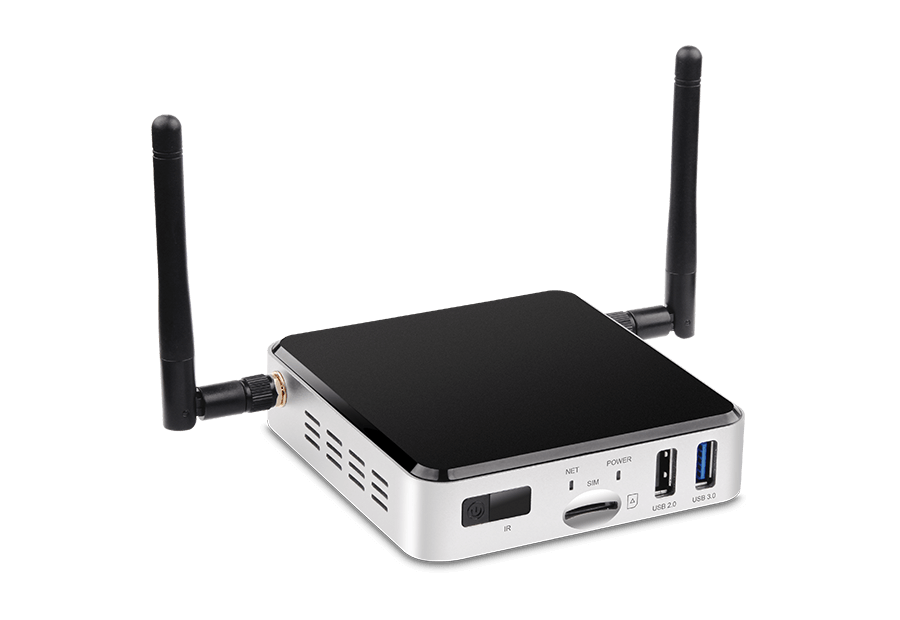

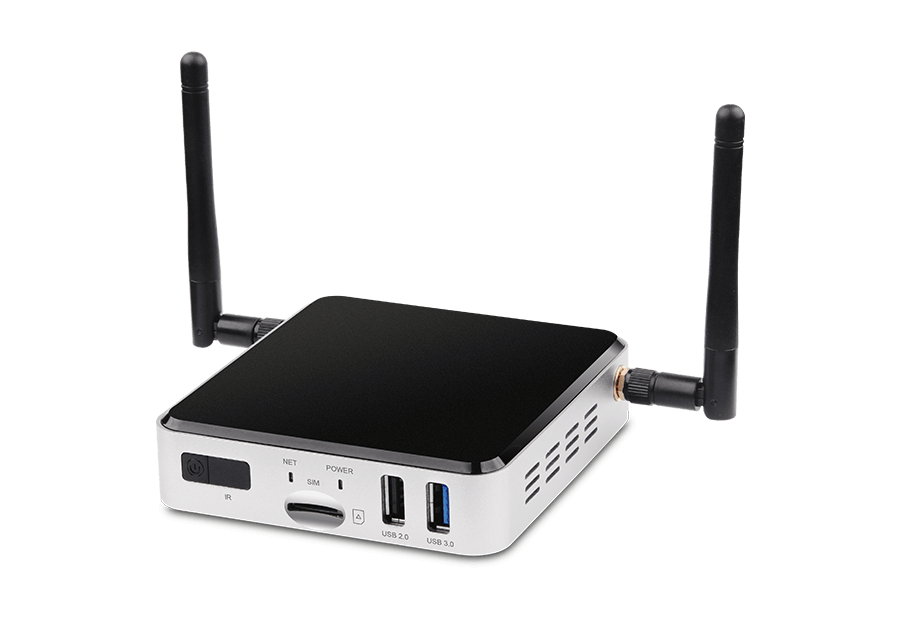

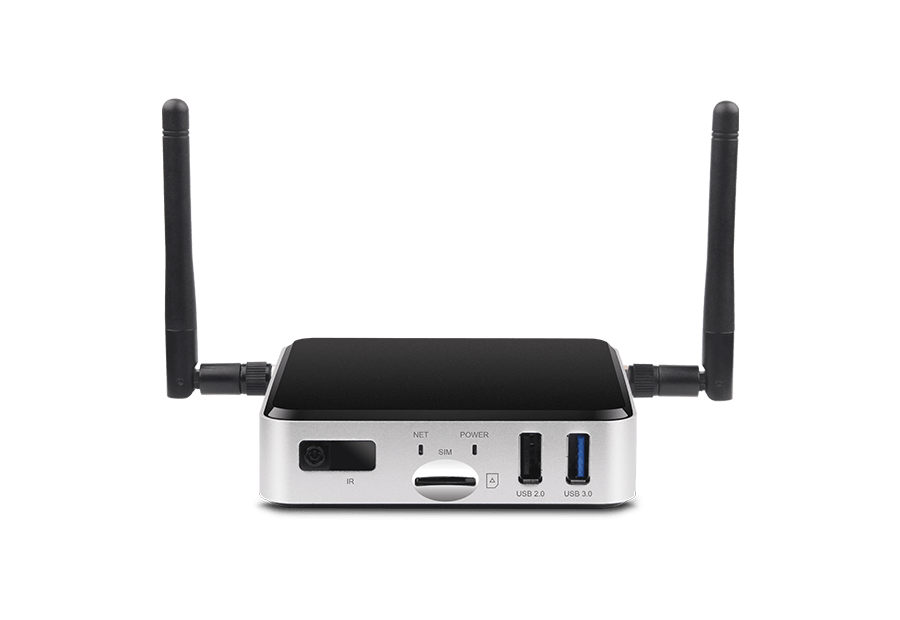

APC390K Android mini PC box is a robust and compact computing solution featuring the Rockchip RK3566 Quad-core processor, designed to elevate your digital experience!

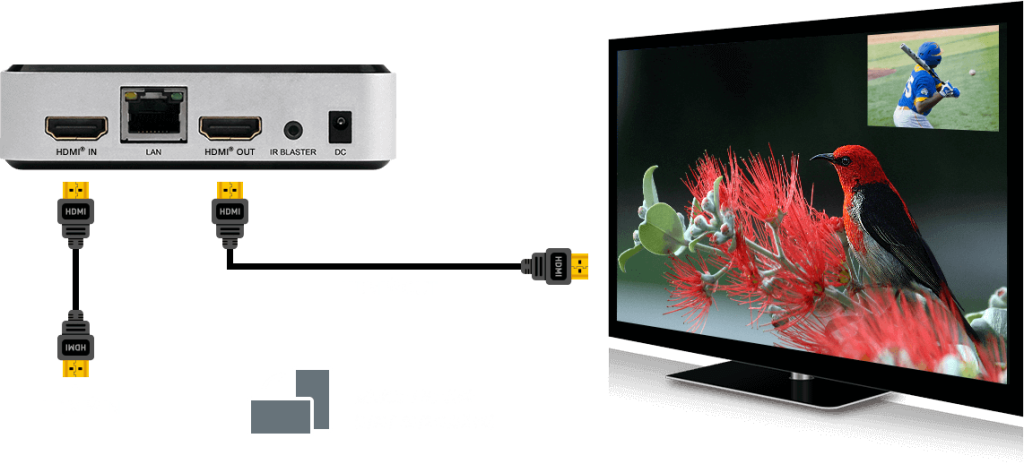

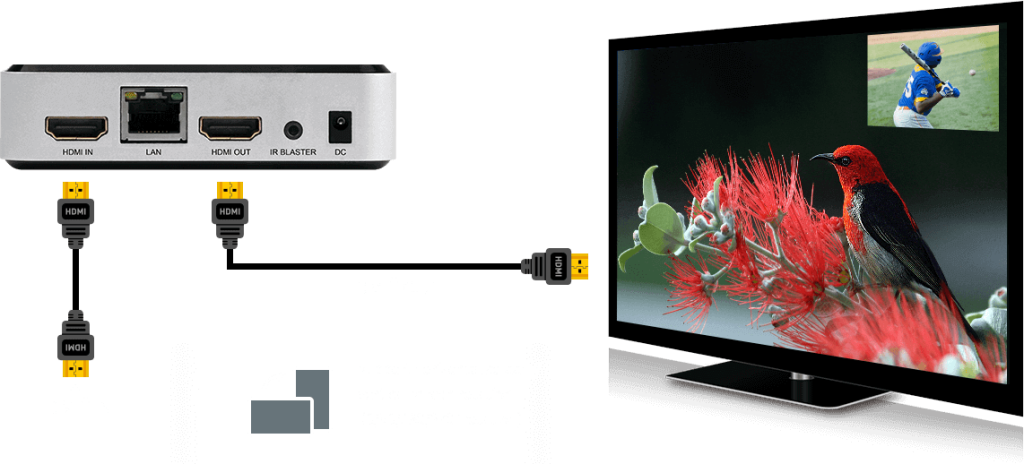

APC390K has a 4KP60 HDMI®output interface and a 4KP30 HDMI®input interface, which supports HDMI® standard protocol devices. Dual-screen content can be switched in full screen or displayed in picture-in-picture (PIP)，in addition, both HDMI® input and output support encrypted video playback (HDCP 1.4/2.2 KEY);
Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0

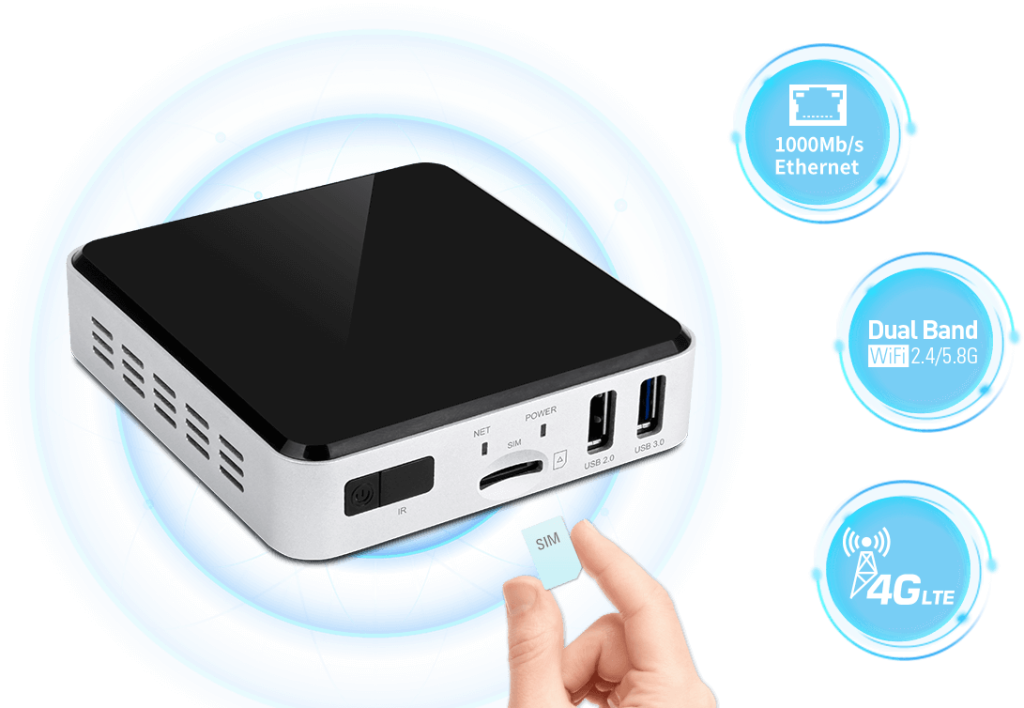

Support Gigabit Ethernet, WiFi (2.4G/5.8G) and LTE (4G) multiple flexible communication modes

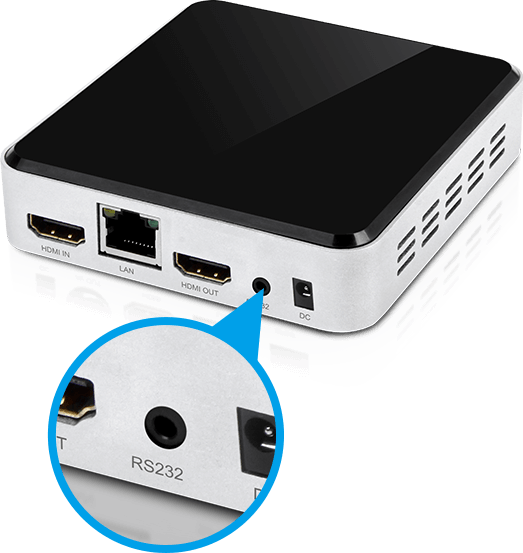

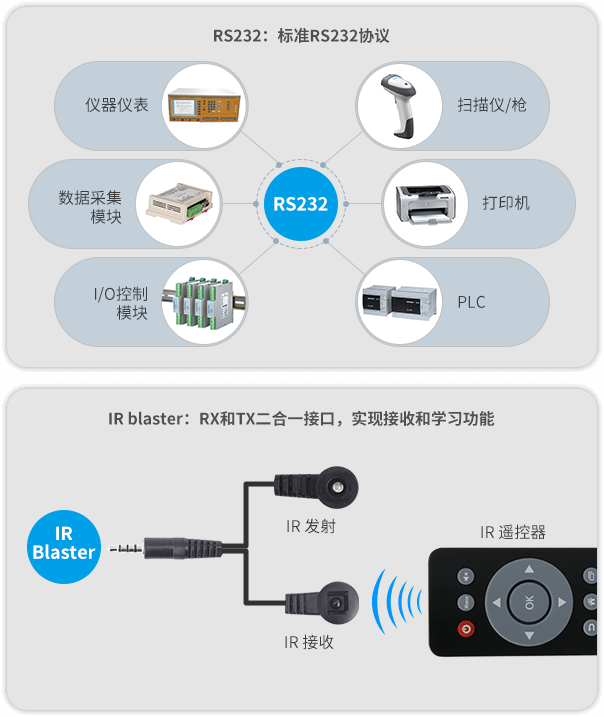

RS232 / IR blaster function optional
CPU/memory/storage/WiFi+BT
Customers can compile sensitive requirements by themselves
Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)
Easy to realize customer’s customized requirements, safe, fast and low-cost.
Commercial display, Digital signage, Smart home, Video conference, Smart medical…
| CHIPSET | Rockchip RK3566 | |||
| MARKET AREA | Global | |||
| OSD LANGUAGE | English/Chinese (multi language OSD) | |||
|
Processor
|

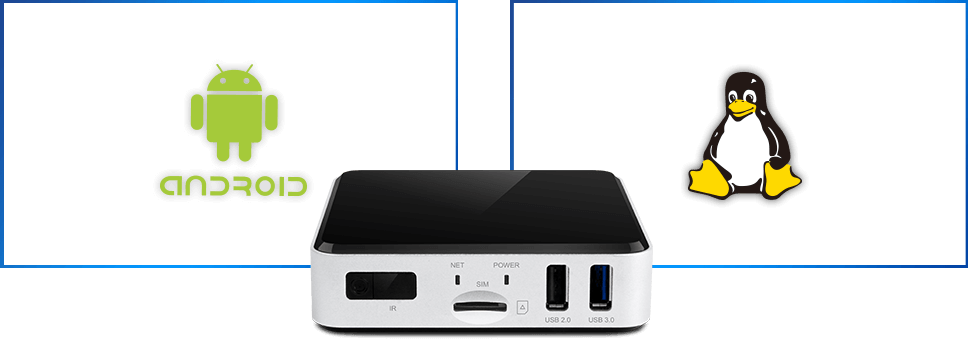

OS | Android 11.0 / Linux Debian | ||
| CPU | Quad-core ARM Cortex-A55 CPU @1.8GHz | |||
| GPU | Mali-G52 GPU, OpenGL ES 1.1/2.0/3.2,OpenCL 2.0 and Vulkan 1.1 | |||
| NPU | supports INT8/INT16/FP16/BFP16 MAC hybrid operation | |||
| LPDDR4 | 2GB (4GB/8GB Optional) | |||
| EMMC FLASH | 8GB（8~128G Optional） | |||
| NETWORK | Ethernet | RJ45, 10/100/1000M | ||
| WiFi | IEEE 802.11a/b/g/n/ac,2X2 MIMO | |||
| Bluetooth | BT4.1（BT5.0 Optional） | |||
| 3G/4G | 1* Mini PCIE +1*Micro SIM(Optional） | |||
| WatchDog&RTC | support | |||
| GTIOT | Support Z-WAVE / ZIGBEE / LoRa / LTE / GPS / BT5.0(Optional) | |||

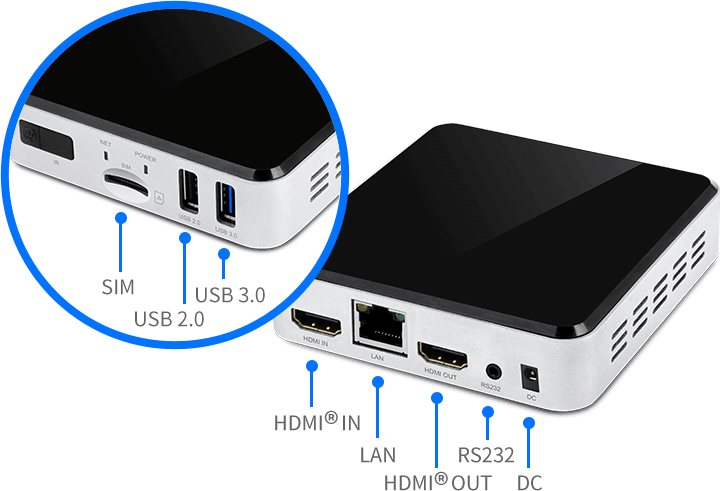

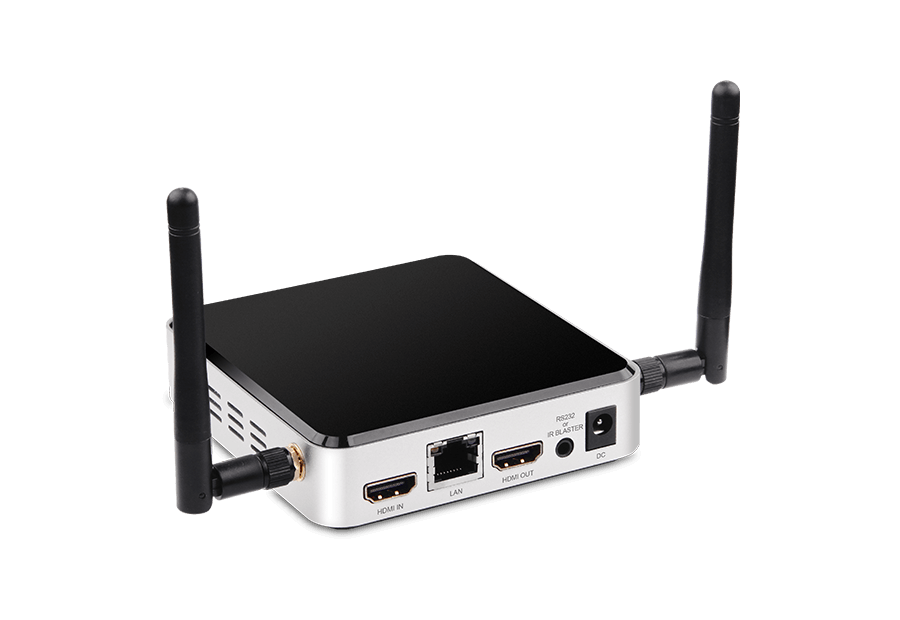

| Interface | HDMI IN | 1 * HDMI IN | ||
| HDMI OUT | 1 * HDMI OUT | |||
| USB 3.0 | 1 * USB 3.0 | |||
| USB 2.0 | 1 * USB 2.0(OTG) | |||
| LAN | 1 * RJ45(LED) | |||
| SIM | 1 * Mini pcie LTE(built-in) + 1 * Micro SIM | |||
| RS232 | 1 * 3.5mm jack （Choose one of two, default RS232） | |||
| IR blaster | ||||
| DC IN | 1 * DC IN | |||
| Power | 1 * Power Key | |||
| Adapter | DC12V / 1.5A (Φ5.5mm / φ2.1mm) | |||
| Accessory | 1 * Adapter (AC 100 ～ 240V 50/60Hz) | |||
| Size(mm) | 106*100*25 | |||
| Weight(g) | 258 | |||
| Customizable GUI | We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from. | |||
