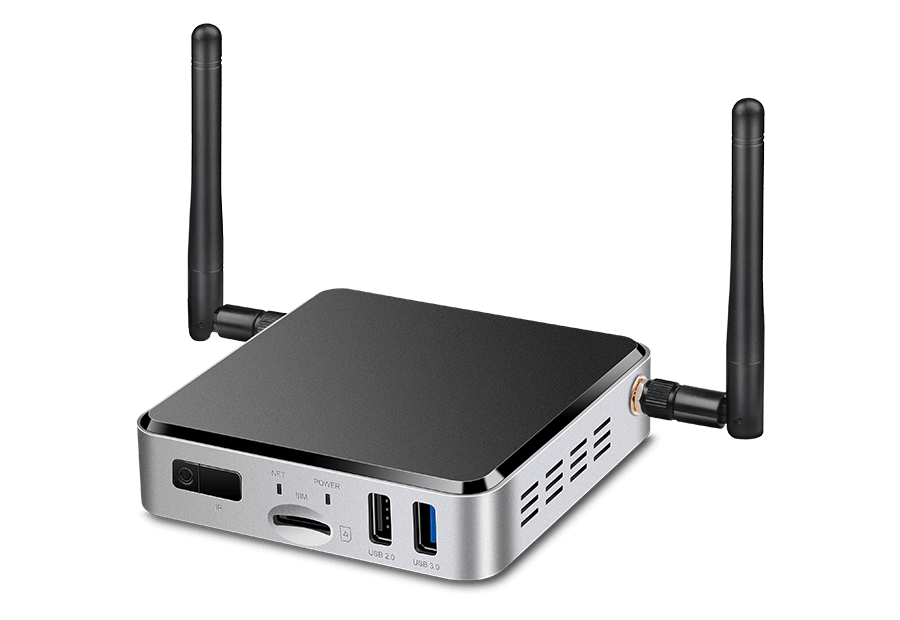

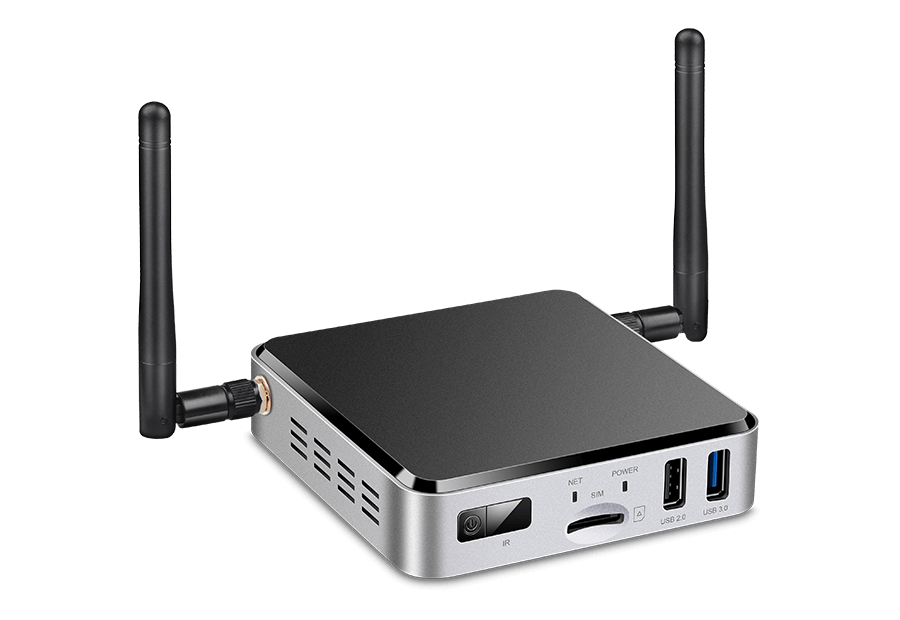

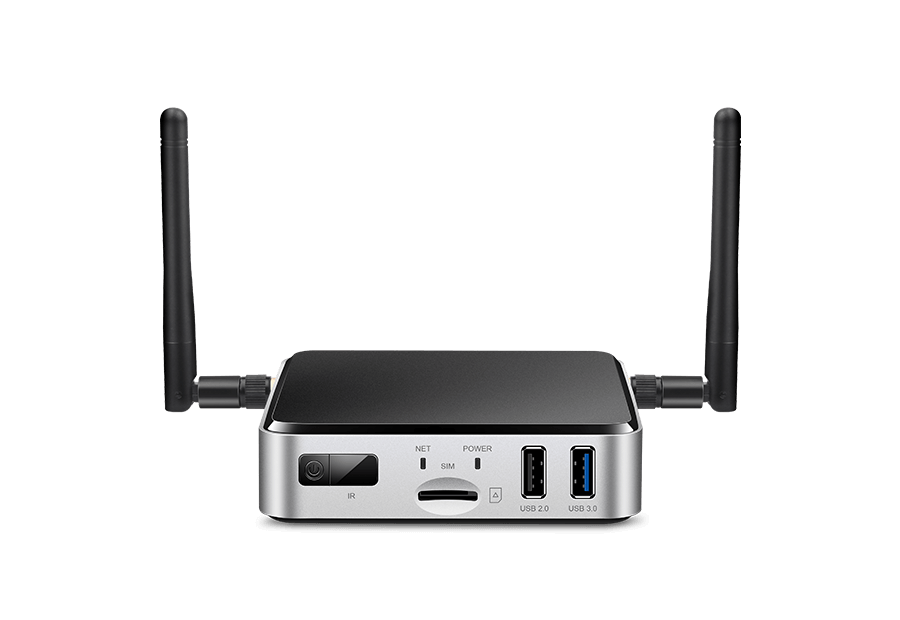

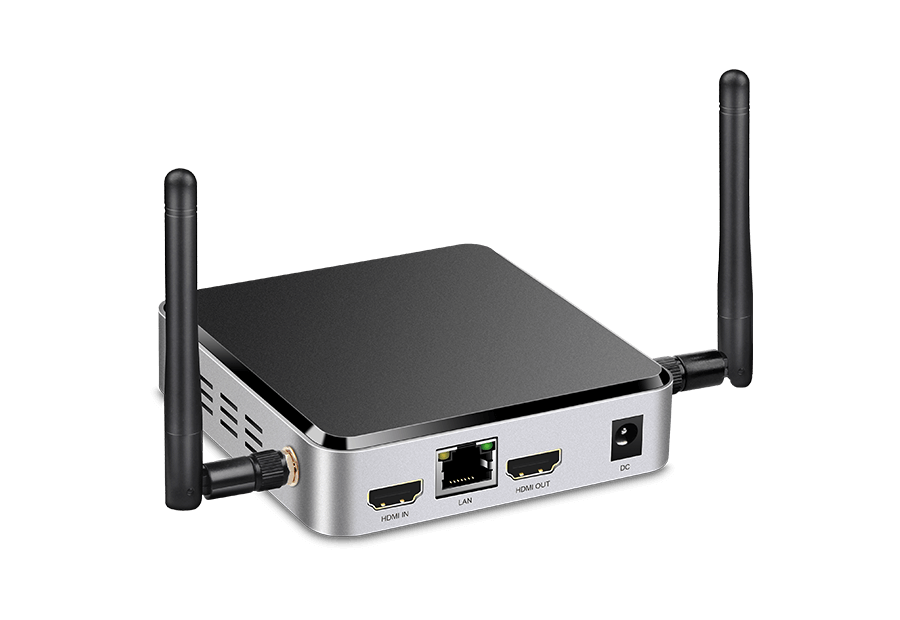

Geniatech APC680 is a cutting-edge AI-powered TV box powered by Synaptics VS680 chip, delivering exceptional performance, versatility, and connectivity. Designed for modern multimedia and AI-driven use cases, it’s the perfect solution for smart entertainment and edge computing.
| CHIPSET | VS680 | |||
| OSD LANGUAGE | English/Chinese (multi language OSD) | |||
|
Processor
|
OS | Android 12/Linux | ||
| CPU | Quad-Core Arm® Cortex® A73 processor with SecurityExtensions | |||
| GPU | ImaginationTM PowerVRTMSeries9XE GE9920 OpenGL® ESTM 1.1/2.0/3.0/3.1/3.2/DirectFB/OpenCLrM 1.2 / Vulkan® 1.1 | |||
| NPU | supports up to 6.75 TOPs(INT8)/1.69 TOPs(INT16) learning applications operation | |||
| LPDDR4 | Up to 4GB Optional | |||
| EMMC FLASH | 16GB（8~128G Optional） | |||
| NETWORK | Ethernet | RJ45, 10/100/1000M | ||
| WiFi | IEEE 802.11a/b/g/n/ac/ax,2X2 MIMO | |||
| Bluetooth | BT5.0 | |||
| 3G/4G | 1* Mini PCIE +1*Micro SIM(Optional） | |||
| WatchDog&RTC | support | |||
| Interface | HDMI IN | 1 * HDMI IN | ||
| HDMI OUT | 1 * HDMI OUT | |||
| USB 3.0 | 1 * USB 3.0 | |||
| USB 2.0 | 1 * USB 2.0(OTG) | |||
| LAN | 1 * RJ45(LED) | |||
| SIM | 1 * Mini pcie LTE(built-in) + 1 * Micro SIM | |||
| IR | 1*IR | |||
| DC IN | 1 * DC IN | |||
| Power | 1 * Power Key | |||
| Adapter | DC12V / 1.5A (Φ5.5mm / φ2.1mm) | |||
| Accessory | 1 * Adapter (AC 100 ～ 240V 50/60Hz) | |||
| Size(mm) | 106*100*25 | |||
| Customizable GUI | We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from. | |||
