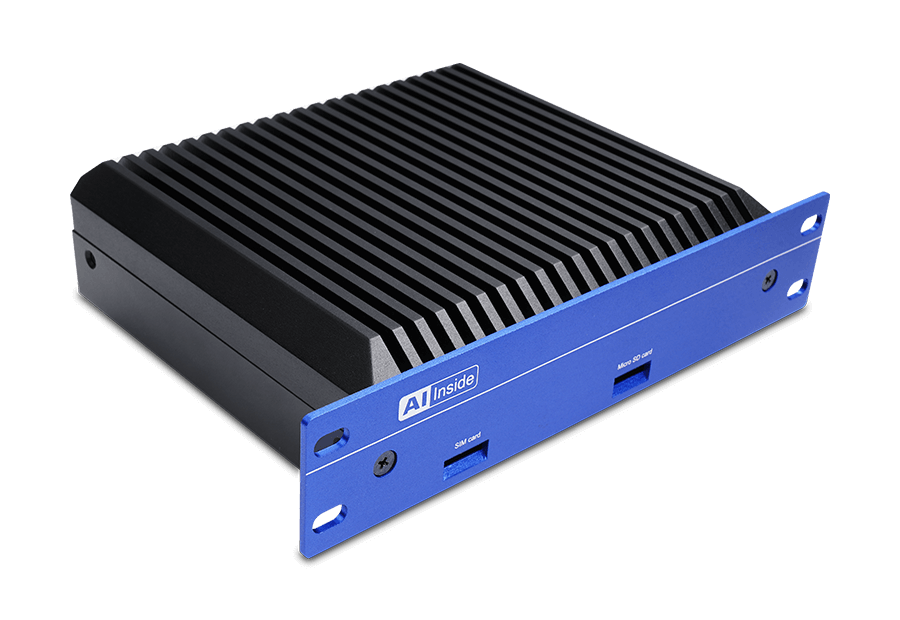

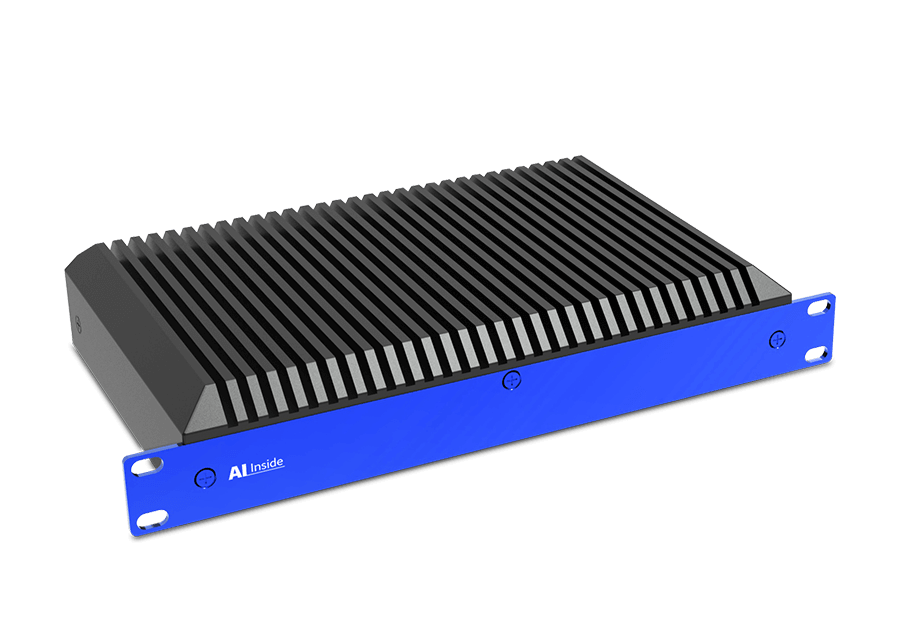

Geniatech’s APC880 is a powerful edge AI computing platform, combining the NXP i.MX8M Plus SoC with the Kinara Ara-2 AI accelerator module. Designed with industrial-grade durability and flexible AI expansion via a board-to-board connector, it supports server-free inference of 7B large language models (LLMs).
With support for complex neural networks, 4K video decoding, comprehensive I/O, and a fanless design, the APC880 delivers top-tier performance for smart factories, transportation, and industrial vision systems.
| CHIPSET | NXP iMX8M Plus+Kinara Ara-2 | ||
| MARKET AREA | Global | ||
|
Core parameters
|
OS | Yocto(Linux) | |
| SoC | 4 x Cortex-A53, up to 1.8GHz&1 x Cortex-M7, up to 800MHz | ||
| GPU | GC7000UL with OpenCL and Vulkan support
Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan |
||
| NPU
|
iMX8M Plus | 2.3 TOPS Neural Network performanc | |
| Kinara Ara-2 | 40TOPS Neural Network performanc
TensorFlow,PyTorch,ONNX AI Model |
||
| Memory
|
iMX8M Plus | 4GB（1G-8G optional） | |
| Kinara Ara-2 | 16GB | ||
| Storage | 32GB eMMC5.1(8-128GB optional) | ||

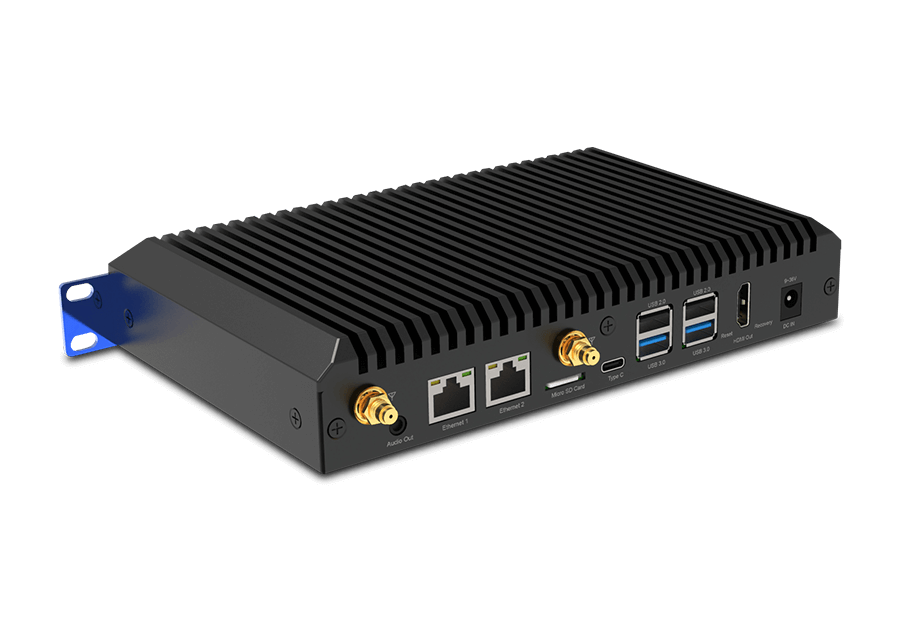

| I/O interface | Network Interface | 2 x Giga Ethernet | |
| Wifi2.4G+5G +BT 5.0 | |||
| Video Interface | 1 x HDMI output
1 x LVDS Screen Connector 2x15P (J24) 1 x MIPI DSI connector for MIPI Panel (J33) 1 x MIPI CSI connector for MIPI Camera 2 lanes (J3) 1 x MIPI CSI connector for MIPI Camera 4 lanes (J1) |
||
| USB interface | 2 x USB 2.0 Type A (J21 J23)
2 x USB 3.0 Type A (J21 J23) 1 x USB Type C (J18) 2 x USB2.0 4P Header (J13 J14) |
||
| PCIe interface | 1 x B2B Connector for AI module 60Pin (J9)
1 x B2B Connector for AI module power supply 30Pin (J5) 1 x M.2 Key M for M.2 AI module(J7) |
||
| SD Card | 1 x Micro SD card slot | ||
| SIM Card | 1 x Micro SIM card slot(J34) | ||
| Extended interface | 1 x M.2 Key B for 4G/5G (J26)
1 x Mini PCIe for 4G (J27) |
||
| Audio interface | 1 x Speaker (Left/Right Channel) 4P Header (J2)
1 x 3.5 Headphone seat(J6) 1 x Mic 2P Header (MIC1) |
||
| Communication interface | 1 x RS232 4P Header (J11)
1 x RS485 4P Header (J12) 2 x CAN 4P Header (J31 & J32) 1 x A53 Core Debug connector (UART) (J4) |
||
| Other interfaces | 1 x I2C Touch Screen connector (J30)
1 x RTC-Battery（JBAT1） 1 x Expended Connector 2×20 P Header (J20) 1 x FAN 4P Header with FAN PWM (J16) 1 x LCD Backlight 6P Header (J28) 1 x LVDS Panel Power Switch (j22) 1 x SW1 for System boot mode switch 1 x System upgrade key 1 x Reset Key 1 x DC Jack |
||
| Power supply input | DC 12V /3A | ||
| Size | 238*130*40mm | ||
| Weight | 1300g | ||
