Compact Edge AI Mini PC with NXP & Kinara Ara-2

APC880 Mini

Compact Edge AI Mini PC with NXP & Kinara Ara-2

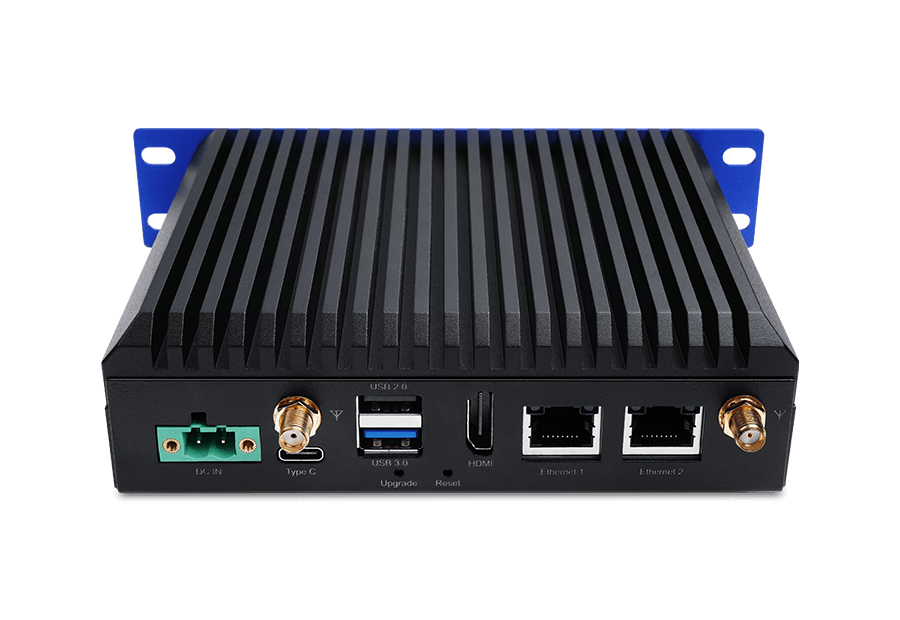

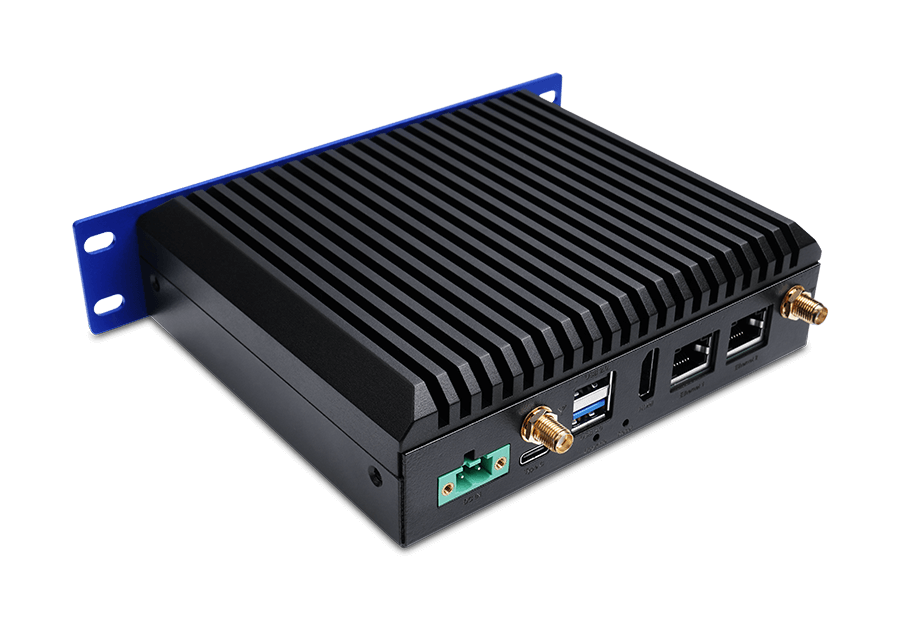

Geniatech APC880 Mini is a compact and cost-effective Edge AI mini PC, integrating NXP’s i.MX8M Plus SoC with an onboard Kinara Ara-2 AI accelerator, delivering a total of 42.3 TOPS AI performance.
Designed for space-constrained environments, it combines 4K video decoding, multi-protocol industrial I/O, and rugged connectivity. Ideal for AI vision, embedded systems, and smart edge devices.

Onboard AI Acceleration: 40 TOPS Kinara Ara-2 + 2.3 TOPS i.MX8M Plus
4K Multimedia: Quad Cortex-A53 + Cortex-M7 with H.265/H.264/VP9 decoding
Versatile I/O: Dual GbE, USB, HDMI^®, MIPI-CSI/DSI, 2×CAN, RS232/485, Mini PCIe (4G/5G ready)
AI Frameworks: Supports TensorFlow, PyTorch, ONNX for GenAI models
Rugged Build: -40°C to 85°C fanless design for harsh industrial use
Flexible Storage: 16GB LPDDR4X, microSD, and SIM card support
Compact Design: Ideal for embedded and space-limited edge AI applications

CHIPSET	NXP iMX8M Plus+Kinara Ara-2
MARKET AREA	Global
Core parameters	OS	Yocto(Linux)
	SoC	4 x Cortex-A53, up to 1.8GHz&1 x Cortex-M7, up to 800MHz
	GPU	GC7000UL with OpenCL and Vulkan support Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan
	NPU	iMX8M Plus	2.3 TOPS Neural Network performance
		Kinara Ara-2	40TOPS Neural Network performance TensorFlow,PyTorch,ONNX AI Model
	Memory	iMX8M Plus	4GB（1G-8G optional）
		Kinara Ara-2	16GB
	Storage	32GB eMMC5.1(8-128GB optional)
I/O interface	Network Interface	2 x Giga Ethernet
		Wifi2.4G+5G +BT 5.0
	Video Interface	1 x HDMI output 1 x LVDS Screen Connector 2x15P 1 x MIPI DSI connector for MIPI Panel 1 x MIPI CSI connector for MIPI Camera 4 lanes 1 x MIPI CSI connector for MIPI Camera 4 lanes
	USB interface	1 x USB 2.0 Type A 1 x USB 3.0 Type A 1 x USB Type C 2 x USB2.0 4P Header
	PCIe interface	1 x M.2 Key M for M.2 AI module（It cannot be used simultaneously with onboard AI chips）
	SD Card	1 x Micro SD card slot
	SIM Card	1 x Micro SIM card slot
	Extended interface	1 x Mini PCIe for 4G
	Communication interface	2 x RS232/RS485 1 x CAN 2 x DI 2 x DO
	Other interfaces	1 x A53 Core Debug connector (UART) 1 x I2C Touch Screen connector 1 x RTC-Battery 1 x Expended Connector 2x26P Header 1 x FAN 4P Header with FAN PWM 1 x LCD Backlight 6P Header 1 x LVDS Panel Power Switch 1 x System boot mode switch 1 x System upgrade key 1 x Reset Key 1 x DC Jack Built-in fan cooling
	Power supply input	DC 12V /3A
Size	172123.747.5mm
Weight	1050g
