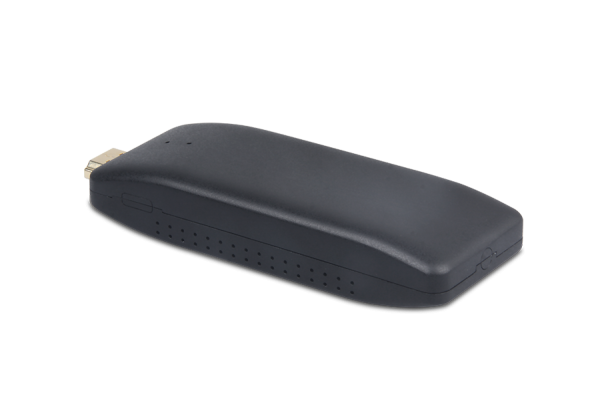

ATV195Y4

4K AV1 Android TV Dongle (Amlogic S905Y4)

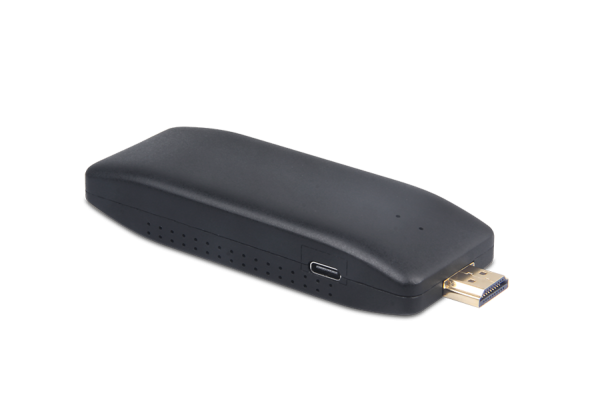

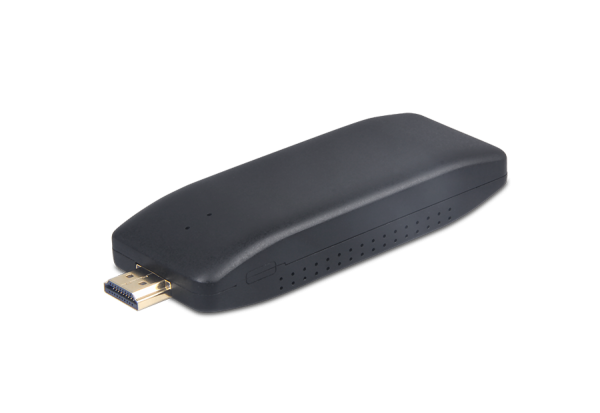

Geniatech ATV195Y4 is an ultra-compact 4K Android dongle that delivers exceptional viewing experience powered by Amlogic S905Y4. It features a small size, low power consumption, and a popular Type-C interface with strong compatibility. With a direct plug-in HDMI® out, it is perfect for plugging directly into your HDMI® TV. ATV195Y4 offers good heat dissipation and support for personalized customization, while its strong WIFI+BT and flexible control allow for seamless viewing from any angle, making the ATV195Y4 the ultimate choice for businesses looking to provide their customers with an exceptional home entertainment experience.

  • Quad core ARM Cortex-A35 CPU @0GHz, ARM G31 MP2 GPU
  • support Android 11.0 OS
  • 2GB RAM, 8GB eMMc
  • 11.a/b/g/n/ac(2.4G&5.0G optional)
  • 0(4.2 optional)
  • Support Bluetooth remote control
  • can be used for rich multimedia activities such as live webcasts and on-demand videos.
Contact Sales

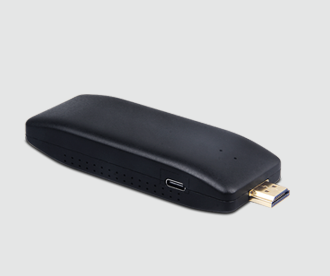

Small size and convenient interface
Low power consumption and strong performance
Good heat dissipation
Support personalized customization

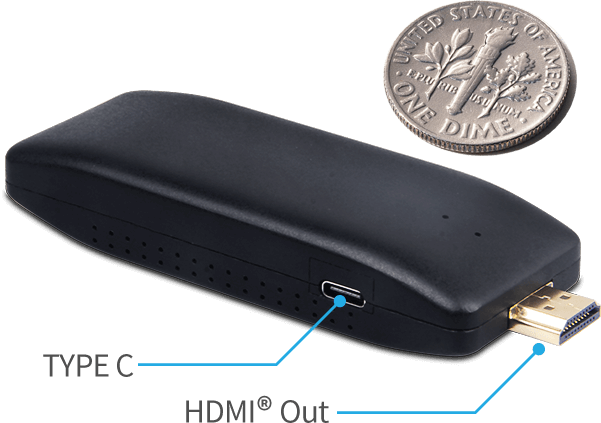

Small Size and Convenient Interface

  • Smallest 4K HDMI® dongle in the industry
  • Popular TYPE C interface, strong compatibility
  • Direct plug-in HDMI®out male connector, plug and play

Strong Performance

Adopt ultra-low power Amlogic S905Y4 platform;The four-sided honeycomb heat dissipation hole design allows the heat to be dissipated in time, which is more conducive to performance improvement in accordance with the principle of thermodynamics, and low temperature rise for long-term high frequency operation;

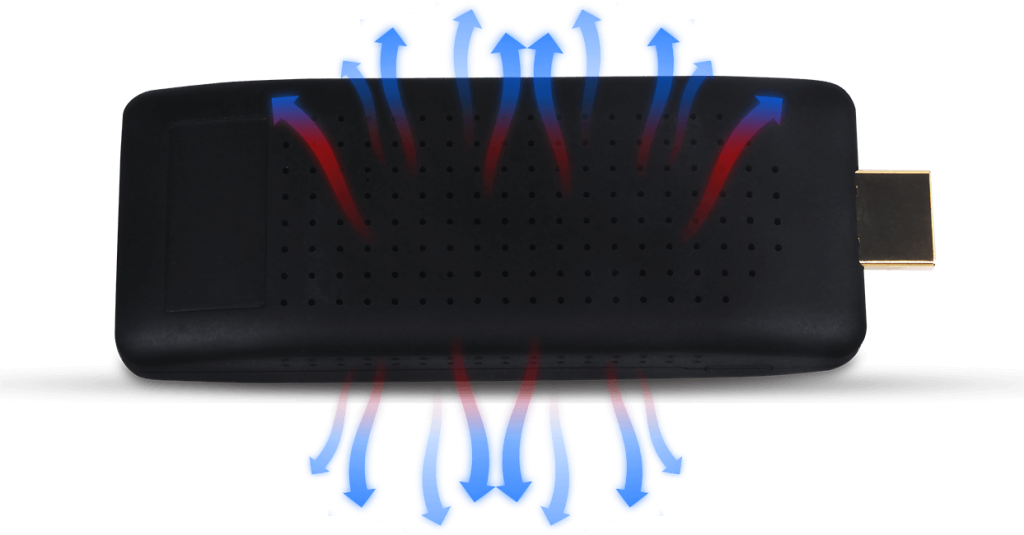

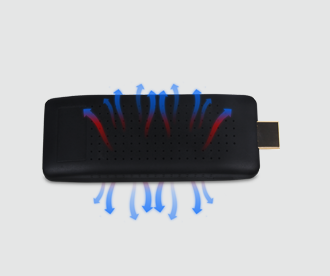

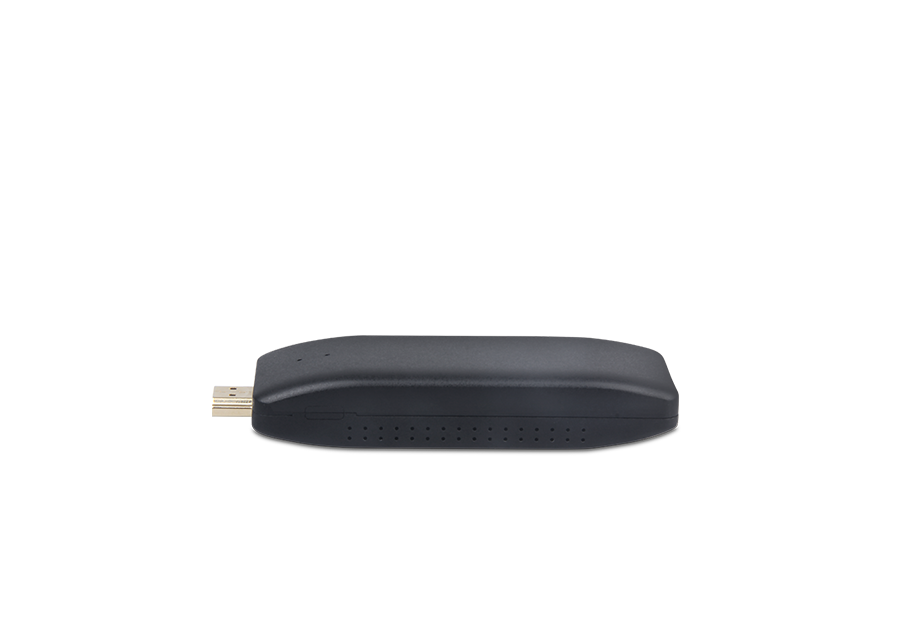

Good Heat Dissipation

The three-sided honeycomb heat dissipation hole design conforms to the principle of thermodynamics and is more conducive to performance improvement. Long-term high-frequency operation and low temperature rise allow the heat to be dissipated in time, which is one step ahead of the design

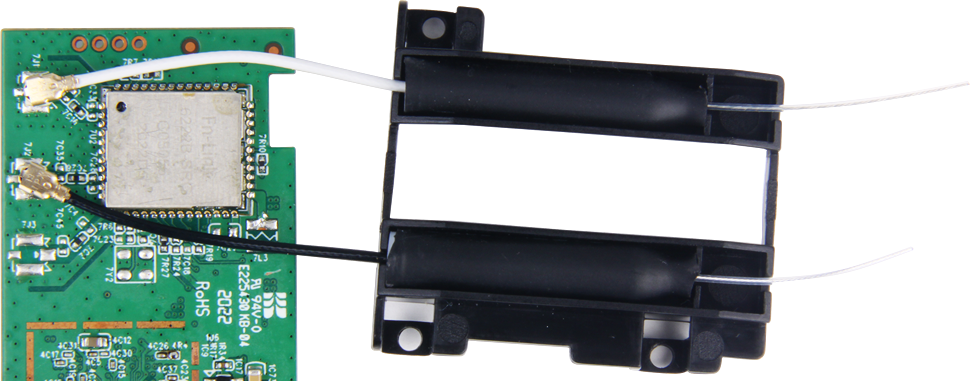

Strong WIFI+BT

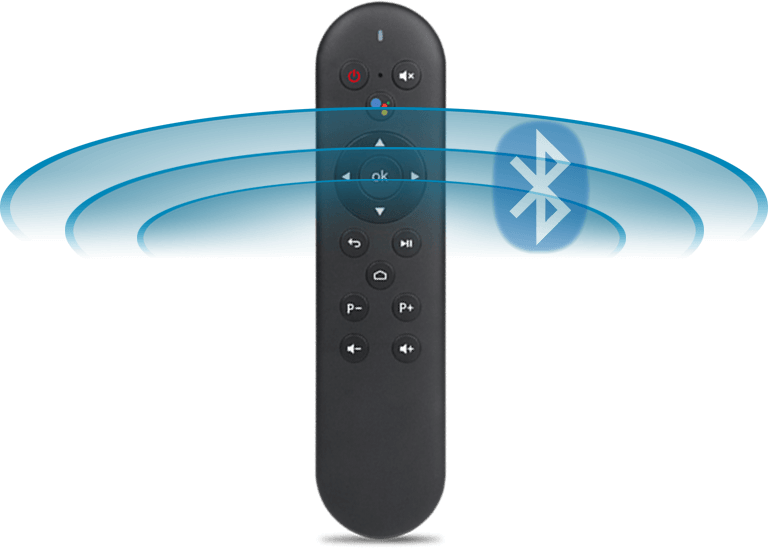

Flexible Control

360-degree uniform coverage, no dead ends, control and enjoy the experience



Support Personalized Customization

Optional hardware configuration

CPU/memory/storage/WiFi+BT

Provide SDK secondary development

Customers can compile sensitive requirements by themselves

MDM customization (remote device management)

Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization

Easy to realize customer’s customized requirements, safe, fast and low-cost.

Application Scenarios

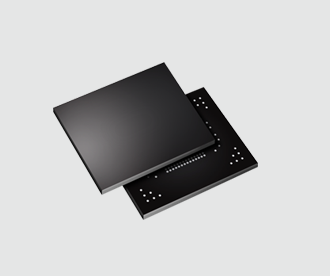

CHIPSET AmlogicS905Y4
MARKET AREA Global
OSD LANGUAGE English/Chinese (multi language  OSD)
Processor OS Android 11.0
CPU Quad core ARM Cortex-A35 CPU @ 2.0GHz
GPU ARM G31 MP2 GPU
DDR 2GB (4G Optional)
EMMC FLASH 8GB（16G/32/64G Optional）
NETWORK WiFi 802.11.a/b/g/n/ac(2.4G/5.0GOptional)
Bluetooth BT5.0 (4.2 Optional )
Standby Power <0.5W
I/O Type C 1* Type C
HDMI®OUT 1*HDMI®OUT
LED 1* (Red/Blue)
Size 111*40*19.5mm
DC IN 5V/1A/Type C
Adapter 1*Adapter(AC100 ～ 240V 50/60Hz)
Customizable GUI We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
Rich Applications There are over 1 million applications in the market, and supports most famousapplications like: Youtube, Facebook, and Twitter, etc..

ATV195Y4 Specification
