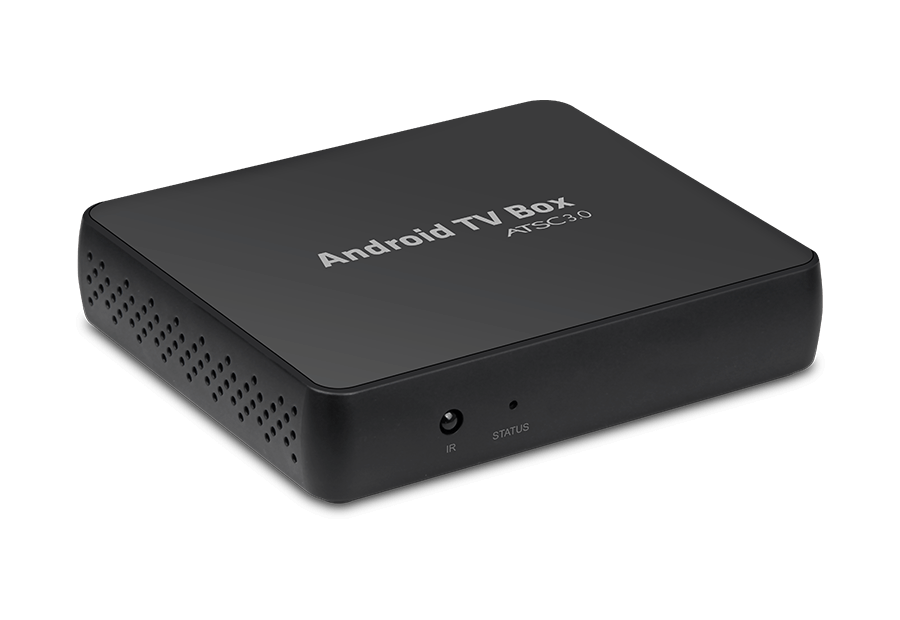

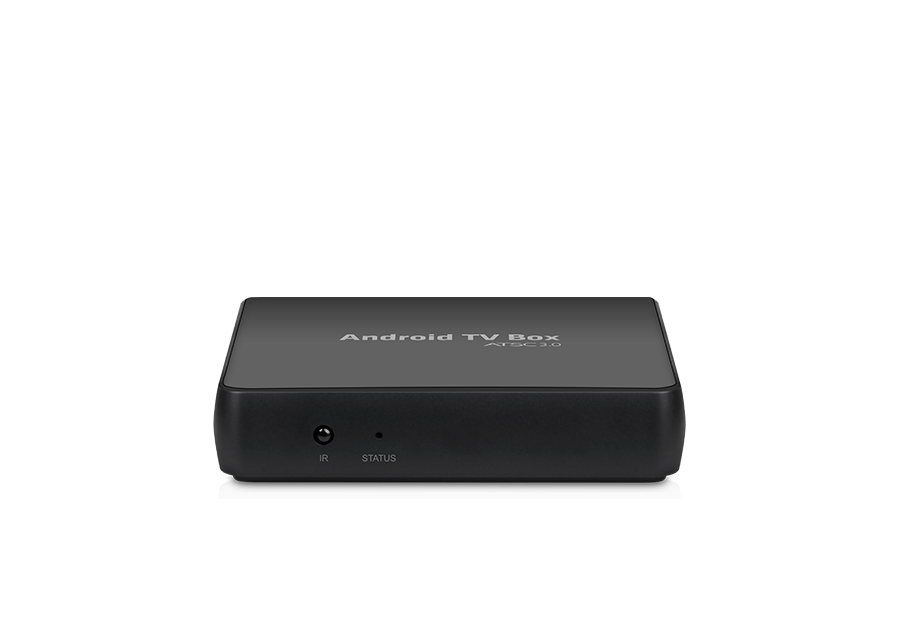

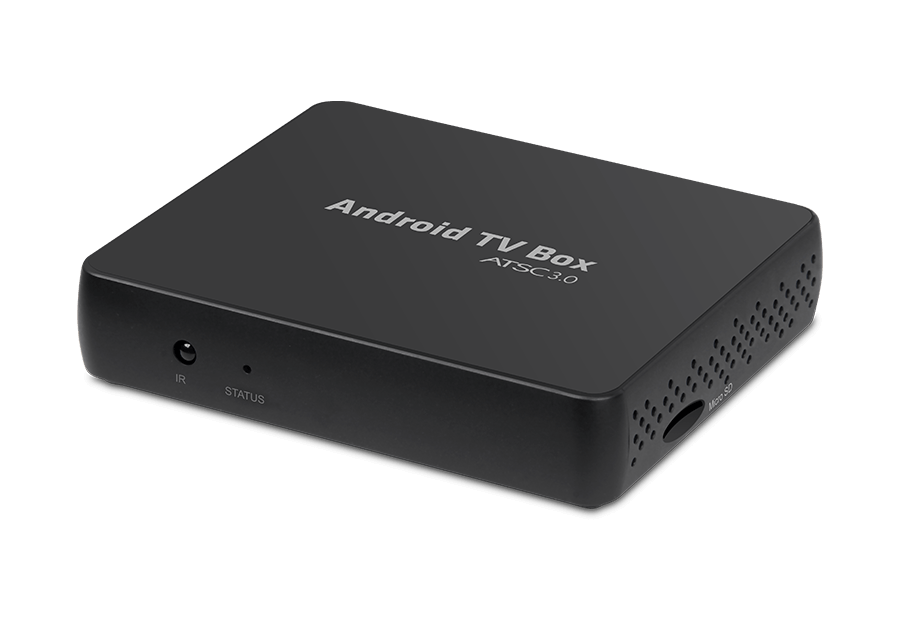

NextGen ATSC 3.0 OTA TV Converter Box

ATV316Max

NextGen ATSC 3.0 OTA TV Converter Box

Geniatech ATV316MAX is powered by Amlogic’s ultra-low power SOC (S905Y4-B); it is acost-effective Android OTA TV converter box that supports the latest ATSC 3.0 standard in the US and Korea.

Quad core ARM Cortex-A35 CPU @ 2.0GHz, ARM G31 MP2 GPU
Support Android 11.0 OS
2GB RAM (4GB Option), 8GB EMMC(16G/32G Option), MicroSD Card Slot
Support 802.11.a/b/g/n/ac(2.4G&5.0G) and BT4.2
Built-in Tuner (ATSC3.0/ATSC1.0 Dual Tuner&single option)
Support Ethernet 10 / 100M
Support RTC
Support 1 * HDMI® out
Built-in 1 * USB2.0 (Contains an OTG ) + 1 * IR reception

CHIPSET		Amlogic S905Y4-B
MARKET AREA		USA/Korea
OSD LANGUAGE		English/Chinese (multi language OSD)
Processor		OS		Android 11.0
		CPU		Quad core ARM Cortex-A35 CPU @ 2.0GHz
		GPU		ARM G31 MP2 GPU
		DDR		2GB (4G Optional)
		EMMC FLASH		8GB（16G/32G Optional）
NETWORK	WiFi	802.11.a/b/g/n/ac (2.4G/5.0G Optional)
	Bluetooth	BT4.2
Standby Power		<0.5W

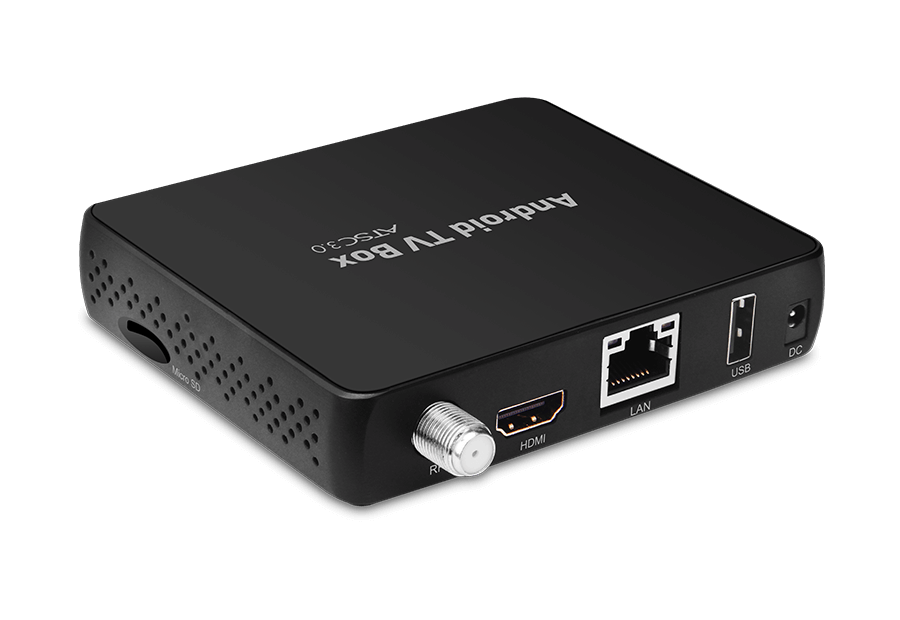

I/O		HDMI OUT	1 * HDMI out
		LAN	1 * 10/100M
		USB 2.0	1 * USB2.0
		OTG	1 * OTG (Shared USB2.0 interface)
		Micro SD	1 * Micro SD
		DC IN	1 * DC IN
		IR reception	1 * IR reception
		RF IN	Support ATSC3.0/ATSC1.0
		LED	1 * (Red/Blue)
Size		101.885.222.8mm
DC IN		5V/2A
Adapter		1 * Adapter(AC100 ～ 240V 50/60Hz)
Customizable GUI		We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
