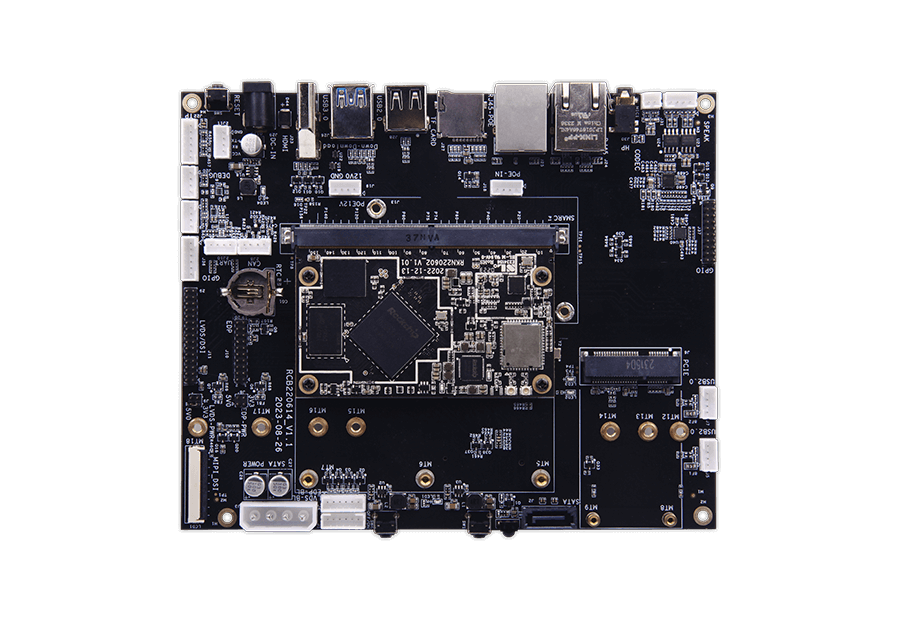

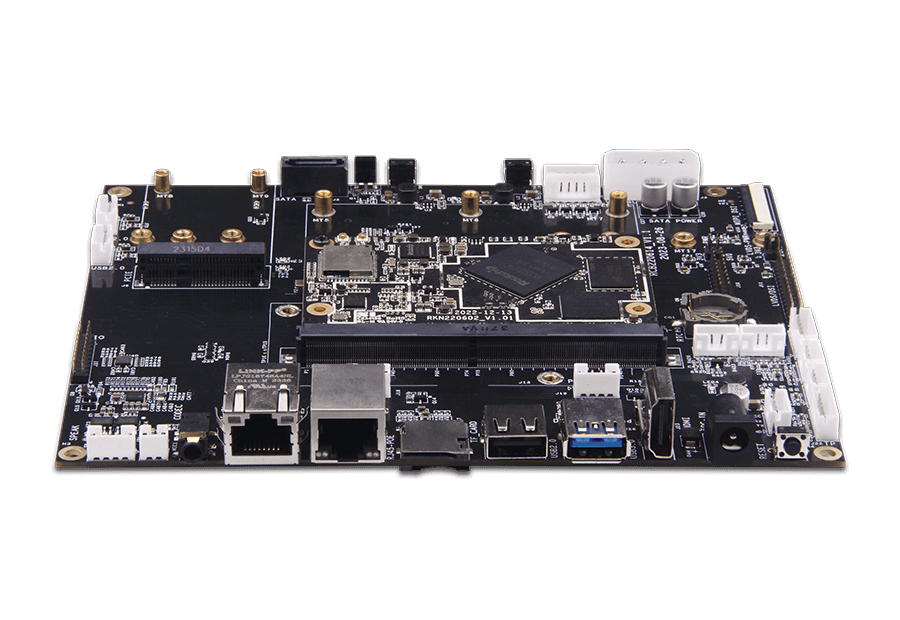

The RK3568 SMARC Development Platform incorporates RK3568 SoC based SOM-3568-SMARC and CBD-3568-SMARC Carrier board for complete validation of RK3568 SoC functionality. The Development board CBD-3568-SMARC can be used for quick prototyping of various applications targeted by the RK3568 Applications Processor. With the 170mmx138mm size, SMARC Carrier board is highly packed with all the necessary on-board connectors to validate the features of SOM-3568-SMARC. With the high SOC performance, applications focusing on smart NVR, cloud terminal, industrial automation, Internet of Things application, commercial display and other fields.
| CHIPSET | Rock-Chip RK3568 | |
| MARKET AREA | Global | |
| SMARC-Module | OS | Debian 10(Linux)/Android 11 |
| CPU | Quad-core ARM Cortex-A55 CPU up to 2GHz per core | |
| LPDDR4 | 2GB（1G-8G optional） | |
| EMMC | 8GB eMMC5.1(8-32GB Optional) | |
| FLASH | 8MB QSPI | |
| Wi-Fi/BT | Wifi2.4G+5G +BT 4.1 (Optional) | |
| Development board Interfaces | SMARC | SMARC V2.1 Compatible with SMARC modules CPU Modules. (82 x 50mm) |
| External I/O Connector | 1 x Power Key 1 x Reset Key | |
| 1 x Recovery Key 1 x USER1 Key | ||
| 1 x USER2 Key 1 x DC Jack | ||
| 2x USB 2.0 Type A 2 x USB 3.0 Type A | ||
| 1 x HDMI® | ||
| 2 x Giga Ethernet (J25 for POE) 1 x Headphone | ||
| 1 x Mic Phone 2P Header | ||
| 1 x Speaker (Left/Right Channel) 2P Header 1 x TF Card Socket | ||
| 1 x SIM Socket | ||
| 1 x RTC-Battery（CR2032） 1 x mini PCIe Connect | ||
| 1 x M.2 Key B Connector for 5G | ||
| 1 x M.2 Key M Connector for Storage 1 x SATA & 1 x SATA Power | ||
| 2 x USB 2.0 Connector | ||
| 1 x HDMI® IN module Connector 1 x Wi-Fi/BT module connector 1 x CODEC module Connector 1 x POE Module Connector | ||
| 1 x A55 Core Debug connector (UART) 1 x LVDS Backlight 6P Header | ||
| 1 x eDP Backlight header | ||
| 1 x MIPI DSI Screen connector for MIPI Panel | ||
| 1 x MIPI CSI Screen connector for MIPI Camera 1 x LVDS Screen connector | ||
| 1 x eDP Screen connector 1 x I2C touch connector | ||
| 1 x extension connector 1 x CAN Bus | ||
| 1 x LVDS VCC switch connector 1 x eDP VCC switch connector | ||
| DC-IN | 12V2A | |
| Dimensions | 170*138mm | |
