DAB2270

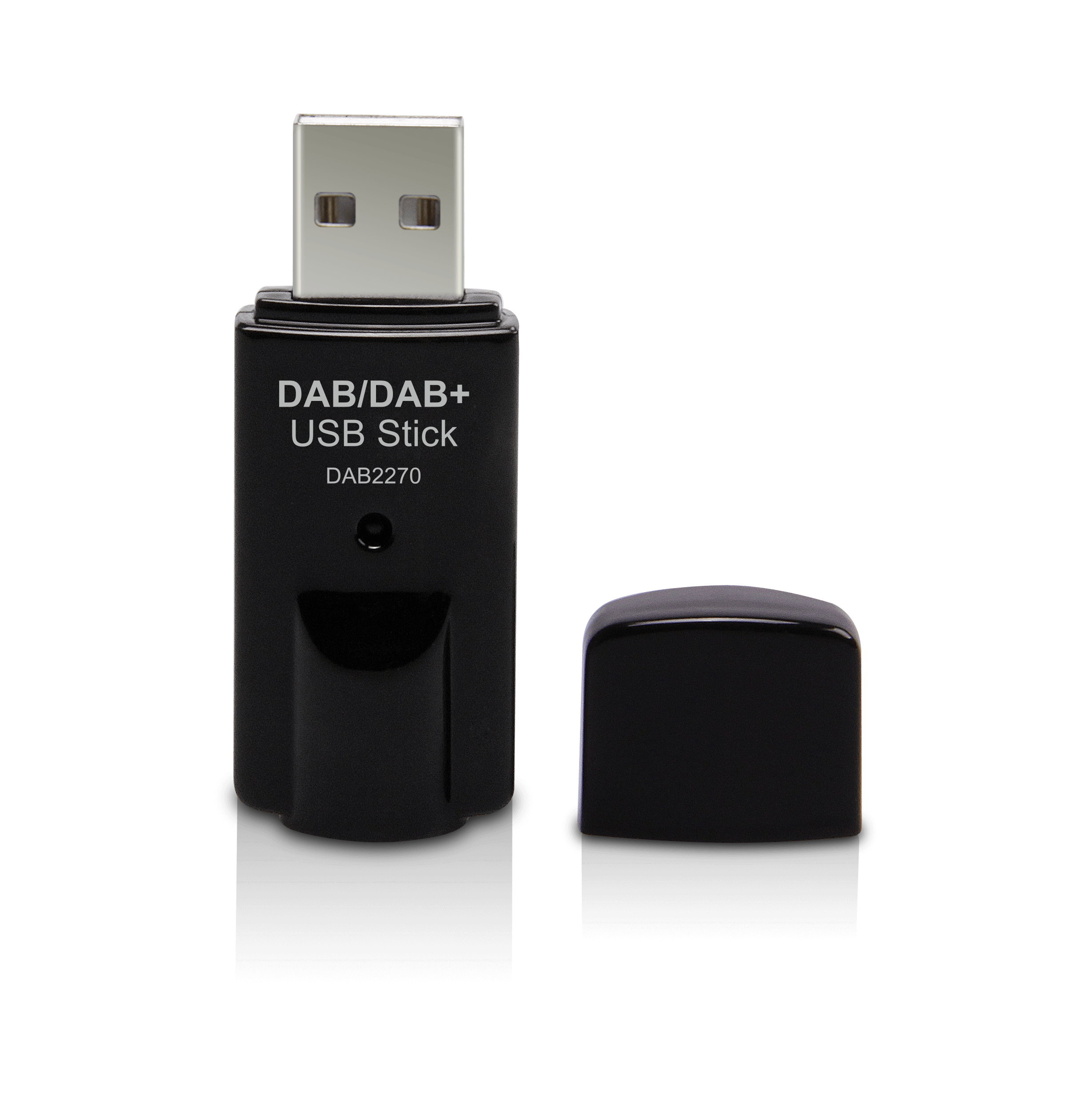

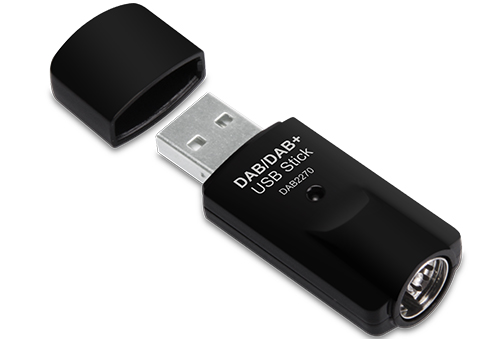

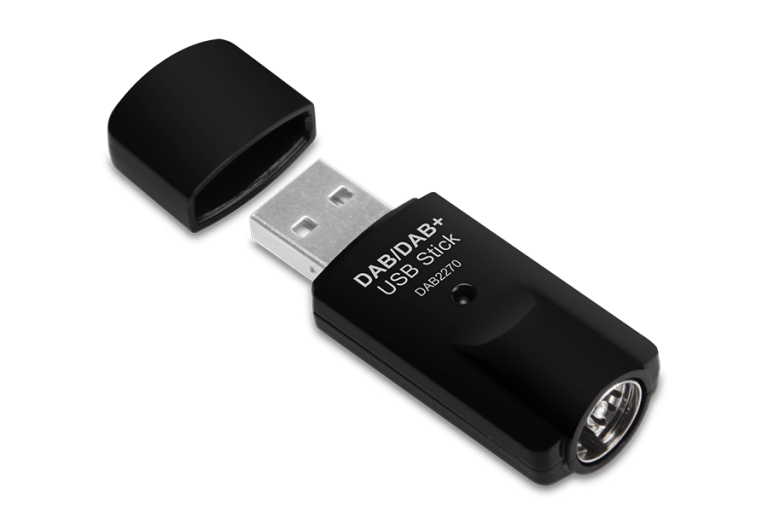

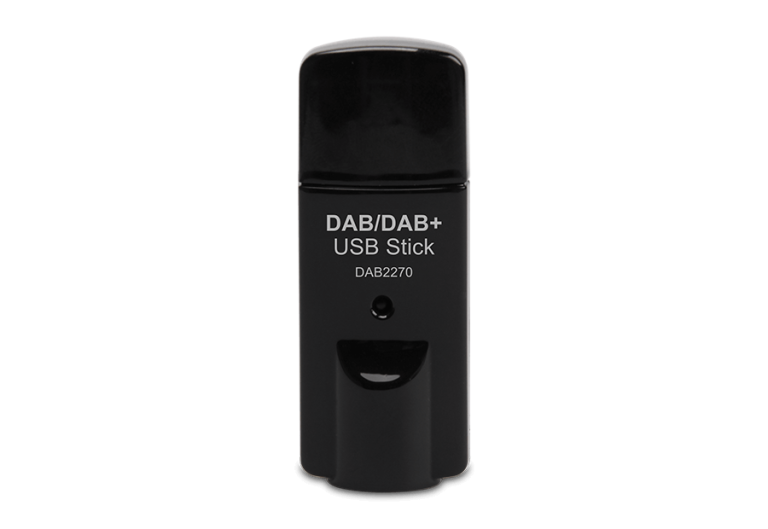

DAB/DAB+ Receiver for Android Cars

DAB2270 is a digital audio broadcasting receiver. It is suitable for global applications. It has low cost, ultra-low power consumption and stable radio frequency quality. It has enhanced function and USB port. It is suitable for most Android car audio systems etc. It has high sensitivity receiving antenna, stable reception, high signal-to-noise ratio, stereo output and first-class quality.

  • Compliance with ETSIEN300 401 (EUREKA-147) standard
  • Ultra-low power DAB/DAB+reception, maximum power consumption as low as 60mA
  • DAB/DAB+Receiving Sensitivity up to -98dBm
  • High Sensitivity Receiving
  • Exquisite design, free Android APK available, USB Plug and Play
Contact Sales

Free Android APK Available, USB Plug and Play

Technical Specifications

  • DAB/DAB+ receiver Dongle
  • Input Impedance: 75 Ohm
  • The frequency range of DAB band III: 174.0MHz-239.0MHz
  • Channel Separation: 55dB • Channel Difference: +/-3dB
  • Support of DLS (Dynamic Label Service) and SS (Slide Service) on DAB and DAB+ channels
  • Support RDS function.
  • support channel list
  • Signal strength display
  • USB 2.0 high speed interface
  • Power Consumption: 5V@60 ma
  • Support auto local searching.

APK Features

  • Radio Signal Display
  • Radio Station Display
  • Full-Band Automatic Search Channels
  • Favorite Radio Collection
  • Programme Type selection
  • Scrolling Station Information Display
System Requirements Android6.0 and above
I/O Interface USB 2.0,RF interface
Dimension 32*18*8mm
Weight 15g
Operating temperature 0~50℃
Storage Temp -20℃ to 60℃
Humidity 10 to 85%
Certification CE/FCC
Accessories DAB2270 USB Dongle
Antenna
Quick Installation Guild
