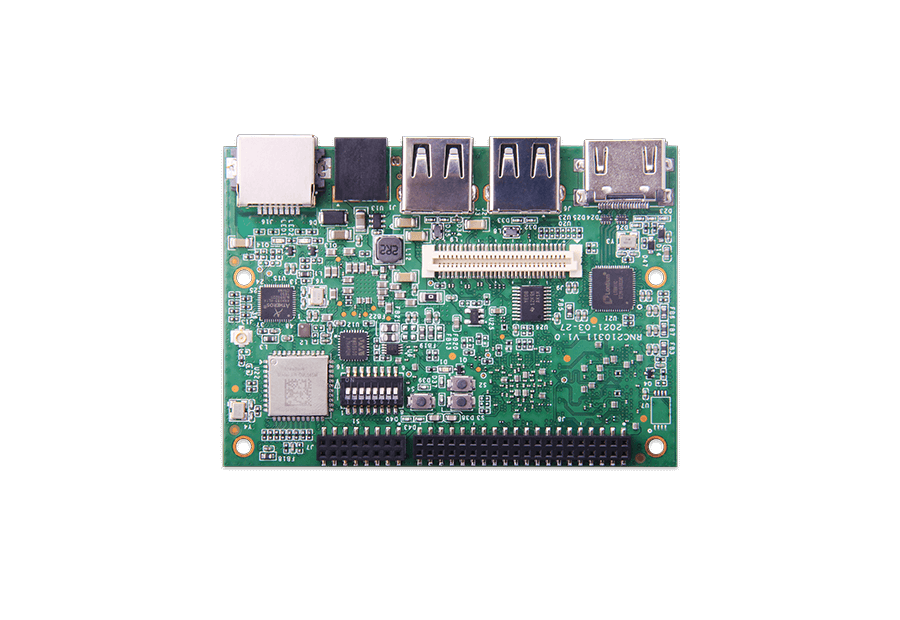

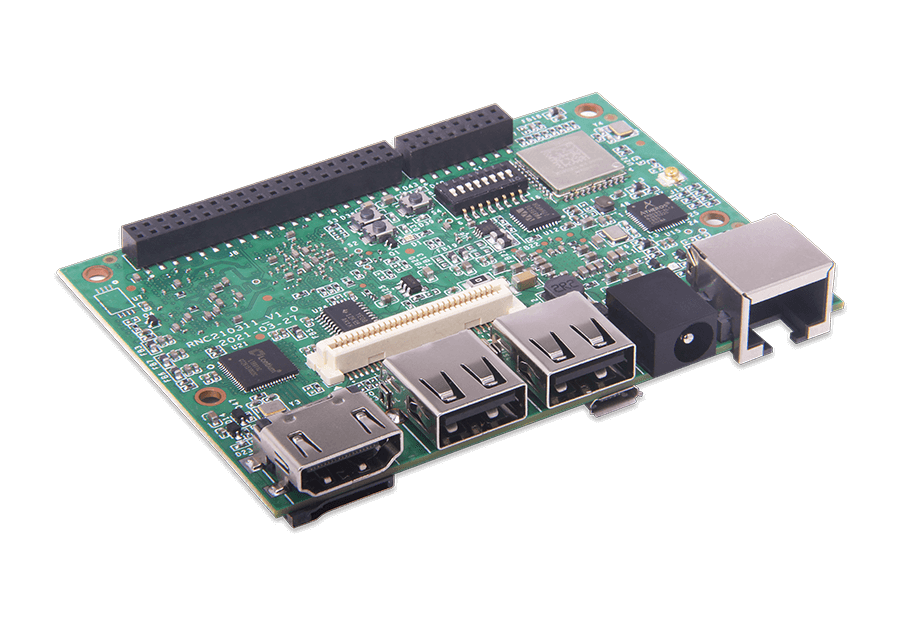

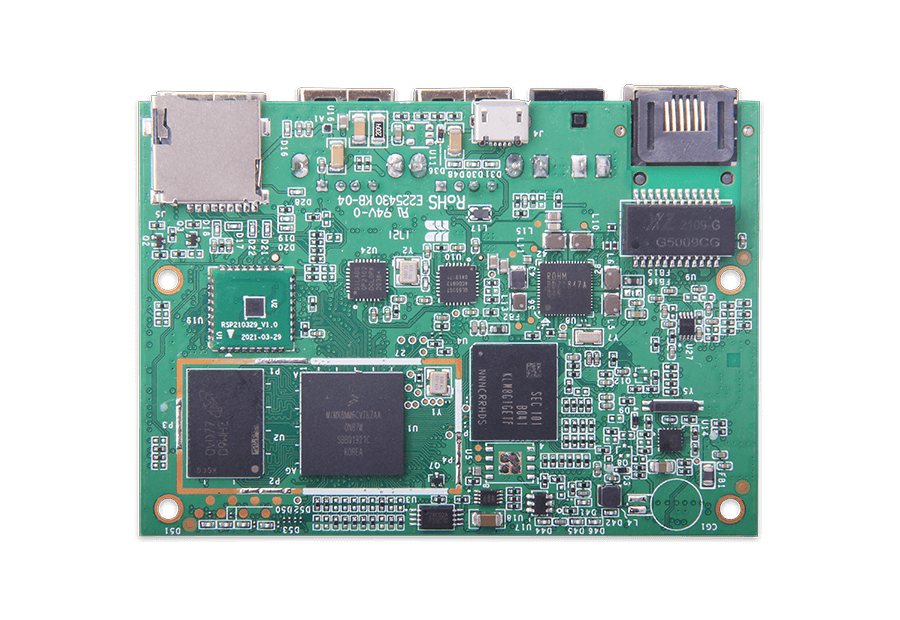

DB11 adopts NXP’s latest generation of low-power multi-core heterogeneous processor, i.MX8M Mini, with industry-leading audio, video and voice processing performance, support for 1080P@60fps H.264/H.265 video decoding and GPU graphic gas pedal, applicable to the industrial control and communication, human-machine interaction (HMI), Internet of Things (IoT), multimedia audio and video and machine visual learning, etc.

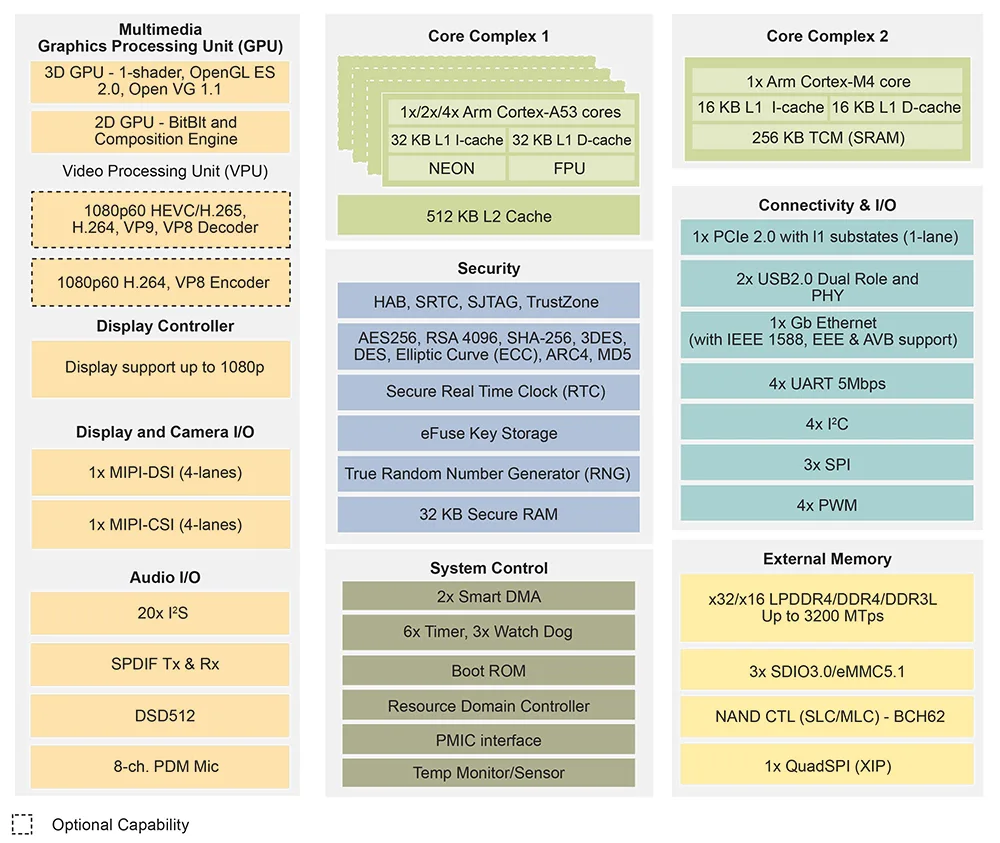

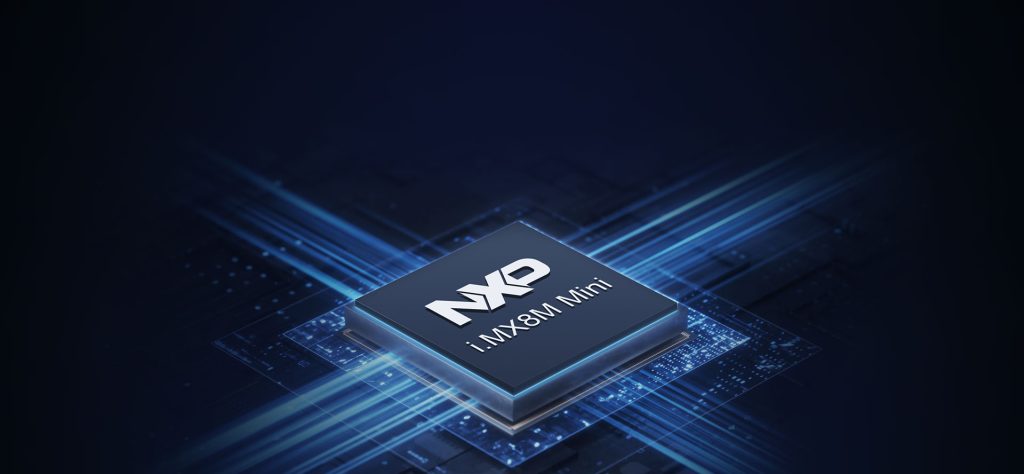

Adopting NXP i.MX8M.Mini multi-core heterogeneous processor with up to 1.6GHz main frequency, up to 4GB DDR4 memory, 32GB high-speed eMMC storage, it meets the application requirements of high-performance computing, low-power hibernation, and real-time task processing in a variety of industrial applications, and is more secure and reliable.

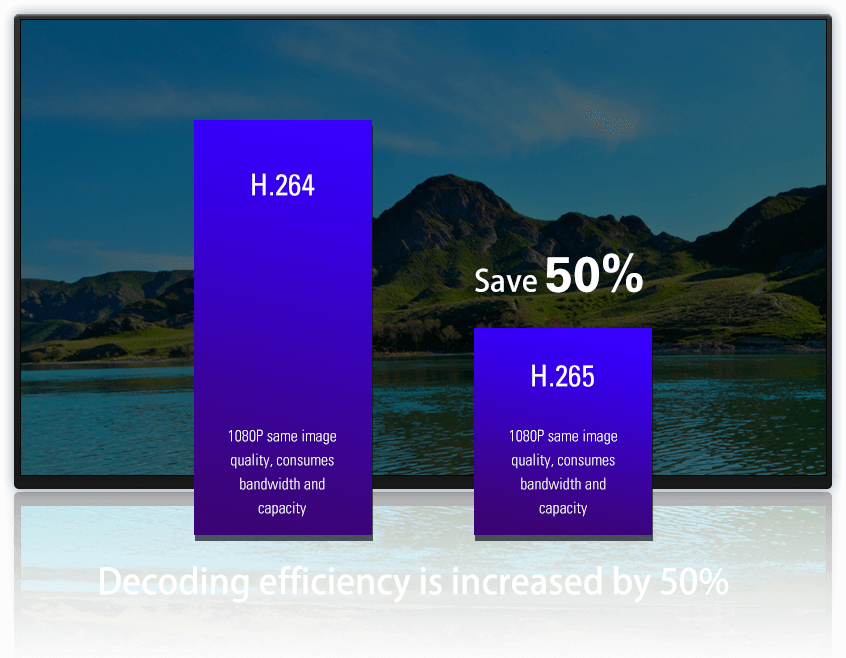

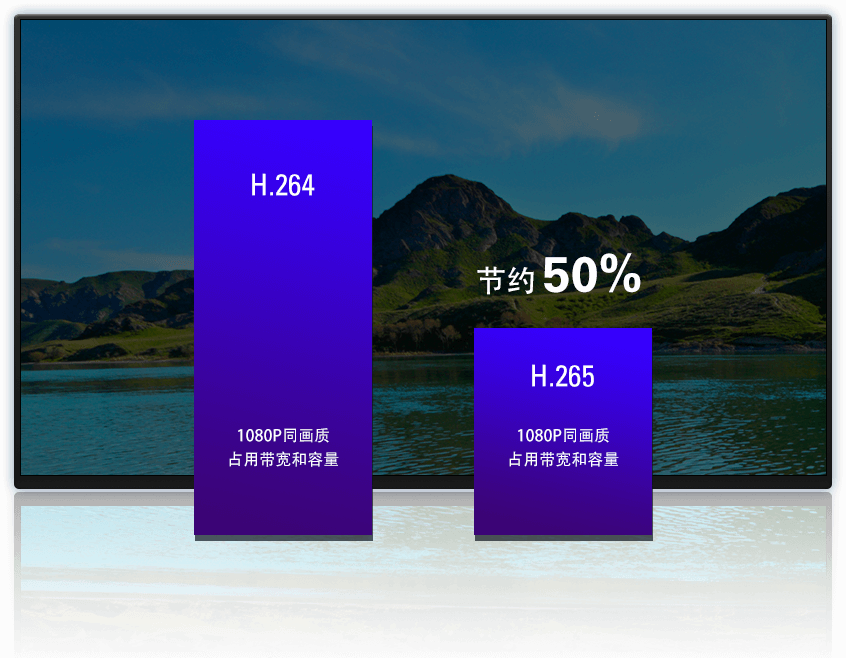

Support 1080P@60fps H.264/H.265 and VP9 video decoding, Compared with traditional H.264, the average decoding efficiency is increased by 50%, and the bandwidth and capacity occupied by transmitting and storing video is 50% of that of H.264.
Optional industrial-grade product standards, can be in -40 ° C ~ 85 ° C environment 7×24 hours of long-term stable operation, to meet the needs of all kinds of harsh industrial application environment.

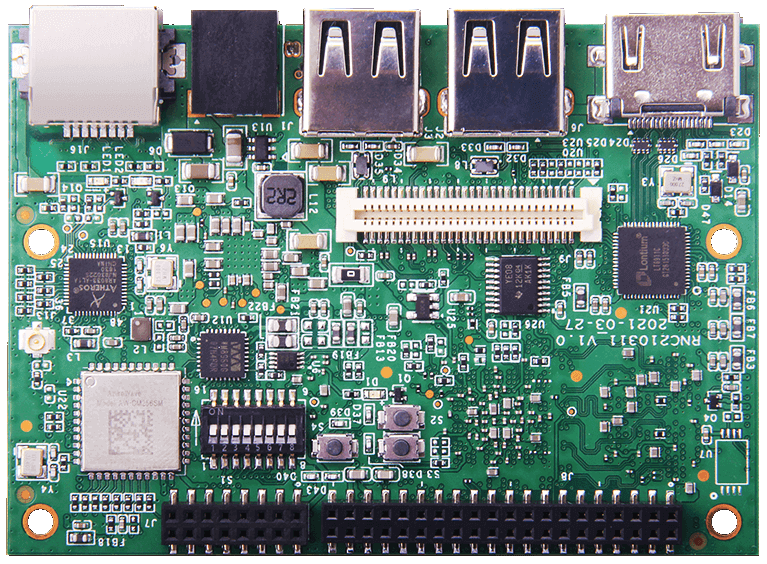

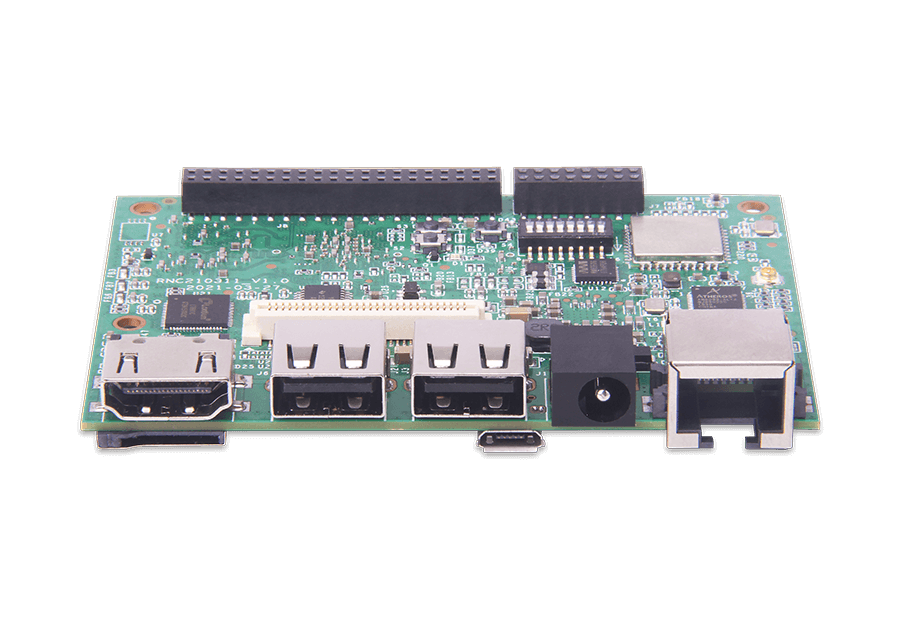

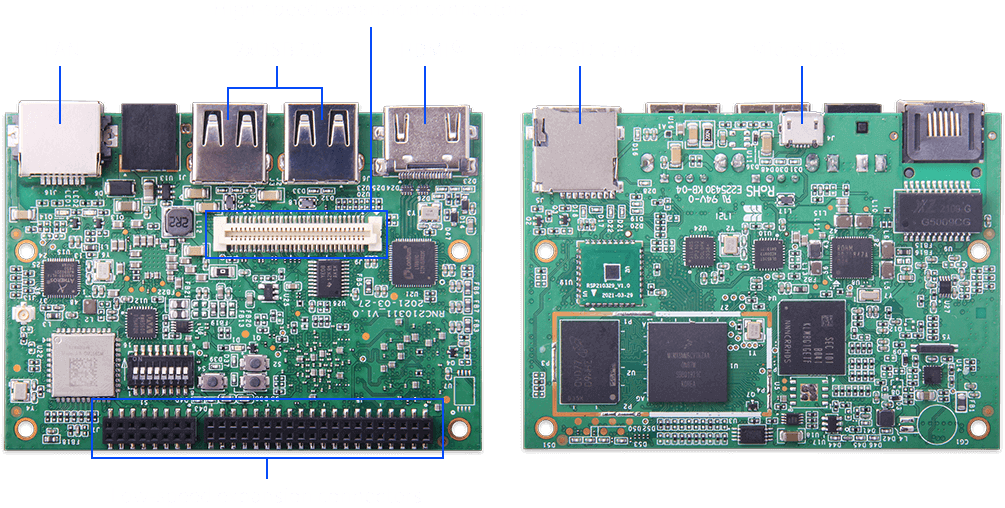

Good compatibility, onboard HDMI®, USB, Gigabit Ethernet ports and common high-speed and low-speed expansion connectors in the 96Boards standard, support for MIPI-DSI/CSI, PCIe, GPIO, UART, SAI, I2C, I2S, WiFi/BT and other general-purpose interfaces, to meet the expansion needs of a variety of application scenarios.
Supports Linux Yocto and Android operating systems and provides free technical support and maintenance, which enables system designers to focus on application development rather than operating systems and underlying device drivers.
NXP provides 10 years + product long-term supply program for iMX8M Mini processor, we will provide you with long-term technical support and continuous maintenance updates based on the original factory support, to provide stable supply guarantee for your designed products.
We can provide perfect technical information including baseboard reference design information, supporting source code, technical documents, API interface and SDK development tools, etc., which makes secondary development easier, more convenient and efficient, and helps customers quickly build self-controlled customized products.
With 26 years of ARM embedded product technology research and development experience and partner resources, We can not only provide customers with customized design of hardware functions, but also provide one-stop consulting services such as operating system transplantation across SoC platforms, BSP kernel trimming and driver debugging, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interfaces, etc. With the help of its own production factory of nearly 30,000 square meters, We can help customers quickly build self-controlled customized products. With the company’s own production factory of nearly 30,000 square meters, we can help customers greatly shorten the cycle from product selection, R&D project, small trial production to mass production delivery.
Suitable for industrial control and communication, human-machine interaction (HMI), intelligent medical, Internet of Things (IoT), smart home, multimedia audio and video and machine vision learning and other fields.
| Processor | NXP i.MX8Mini SoC Quad core ARM Cortex A53(64bit) + Cortex M4 |
| OS | Linux Yocto，Android 9.0 |
| Memory | 1GB LPDDR4(2GB/4GB optional) |
| Storage | 8GB eMMC5.1(8-128GB optional) |
| WLAN | Wi-Fi 5 Dual-band 2.4GHz/5GHz |
| Bluetooth | Bluetooth 5.0(integration) |
| Ethernet | RJ45-100/1000 MHz |
| Security | Encryption IC Support |
| Display | HDMI® V1.4 |
| USB | USB 2.0 Type A *2 |
| Micro-USB | OTG |
| TF-Card | SDIO 3.0 |
| RTC(Real-Time Clock) | Support |
| Key | Volume+/volume-/Power |
| Indicator light | User(Programmable)*4 System status*3 |
| Connectivity | 1x Mezzanine boards 40 pin Low-Speed connector |
| • UART, SPI, PCM/I2S, I2C, GPIO, SAI, DC power | |
| 1x Mezzanine boards 60 pin High-Speed connector | |
| • 4L-MIPI DSI, USB, I2C, PCIe, 2L+4L-MIPI CSI | |
| 1xoptional 16-pin Analog expansion connector | |
| • Headset, Speaker, Mic | |
| Mechanical Properties | |
| Size (mm) | 85*60 |
| Net Weight (g) | 35 |
| Power | DC 12V/2A |
| Wide working range | Consumer (0°C to 80°C Tj) |
| Industrial (-40°C to 85°C Tj) | |
| RoHS and Reach compliant | Yes |
