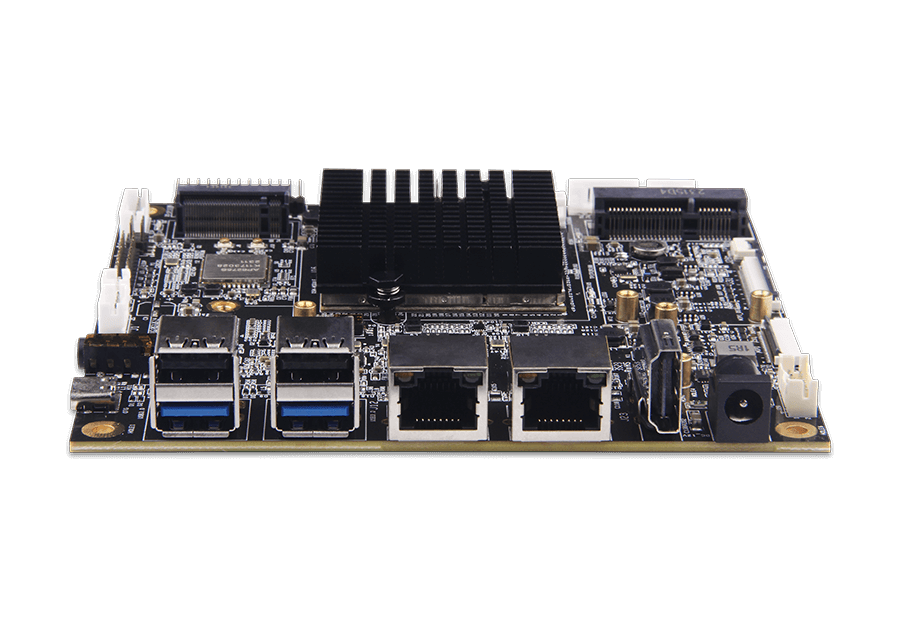

DB3568V3 is a new design board model based on RK3568J developed by Rockchip. RK3568J is a high-performance and low power quad-core application processor designed for industrial mobile internet device and AIoT equipment, with powerful hard decoding capability and rich interfaces, can quickly realize project research and production only by expanding the functional baseplate, which can be applied to AIOT Internet of Things equipment, industrial control equipment, Vending machine, commercial display equipment and other outdoor application in high or low temperature environment. Below is the detailed specification：

• Designed by the OSM V1.1 standard, the core board size is only 45mm x 45mm (Size-L), and the carrier board size is 125mm x 120mm.
• Rockchip RK3568J with Quad-core Cortex-A55 and Mali-G52-2EE GPU
• Support up to 8GB RAM, up to 128GB eMMc flash
• Supports MIPI-DSI/eDP interface, and multi-format 4K 60fps video decoding (H.265, H.264, VC-1, MPEG-1/2/4, VP8), 1080P (H.264, VP8 format) video encoding.
• With rich interfaces such as I2C, UART, SPI, SDIO3.0, USB, and others
• Supports Android, Linux multiple operating system, the performance is stable and reliable
• Stable operation at extended commercial (-40 °C ~ 85°C) working temperature for 7X24 hours
• Delivery period for long product life cycle
