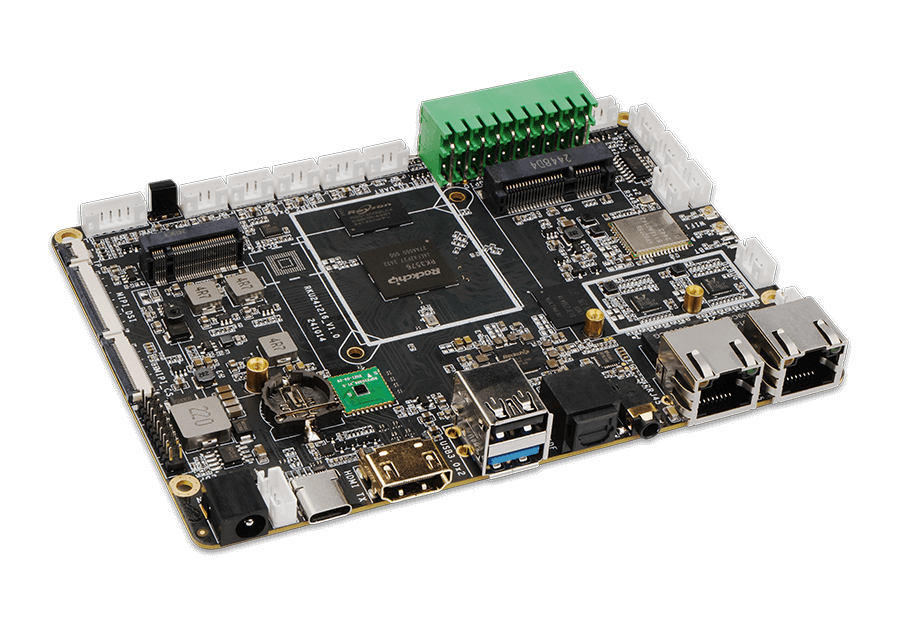

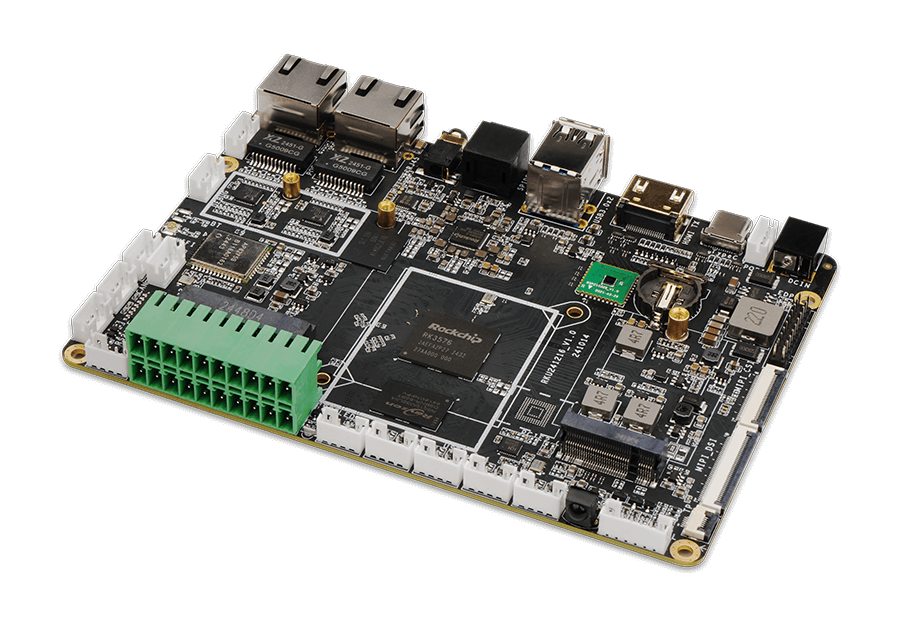

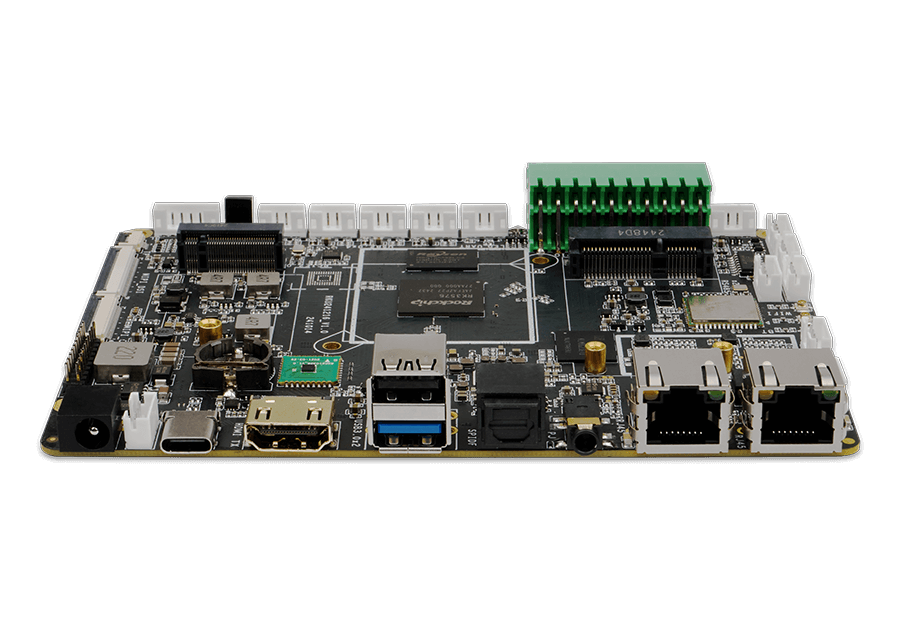

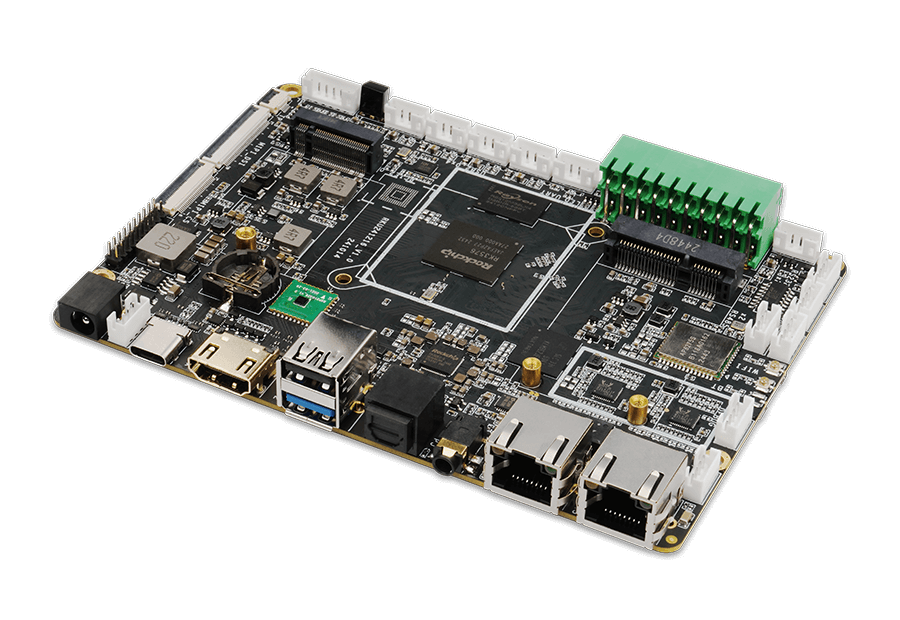

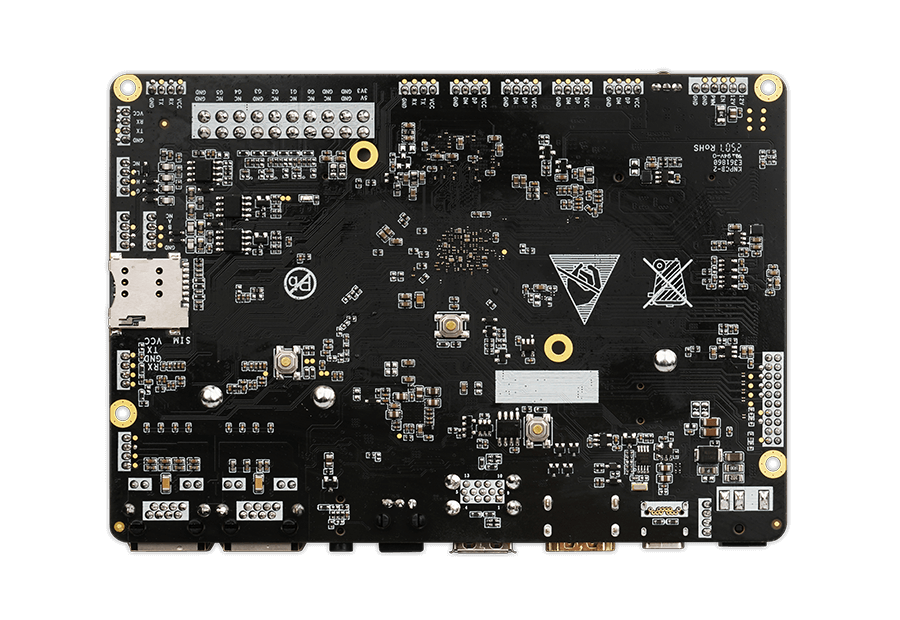

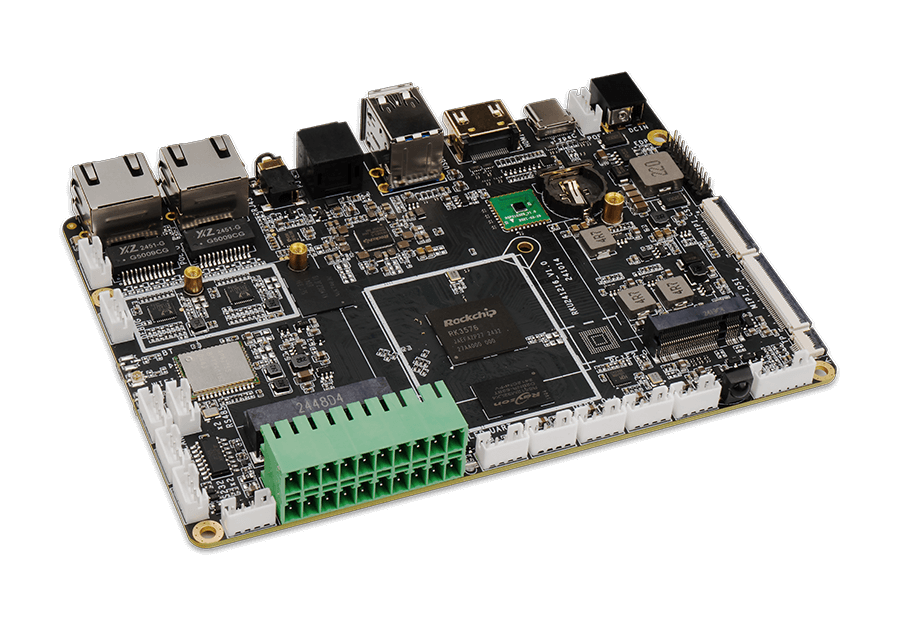

Geniatech DB3576 is a compact 3.5″ IoT single-board computer powered by Rockchip RK3576, featuring an octa-core CPU (4× Cortex-A72 + 4× Cortex-A53), an ARM Mali-G52 GPU, and a 6 TOPS NPU. It supports Android and Linux Debian, with flexible LPDDR4 memory, eMMC storage options, robust connectivity, and multiple display and industrial interfaces—ideal for AIoT and edge computing.
| CHIPSET | Rockchip RK3576/RK3576J | |
| MARKET AREA | Global | |
| OSD LANGUAGE | English/Chinese (multi language OSD) | |
| Processor | OS | Android 14.0 / Linux Debian12 |
| CPU | Quad-core Cortex-A72 and Quad-core Cortex-A53 | |
| GPU | ARM Mali-G52 MC4 GPU, support OpenGL ES1.1/2.0/3.2, OpenCL2.0 and Vulkan 1.1. etc. | |
| NPU | Neural network acceleration engine with processing performance up to 6 TOPS | |
| LPDDR4 | 4/8/16GB | |
| EMMC FLASH | 32GB（16~256G Optional） | |
| NETWORK | Ethernet | 2 * RJ45 (10/100/1000M) |
| WiFi | IEEE 2T2R 802.11 ax/ac/a/b/g/n | |
| Bluetooth | BT5.0 | |
| 3G/4G | 1 * Mini PCIE (Optional） | |
| Interface | HDMI OUT | 1 * HDMI |
| RJ45 | 2 * RJ45(LED) | |
| RS232 | 2 * 4Pin2.0mm | |
| RS485 | 2 * 4Pin2.0mm | |
| Can bus | 1 * 4Pin2.0mm | |
| GPIO | 1 * 2x5Pin3.81mm | |
| LVDS | 1 * 2x15Pin2.0mm | |
| Backlight | 1 * 6Pin2.0mm | |
| USB3.0 | 1 * USB3.0 Type A | |
| USB2.0 | 1 * USB2.0 Type A +2 * 4PIN2.0mm | |
| TP(I2C) | 1 * FPC 0.5mm | |
| M.2 | 1*M.2 key-M connecter | |
| Speaker | 1 * 3.5mmJacker/SPK connecter | |
| SIM | 1 * Micro Sim + 1 * Mini PCIE (LTE) | |
| WIFI+BT ANT | 2 * IPX | |
| IR | 1 * IR | |
| Switch*3 | 1 * Power /1*reset /1*recpvery | |
| DC IN | 1 * DC IN | |
| Adapter | DC 12~24V (Φ5.5mm / φ2.1mm) | |
| Size | 146*102mm | |
| Customizable GUI | We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from. | |
