Geniatech DB3588V2 AI development board features RockChip’s RK3588 chip with a 6Tops NPU, offering commercial and industrial standards, a 10+ years delivery period, and comprehensive technical information. Supporting multiple operating systems, it provides strong performance, stable and reliable product support with strong scalability for various AI application scenarios.

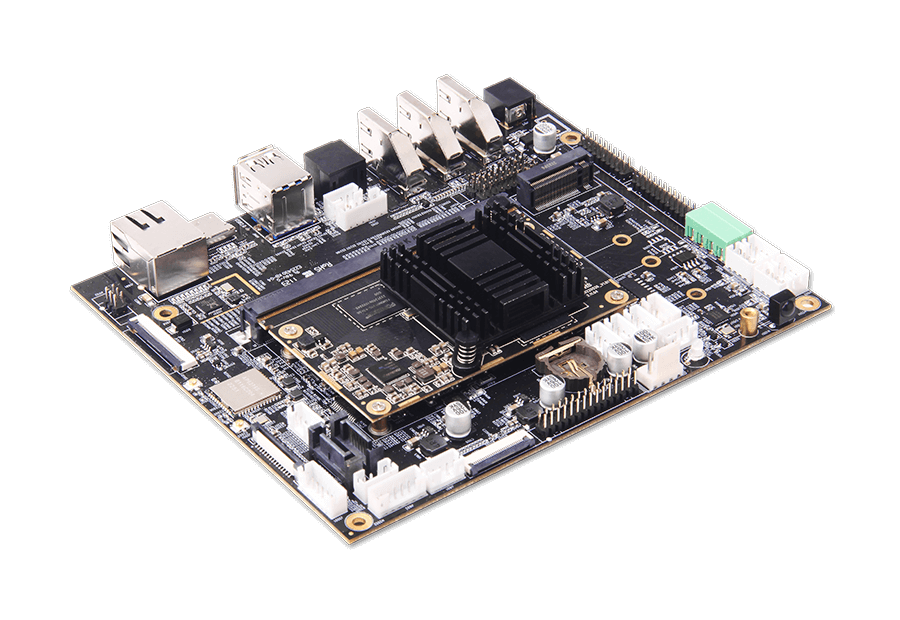

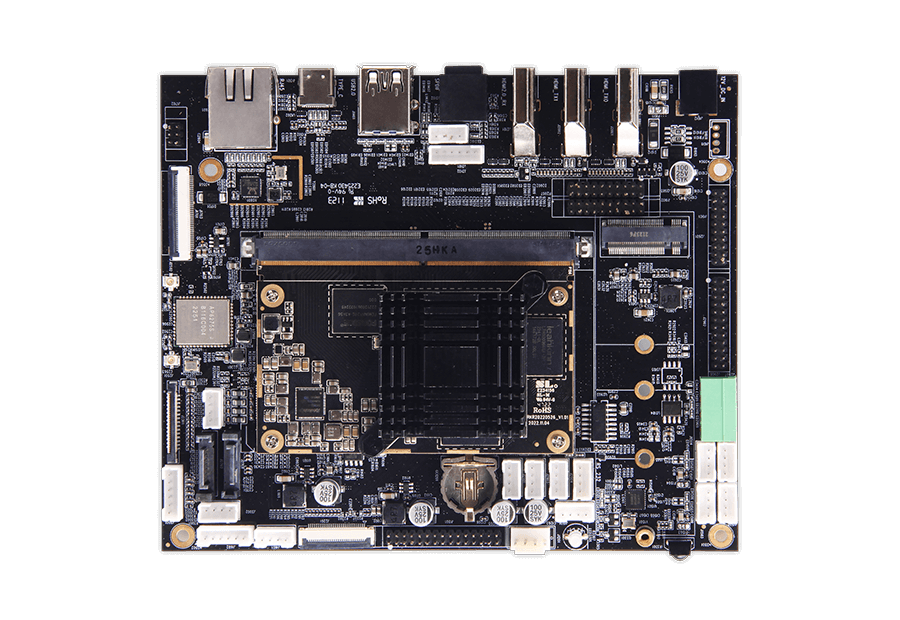

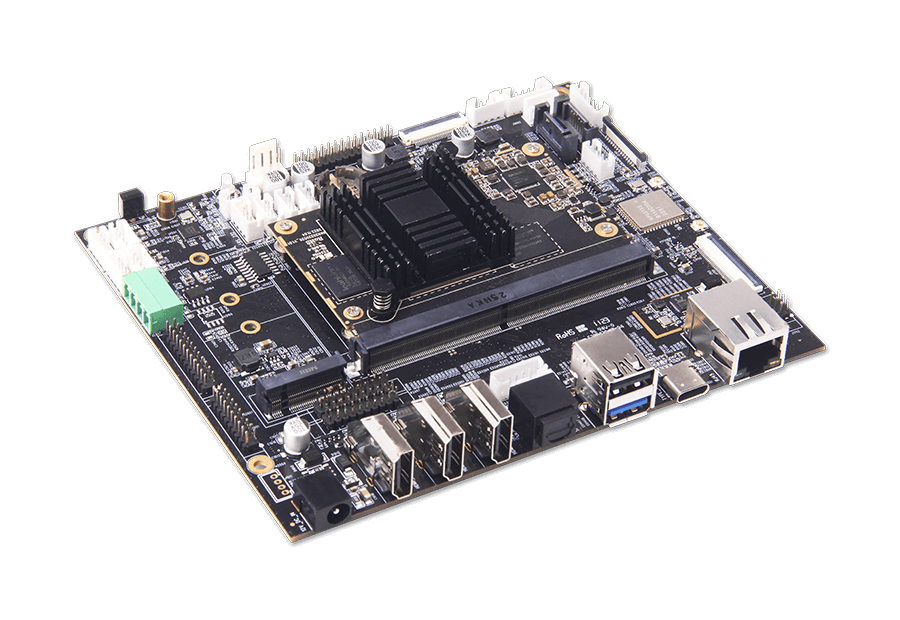

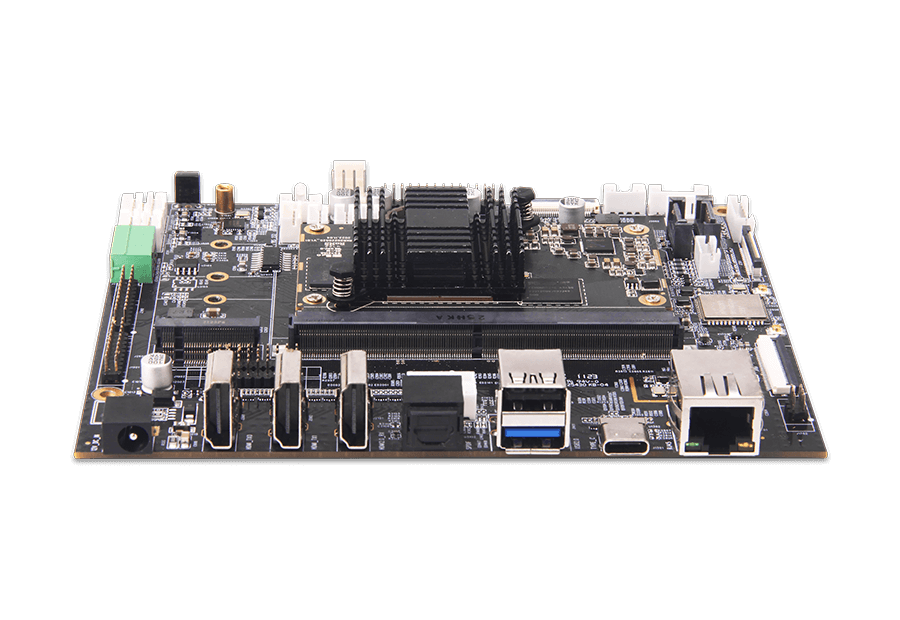

Geniatech DB3588V2 is a high-performance AI development board featuring RockChip’s RK3588 chip with integrated 6Tops NPU. Consisting of a SOM3588 and carrier board, equipped with various peripheral devices and interfaces for efficient secondary development. The board supports multiple operating systems and offers strong scalability, ideal for various AI application scenarios.

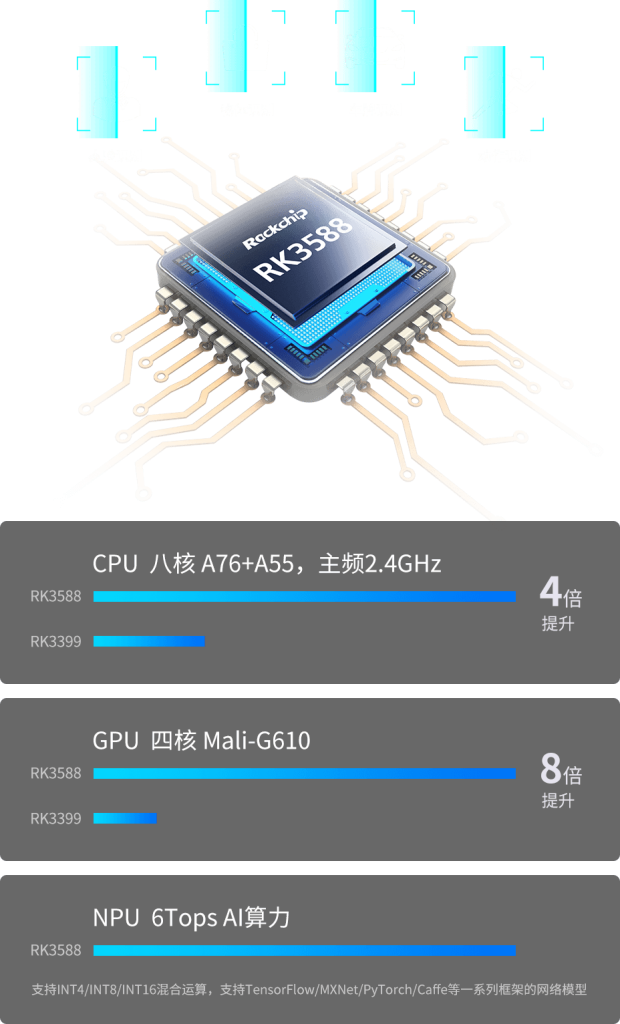

Experience computing excellence with DB3588V2’s advanced RK3588 octa-core 64-bit flagship processor. Crafted with 8nm technology, it integrates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU, ensuring optimal performance for AI applications.

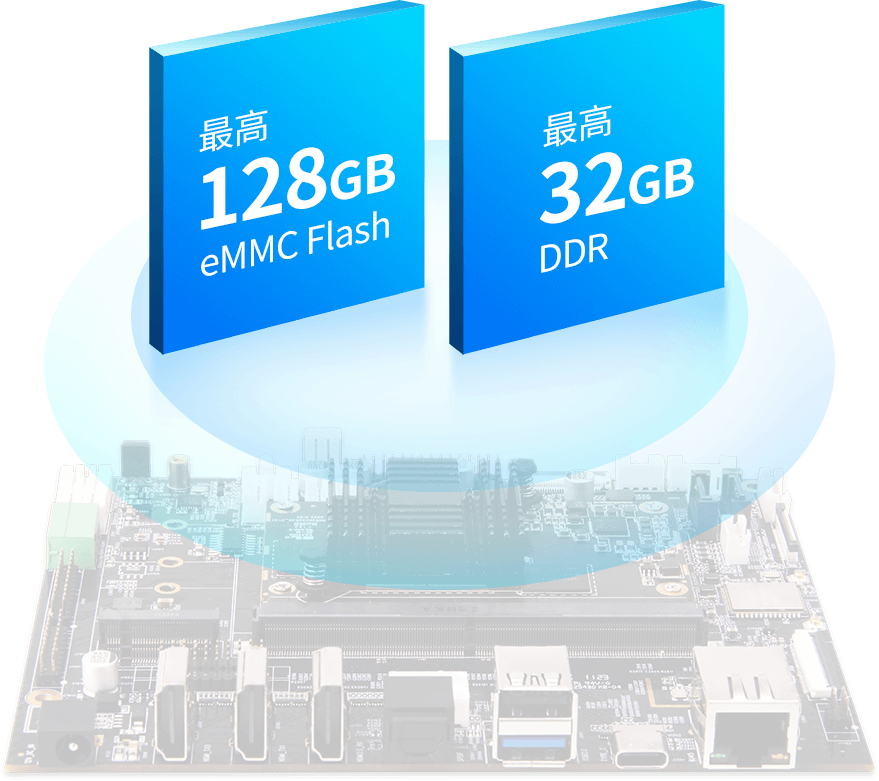

Empower your projects with up to 32GB of memory and 128GB of eMMC storage. Two SATA3.1 interfaces for expandable storage, catering to the needs of extensive memory and storage applications.

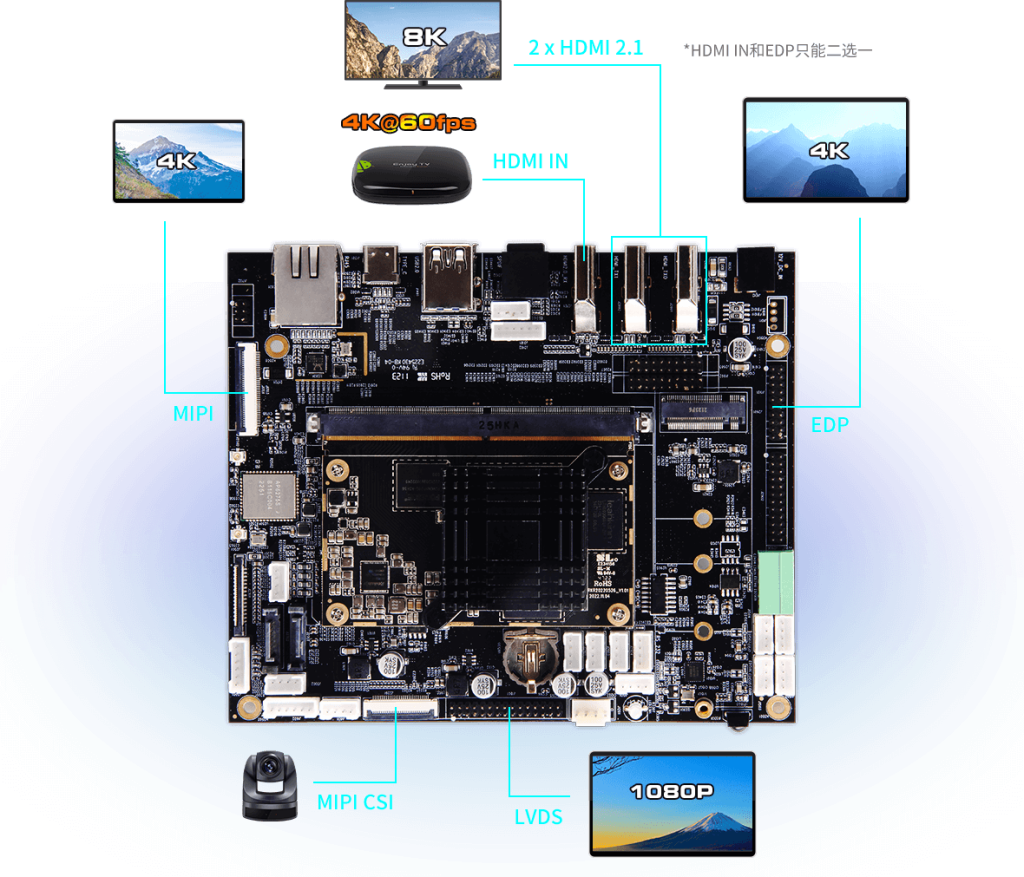

DB3588V2 features an onboard 2-way HDMI®2.1, MIPI, LVDS, and eDP output interface, along with MIPI CSI and HDMI® input interface,
which can simultaneously support multiple 8K@60fps ultra-HD video output and 4K@60fps video input.
The rk3588 solution also supports HD four-screen different display, making it ideal for multi-screen interactive displays.

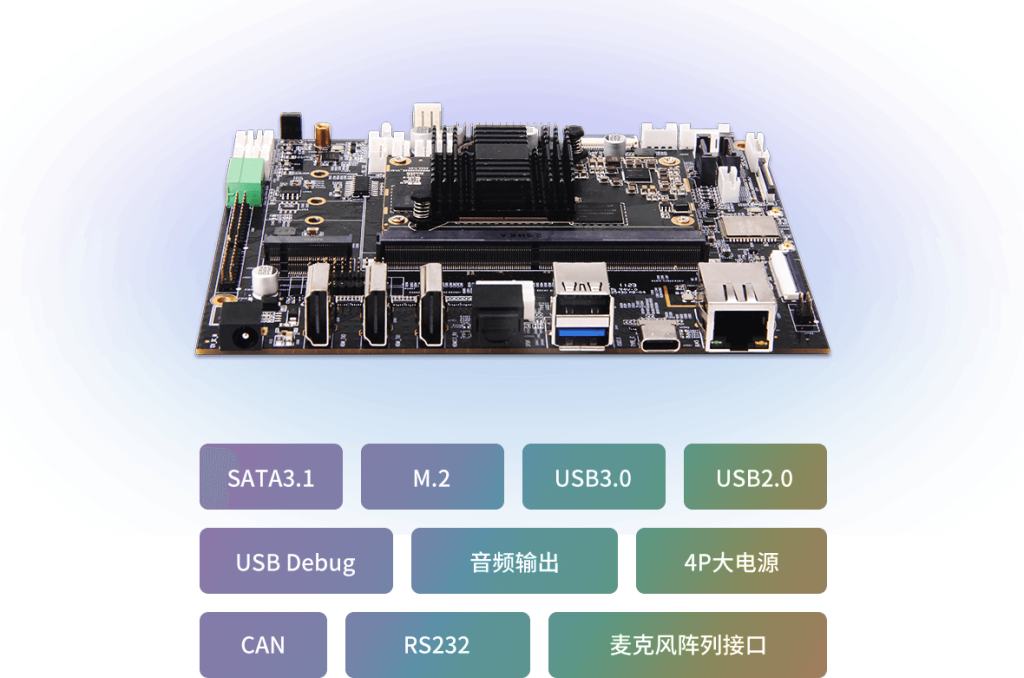

DB3588V2 comes with powerful peripheral expansion capabilities, including SATA3.1, M.2, USB3.0, CAN, RS232, and more. Simplify project development with abundant connections.
Stay effortlessly connected with Gigabit Ethernet, dual-band WiFi6, and Bluetooth 5.0. DB3588V2 adapts to different network requirements, making it ideal for both outdoor and indoor applications.

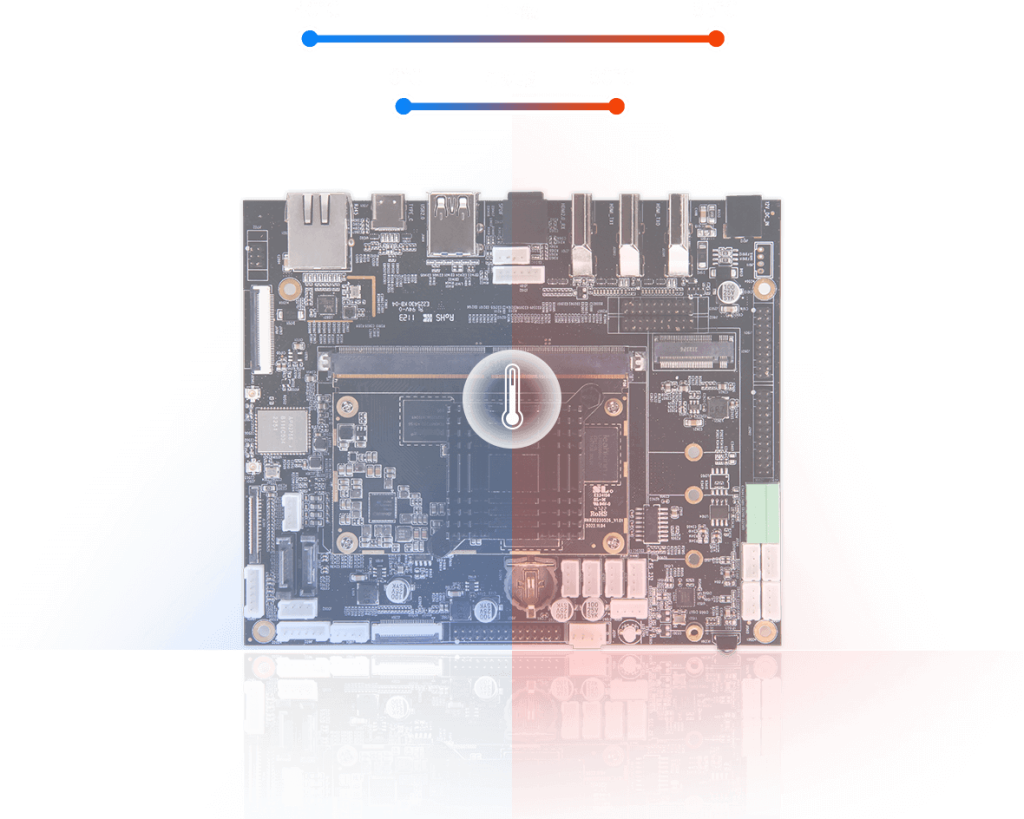

DB3588V2 undergoes rigorous testing and manufacturing processes, meeting strict industrial standards to ensure reliability, safety, and stability in harsh environments. Operating 24/7 in temperatures ranging from -40°C to 85°C, it proves ideal for challenging industrial applications.
DB3588V2 supports multiple operating systems, including Android 12.0, Debian11, Buildroot, and RTLinux kernel. Its customizable Linux kernel enables deep service layer development, allowing for remote upgrades and device management. This enhances later operation and maintenance convenience, improving overall efficiency.
DB3588V2 guarantees a 10+ years ultra-long life cycle. In addition, we provides traceable Linux Kernel maintenance throughout the product’s entire lifecycle, ensuring long-term support and reliability.
Accelerate your projects with comprehensive technical data, including baseboard reference design, source code, technical documents, API/SDK. This empowers efficient secondary development, enabling you to create bespoke solutions effortlessly.

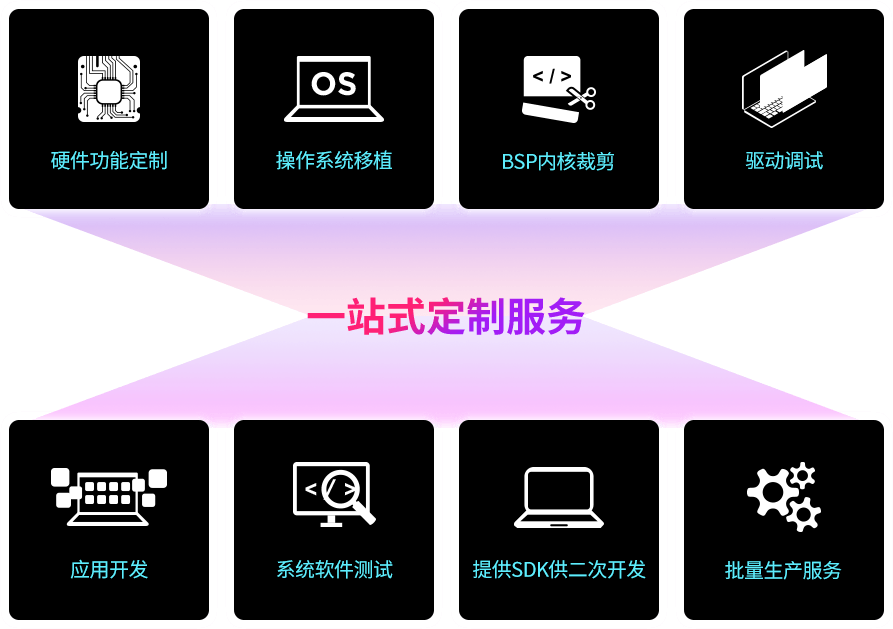

With 25 years of ARM R&D expertise and strong partner resources, Geniatech offers tailored hardware design and one-stop services, including OS porting across SoC platforms, BSP kernel cutting, driver debugging, system testing, scenario-based application software development and SDK/API. Our in-house production facility ensures improved product quality and an expedited cycle from product selection, R&D project, small trial production to mass production and delivery, helping clients seize market opportunities swiftly.
DB3588V2 can be used in edge computing, artificial intelligence, cloud computing, VR/AR, blockchain, smart security, smart industrial control, smart home, etc.
| CPU | RockChip RK3588 Octa-core 64-bit 4 x Cortex-A76 + 4 x Cortex-A55 8nm advanced process, up to 2.4GHz |
| GPU | Mali-G610 MP4 (4x256KB L2 Cache) OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.2, 450 GFLOPS |
| NPU | NPU computing power up to 6TOPS, support INT4/INT8/INT16 mixed computing Network model conversion based on TensorFlow/MXNet/Pytorch/Caffe and other frameworks |
| ISP | Integrated 48MP ISP and HDR & 3DNR multi-algorithm gas pedal |
| Codecs | Video decoding. 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding. 8K@30fps encoding, H.265 / H.264 support * Up to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding |
| RAM | 4GB LPDDR4(8/16/32G optional) |
| Storage | 32GB（64G/128G/256G optional） |
| Network | Ethernet Interface: 1 x 1000/100/10 Mbps transmission speed WiFi: Support 2.4GHz, 5GHz dual-band WiFi6,802.11 a/b/g/n/ac/ax protocol BT: Supports Bluetooth 5.0 wireless technology |
| Video Output | HDMI® output: 2 x HDMI®2.1 8K@60fps or 4K@120fps MIPI output: 1 x MIPI DPHY EDP Output: 1 x 4K@60fps |
| Video Input | HDMI® input: 1 x HDMI®2.0 4K@60fps MIPI camera input: 2 x MIPI CSI |
| OS | Android 12.0, Debian 11.0, Buildroot, RTLinux |
| USB | 1 x USB Host3.0, 1 x USB Host2.0 , 1 x TypeC USB OTG 2.0 support up to 480 Mbps, 4 x USB Host2.0 |
| I/O Interface | • M.2 KEY M × 1 • CAN × 1 • I2C × 2 • SPI × 1 • Standard SATA × 2 • large 4P power supply holder (+5V and +12V) × 1 • RS232 × 4 • Microphone Array × 1 • left and right stereo sound output 2P row seat • LED Power supply × 1 |
| Extended I/O interface | 1 × RTC battery holder, 1 × DC 12V voltage input, 1 × IR remote control receiver, 1 × set of GPIO interfaces 1 × Upgrade button 2 × WiFi/BT antenna connector |
| POWER | DC input voltage 12V (DC5.5 × 2.1mm) |
| Mechanical Characteristics | Size(mm): 150 × 125 × 20 Board Structure: Core Board + Carrier Board |
| Operating temperature | Commercial: 0~80°C Work gauge: -40~85°C |
