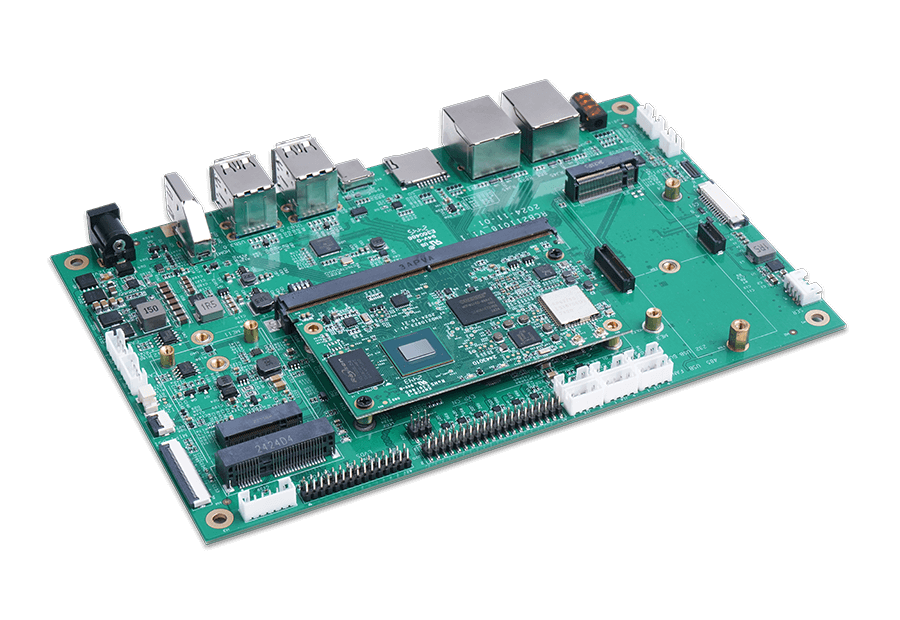

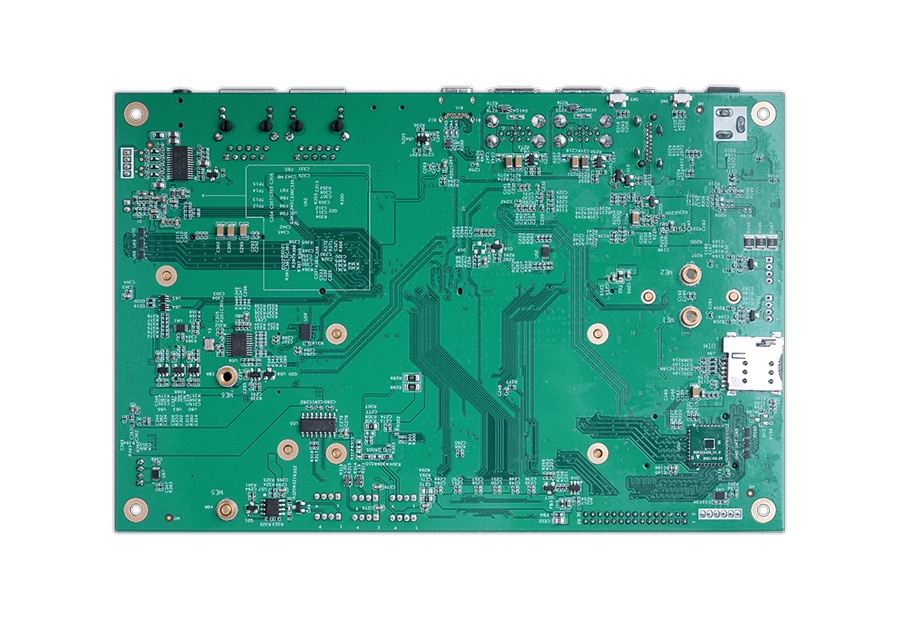

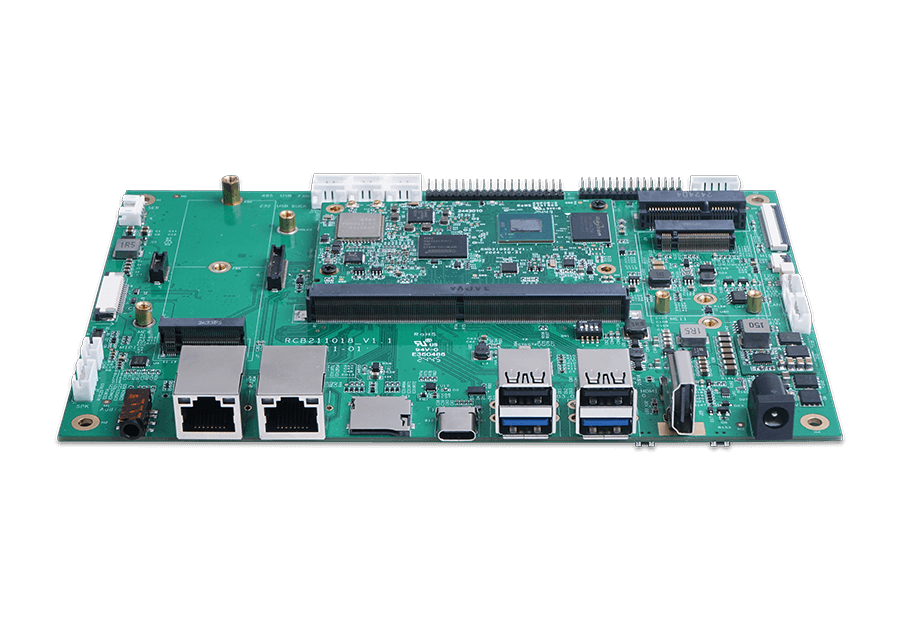

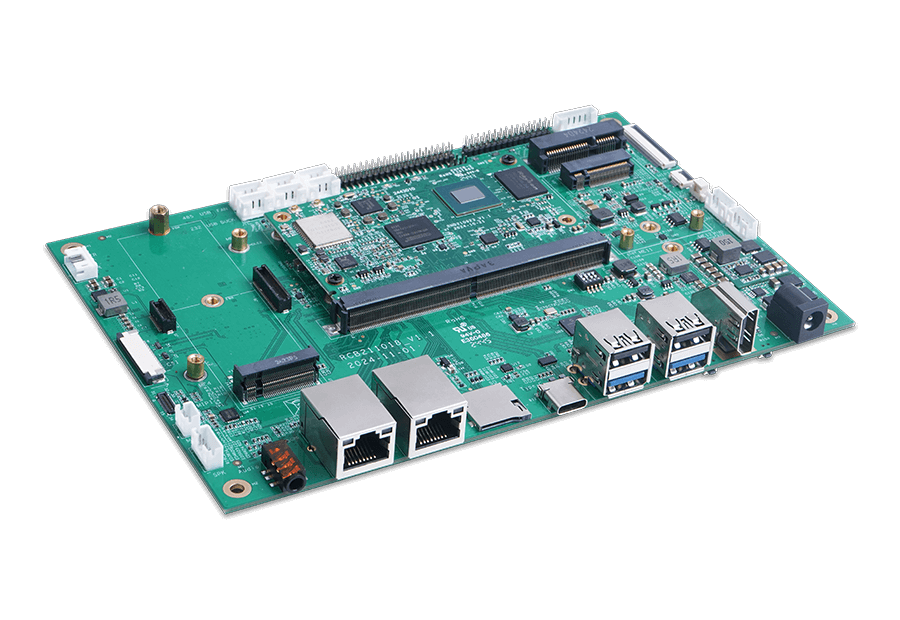

DB820P SMARC development board delivers AI edge computing through NXP’s i.MX 8M Plus SoC with 2.3 TOPS NPU, expandable AI acceleration via M.2 PCIe or Board-to-Board connectors. This versatile platform combines 4K video processing, multi-display support, and industrial-grade I/Os in a compact SMARC form factor, ideal for vision AI and industrial automation applications.
| CHIPSET | NXP iMX8M Plus | |
| MARKET AREA | Global | |
| SMARC-Module | OS | Yocto(Linux)/Android 10 |
| SOC | 4 x Cortex-A53, up to 1.8GHz&1 x Cortex-M7, up to 800MHz | |
| GPU | GC7000UL with OpenCL and Vulkan support Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan |
|
| NPU | 2.3 TOP/s Neural Network performance | |
| LPDDR4 | 4GB（1G-8G optional） | |
| EMMC | 32GB eMMC5.1(8-128GB Optional) | |
| Wi-Fi/BT | Wifi2.4G+5G +BT 5.0 | |
| Development board nterfaces | SMARC | SMARC V2.1 Compatible with SMARC modules CPU Modules. (82 x 50mm) |
| External I/O Connector | 1 x upgrade Key | |
| 1 x Reset Key | ||
| 1 x DC Jack | ||
| 2 x USB 2.0 Type A | ||
| 2 x USB 3.0 Type A | ||
| 1 x USB Type C | ||
| 2 x Giga Ethernet | ||
| 1 x Headphone | ||
| 1 x Micro SD Socket | ||
| 1 x Micro SIM Socket | ||
| 1 x HDMI® Out | ||
| Internal I/O Connector | 1 x RS232 4P Header | |
| 1 x RS485 4P Header | ||
| 1 x SW1 for System boot mode switch | ||
| 1 x Expended Connector 2×20 P Header | ||
| 1 x B2B Connector for AI module 60Pin | ||
| 1 x B2B Connector for AI module power supply 30Pin | ||
| 1 x Speaker (Left/Right Channel) 4P Header | ||
| 2 x USB2.0 4P Header | ||
| 1 x Mic 2P Header | ||
| 1 x RTC-Battery | ||
| 1 x FAN 4P Header with FAN PWM | ||
| 1 x LCD Backlight 6P Header | ||
| 1 x LVDS Panel Power Switch | ||
| 1 x LVDS Screen Connector 2x15P | ||
| 1 x M.2 Key B for 4G/5G | ||
| 1 x Mini PCIe for 4G | ||
| 1 x M.2 Key M for Storage or AI module (cannot be used simultaneously with the B2B connector.) | ||
| 1 x A53 Core Debug connector (UART) | ||
| 1 x I2C Touch Screen connector | ||
| 1 x MIPI DSI connector for MIPI Panel | ||
| 1 x MIPI CSI connector for MIPI Camera 2 lanes | ||
| 1 x MIPI CSI connector for MIPI Camera 4 lanes | ||
| 2 x CAN 4P Header | ||
| DC-IN | 12V2A | |
| Dimensions | 190*125mm | |
