ATSC3.0 Android TV Motherboard

DB982

ATSC3.0 Android TV Motherboard

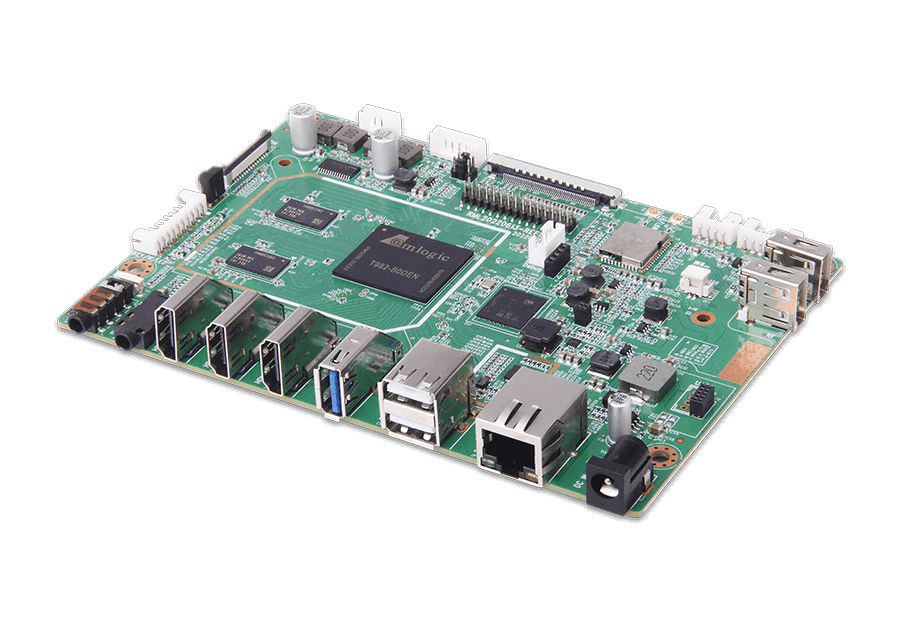

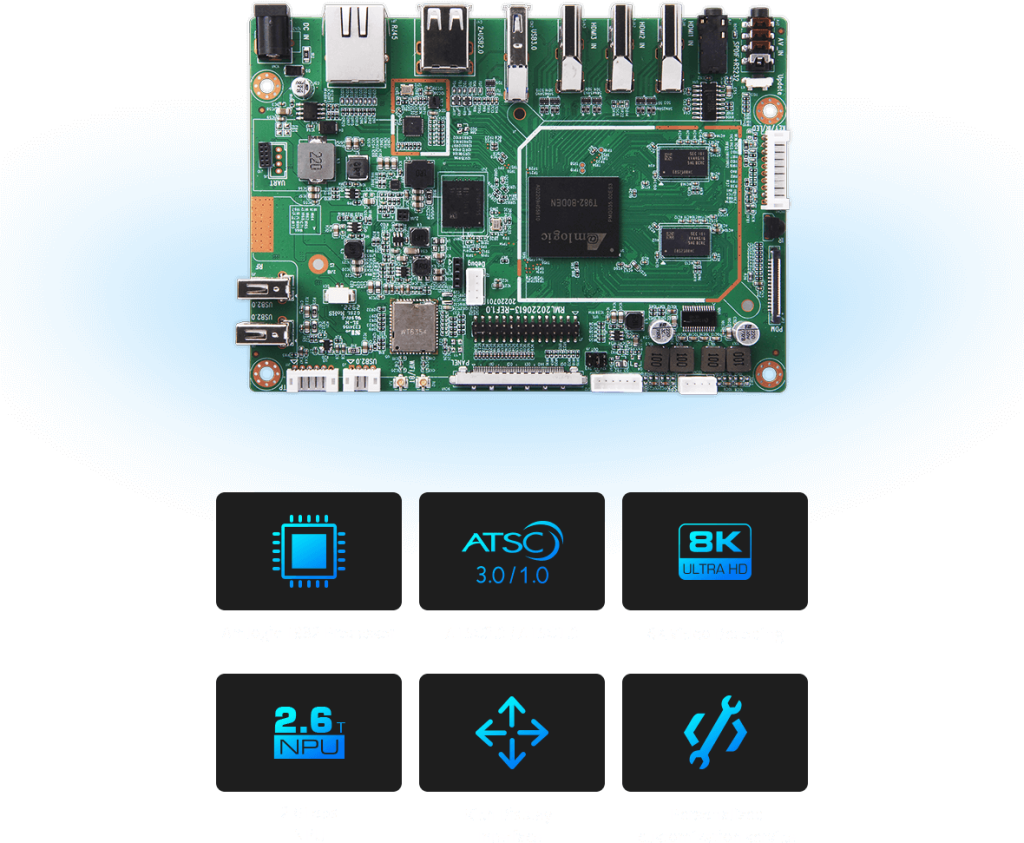

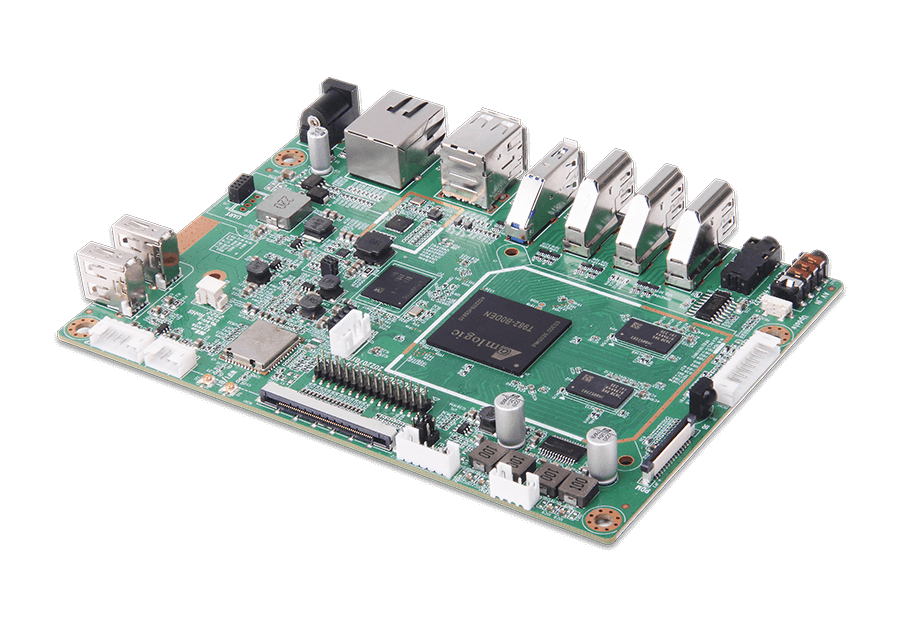

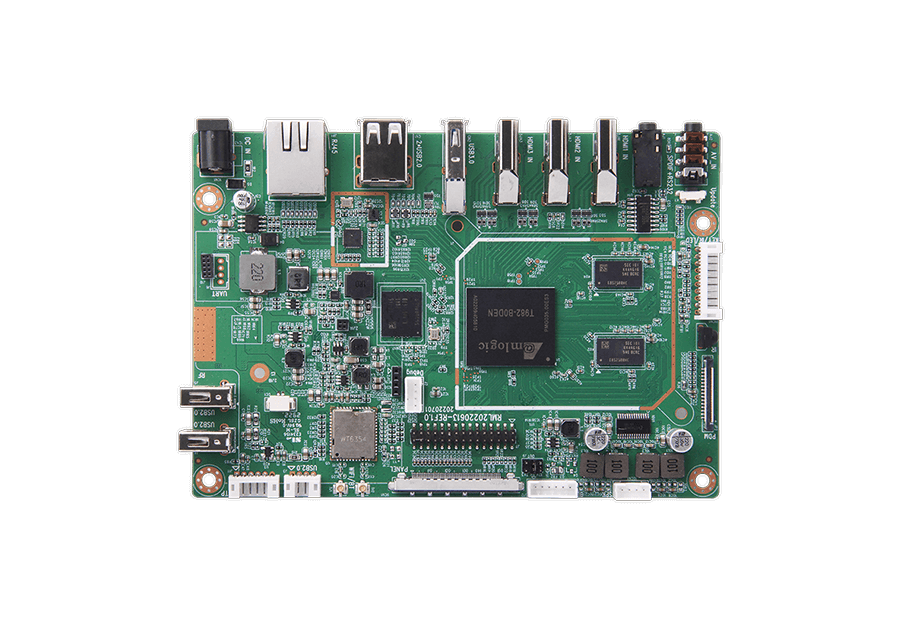

DB982 Smart TV motherboard adopts Amlogic T982 super performance AI processor, features Android 11.0 OS, and supports single/dual ATSC3.0/ATSC1.0 Tuner, integrated mainstream LVDS and ultra-high-definition VX1 LCD screen interface, three-way 4KP60 HDMI® IN input and one AV input interface, reserves GTIOT One-stop service for a variety of network communication modes, enriching functions and meeting the needs of more developers in different scenarios.

ATSC3.0 Commercial TV Motherboard DB982

DB982 Smart TV motherboard adopts Amlogic T982 super performance AI processor, features Android 11.0 OS, and supports single/dual ATSC3.0/ATSC1.0 Tuner, integrated mainstream LVDS and ultra-high-definition VX1 LCD screen interface, three-way 4KP60 HDMI®IN input and one AV input interface, reserves GTIOT One-stop service for a variety of network communication modes, enriching functions and meeting the needs of more developers in different scenarios.

Multiple Functions, Powerful Performance

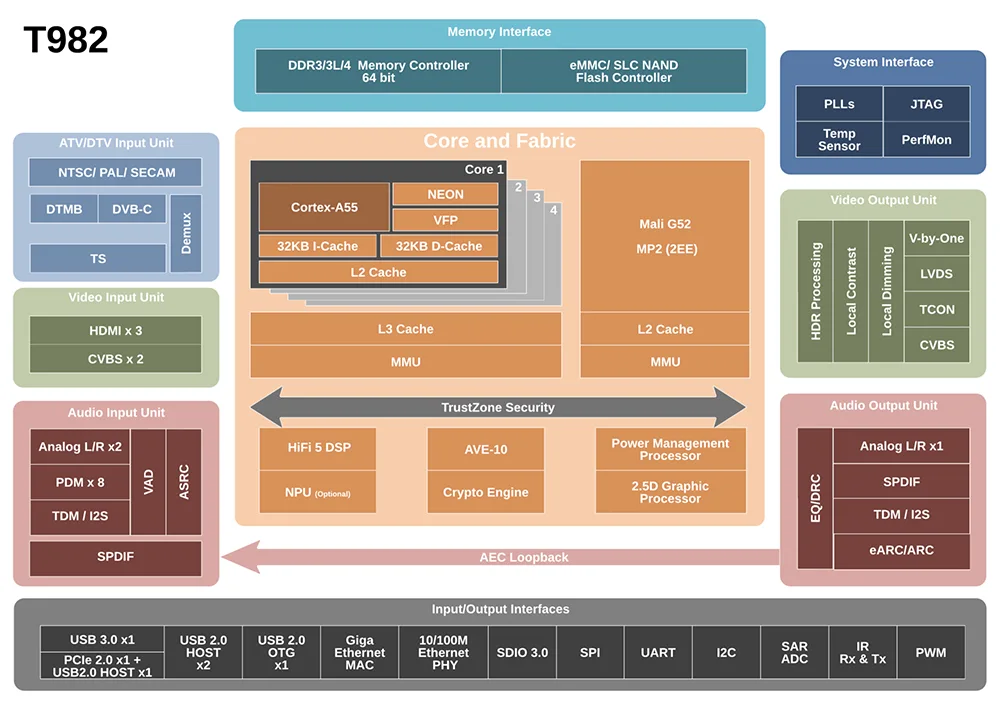

Amlogic T982 is a high-performance, highly integrated, low-power AI smart processor with advanced 12nm FINFET process, built-in 2.6Tops NPU, support for Caffe/TensorFlow and other mainstream deep learning framework models, and its own tensor processing unit (TPU) architecture neural network gas pedal (NNA), which can bring better performance for various AI The NNA with tensor processing unit (TPU) architecture can bring better performance for various AI application scenarios.

Multiple Digital TV Standards, 8K HD Video Decoding

Deeply build modular single/dual ATSC3.0/ATSC1.0 and flexible combination in ATSC3.0, ATSC1.0, DVB-T2, DVB-T, DVB-C, ISDB-T, DTMB standard. Support AV1/VP9 8K@30fps, 4K@60fps and other HD video hard decoding, support Dolby Vision Optional, HDR10/10+, HLG, MS-12(AC4).

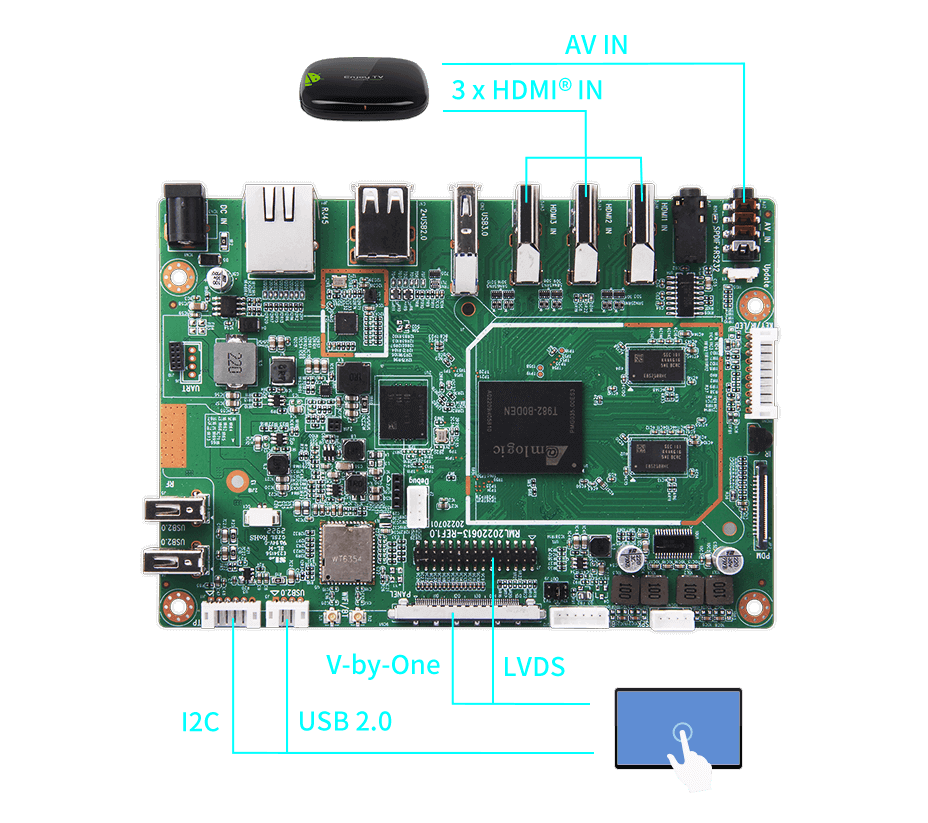

Rich display interface for a smarter, more interesting new experience

It supports V-by-One and LVDS display output, 3 HDMI® and 1 AV display input, and also adds touch screen interface, which is compatible with 10.1~65 inch screen and supports rotation and picture-in-picture display, bringing a new experience of smarter and more interesting.

Ultra-clear audio input and output

Built-in PDM interface, with 4-way microphone array, can achieve high-definition audio capture, ultra-long-distance sound recognition and high directional audio recognition of the audio input, 1 audio optical output (SPDIF), so that the transmission process does not generate any noise, the sound is more transparent and bright, the sense of hierarchy, presenting a clear and delicate sound quality effect, Dolby AC-4 and far-field voice added, with the TV screen effect, can present you with an immersive audio-visual experience.

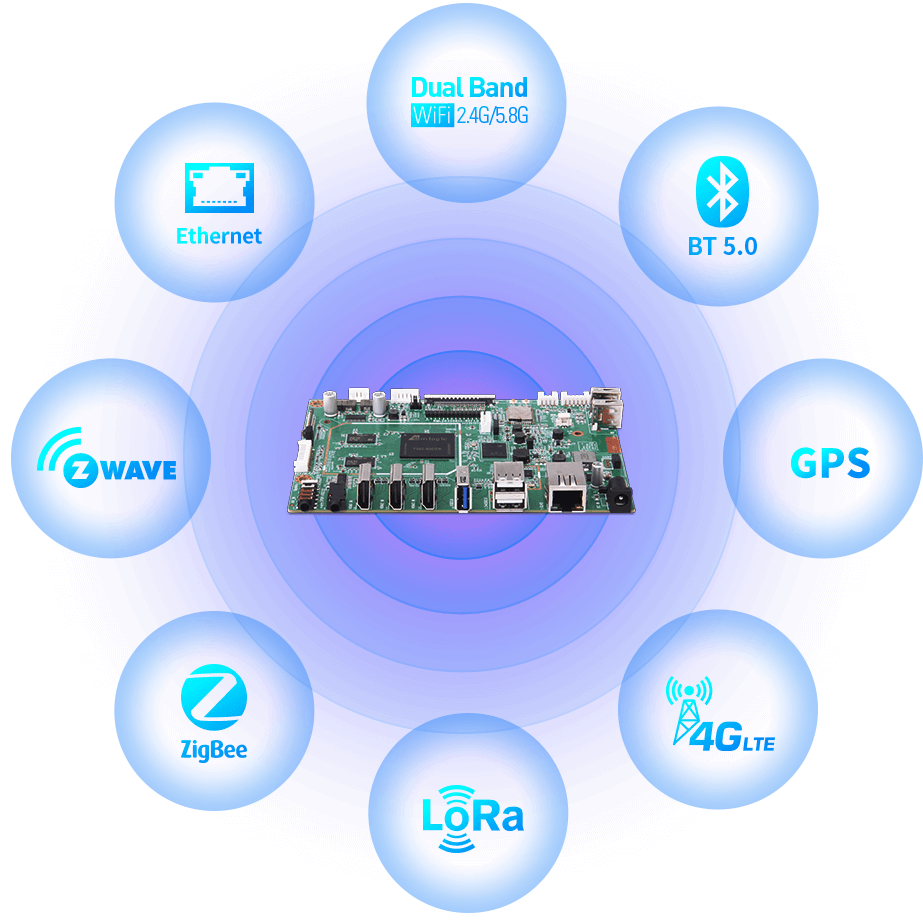

Multi-mode network communication optional

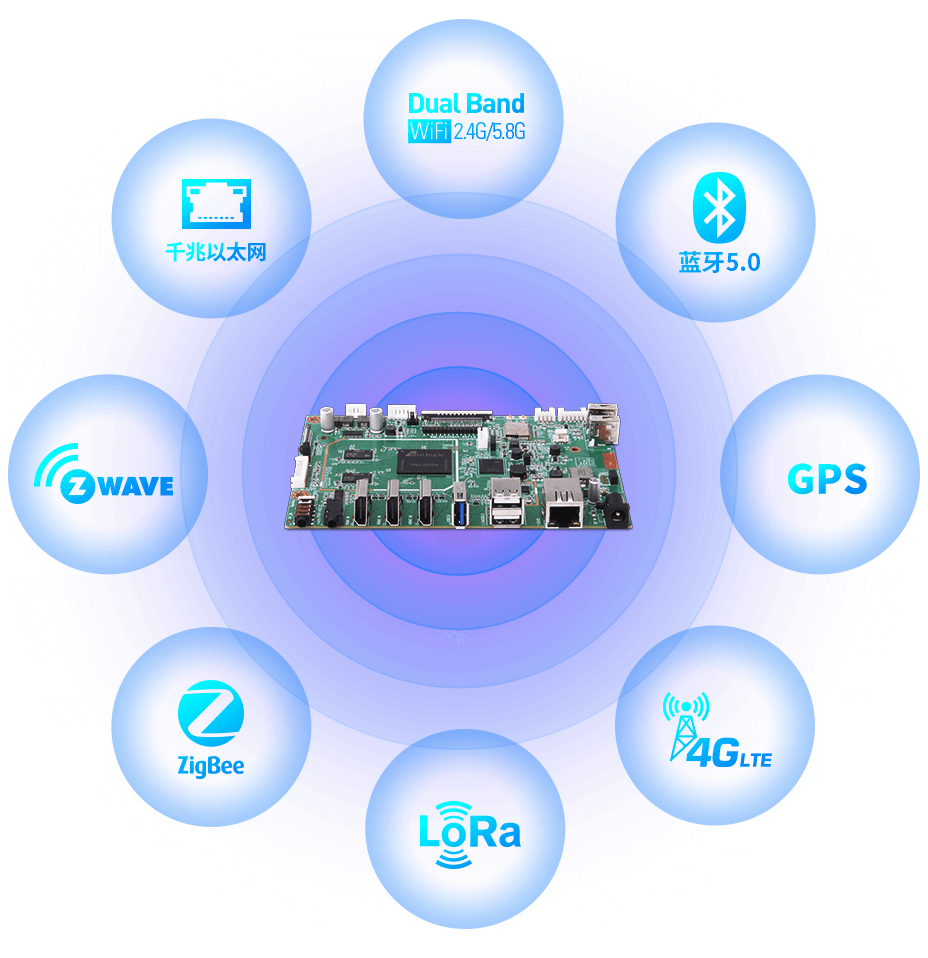

10/100/1000M adaptive Ethernet port, WiFi 2.4G&5.8G dual-band dual-antenna design, Bluetooth 5.0, support Z-WAVE, ZIGBEE, LoRaTE, GPS and other wireless transmission protocols on demand, to meet customer demand for GTIoT IoT interface.

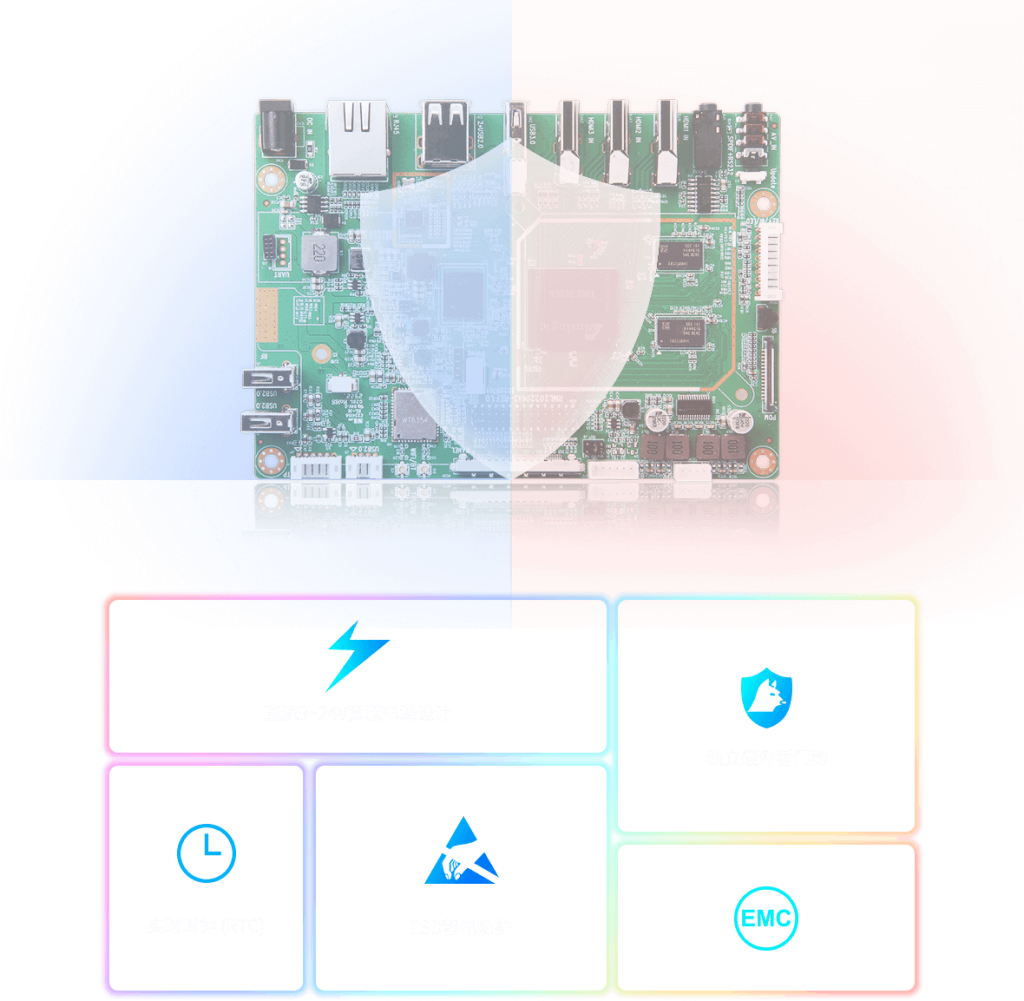

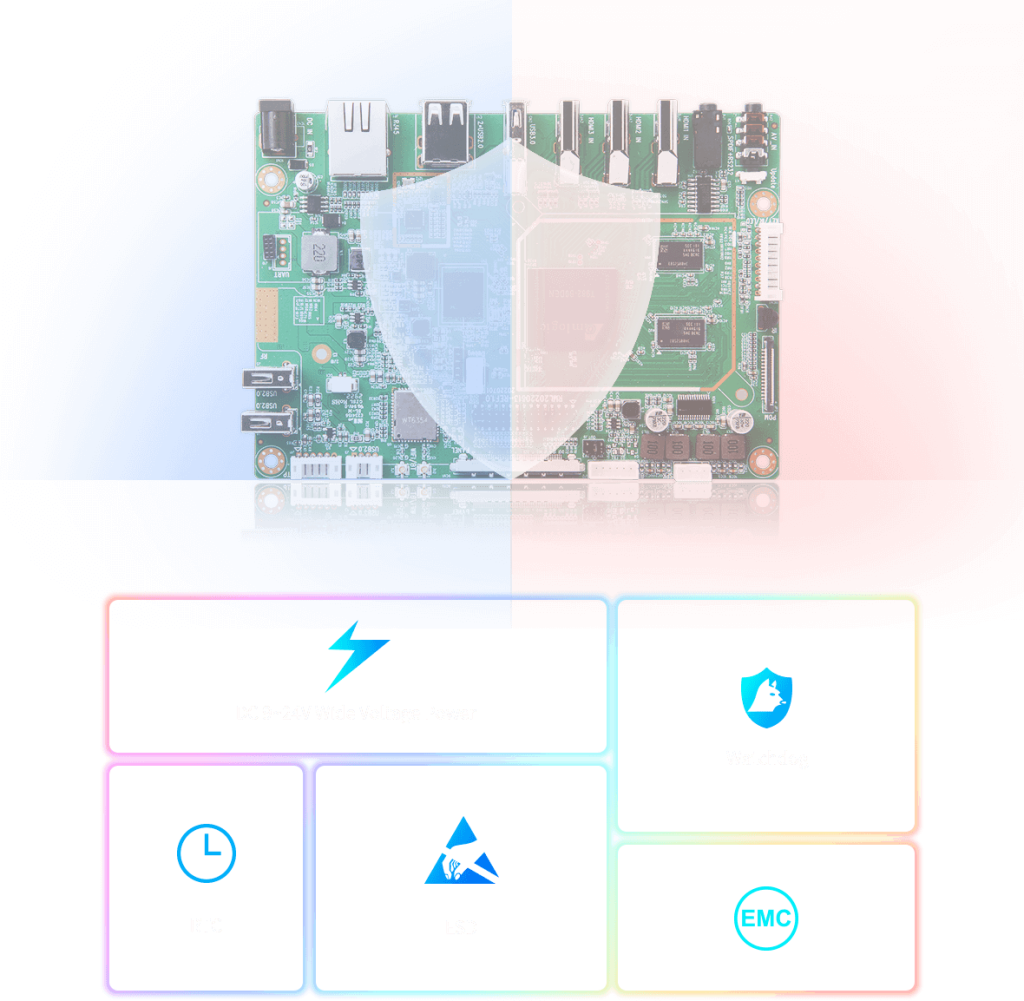

Follow industry design specifications

DC 9~24V wide voltage power supply design, to meet the customer’s wider range of voltage power supply options, security is more secure; independent hardware watchdog + RTC;
The standard EMC and ESD protection design ensures long and stable operation of the equipment in harsh industrial environments.

Personalization, do what you want

We provide hardware configuration customization, BSP trimming, driver debugging, application development, platform docking, upgrade service, MDM customization, SDK secondary development, mass production and other full supply chain consulting services.

Wide range of application scenarios

The DB982 is an industrial-grade product customized for smart TV, smart projection,
ultra-HD commercial display, and smart video, meeting users’ individual and diversified needs for ultra-high definition video, recording while watching, and picture-in-picture display.

Chipset	Amlogic T982-B (Dolby）
Market Area	Global
OSD Language	English/Chinese (Multi language OSD)
Processor	OS	Android R (11.0)
	CPU	Quad-core ARM Cortex-A55 @ 1.8GHz
	GPU	Mali-G52 MP2(2EE) GPU
	DDR	2GB (4G Optional)
	EMMC FLASH	16GB (8G/32/64G Optional)
Supported Panel	Panel type	LCD
	Interface	V by one or LVDS
	Resolution (Max)	3840*2160P60
Network	Ethernet	RJ45, 10/100/1000M
	WiFi	802.11.b/g/n/ac
	Bluetooth	BT4.1 (5.0 Optional )
	3G/4G	Option(Global standard)
Interface	HDMI IN	3*HDMI
	AV_IN	1*3.5mm Jack
	RS232&SPDIF	1*3.5mm Jack
	UART	1*4Pin2.0mm
	LAN	1*RJ45 (LED)
	USB3.0	1*USB3.0
	USB2.0	5*USB2.0 (one build in)
	PDM	1*30Pin0.5mm FPC
	SPK	1*4Pin2.0mm
	Update	1* Update key (3.5mm jack back)
	Backlight	1*6Pin2.0mm
	I2C (TP)	1*6Pin2.0mm
	Other Port	1*10Pin2.0mm (Power, Menu, Source, LED, IR)
	GToit	1*(2x5Pin1.27mm)
	WIFI/BT ANT	2*IPXE
	RF	1*RF Dual ATSC3.0 (ATSC3.0/ATSC1.0/DVB-T2/DVB- T/DVB-C optional)
Size	150*105mm (No interface)
Adapter	DC 9~24V /Φ5.5/2.1mm
Accessory	1*Adapter (AC100~240V 50/60Hz)
Customizable GUI	We provide GUI customization and we have a vast collection of launcher created by our R&D team for you to choose.
Rich Applications	Among the over 1 million apps on the market, this product supports most of them, especially the most well-known apps like Youtube, Facebook and Twitter, etc.
