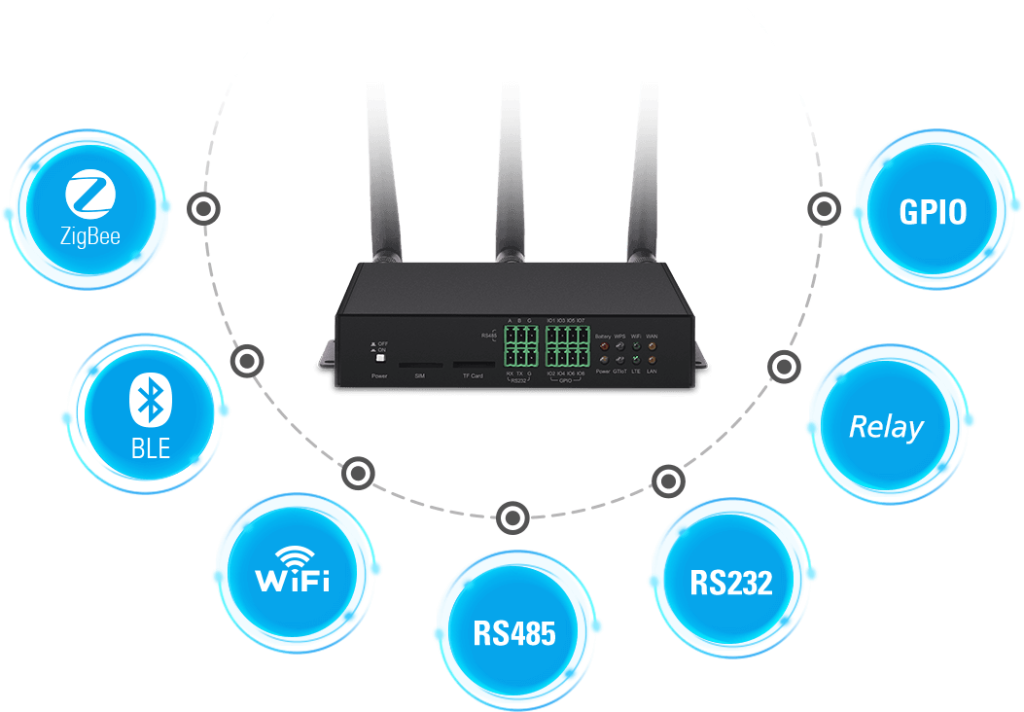

Support for different popular connections including ZigBee, BLE, WiFi, Can also support industrial RS485, RS232, Mod Bus. You can also add a new RF module through the USB port.

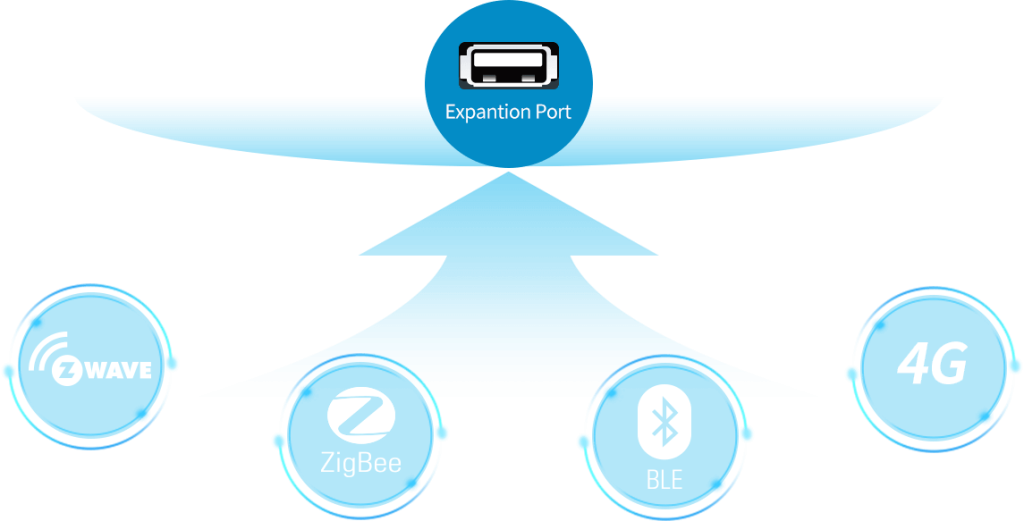

Support external RF module (ZigBee, Z-Wave, BLE, 4G)

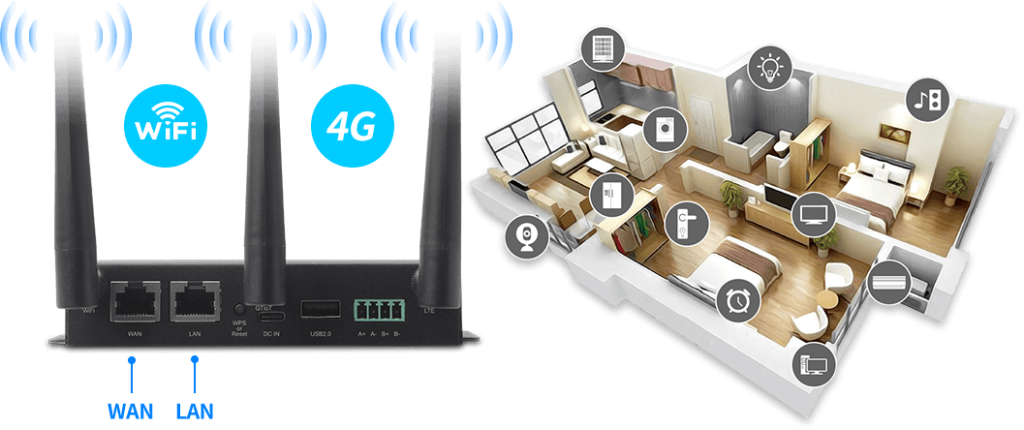

Connect to your home network using WAN, LAN, WiFi or 4G to internet, you can easily remote control smart devices in your home

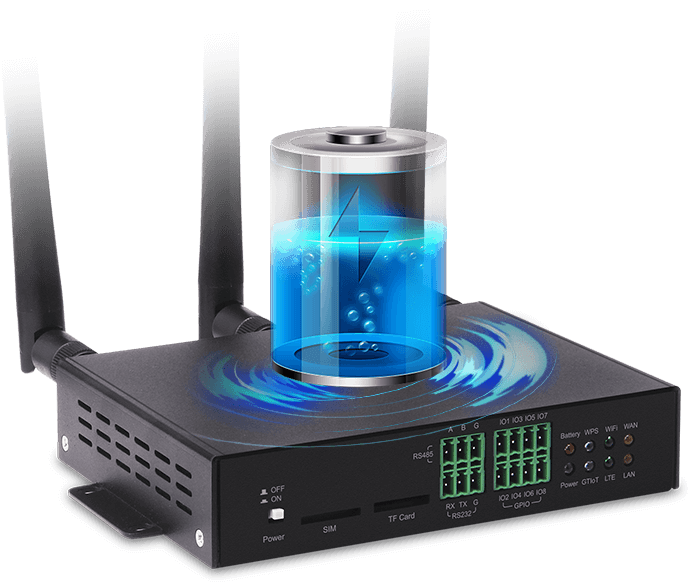

With the built-in rechargeable battery, connection to smart sensors will stay on even power is cut off accidentally.
Using industrial grade wireless technology and highest level encryption to ensure your smart home network security
Traditional instrument wireless meter reading, remote intelligent display system, intelligent vehicle, Internet of things, etc
CPU/ memory/storage /WIFI+ Bluetooth
Provide SDK secondary development customers can compile their own sensitive requirements
Remote collection of device status information and control of the device (firmware update, uninstall/install APK, restart, standby/wake up, real-time advertising……)
It is safe, fast and low cost to easily meet the requirements of customers
| Processor | Chip | MT7628A |
| CPU Frequency | MIPS 24KEc 580MHz | |
| Storage | Internal Memory | 64MB DDR2(Optional 128MB) |
| Internal Storage | 16MB SPI(Optional 32MB) | |
| Network | 2G/3G/4G/LTE Cat4 | LTE for EU、LTE for AU、LTE for US (Optional) |
| Built-in WiFi | 802.11 a/b/g/n,802.11ac(Optional) | |
| WiFi 2.4G Frequency Range | 2.400~2.497GHz | |
| WiFi 5G Frequency Range | 5.15~5.925GHz（Optional） | |

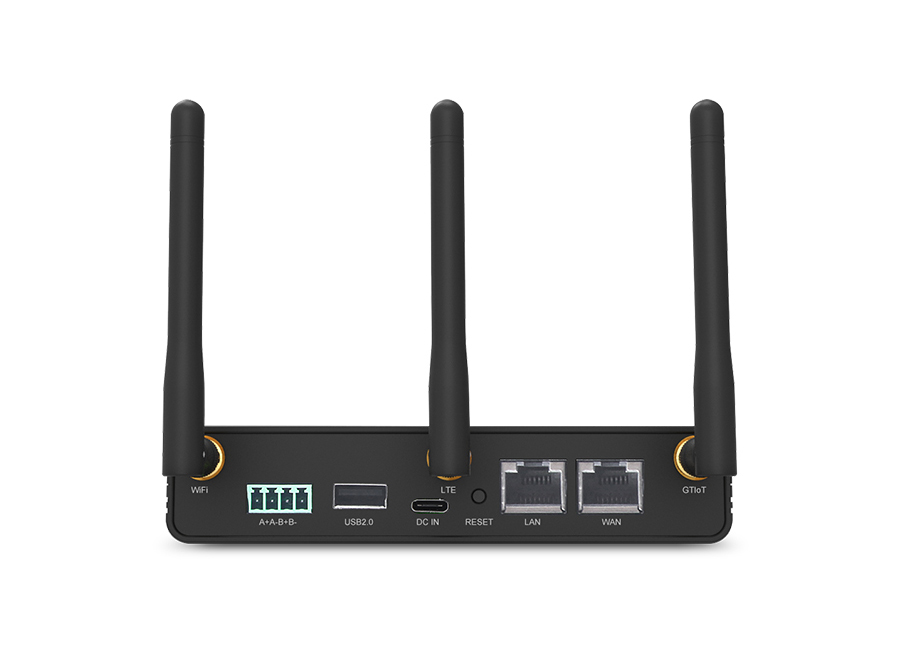

| Ethernet port(LAN) | 1*RJ45 10/100Mbps WAN
1*RJ45 10/100Mbps LAN |
|
| PoE | IEEE802.3af standard， PoE PD with TVS protection(optional) | |
| I/O interface | USB-A 2.0 x 1;Type C for Power Supply
RS232/RS485 3P 15EDGK-3.81mm GPIO 4P*2 15EDGK-3.81mm Relay*2 4P 15EDGK-3.81mm GTIoT/Debug/Default button |
|
| Protocol | ZigBee | 3.0（Optional） |
| Bluetooth/BLE | 5.0（Optional） | |
| RS485 | TIA485/EIA-485-A
-7~+12V |
|
| RS232 | ±5~±15V | |
| Control interface | GPIO | 3.3V level |
| Relay | 2*3A 250VAC | |
| Extended interface | LEDs | 4G,WAN,LAN,IoT,Power,Wi-Fi,Battery,WPS |
| SIM Slot | Micro SIM Card | |
| SD Card | Micro SD Card | |
| Power pack | Supply voltage | DC5V 2A |
| Battery voltage | 3.7V 500mAH~2000mAH | |
| Energy | Within 5W(for reference only) | |
| Environment | Operating temperature | -20~55℃ |
| Operating humidity | 10%~95% | |
| IP protection levels | IP30 | |
| Mechanical properties | Size (mm) | 168*95.7*41.2 |
| Net Weight (g) | 425 | |
| Operating system(OS) | Linux OpenWRT | |
| Other | WiFi antenna,GTIoT antenna,LTE antenna | |
