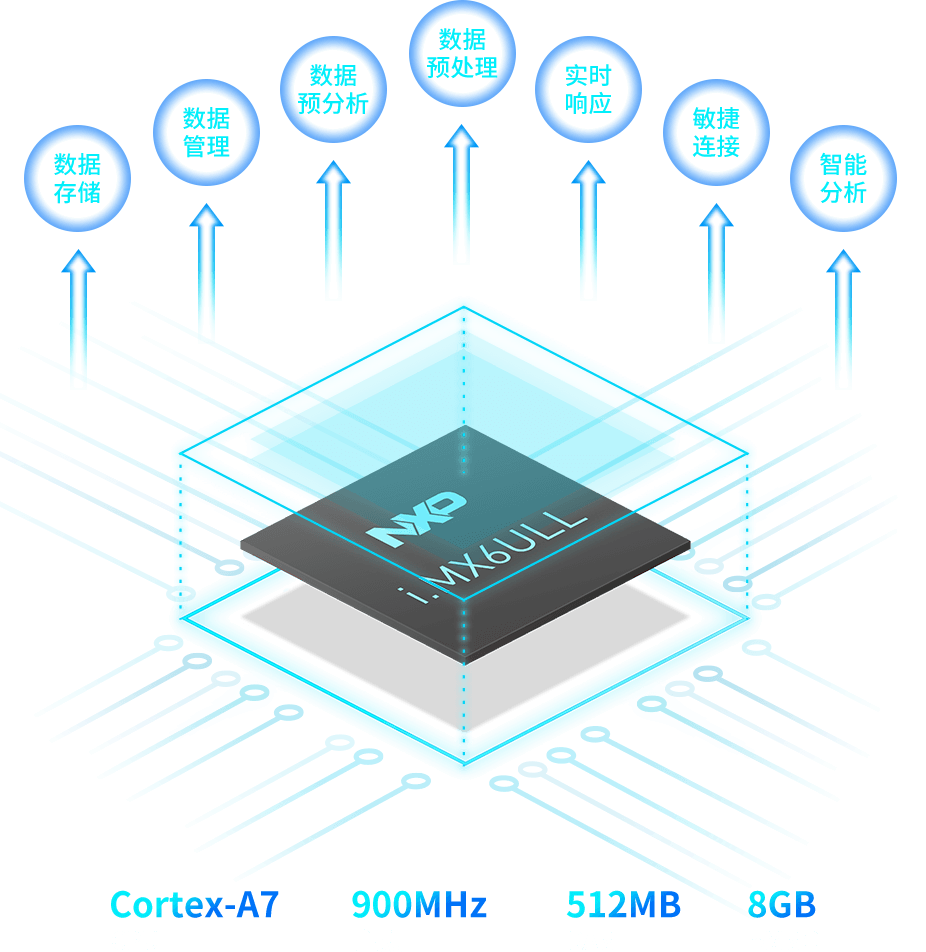

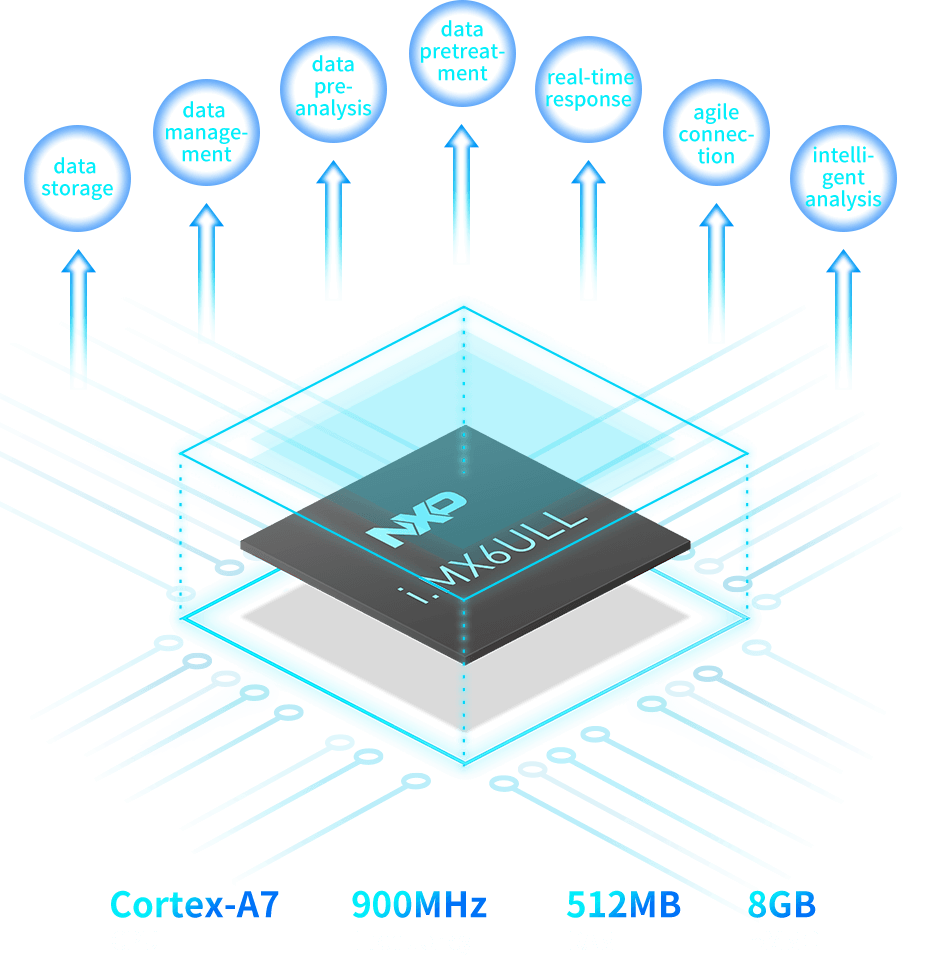

ARM Cortex-A7 processor, up to 900MHz main frequency, 512MB RAM, 8GB eMMC storage, for realizing the powerful performance resources for the field equipment data storage, data management, data pre-analysis, real-time response, agile connection, intelligent analysis.
Provides multiple network access modes to achieve stable, reliable, and uninterrupted network access. Users can choose flexibly according to the site working environment.

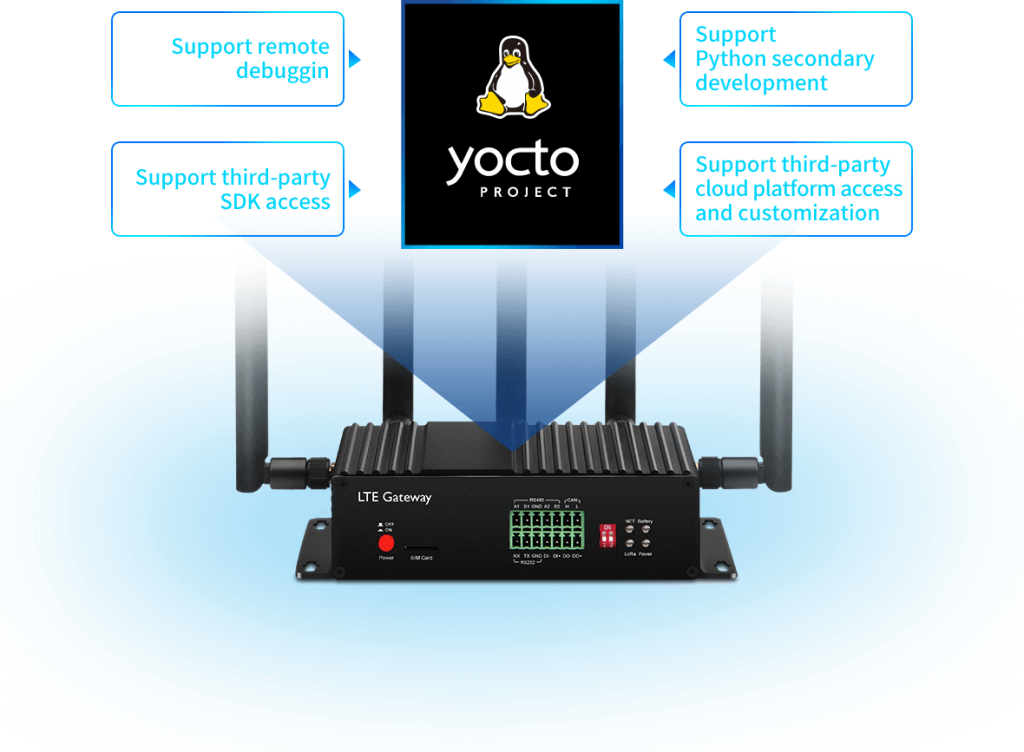

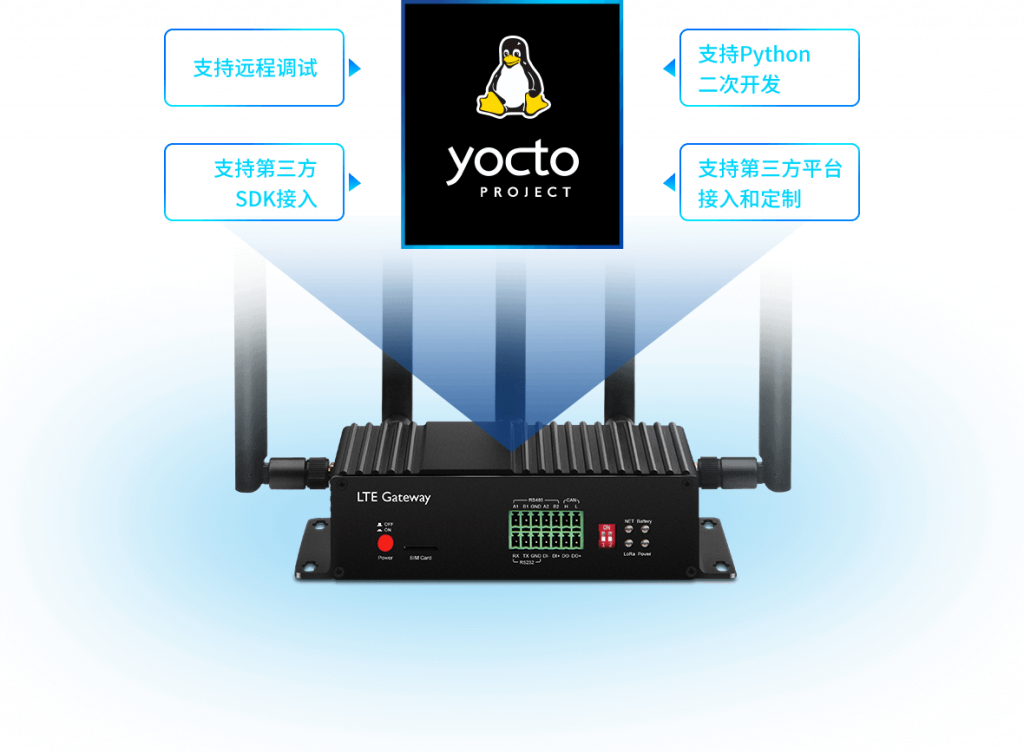

Adopt a mature, stable and scalable Linux Yocto system to support remote debugging, third-party SDK access, Python secondary development, third-party cloud platform access and customization.

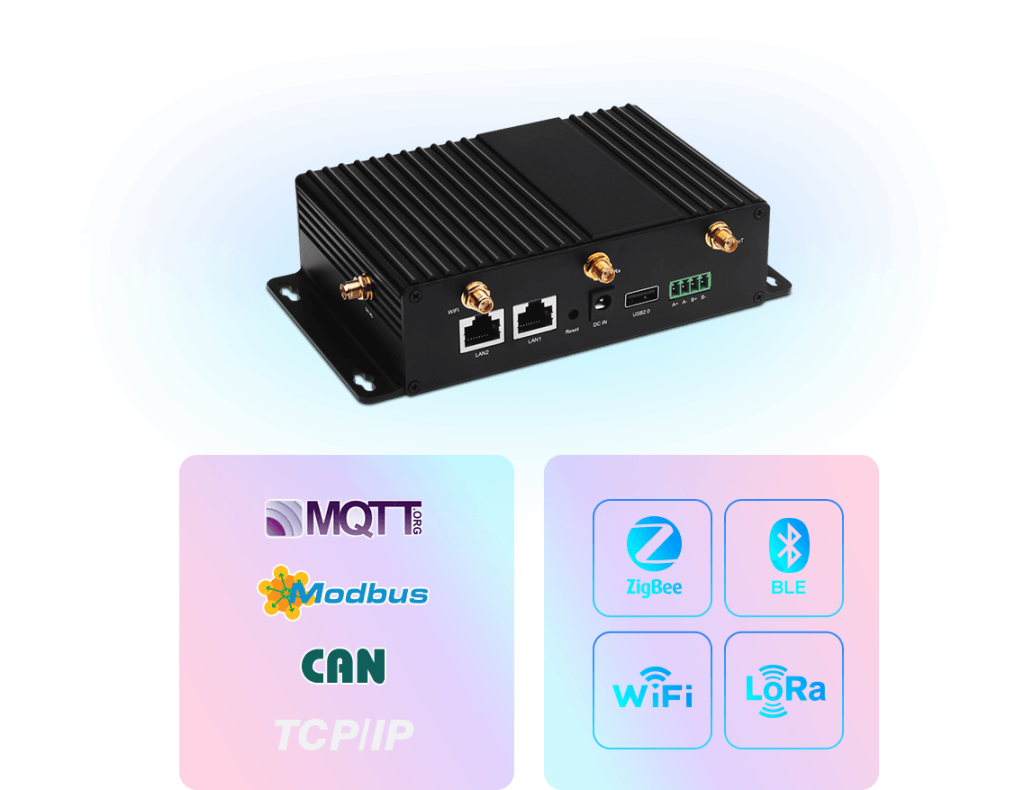

Compatible with MQTT, HTTPS, CAN, ModBus and other mainstream industrial protocols, support ZigBee, BLE, WiFi, LoRa and other common iot connection modes, combined with wireless communication encryption technology, to ensure network security and stability, easy to achieve AD hoc network.

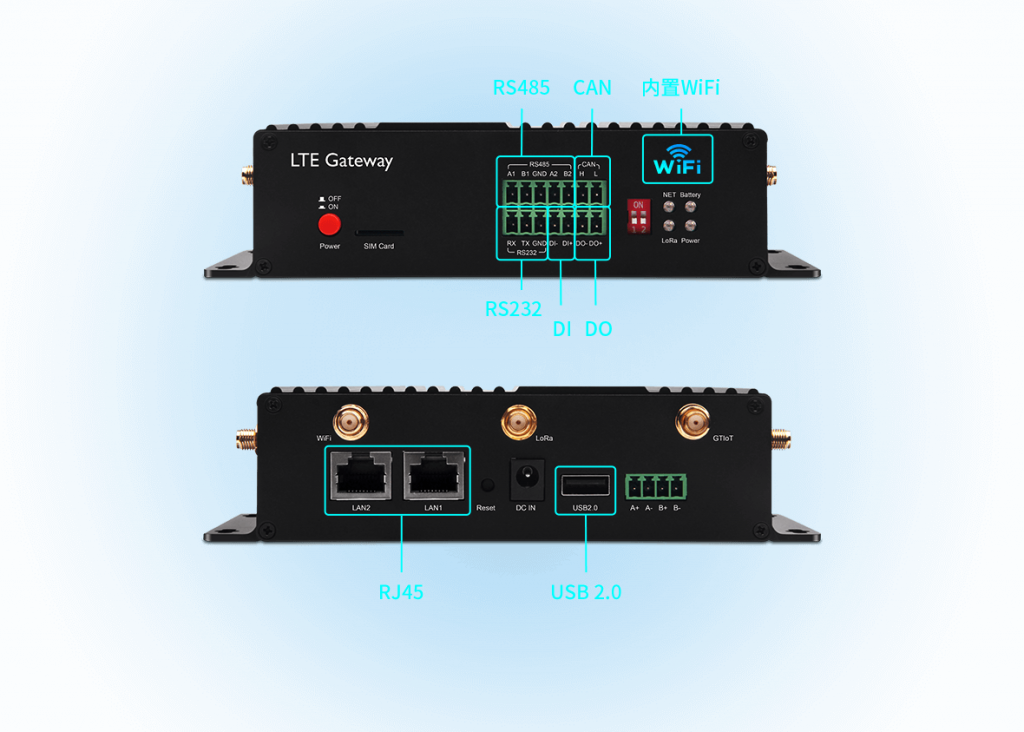

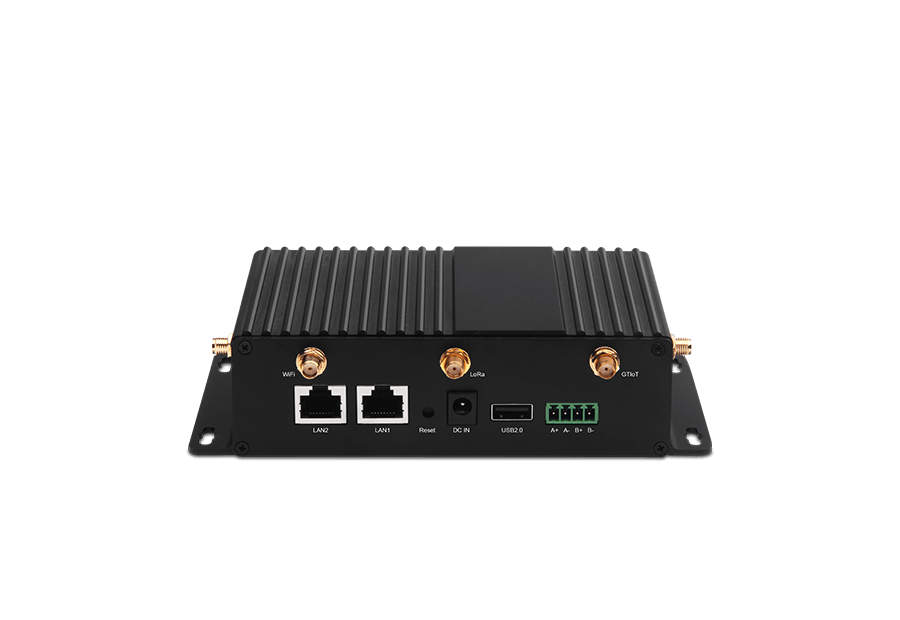

Onboard RS232, RS485, RJ45, DI, DO, CAN, WiFi, USB and other interfaces, and reserved interface expansion board, to meet the various equipment in different ways of access, convenient for later interface expansion.

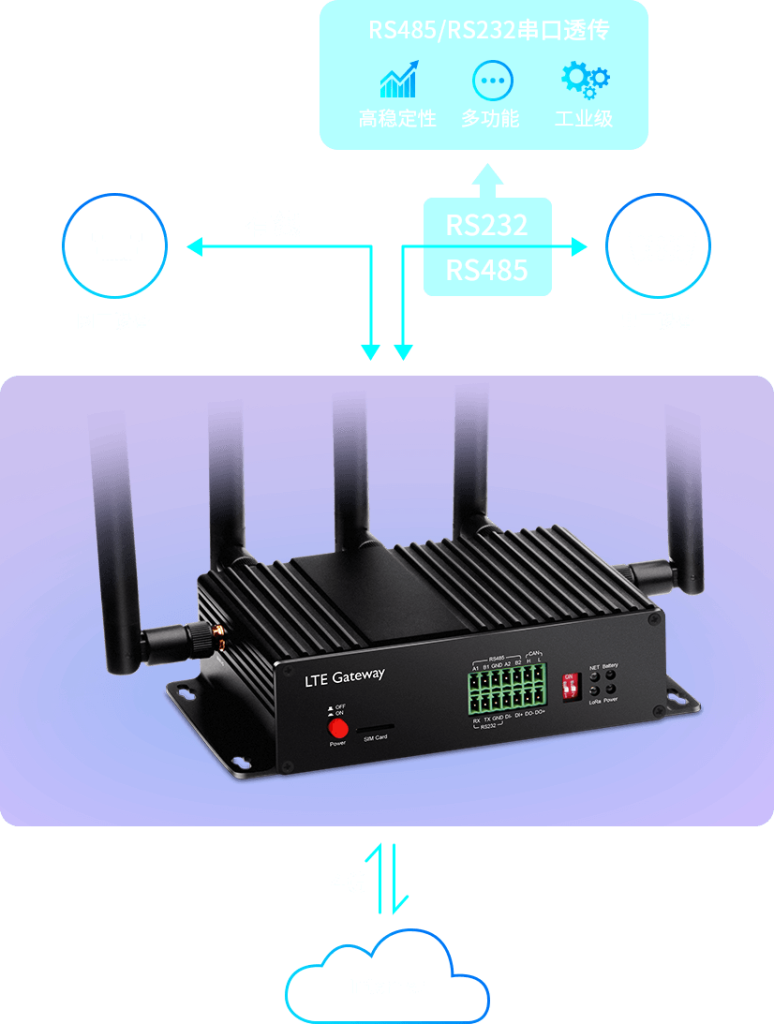

Through RS485, CAN, DI, DO, Relay and other industrial control communication interfaces, industrial equipment, sensors and acquisition terminals are connected to achieve fast two-way transparent transmission of industrial control communication interface data to 4G, Ethernet, WiFi networks, and fast access to various cloud management platforms.

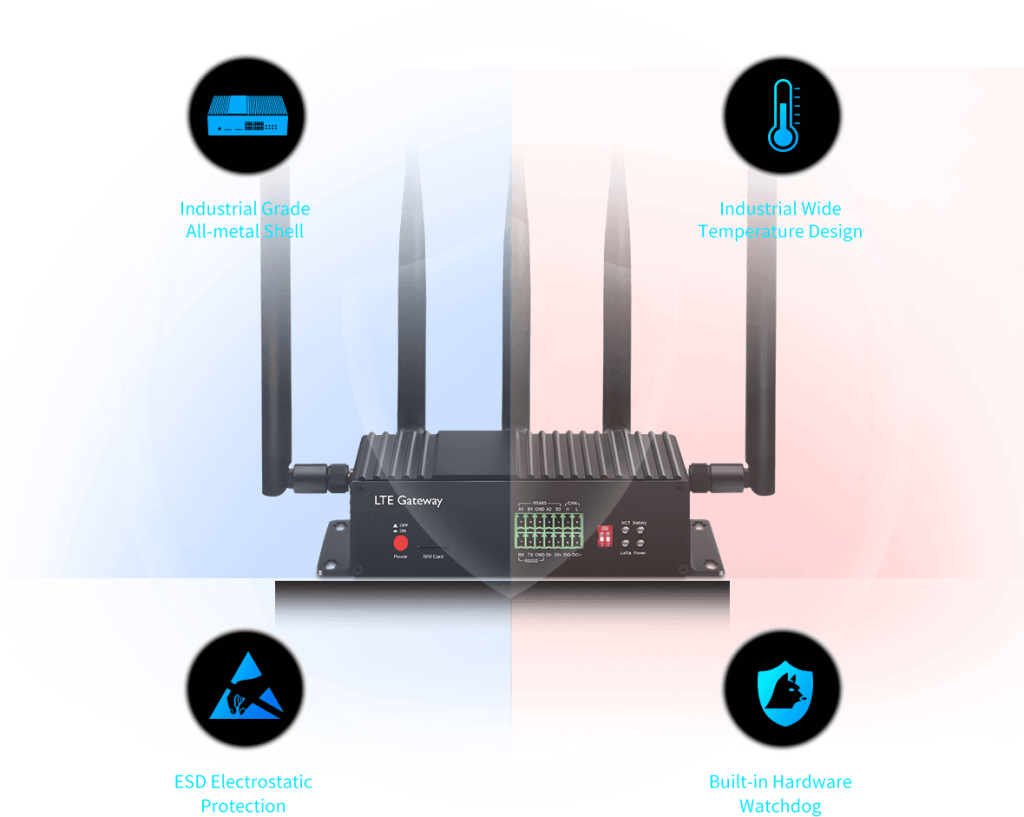

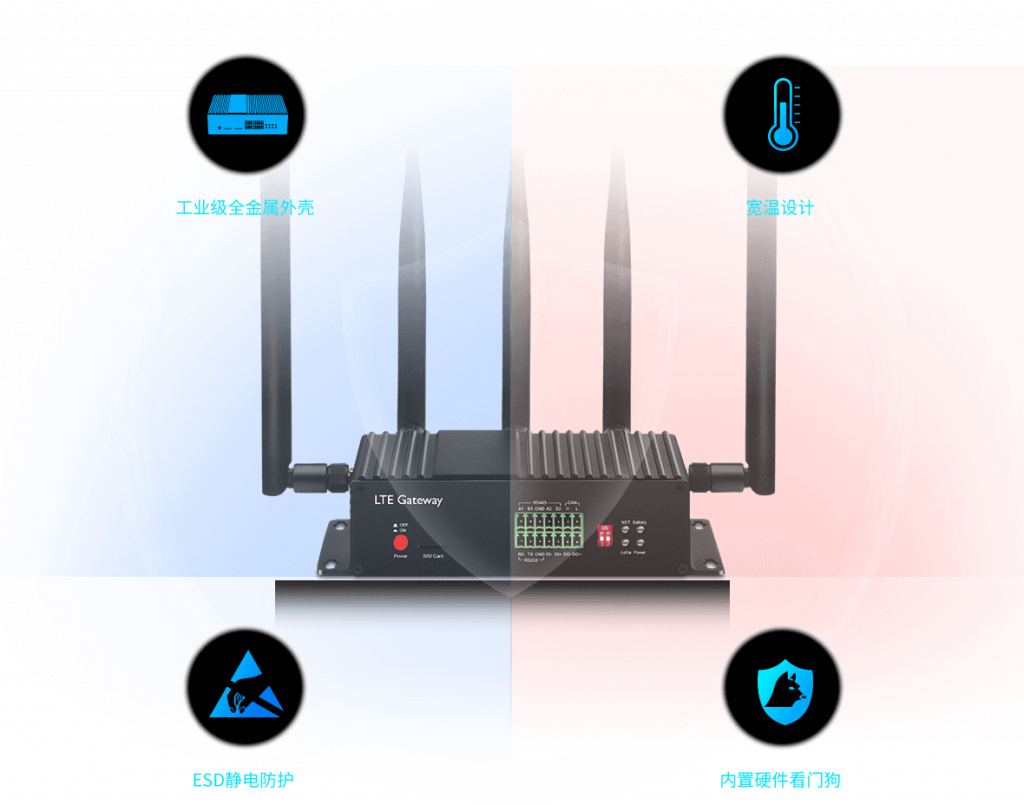

Industrial grade all-metal shell, industrial wide temperature design, built-in hardware watchdog, ESD electrostatic protection, EFT pulse interference, surge anti-interference, pulse group multiple protection, to ensure the safe and reliable operation of the equipment in the harsh environment.

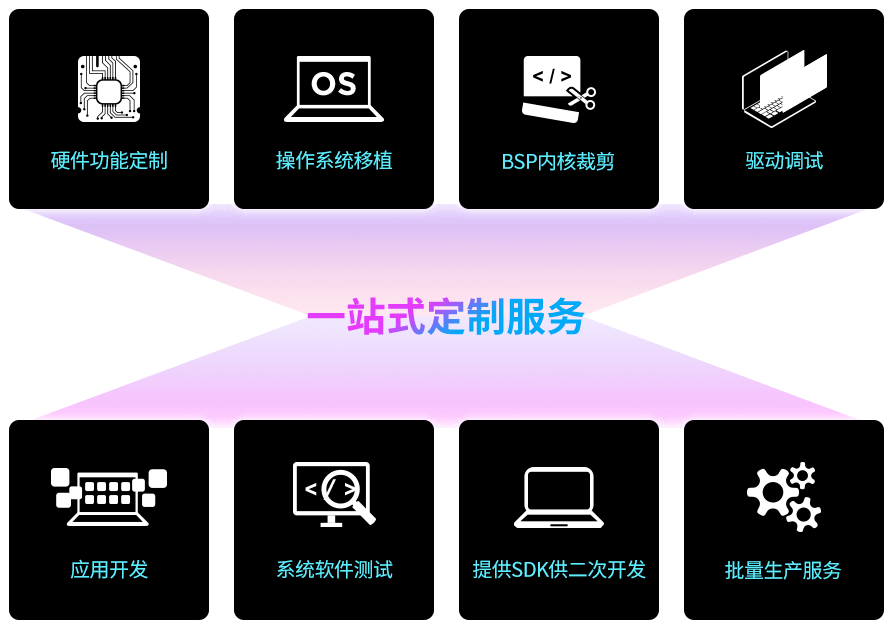

With more than 20 years of ARM product research and development precipitation and technical resources, gold Asia Pacific not only provide customers with hardware function and custom design, can also provide across SoC platform operating system transplantation, BSP kernel cutting and drive debugging, scenario-based application software development, the overall system software test, perfect SDK secondary development of one-stop advisory services, with the company nearly 3 square meters of production factory, help customers greatly shorten the project from product selection, research and development, small trial production to mass production delivery cycle.
Traditional instrument wireless meter reading, intelligent vehicle, Internet of things, intelligent agriculture (intelligent irrigation, meteorological monitoring), wisdom city (traffic management, intelligent lighting), intelligent manufacturing (automated production line, numerical control system), energy monitoring (solar energy monitoring, electric car charging pile), environmental monitoring (water quality monitoring, sewage treatment), etc.
| CPU | Chip | NXP i.MX6ULL | |
| CPU Frequency | Single ARM Cortex-A7 792MHz~900MHz | ||
| Storage | Internal Memory | 512MB(256MB/1GB optional) DDR3 | |
| Internal Storage | 8GB(4GB optional) EMMC | ||
| Network | 2G/3G/4G/LTE | LTE Cat4 for EU、LTE Cat4 for AU、LTE Cat4 for US(Optional) | |
| Built-in WiFi | 802.11 a/b/g/n | ||
| WiFi 2.4G Frequency Range | 2.400~2.497GHz | ||
| Ethernet port(LAN) | 2*RJ45 10/100Mbps LAN(One of the RJ45s supports PoE PD) | ||
| PoE | IEEE802.3af standard，PoE PD with TVS protection（optional） | ||
| I/O interface | USB | USB-A 2.0 x 1 | |
| RS232 | *1 | 7P*2 15EDGK-3.81mm | |
| RS485 | *2 | ||
| CAN | *1 | ||
| DI | *2 | ||
| DO | *2 | ||
| Relay*2 | 4P 15EDGK-3.81mm | ||
| ZigBee | 3.0 (optional) | ||
| Bluetooth/BLE | 5.0( Optional) | ||
| RS485 | TIA485/EIA-485-A
-7~+12V |
||
| CAN | ISO11898-2:2016 and SAE J2284-1 to SAE J2284-5
ESD Protection(8kV IEC and HBM) |
||
| LoRa | LoRaWAN communication specification, 8 channel downlink, 1 channel uplink at the same time（optional）. | ||
| RS232 | ±5~±15V | ||
| Control interface | DI/DO | ±15KV(air) ±10KV(contact) | |
| Relay | 2*3A 250VAC | ||
| Extended interface | LEDs | NET,Power,Battery,LoRa | |
| SIM Slot | Micro SIM Card | ||
| GTIoT | 2*5P 1.27 socket(Internal interface) | ||
| Debug | 4P 2.0 ranking(Internal interface) | ||
| Extended interface UART | 6P 2.0 ranking(Internal interface) | ||
| Button | Reset | ||
| Power pack | Supply voltage | DC12V 1.5A | |
| Charging lithium battery | 3.7V 1000mAH~5000mAH（optional） | ||
| Energy | Within 5W(for reference only) | ||
| RTC&Watchdog | 3V 5mA | ||
| Mechanical properties | Size (mm) | 168*95.7*41.2 | |
| Net Weight (g) | 425 | ||
| Operating system(OS) | Linux/Yocto | ||
| Other | WiFi antenna*1,LoRa antenna（optional）,LTE antenna*2,GTIoT antenna（optional）. | ||
