HD Cap X-II是一款多功能独立高清视频采集盒，专为轻松录制和播放而设计。搭载IT9919处理器及内置视频缩放引擎，支持全高清1080p输入输出，可直接录制至USB存储设备或硬盘——无需电脑。进阶应用时，可通过微型USB连接电脑，配合第三方软件进行编辑或流媒体传输。

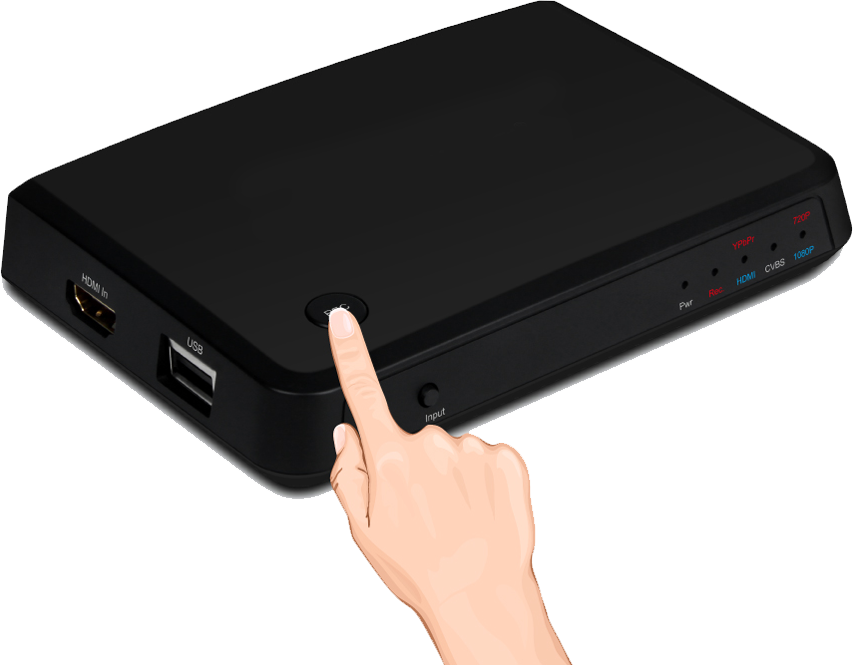

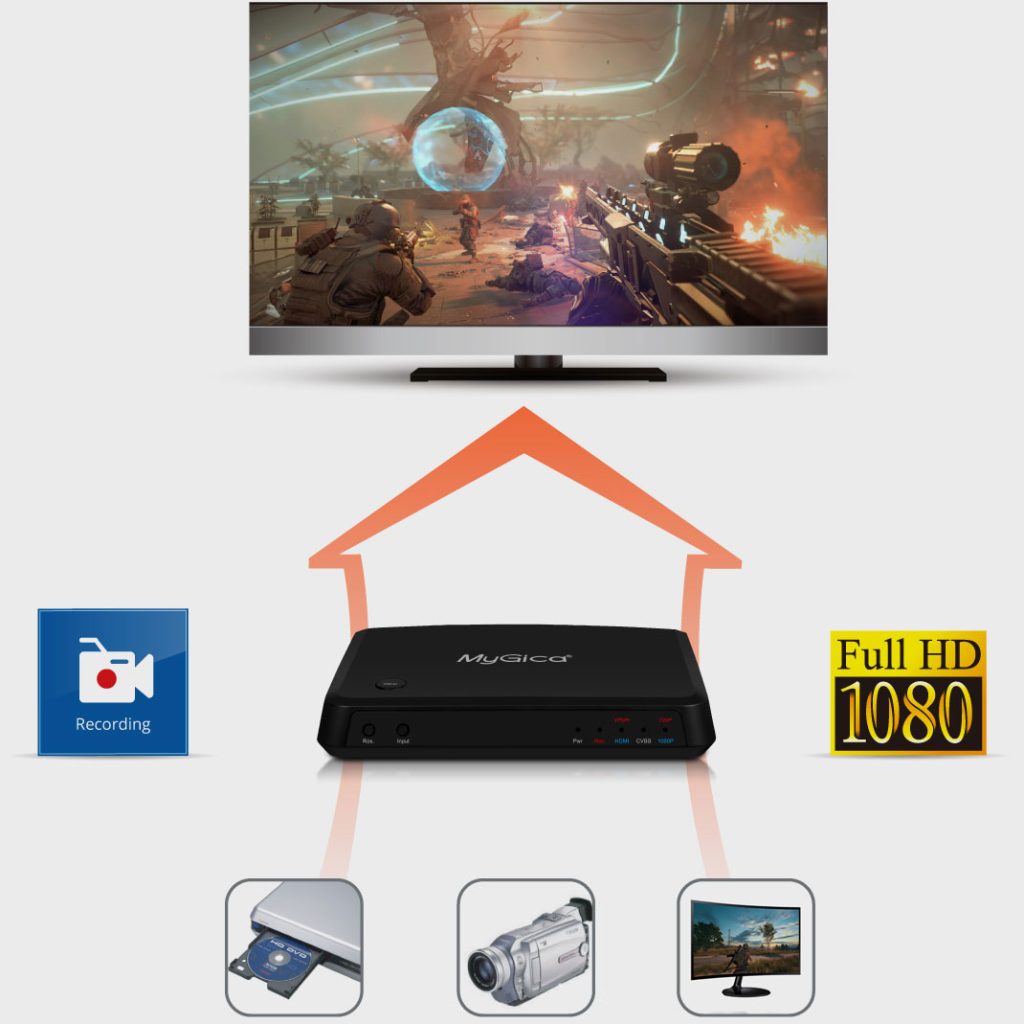

HD Cap X-II video capture device can record 1080P Full HD video,stereo audio and with microphoneinput to record speeches to the recording video. The setup is very easy, just plug in the cables anda usb storage device and you are ready to capture videos with a single click!

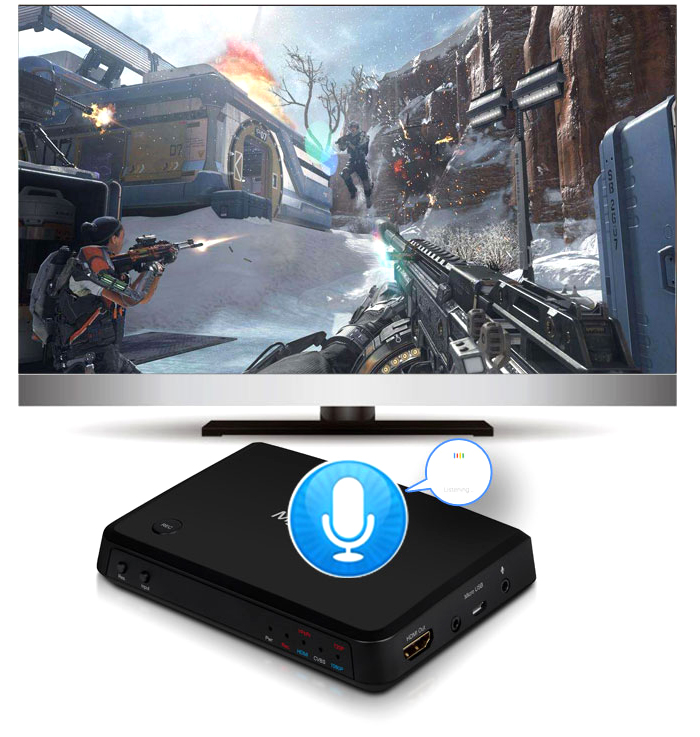

Simply plug in the microphone and you can add live commentary when recording the gameplay!
The Mic input is only available on HD CAP XII
| CPU | 200MHz 32-bit, video scaling engine |
| RAM | 512MB |
| ROM | 256M DDR/DDR2 |
| DC Input | 5.0V-2A |
| HDMI® Input | V1.4a, HDCP 1.4 |
| HDMI® Output | V1.4a |
| External SD | Max: 32G |

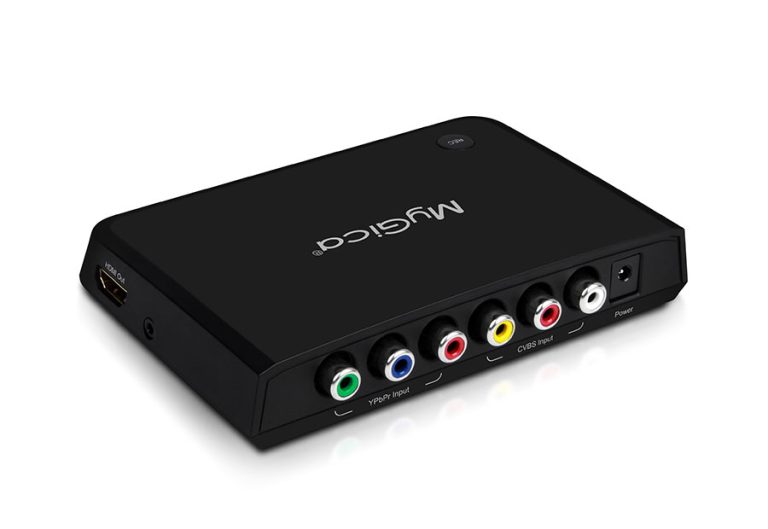

| Video Input | HDMI/YPbPr/CVBS |
| Audio Input | HDMI/RCA/YUV |

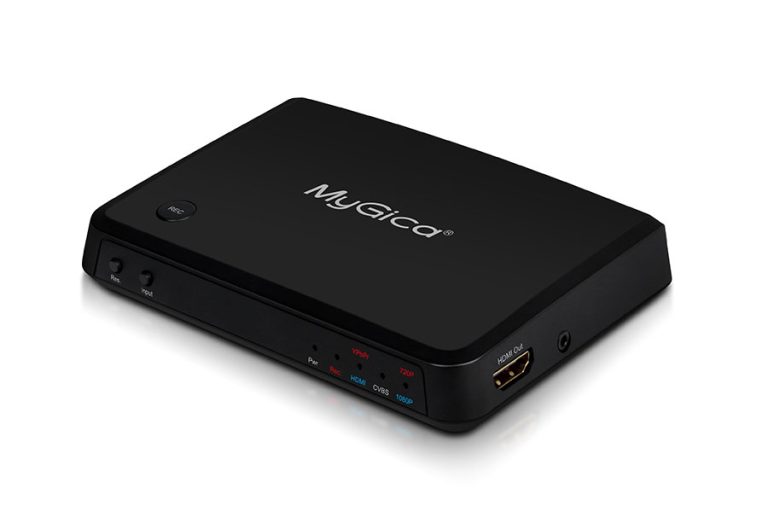

| A/V output | HDMI |
| Microphone input | 3.5mm socket |
| Video Encoder | 720p, Max 1920x1080p @ 30fps H.264: AVI, MOV, MP4, MKV, TS, M2TS, M3TS, M4TS, M5TS, MTS, M4V, FLV |
| Video Recording | Record to USB Storage or PC hard drive |
| Size | 131x85x24 mm |
| Net Weight | 123g |
