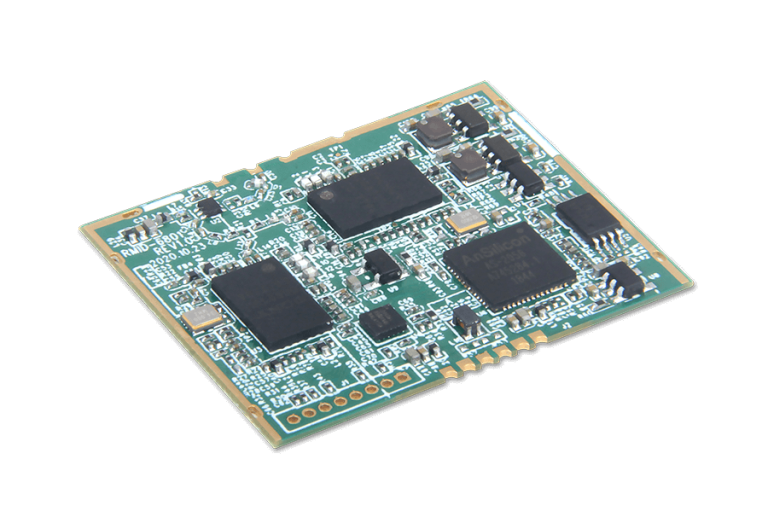

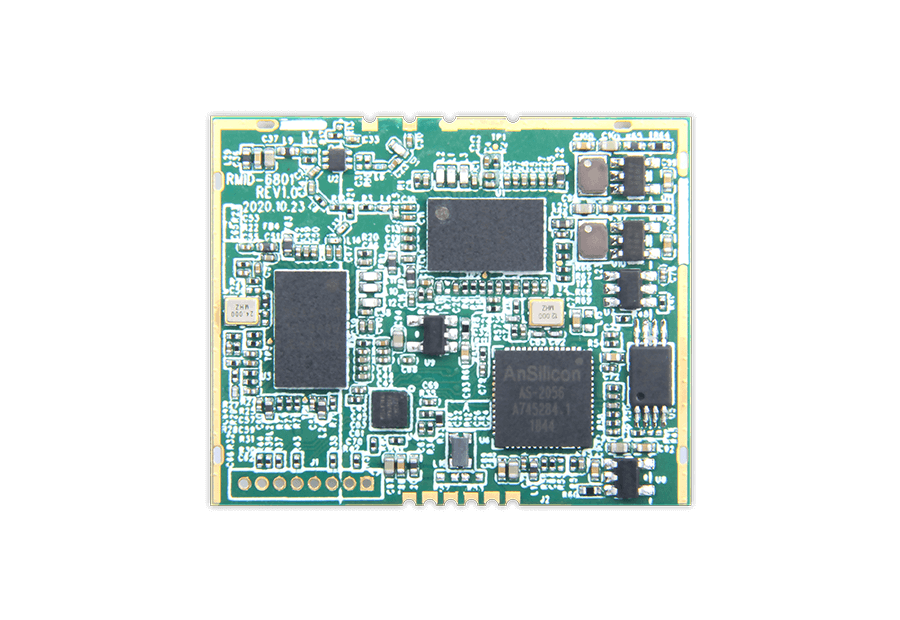

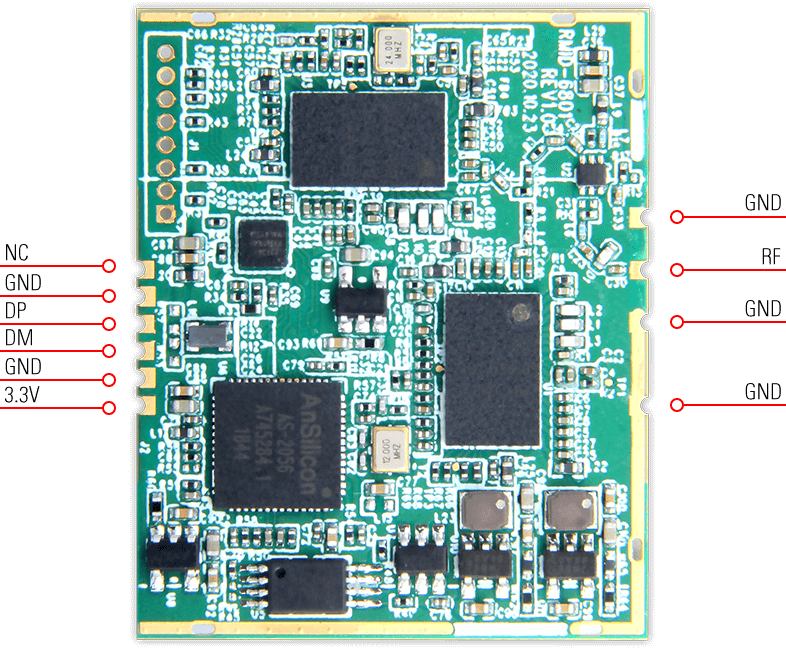

Geniatech MA683/MA683B is a TV tuner module supporting ATSC 3.0, a new standard for terrestrial television in USA and Korea. With single or dual tuners, it can receive up to two channels simultaneously. The module can be used for getting TV stream for decoding by the main SoC, like a PC, notebook, Linux STB and Android devices, through USB2.0 interface.

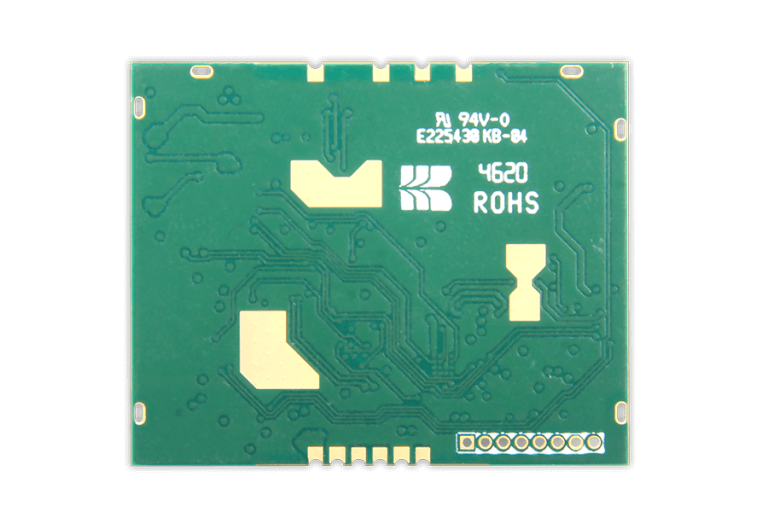

A683B

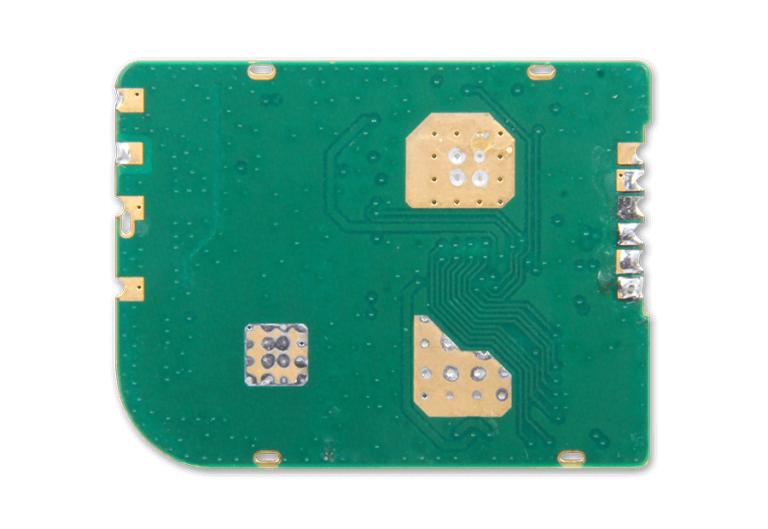

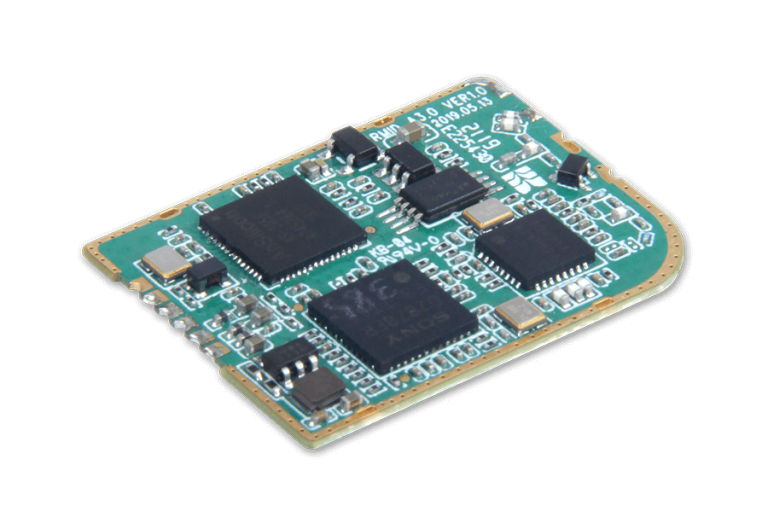

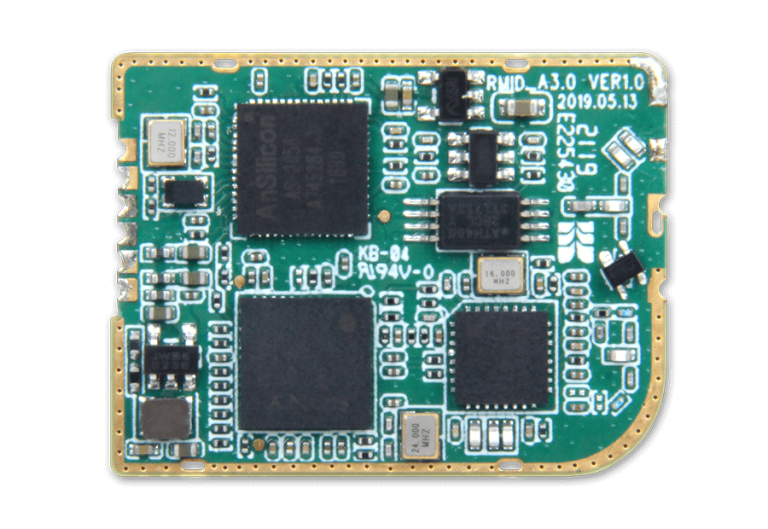

A683
Enjoy Free to view channels without using your airtime, 3G/LTE or any internet connection!MA683B requires an Dual Core Android device with a 1 GHz or up and Android 4.1 or later.MPEG-4/H.264 video playback requires a processor with NEON support.
MA683B lets your PAD receive the great variety of free-to-view TV programs that are broadcast over-the-air.
Application work with MA683B/MA683 that has built-in EPG for you to check TV program schedule easilyYou can click the record button to record TV show and store in your mobile device.
| Product | MA683B | MA683 |
| Tuner | Dual tuner | Single tuner |

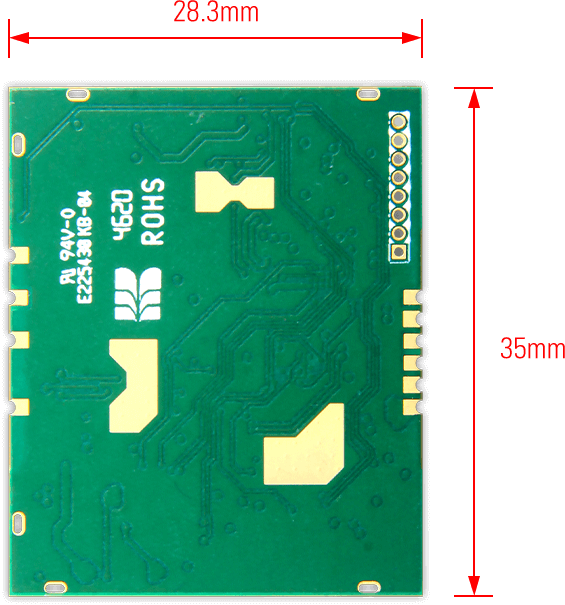

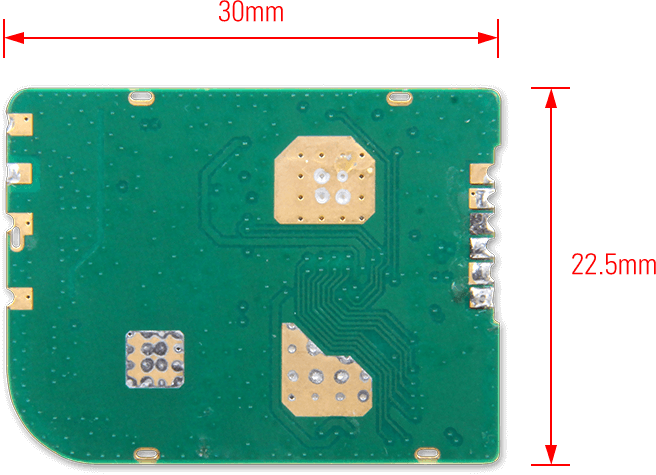

| size | 28.3mm*35mm | 30mm*22.5mm |
| Input Signal | 75 Ohm Digital TV Antenna Input | |
| Receive Frequency: TV 57 ~ 803 MHz | ||
| ATSC compliant 8-VSB | ||
| Open Cable , ANSI/SCTE DVS-031,ITU-T J.83 Annex B, and DOCSIS compliant 64/256 QAM | ||
| ATSC 3.0 | FEC length:16200, 64800 | |
| FEC code:BCH, CRC+LDPC | ||
| Code Rate:2/15, 3/15, 4/15, 5/15, 6/15, 7/15, 8/15, 9/15, 10/15, 11/15, 12/15, 13/15 | ||
| Constellation:QPSK,NUC,16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM | ||
| Transmission mode:SISO, MISO, MIMO, Channel bonding | ||
| Interleaving:Convolutional Time Interleaver, Hybrid Time Interleaver | ||
| FFT size:8K, 16K, 32K | ||
| Max bitrate:SISO 8 MHz 78.5 Mbps – 2×2 MIMO 8 MHz 157Mbps | ||
| Frame duration:from 50ms to 5s | ||
| PLP number:from 1 up to 64 (min 4 in parallel for demod) | ||
| Versatile PLP mapping:TDM, FDM, TFDM, LDM | ||
| De-Multiplexing | Max No. Section filtering: 32PIDS | |
| Engine: Software | ||
| Stream capture: PES & TSA/V Format | ||
| Recording Format | Video Format: mpg-II Main Profile & Main Level | |
| Audio Format: mpg-II Audio Layer I & II | ||
| Support OS | Android, Linux, Windows | |
