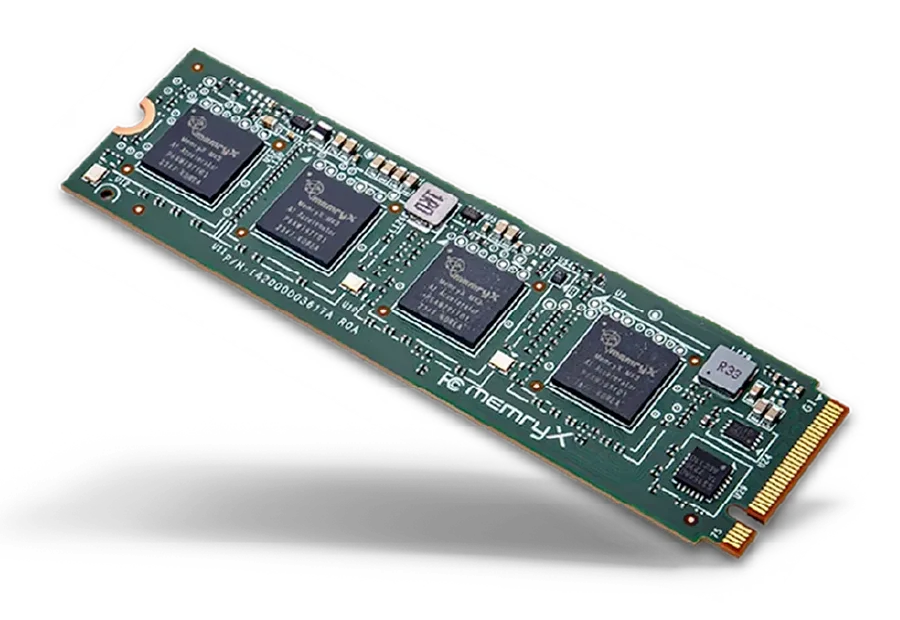

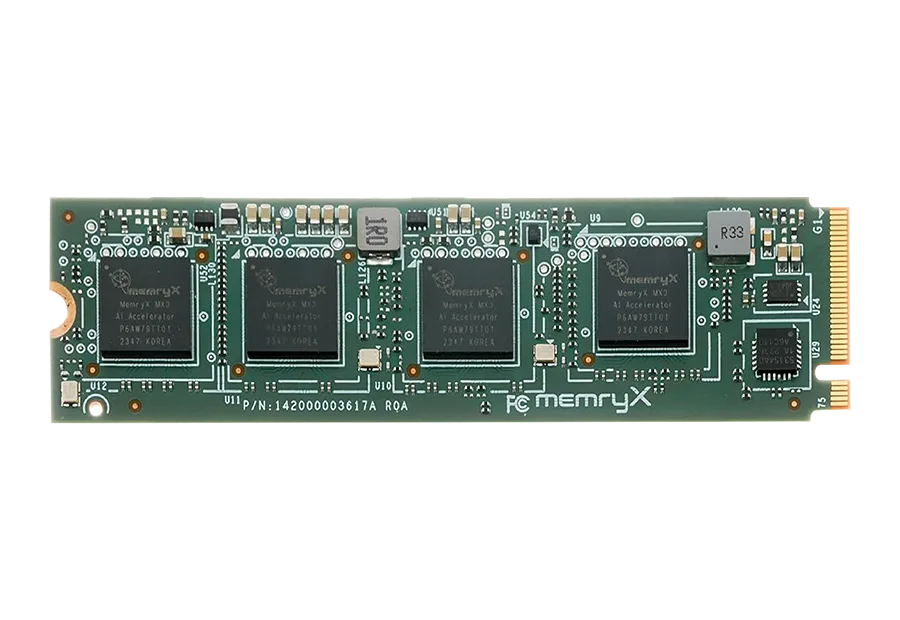

MemryX MX3 M.2 AI Accelerator

MemryX MX3 M.2 AI Accelerator Module is a powerful, energy-efficient Edge AI solution for real-time, low-latency computer vision inference.

  • Features four integrated MemryX MX3 AI accelerators on a single module
  • Innovative at-memory computing and dataflow architecture for high throughput
  • Achieves high >50% chip utilization with 1-click model optimization
  • Supports major frameworks (ONNX, PyTorch, TensorFlow) via MemryX Developer Hub
  • Wide operating temperature range of -40°C to 85°C for industrial use
  • Compatible with any host processor (ARM, x86, RISC-V) via standard M.2 socket
  • Low-latency, deterministic performance with on-accelerator memory
  • Comprehensive OS support (Ubuntu, Windows, Android)
Contact Sales
Mechanical Form Factor M.2 2280 M Key Socket 3
Dimensions 3.15″ x 0.87″ (22 x 80 mm)
Electrical Input Voltage 3.3V +/- 5%
Power Average Power Max: 10W Peak: 14W (M.2 limit)
Interface PCIe Gen 3, 2×2-lanes
8 GT/s per PCIe lane
IC 4 MemryX MX3’s
Ports Frameworks ONNX, PyTorch, TensorFlow, Keras, TensorFlow Lite
Weight parameters 80 million, 4-bit 40 million, 8-bit
Host Processor Any including ARM, x86, and RISC-V
OS Support Ubuntu 22.04 and 24.04, 64-bit Windows, 64-bit Android
SDK MemryX Developer Hub
Certification CE / FCC Class A
Environmental Operating Temperature -40°C to 85°C Industrial
Operating Humidity 10% ~80% RH non-condensing
