Support Android 11 and above, Linux system
The display of itself is different from HDMI®output
Industrial main board design,
quality control, 365*24H continuous work without exception
Can remotely wake up, restart, standby, etc.
Rich device interfaces, expandable access to different devices
Personalized GUI customization service

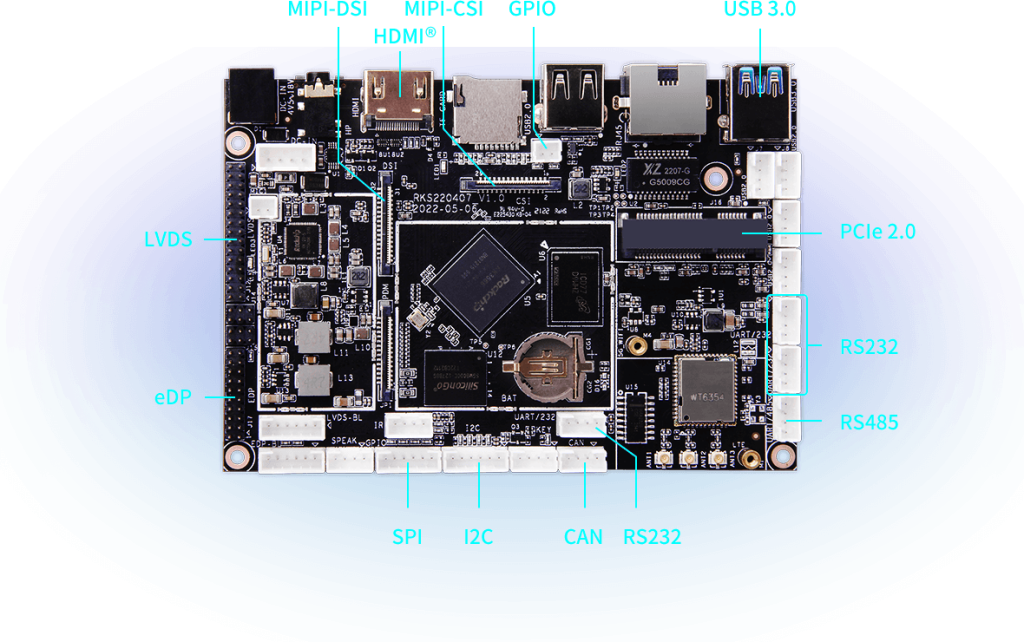

K4-3566 is built in the Soc of RK3566, 64-bit, Quad-core ARM CortexA55, Neon and FPU. The board support LPDDR4 up to 8G. RK3566 integrated high-performance NPU, which can be used AI applications.
Surport Wifi6 (802.11 ax), 5G(5th generation),support BT5.0 (optional), MiniPCIE (4G LTE).
The Mic arrany can pick up the speech, which can realize the function of far-field speech, noise suppression, echo elimination to achieve clearer speech function.
Support HDMI®OUT and HDMI®IN (optional),support LVDS/MIPI/eDP panel, used in commercial display, security, industrial control, and other fields.
More suitable for hotel, sports equipment and other scenes

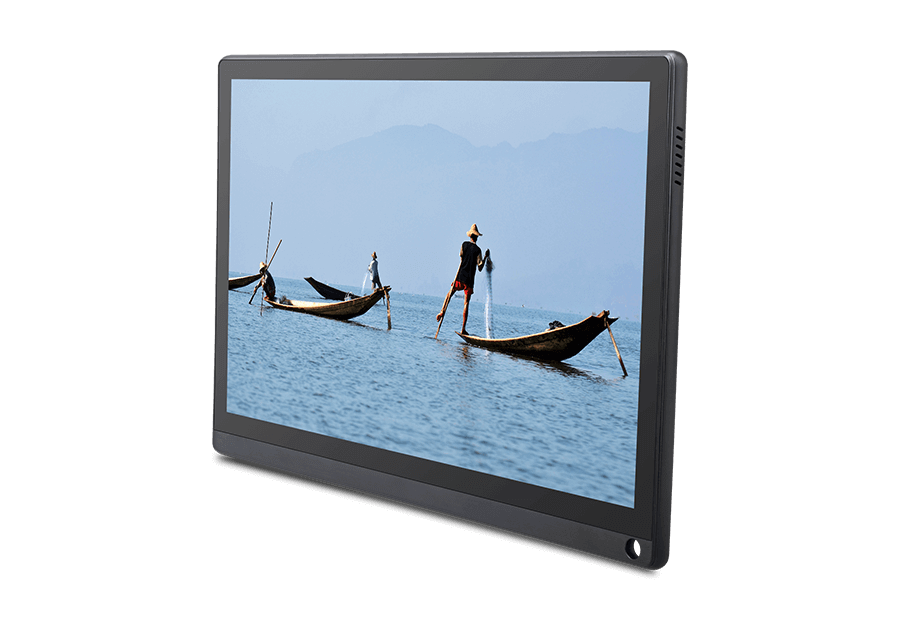

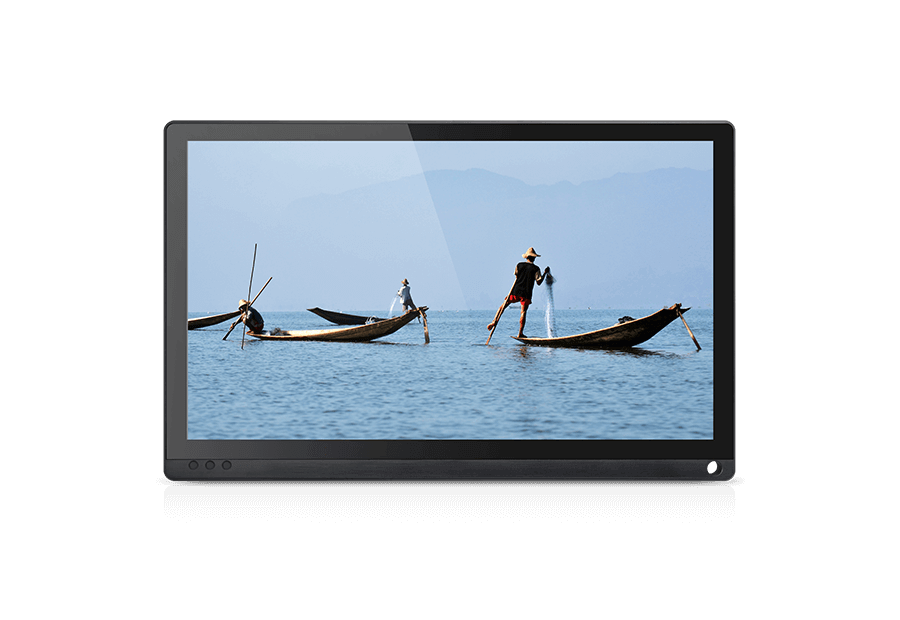

Display from 10.1 to 65 inches, resolution from 1280*600 to 4K screen
All-glass Capacitive Screen
10 points touch, short response time
| Screen | 10.1″(1280*800p)，15.6″& 21.5″ (1920*1080p) |
| SoC | Rockchip RK3566 |
| CPU | Quad-core Cortex-A55@1.8GHz，Mali-G52 2EE GPU，1TOPS NPU |
| RAM | 2GB LPDDR4（4/8 GB Optional） |
| Storage | 16GB eMMC(32G/64GB Optional) |
| Video Encoding | 4K H.264/H.265/VP9 @60fps video decoding |
| Network | GigE，Wi-Fi 802.11ac，3G/4G LTE(Optional)，Bluetooth5.0 |
| I/O | 1×HDMI OUT，1×USB3.0，1×USB2.0，1×Audio output，1×MicroSD slot(Maximum 64GB Expansion)，1×SIM slot(Optional) |
| Loudspeaker | 2*3W |
| Front camera | 2M (5M Optional) |
| OS | Linux Debian，Android 11.0 |
| Operating temperature | 0℃～60℃ |
| Size | 10.1″（259×177×26mm） 15.6″（404×253×34mm） 21.5″（539×332×40mm） |
