SMARC3399 adopts RK3399 hexa-core (A72x2+A53x4) 64-bit processor, main frequency up to 1.8ghz, integrated with quad-core Mali-T864 GPU, providing excellent performance. Onboard M.2 PCle, 4GLTE extended interface, various display interface and communication serial port. Support Android10.0/Debian10.0 system, open source convenient enterprise secondary development. It is suitable for commercial advertising machines, vending machines and educational terminals with HD display, which can reduce the threshold of research and development and speed up the product development cycle
DDR2/4G, eMMC16/32/64G
Rich interface, compatible with mainstream screen
Built-in watchdog module, 7*24 hours stable operation without downtime
Support Android&linux system
Support LVDS/eDP/HDMI® display interface, can directly drive mainstream 5-100 inch display screen, support 4K hardware solution, support multi-screen display.

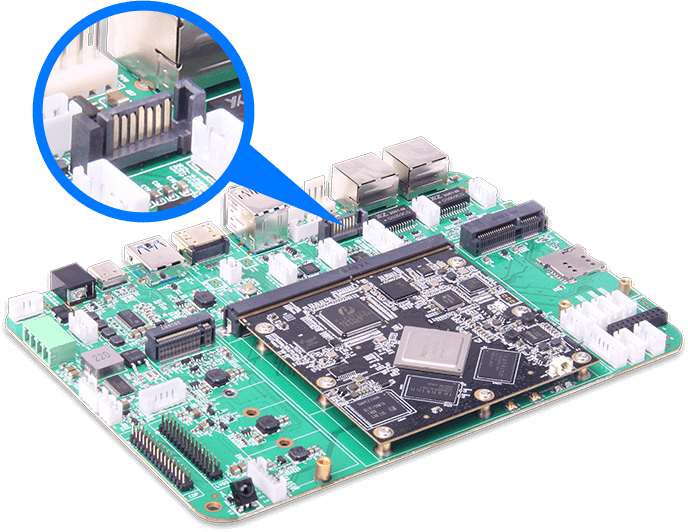

Compatible with mainstream hard disk interface, convenient for customers to read and write data, support larger storage space and faster transmission rate

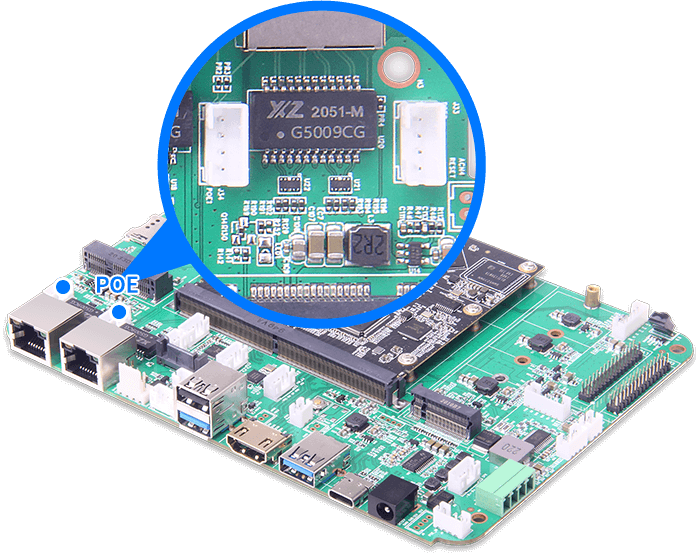

Built-in POE port for connecting to the built-in POE module.

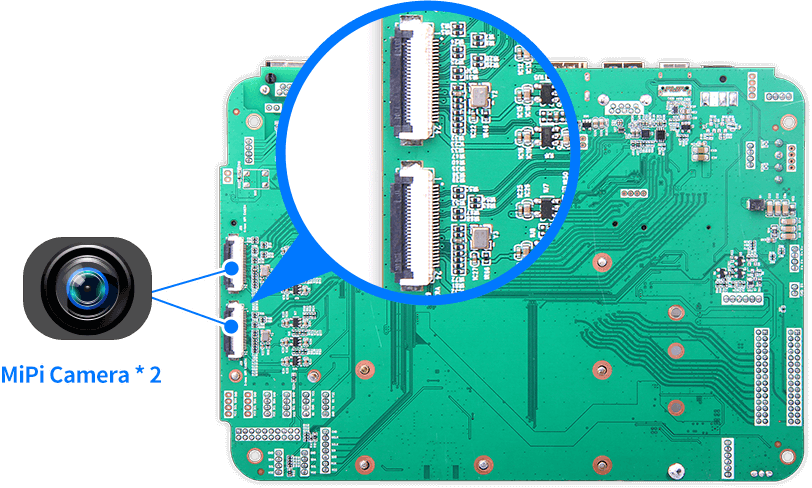

The port can be connected to an external camera or used to expand the input capability of multiple cameras

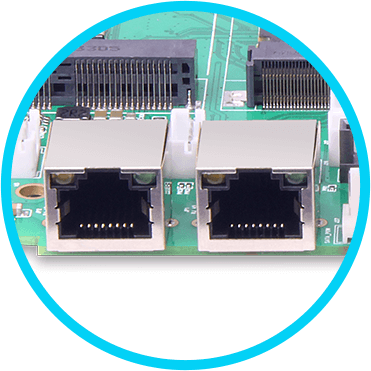

Dual GIGABit network ports, with better network expansibility, can access and transfer Intranet data through dual network ports, improve network transmission efficiency

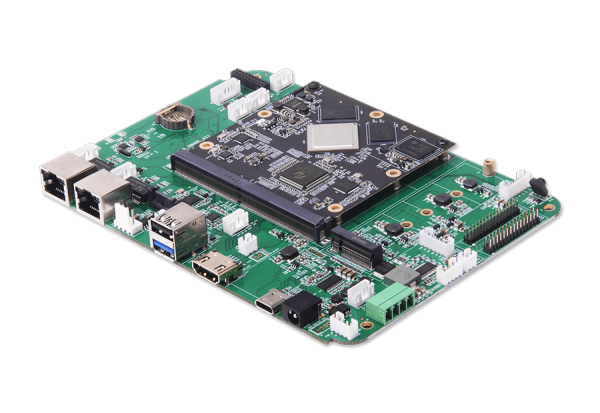

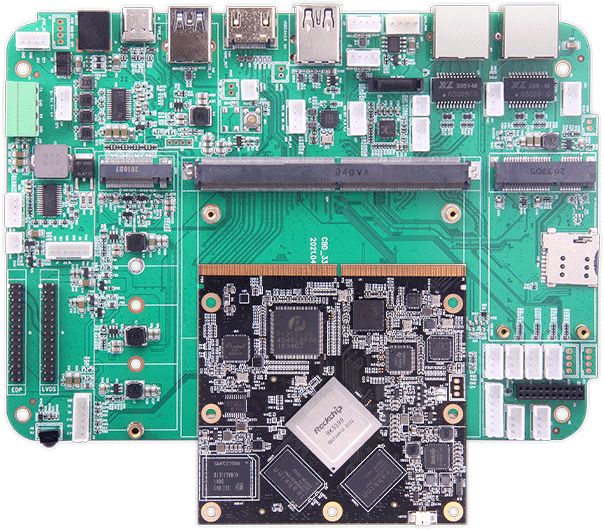

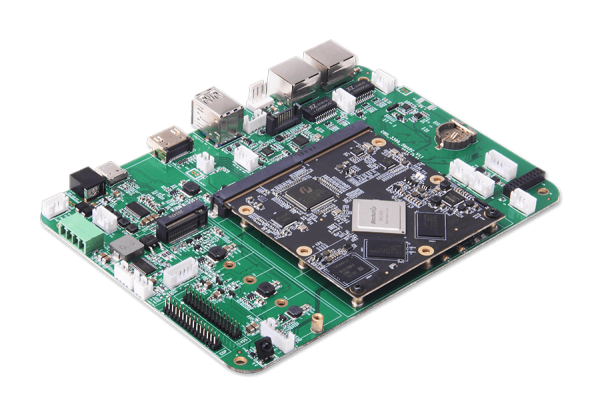

The combination of core board and baseboard forms a complete high-performance industrial application motherboard, with richer expansion interfaces and stronger performance, which can be directly applied to various intelligent products to accelerate the landing of products
Shell structure customization
Customize the onboard function
Provide SDK for secondary development
Mass production services
It can be applied to advertising screen display,industrial PC, medical equipment, human-computer interaction, image processing, portable devices, automotive applications, infrared systems, control systems and other products in various industries
| CPU | Dual -core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
| GPU | Mali-T860 GPU |
| Internal Memory | 2G LPDDR4（4G optional） |
| Internal Storage | 16G EMMC（32G/64G optional） |
| OS | Android 10.0/Debian10.0 |
| Type-C | *1 |
| USB | USB 3.0*2，USB2.0 *4 |
| HDMI® OUT | *1(support4096 x 2160) |
| Earphone Socket | *1 |
| SATA | *2（SATA*1，SATA power*1） |
| MIC in | *1 |
| RJ45 | *2（1000 Mbps Ethernet port） |
| LINE in | *1 |
| Mini PCIe | *1 |
| SIM card | *1 |
| UART | *2 |
| I2C | *4 |
| I2S | *1 |
| GPIO | *1 |
| LVDS | *1（30pin） |
| EDP | *1（30pin） |
| M.2 | *1 |
| IR | *1 |
| CAN Bus | *1 |
| Speaker | *1 |
| MIPI CSI | *2 |
| BackLight | *2（BackLight Power*1，BackLight *1 |
| Power | *2 （DC*1，POE*1） 12V2A |
| Size | 180*130mm |
| Weight | 175g |
