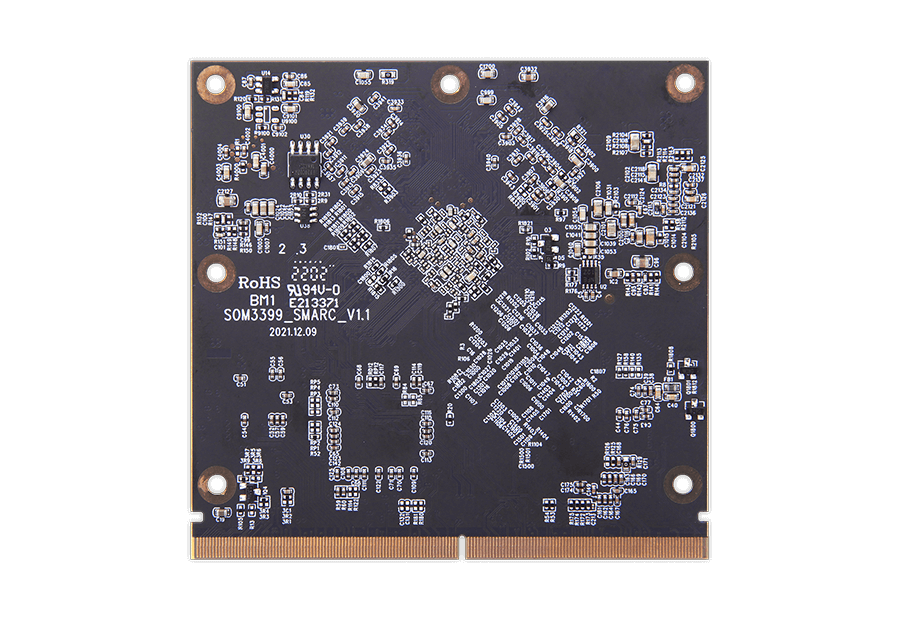

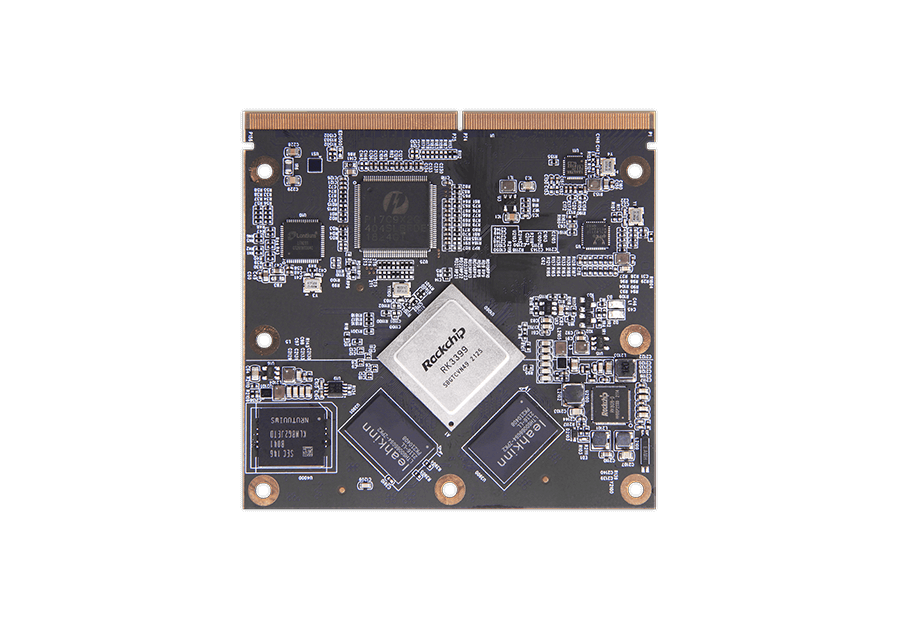

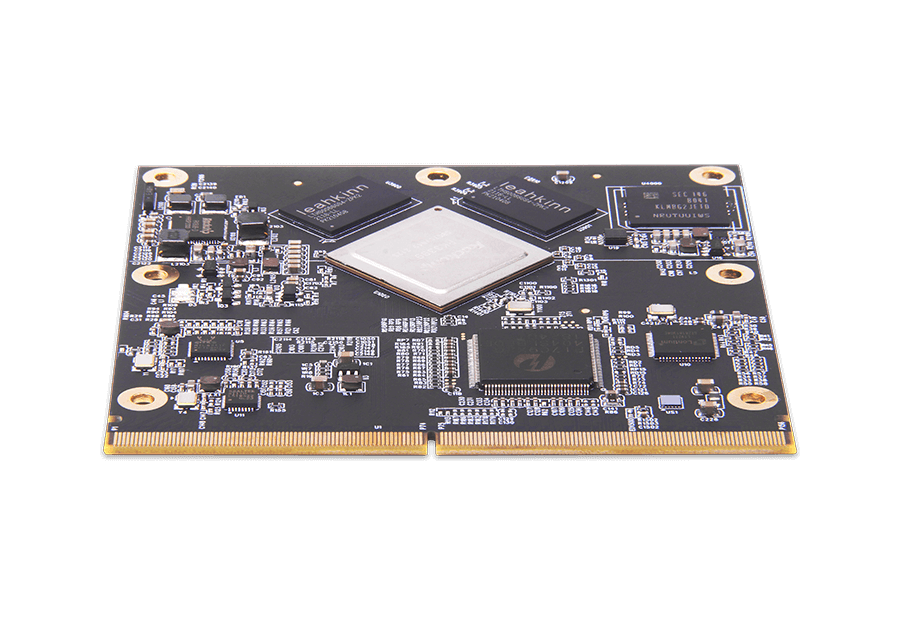

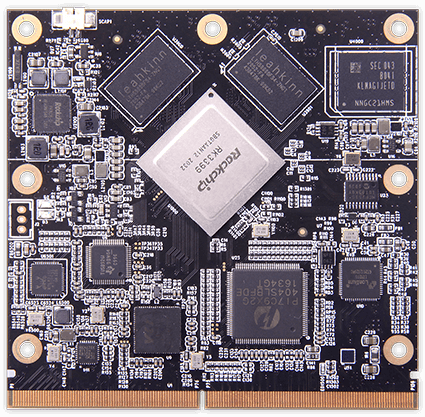

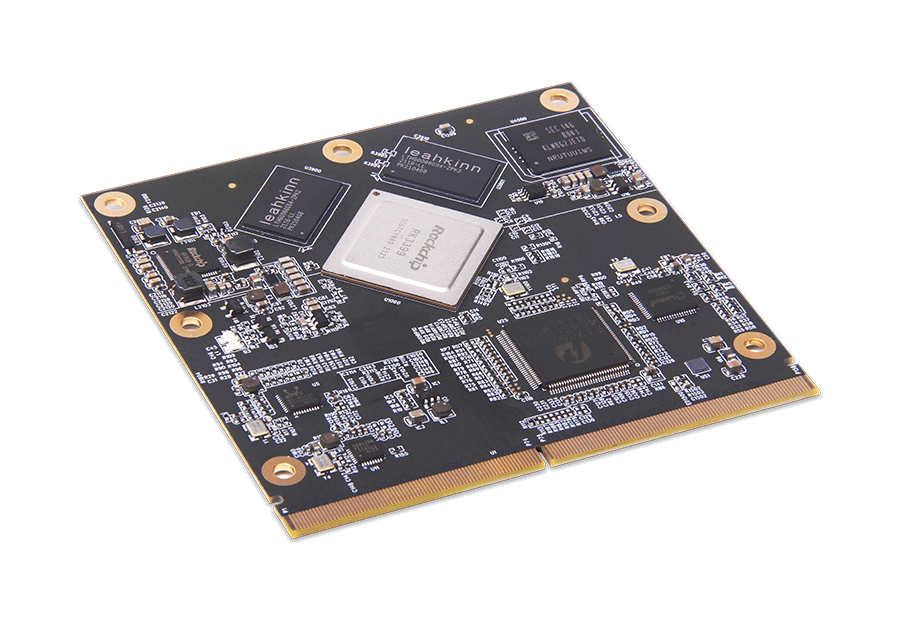

SOM-3399-SMARC

RK3399 SMARC Computer-on-Module

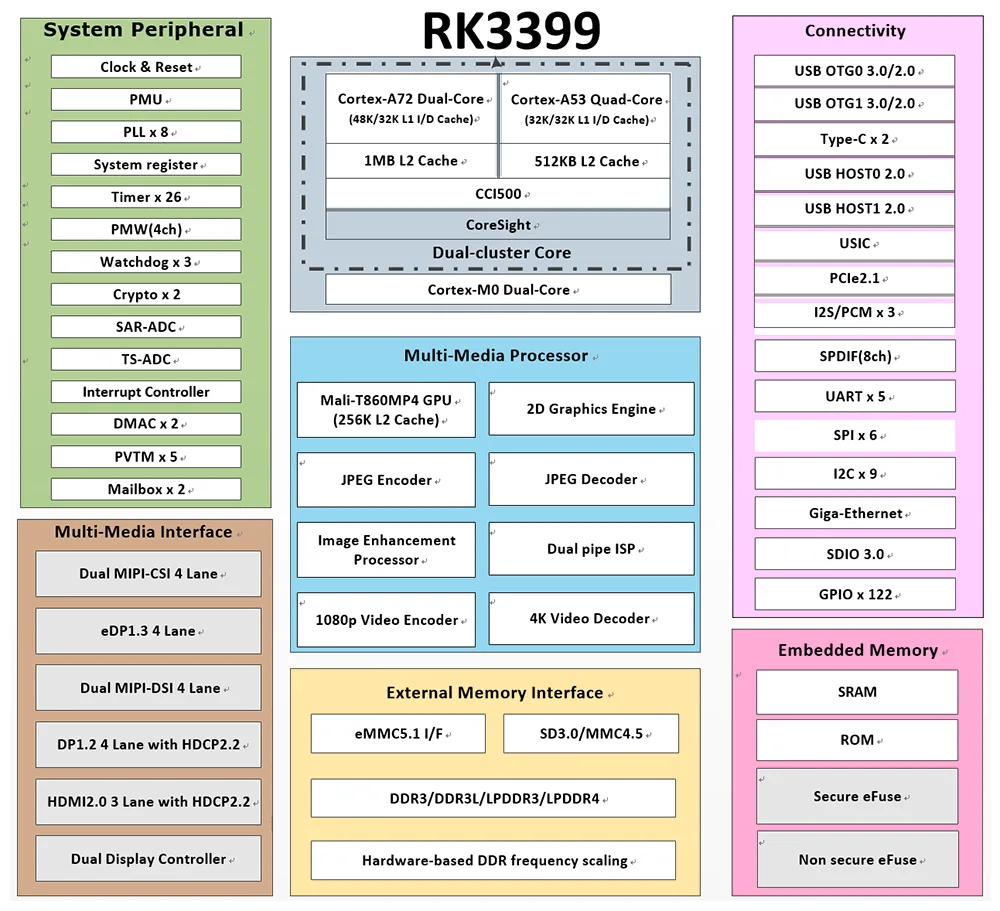

SoM3399-SMARC is a system on module (SoM) designed based on Rockchip RK3399 processor which consists of two Cortex-A72 featuring cores with frequency up to 1.8GHz and four Cortex-A53 featuring cores with frequency up to 1.4GHz, provides a variety of storage configuration options, users only need to expand the function of the base plate can quickly achieve project research and production

Contact Sales
The configuration is optional

DDR2/4G, eMMC16/32/64G

High scalability

Rich interface, compatible with mainstream screen

Stable and reliable

Built-in watchdog module runs stably for 7*24 hours without downtime

Dual operating systems

Support Android and Linux system

Abundant Application Interfaces

1. Gold-plated precision plate, corrosion resistant, firm and reliable
2.SMARC2.1 standard interface is adopted, and all pin pins of the chip are introduced. Data transmission and expansion performance are greatly brought into play.  To have the strength, reliable partners to create quality products

Support Personalized Customization

Shell structure customization
Carrier board function customization
Provide SDK for secondarydevelopment
Mass production service

Widely Used

With the function of the bottom plate can be applied to advertising screen display, industrial PC, medical equipment, human-computer interaction, image processing, portable devices, automotive applications, infrared systems, control systems and other products in various industries


CPU Frequency Dual-core Cortex-A72 up to 1.8GHz
Quad-core Cortex-A53 up to 1.4GHz
GPU Mali-T860 GPU
Internal Memory 2G LPDDR4（4G optional）
Internal Storage 16G EMMC（32G/64G optional）
OS Android/Linux
Ethernet 2 x GIGABIT Ethernet
PCIe 1 x PCIe 2.1(x4) or 2 x PCIe 2.1(x4 and x1)
USB 3 x USB2.0,1 x USB2.0 OTG,2x USB3.0
CSI *2
LVDS *1(1 x Single Channel 24-bits LVDS(Default) or 1 xDual Channel 24-bits LVDS(Shared with eDP))
I2S *2
HDMI® *1(up to 4096 x 2160)
CAN *1
GPIO *12（1 x PWM）
SATA *1
SDIO *1
eDP *1
DP *1
RS-232 *3(1 x 4-wire UART，1 x 2-wire UART，1 x 2-wireUART/Debug)
SPI *1
I2C *5
POWER 5V/3A
Size 82*80mm
Weight 30g

SoM Specification

SOM-3399-SMARC Specification
Download

Carrier Board Specification

SMARC3399 Specification
Download

Schematic

SOM-3399-SMARC Schematic
Download

Manual

SOM-3399-SMARC Android Software Burning Methods
Download

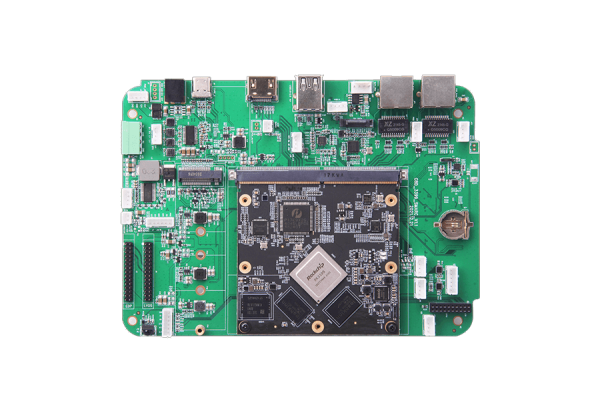

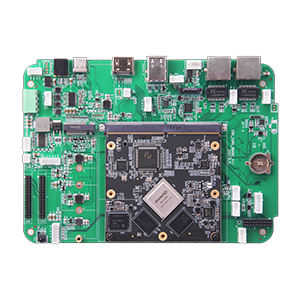

RK3399 SMARC Carrier Board

This SMARC carrier board offers extensive connectivity and industrial interfaces for RK3399 modules, enabling rapid development of digital signage, interactive kiosks, and embedded systems.

  • Rich I/O: Dual GbE, USB 3.0/2.0, Type-C, dual SATA, dual HDMI
  • Multi-display: HDMI, LVDS, eDP, MIPI-DSI outputs
  • Expansion slots: M.2, Mini PCIe, SIM, dual MIPI-CSI
  • Industrial interfaces: CAN, UART, I2C, GPIO, IR
  • Audio capability: Speaker, mic/line in, headphone jack
  • Dual power: DC 12V & PoE options
  • Standard SMARC form factor (180×130mm)

Learn More
