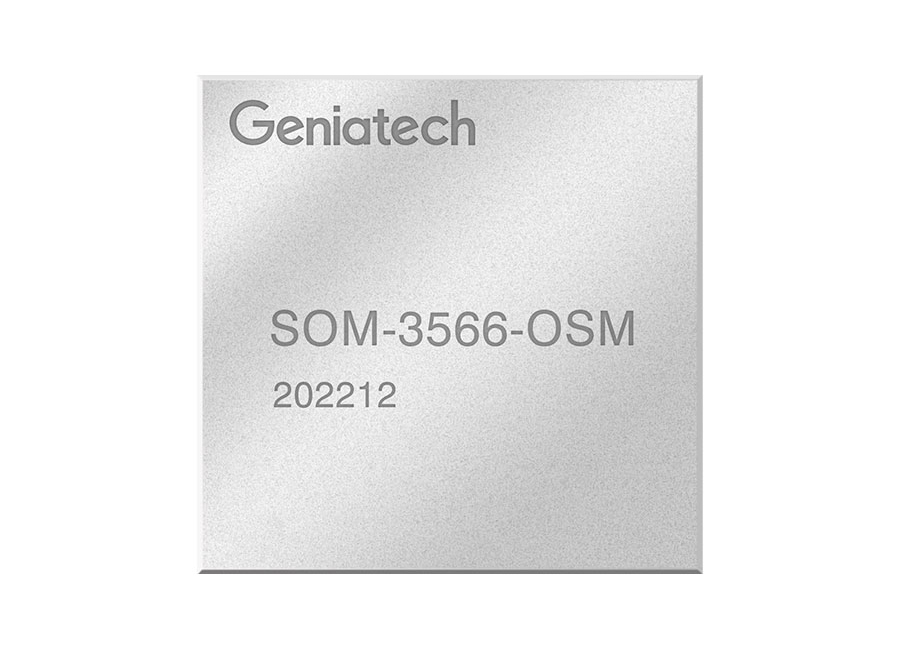

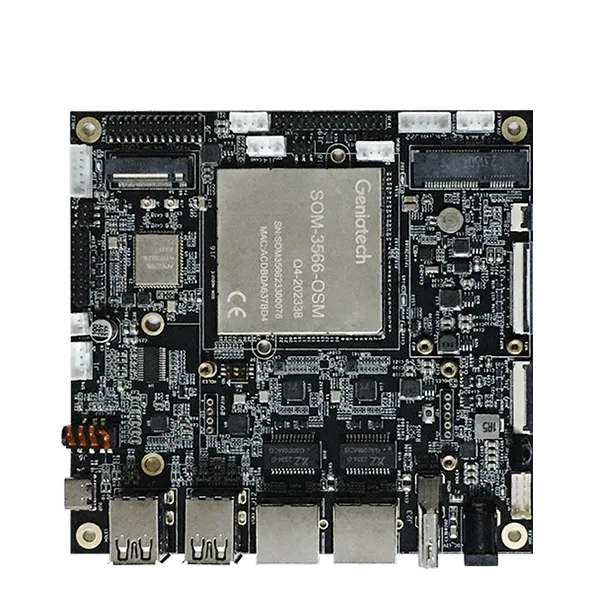

The RK3566 Development Platform incorporates SOM-3566-OSM and CBD-3566-OSM Carrier board for complete validation of RK3566 SoC functionality. The Development board DB3566 can be used for quick prototyping of various applications targeted by the RK3568 Applications Processor. With the 200mmx168mm size, OSM Carrier board is highly packed with all the necessary on-board connectors to validate the features of SOM-3566-OSM. With the high SOC performance, applications focusing on AIOT Internet of Things equipment, vehicle-mounted central control, entertainment/game equipment, commercial display equipment and other application fields.

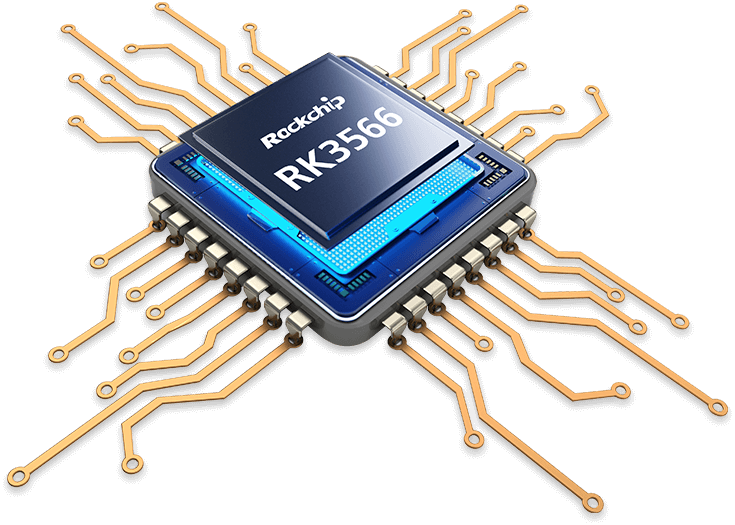

CPU adopts 4-core A55 architecture processor, integrated G52
graphics processor, and built-in independent NPU,
computing power of 0.8TOPS
(For Al video, simple face recognition) 8M ISP
The equipment adopts standard interface, rich interfaces:
LVDS, EDP, SATA, M.2, USB3.0, multiple USB2.0 interfaces, HDMI®IN (MIPI),
HDMI®OUT, GTIOT, SPDIF, RF, 40Pin-XP, Double Gigabit Network Interface
(RGMII0/RGMI1) DEBUG, RS-232, MICPHONE, POE
Industrial-grade motherboard design,
strict quality control, 7*24h uninterrupted
continuous stable operation
Android 10.0 and Linux(Buildroot/Debian/Ypcto)
Support LPDDR4X with high cost performance and low power mode of touch screen, which can effectively reduce the power consumption of products
Support double gigabit transmission rate, can support the use of dual network segment Internet
Support 2-way MICPHONE, double MIC matrix can be used for noise reduction, sound picking more accurate,to meet the meeting and other requirements for the scene of pitch picking
Remote wake up, restart, standby and other operations
Personalized GUI customization services
Smart POS
AI robot
Face recognition
Display
E-book
Smart home
| CHIPSET | Rock-Chip RK3566 | |
| MARKET AREA | Global | |
| OSM-Module | CPU | Quad-core ARM Cortex-A55 CPU up to 1.8GHz per core |
| LPDDR4 | 2GB（1G-8G optional） | |
| EMMC | 8GB eMMC5.1(8-32GB Optional) | |
| Development board | OSM OSM Bord | SOM-3566-OSM |
| Interfaces | External I/O Connector | 1 x USB 3.0 HOST1 |
| 1 x USB 2.0 HOST2 | ||
| 1 x micro SD solt | ||
| 2x RJ45 | ||
| 1 x HDMI OUT | ||
| 1 x SIM Card slot | ||
| 1 x DC Jack | ||
| 1 x Mic Header | ||
| 1 x HDMI OUT | ||
| Internal I/O Connector | 1 x Speaker (Left/Right Channel) 2P Header | |
| 1 x Headphone connector | ||
| 1 x PCIe M.2 KEY M for storage | ||
| 1 x Mini PCIe for LTE Connector | ||
| 1 x WiFi ANT connector | ||
| 1 x WiFi/BT ANT connector | ||
| 1 x LVDS 30P connector | ||
| 1 x eDP Panel 20P connector | ||
| 1 x eDP 6P connector | ||
| 1 x I2C for TP 6P connector | ||
| 1 x MIPI Panel 40P connector | ||
| 1 x Camera 30P connector | ||
| 1 x Touch Panel 4P connector | ||
| 1 x POE IN 4P connector | ||
| 1 x POE IN 5P connector | ||
| 1 x LVDS_PANEL 6P connector | ||
| 1 x USB Type-C Port connector | ||
| 1 x Power indicator LED | ||
| 1 x IR Receiver | ||
| DC-IN | 12V2A | |
| Dimensions | 125mm*120mm | |
