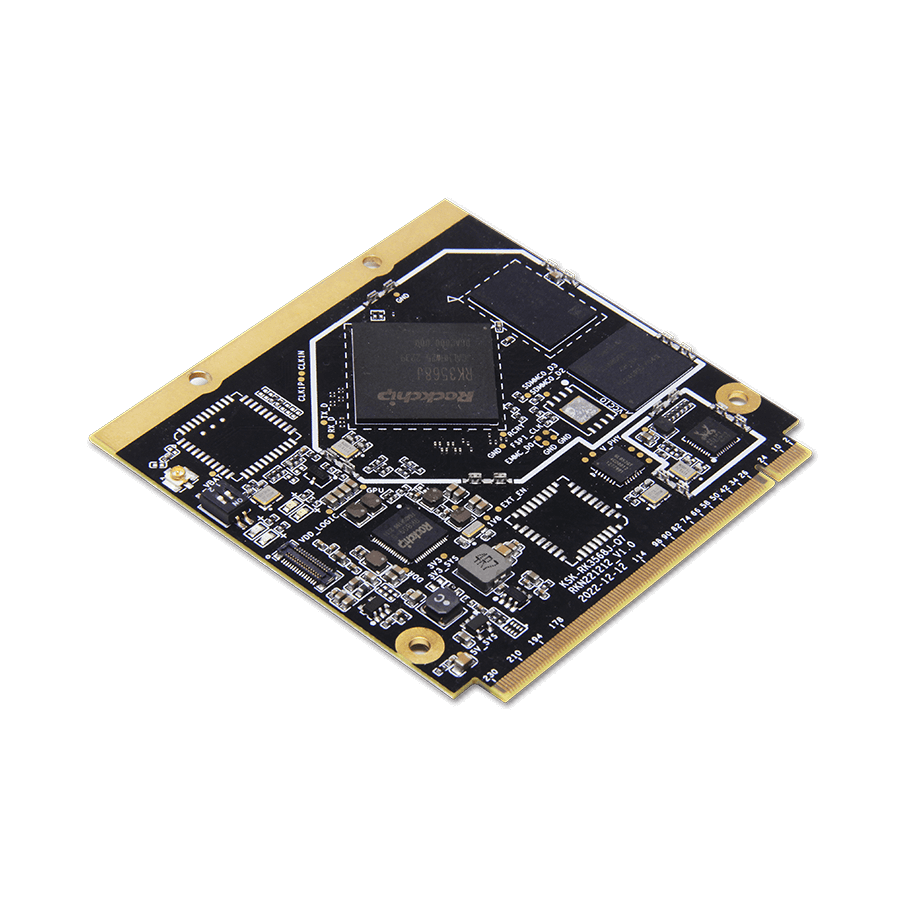

SOM-3568-Q7 is a core board of Q7 standard. It is based on Rockchip RK3568 solution. It is suitable for various application scenarios, and is the best choice for advertising machines, industrial PCs, media playback and control and other fields.It is fully functional and convenient:
| CHIPSET | Rockchip RK3568 |
| OS | Android 11/Linux |
| CPU | 64 Bit Quad-core ARM Cortex-A55 to 1.8GHz |
| GPU | Mali G52-2EE |
| NPU | 1Tops@INT8, integrated high-performance AI accelerator RKNN NPU Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet |
| VPU | Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP, supports HDR |
| DDR | 512MB LPDDR4 |
| EMMC FLASH | 32GB EMMC |
| Appearance | 80mm x 70mm |
| Environment | Operation temperature:-40~ +85℃ 10%≤Relative humidity≤90% |
Q7 interface PIN Definition
| PIN | Function | PIN | Function | PIN | Function | PIN | Function |
| 1 | GND | 2 | GND | 3 | PHY0_MDI3- | 4 | PHY0_MDI2- |
| 5 | PHY0_MDI3+ | 6 | PHY0_MDI2+ | 7 | PHY0_LED0/CFG_EXT | 8 | PHY0_LED1/CFG_LDO0 |
| 9 | PHY0_MDI1- | 10 | PHY0_MDI0- | 11 | PHY0_MDI1+ | 12 | PHY0_MDI0+ |
| 13 | GPIO1_B2 | 14 | PHY0_LED2/CFG_LDO1 | 15 | NC | 16 | GPIO4_D2 |
| 17 | SATA1_ACT_LED | 18 | GPIO3_A4 | 19 | TP_RST_L_GPIO0_B6 | 20 | RK809_PWRON |
| 21 | PMIC_SLEEP_H | 22 | MIPI_CAM0_RST_L_GPIO3_D4 | 23 | GND | 24 | GND |
| 25 | GND | 26 | GPIO2_D1 | 27 | TP_INT_L_GPIO0_B5 | 28 | RESETn |
| 29 | SATA0-TXP | 30 | SATA2-TXP | 31 | SATA0-TXN | 32 | SATA2-TXN |
| 33 | SATA0_ACT_LED | 34 | GND | 35 | SATA0-RXP | 36 | SATA2-RXP |
| 37 | SATA0-RXN | 38 | SATA2-RXN | 39 | GND | 40 | GND |
| 41 | SARADC_VIN0_KEY/RECOVERY | 42 | SDMMC0_CLK | 43 | SDMMC0_DET_L | 44 | EXT_EN |
| 45 | SDMMC0_CMD | 46 | NC | 47 | SDIO_PWR_EN | 48 | SDMMC0_D1 |
| 49 | SDMMC0_D0 | 50 | SDMMC0_D3/ARMJTAG_TMS | 51 | SDMMC0_D2/ARMJTAG_TCK | 52 | UART5_TX_M1 |
| 53 | REFCLK_OUT | 54 | UART5_RX_M1 | 55 | PWM10_M0 | 56 | USB_OTG_PWREN_H_GPIO0_A7 |
| 57 | GND | 58 | GND | 59 | I2S1_LRCK_TX_M0_RK809 | 60 | I2C3_SCL_M0 |
| 61 | GPIO3_A5 | 62 | I2C3_SDA_M0 | 63 | I2S1_SCLK_TX_M0_RK809 | 64 | NC |
| 65 | I2S1_SDI0_M0/PDM_SDI0_M0_RK809 | 66 | I2C1_SCL_TP | 67 | I2S1_SDO0_M0_RK809 | 68 | I2C1_SDA_TP |
| 69 | GPIO3_A6 | 70 | NC | 71 | GPIO3_B6 | 72 | NC |
| 73 | GND | 74 | GND | 75 | USB3_HOST1_SSTXN | 76 | USB3_HOST1_SSRXN |
| 77 | USB3_HOST1_SSTXP | 78 | USB3_HOST1_SSRXP | 79 | NC | 80 | NC |
| 81 | USB2_HUB_DM3 | 82 | USB2_HUB_DM2 | 83 | USB2_HUB_DP3 | 84 | USB2_HUB_DP2 |
| 85 | NC | 86 | NC | 87 | USB2_HOST3_DM | 88 | USB2_HUB_DM1 |
| 89 | USB2_HOST3_DP | 90 | USB2_HUB_DP1 | 91 | USB3_OTG0_VBUSDET | 92 | USB3_OTG0_ID |
| 93 | USB3_OTG0_DM | 94 | USB3_HOST1_DM | 95 | USB3_OTG0_DP | 96 | USB3_HOST1_DP |
| 97 | GND | 98 | GND | 99 | MIPI_DSI_TX1_D0P/EDP_TX_D0P | 100 | MIPI_DSI_TX0_D0P/LVDS_TX0_D0P |
| 101 | MIPI_DSI_TX1_D0N/EDP_TX_D0N | 102 | MIPI_DSI_TX0_D0N/LVDS_TX0_D0N | 103 | MIPI_DSI_TX1_D1P/EDP_TX_D1P | 104 | MIPI_DSI_TX0_D1P/LVDS_TX0_D1P |
| 105 | MIPI_DSI_TX1_D1N/EDP_TX_D1N | 106 | MIPI_DSI_TX0_D1N/LVDS_TX0_D1N | 107 | MIPI_DSI_TX1_D2P/EDP_TX_D2P | 108 | MIPI_DSI_TX0_D2P/LVDS_TX0_D2P |
| 109 | MIPI_DSI_TX1_D2N/EDP_TX_D2N | 110 | MIPI_DSI_TX0_D2N/LVDS_TX0_D2N | ||||
| 111 | GPIO3_C4 | 112 | LCD_EN_H_GPIO3_C6 | 113 | MIPI_DSI_TX1_D3P/EDP_TX_D3P | 114 | MIPI_DSI_TX0_D3P/LVDS_TX0_D3P |
| 115 | MIPI_DSI_TX1_D3N/EDP_TX_D3N | 116 | MIPI_DSI_TX0_D3N/LVDS_TX0_D3N | 117 | GND | 118 | GND |
| 119 | MIPI_DSI_TX1_CLKP/EDP_TX_AUXP | 120 | MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP | 121 | MIPI_DSI_TX1_CLKN/EDP_TX_AUXN | 122 | MIPI_DSI_TX0_CLKN/LVDS_TX0_CLK |
| 123 | PWM9_M0 | 124 | HDMITX_CEC_M0 | 125 | I2C5_SDA_M0 | 126 | GPIO1_B0 |
| 127 | I2C5_SCL_M0 | 128 | NC | 129 | CAN1_TX_M1 | 130 | CAN1_RX_M1 |
| 131 | HDMI_TXCLKP_PORT | 132 | NC | 133 | HDMI_TXCLKN_PORT | 134 | NC |
| 135 | GND | 136 | GND | 137 | HDMI_TX1P_PORT | 138 | NC |
| 139 | HDMI_TX1N_PORT | 140 | NC | 141 | GND | 142 | GND |
| 143 | HDMI_TX0P_PORT | 144 | NC | 145 | HDMI_TX0N_PORT | 146 | NC |
| 147 | GND | 148 | GND | 149 | HDMI_TX2P_PORT | 150 | HDMITX_SDA |
| 151 | HDMI_TX2N_PORT | 152 | HDMITX_SCL | 153 | HDMI_TX_HPDIN | 154 | NC |
| 155 | PCIE30_REFCLKP_CON | 156 | PCIE30X1_WAKEn_M1 | 157 | PCIE30_REFCLKN_CON | 158 | PCIE30X1_PERSTn_M1 |
| 159 | GND | 160 | GND | 161 | NC | 162 | NC |
| 163 | NC | 164 | NC | 165 | GND | 166 | GND |
| 167 | NC | 168 | NC | 169 | NC | 170 | NC |
| 171 | UART0_TX | 172 | UART0_RTSn | 173 | PCIE30_TX1P | 174 | PCIE30_RX1P |
| 175 | PCIE30_TX1N | 176 | PCIE30_RX1N | 177 | UART0_RX | 178 | UART0_CTSn |
| 179 | PCIE30_TX0P | 180 | PCIE30_RX0P | 181 | PCIE30_TX0N | 182 | PCIE30_RX0N |
| 183 | GND | 184 | GND | 185 | USB_HOST_PWREN_H_GPIO0_A6 | 186 | PCIE30X1_CLKREQn_M1 |
| 187 | MIPI_CAM1_RST_L_GPIO3_D2 | 188 | PCIE30X2_WAKEn_M0 | 189 | GPIO1_B1 | 190 | PCIE30X2_PERSTn_M0 |
| 191 | MIPI_CAM1_PDN_L_GPIO3_D3 | 192 | PCIE30X2_CLKREQn_M0 | 193 | VCC_RTC_Backup | 194 | PWM3_IR |
| 195 | HDMIRX_DET_L_GPIO3_D0 | 196 | PWM8_M0 | 197 | GND | 198 | GND |
| 199 | SPI2_MOSI_M1 | 200 | SPI2_CS0_M1 | 201 | SPI2_MISO_M1 | 202 | SPI2_CS1_M1 |
| 203 | SPI2_CLK_M1 | 204 | NC | 205 | VCC5V0_SYS | 206 | VCC5V0_SYS_Q7 |
| 207 | NC | 208 | UART2_RX_M0_DEBUG | 209 | UART2_TX_M0_DEBUG | 210 | NC |
| 211 | NC | 212 | PDM_CLK0_M1 | 213 | I2S1_MCLK_M0_RK809 | 214 | PDM_SDI0_M1 |
| 215 | PDM_SDI2_M1 | 216 | PDM_CLK1_M1 | 217 | PDM_SDI3_M1 | 218 | PDM_SDI1_M1 |
| 219 | VCC5V0_SYS | 220 | VCC5V0_SYS | 221 | VCC5V0_SYS | 222 | VCC5V0_SYS |
| 223 | VCC5V0_SYS | 224 | VCC5V0_SYS | 225 | VCC5V0_SYS | 226 | VCC5V0_SYS |
| 227 | VCC5V0_SYS | 228 | VCC5V0_SYS | 229 | VCC5V0_SYS | 239 | VCC5V0_SYS |
