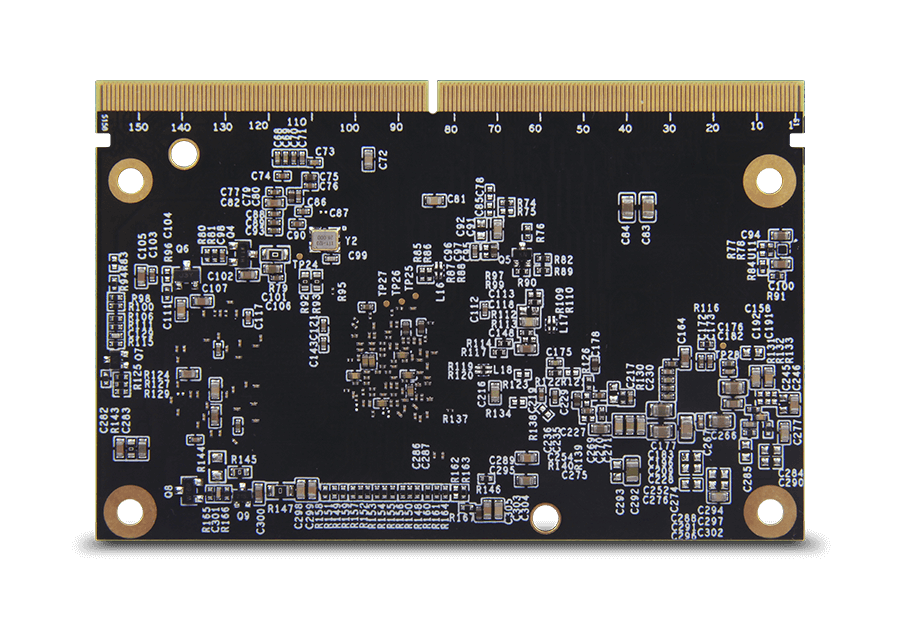

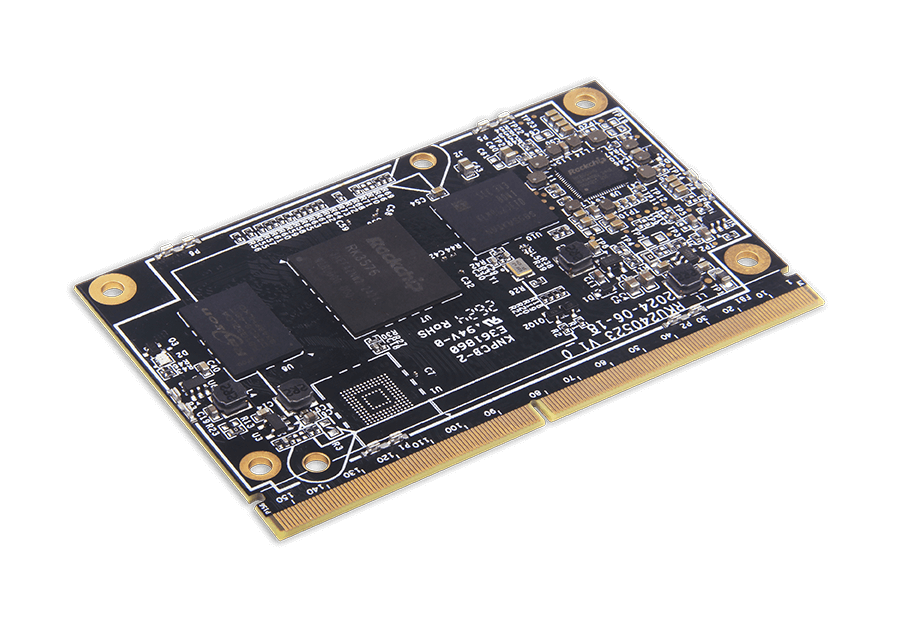

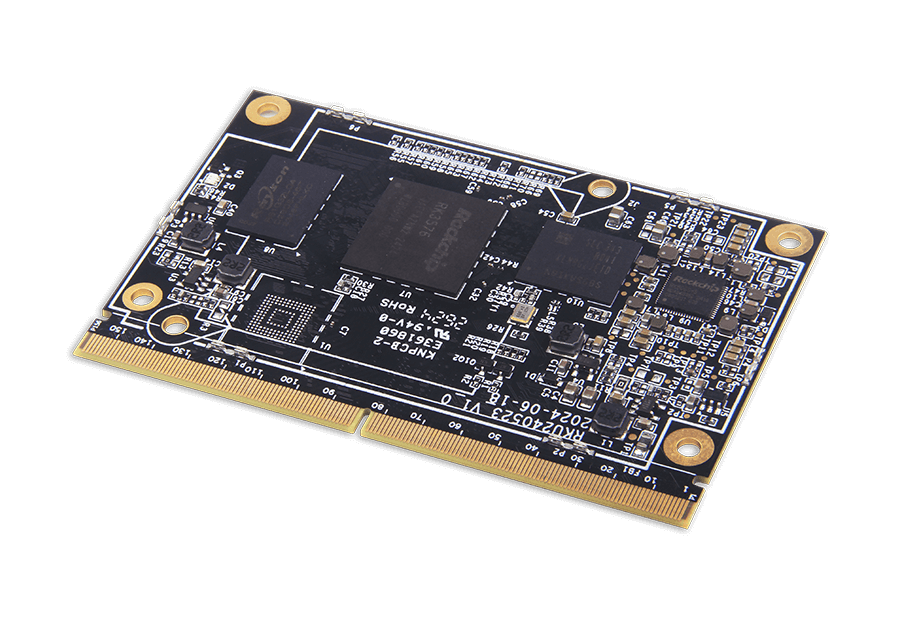

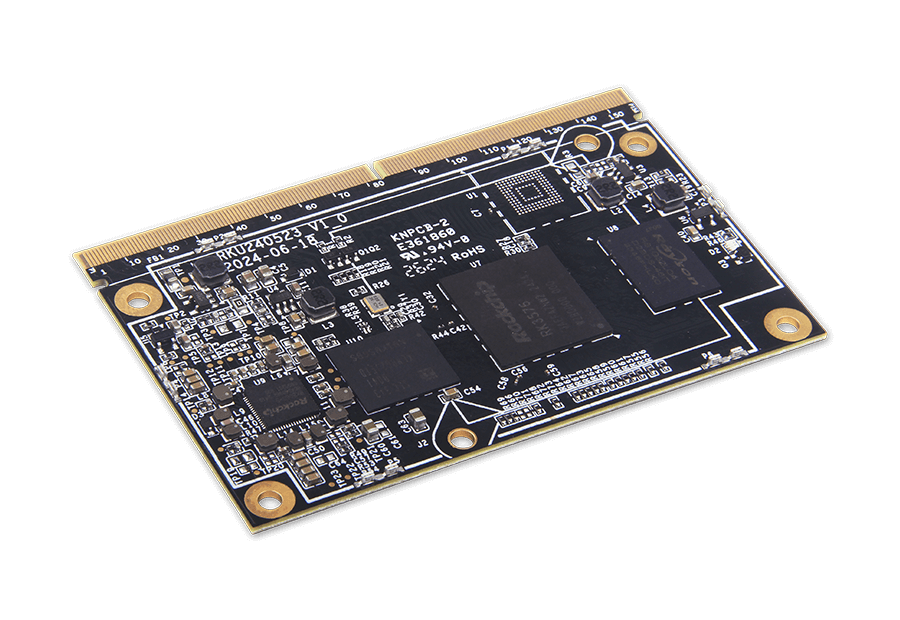

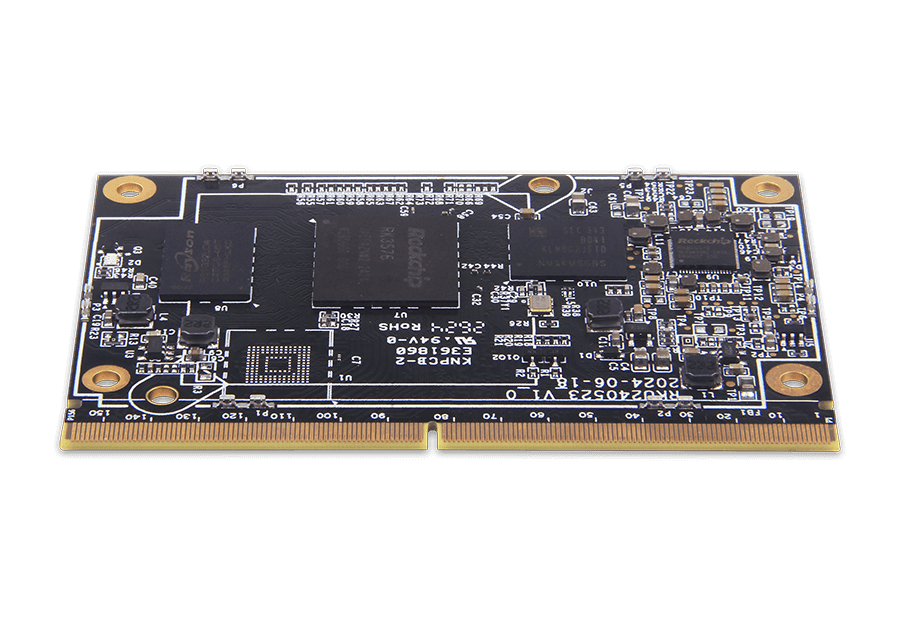

Geniatech SOM-3576 is a high-performance, low-power ARM-based System on Module powered by Rockchip RK3576, an octa-core 64-bit AIoT processor. Ideal for AIoT, edge computing, and multimedia, it delivers powerful processing, advanced AI capabilities, and versatile connectivity in a compact form factor.
| CPU | Rockchip RK3576 Octa-core configuration with 4x Cortex-A72 and 4x Cortex-A53 |
| GPU | ARM Mali-G52 MC3 with support for OpenGL ES 1.1, 2.0, 3.2, OpenCL 2.0, and Vulkan 1.1 |
| NPU | 6 TOPS AI accelerator supporting INT4/INT8/INT16/BF16/TF32 mixed operations and framework switching of TensorFlow / MXNet / PyTorch / Caffe |
| Memory and Storage | RAM: 4GB(8/16GB Optional) Storage: 32GB（64/128/256GB Optional） |
| Multimedia | Video Decoder: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K @ 30fps or 4K @ 60fps Video Encoder: Supports H.264 and H.265 up to 4K @ 60fps, (M)JPEG encoder/decoder up to 4K @ 60fps |
| Connectivity | Ethernet: 2x Gigabit Ethernet ports Wi-Fi: Wi-Fi 6 Bluetooth: Bluetooth 5 USB: 1x USB 3.0, 1x Type-C Other interfaces: PCIe, I2S, SDIO, SATA, SPI, I2C, DEBUG |
| Display Interfaces | HDMI OUT*1( 7680×4320@60Hz) HDMI IN*1(4096x2160p@60Hz) eDP*1 up to 4K @ 60Hz LVDS up to 4K @ 60Hz MIPI DSI connector up to 2K @ 60Hz |
| Camera Interfaces | 2x 2-lane MIPI CSI connectors |
| Operating Systems | Supports multiple OS including Android14 / Debian12 |
| Mechanical Characteristics | Size: 82 x 53 mm Board Structure: MXM3.0-314Pin standard core board |
| Operating temperature | Commercial: 0~60°C Industrial: -40~85°C |
| Development tools | Carrier board, Board Support Package (BSP), and extensive documentation |
| POWER | 5V/3A |
