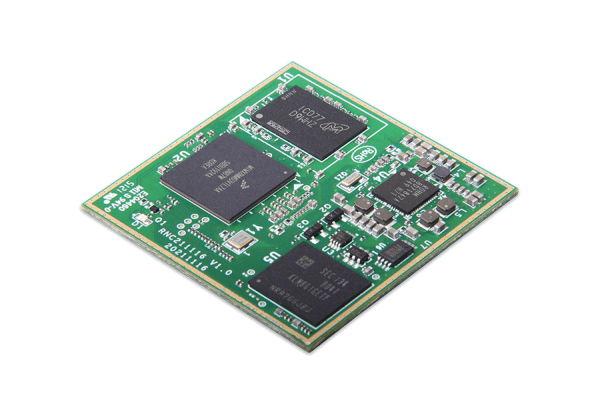

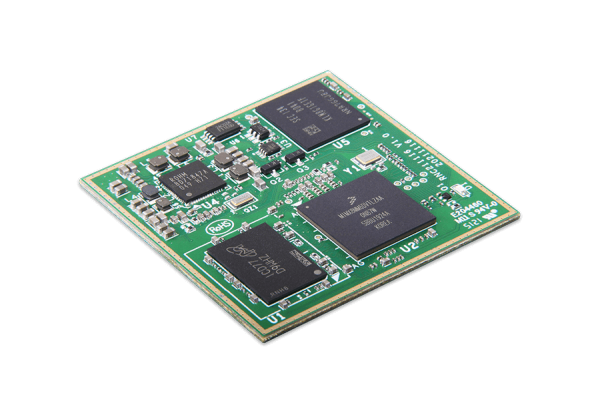

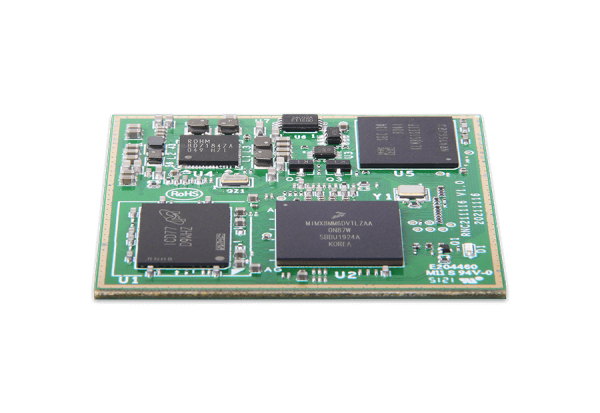

SOM-iMX8MM-OSM

i.MX8MM OSM Computer-on-Module

The SoM-iMX8MM-OSM core board is an embedded System on Module developed according to the latest OSM (Open Standard Modules™) standard released by SGeT (Standardization Group for Embedded Technology eV). It adopts NXP’s iMX-8M-Mini processor with 2GB LPDDR4 and 8GB eMMC storage.LGA package design, without connectors, can be directly soldered on the functional carrier board, which is more stable. The design of OSM-L is adopted, which is small in size, low in power consumption, and has rich functional interfaces for expansion. It can be configured with suitable development boards according to actual applications. It can be flexibly used in related fields such as Industrial Internet of Things and AIoT.

  • OSM Size-L (45×45mm) | NXP i.MX8M Mini
  • Quad Cortex-A53 @1.8GHz + Cortex-M4 @400MHz
  • 2GB LPDDR4 (1-8GB optional) | 8GB eMMC 5.1 (8-32GB optional)
  • Linux & Android BSP support | Long lifecycle design | Customizable carrier board
  • GbE (RGMII), PCIe, USB, UART, MIPI-DSI, MIPI CSI, GPIO, I2C, SPI, SAI
  • Industrial (-40°C to 85°C) / Consumer (0°C to 70°C) options
Contact Sales
Buy Now
OSM standard

The SoM-IMX8MM-OSM is developed according to the latest OSM (Open Standard Modules™) standard released by SGeT (Standardization Group for Embedded Technology e.V) .

Small size, low cost embedded computer module

Bulid with 45*45mm “Size-L OSM” form factor.

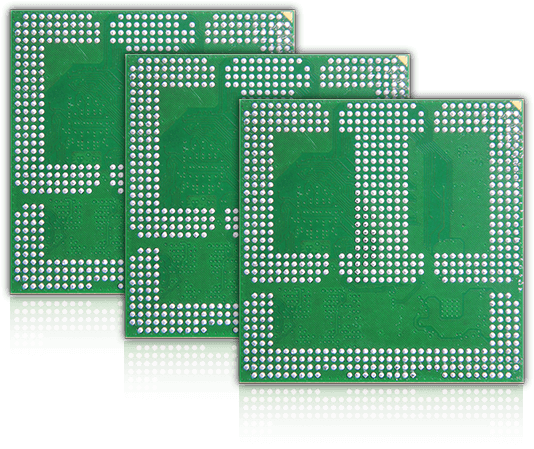

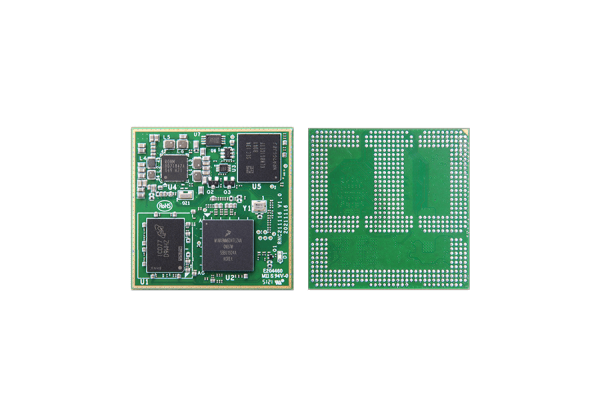

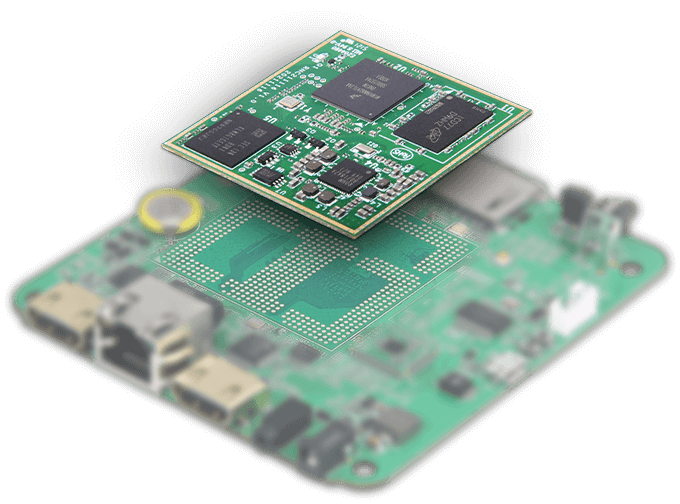

Pre-tinned LGA package

Solder PCBs directly without connectors.

Open source design

Pre-defined Software and hardware interfaces.

Modular Embedded Computing

For a growing number of IoT applications, this standard helps to combine the advantages of modular embedded computing with increasing, requirements regarding costs, space and interfaces.

High Reliability

The SoM-IMX8MM-OSM equipped with an NXP i.MX 8M Mini processor, up to 8GB LPDDR4, 32GB eMMC flash or 512MB NAND flash.i.MX 8M Mini is NXP’s first embedded multi-core application processor built with advanced 14LPC FinFET process technology, which can provide higher speed and higher power efficiency. The i.MX 8M Mini series has commercial and industrial-level certifications, and is supported by NXP’s product life plan, and can be used in any general industrial and IoT applications.

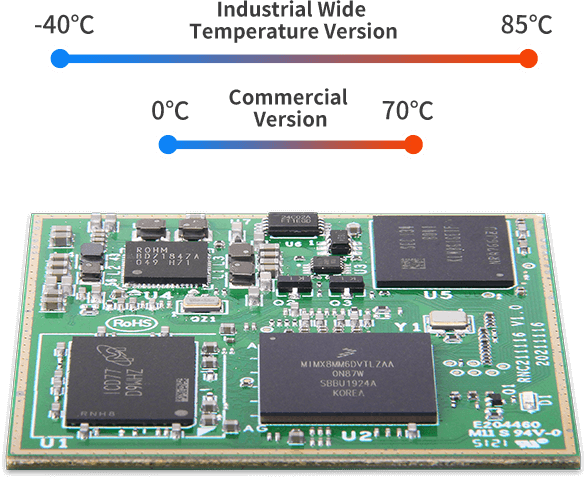

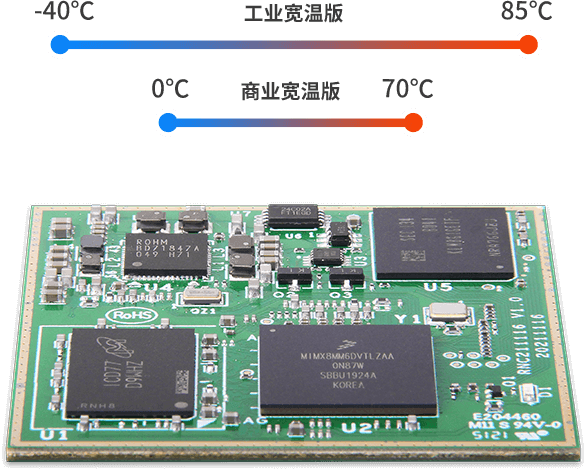

Environmental Applicability

According to the actual use environment, there are industrial and commercial specifications to choose from: Industrial wide temperature version: -40~85 degrees; commercial version: 0~70 degrees.

Abundant Application Interfaces

662 ball grid contact points, which can be expanded into a wealth of application interfaces.

Flexible Carrier Design

It can be configured according to different product types and applications, and the product can be quickly customized.

Flexible Carrier Design

It can be configured according to different product types and applications, and the product can be quickly customized.

Application Scenarios

Home audio/video systems, machine learning, vision, multimedia and industrial internet of things.



The Product Has a Long Life Cycle and can be Supplied for a Long Time

i.MX 8M Mini is included in the NXP product long-term supply plan, with a guaranteed supply period of at least 10 years, aiming to ensure stable product supply for your embedded design.

Other customized services + supplychain
Shell structure customization
Carrier board function customization
Provide SDK for secondarydevelopment
Mass production service
HIPSET NXP iMX8M Mini
MARKET AREA Global
OS Yocto(Linux)/Android
CPU 4xCortex-A53 core up to 1.8GHz per core
1x Cortex-M4 core up to 400MHz
LPDDR4 2GB（1G-8G optional）
EMMC FLASH 8GB eMMC5.1(8-32GB Optional)
Ethernet *1 RGMII
SDIO *2
USB 2.0 *2
UART *4 (UART4 –> Console)
I2C *4（I2C1–>PMU,I2C3–>MIPI CSI）
SAI *3 (SAI1 –> BOOT CFG)
SPI *1
SPDIF *1
JTAG *1
GPIO *16
PCIe *1
MIPI DSI *1
MIPI CSI *1 (4 lanes)

SOM-iMX8MM-OSM Specification
Download
SOM-iMX8MM-OSM Schematic
Download

Carrier Board

CBD-iMX8MM-OSM Specification
Download

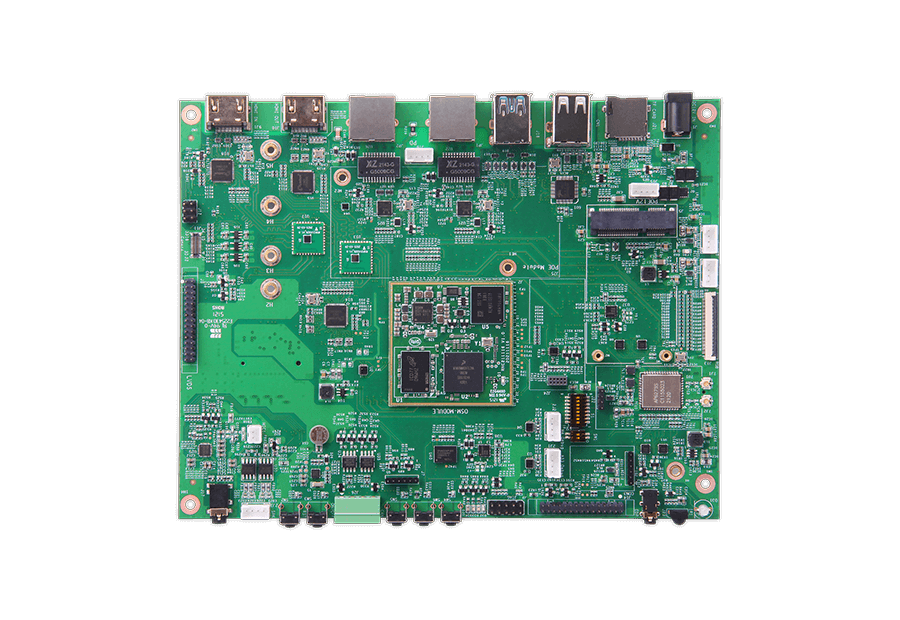

CBD-IMX8MM-OSM Carrier Board for NXP i.MX 8M Mini SOM

Industrial-grade carrier board designed for NXP i.MX 8M Mini SOM, fully compliant with the OSM-L standard. It enables rapid prototyping, functional validation, and scalable integration for AI, vision, and industrial automation applications.

  • OSM-L standard compatibility for flexible SOM integration
  • Dual Gigabit Ethernet (PoE PD supported)
  • USB3.0 ×2, USB2.0 ×4
  • HDMI IN/OUT, MIPI CSI, LVDS, eDP display support
  • Mini PCIe, M.2 Key-E/Key-M expansion slots
  • TF card slot, SIM card slot
  • Dual CAN interface, GTIOT connector
  • Audio, IR, JTAG, and user switch interfaces

Learn More
