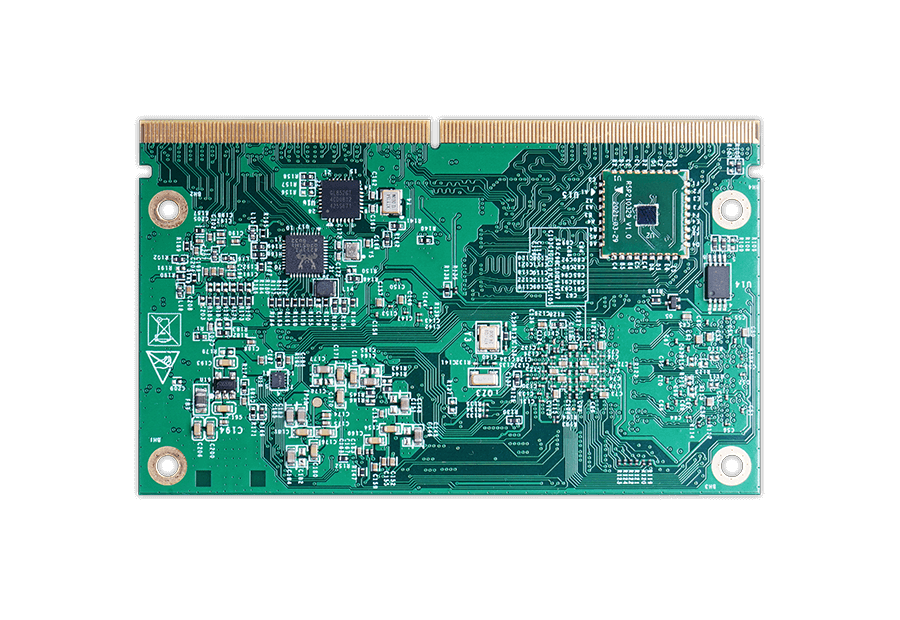

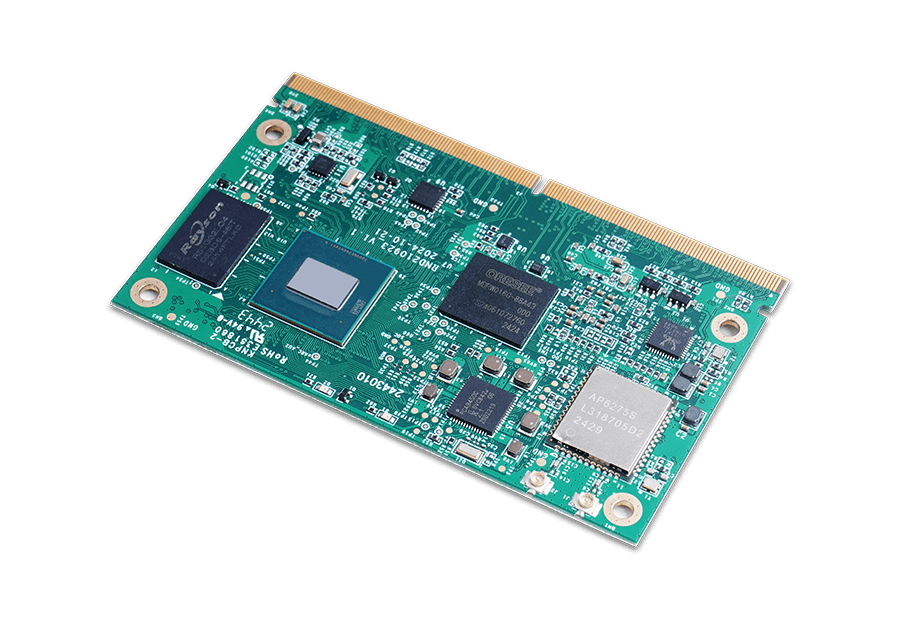

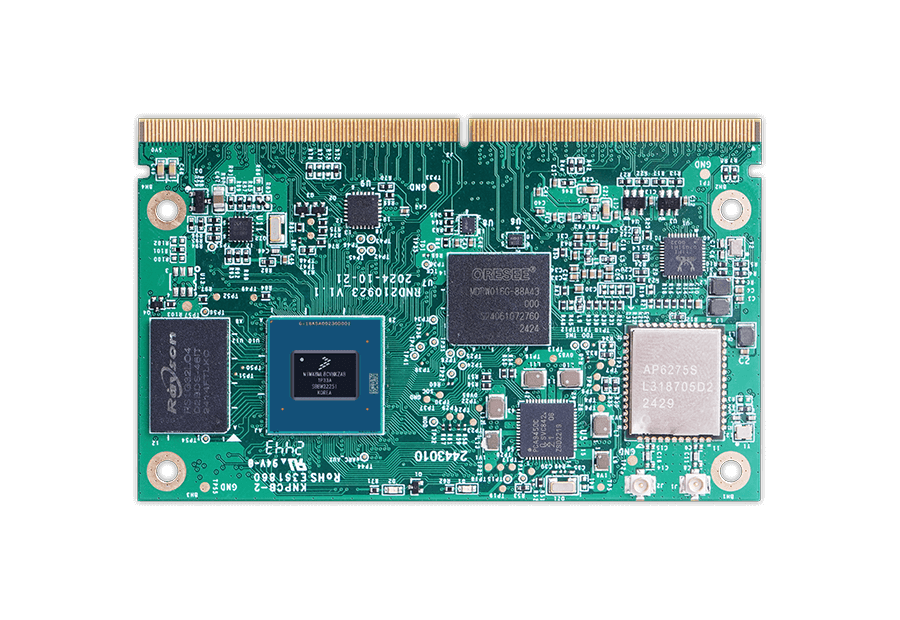

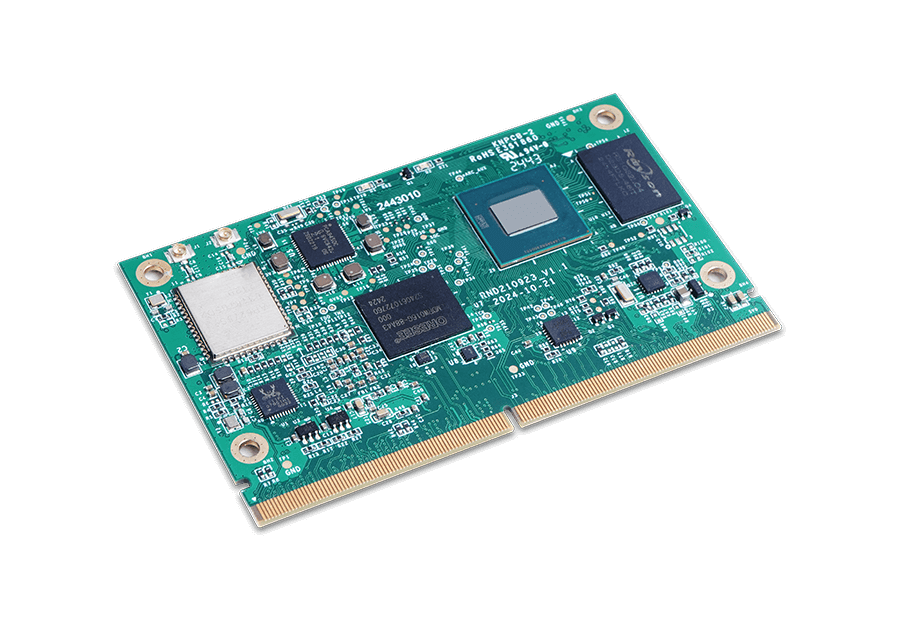

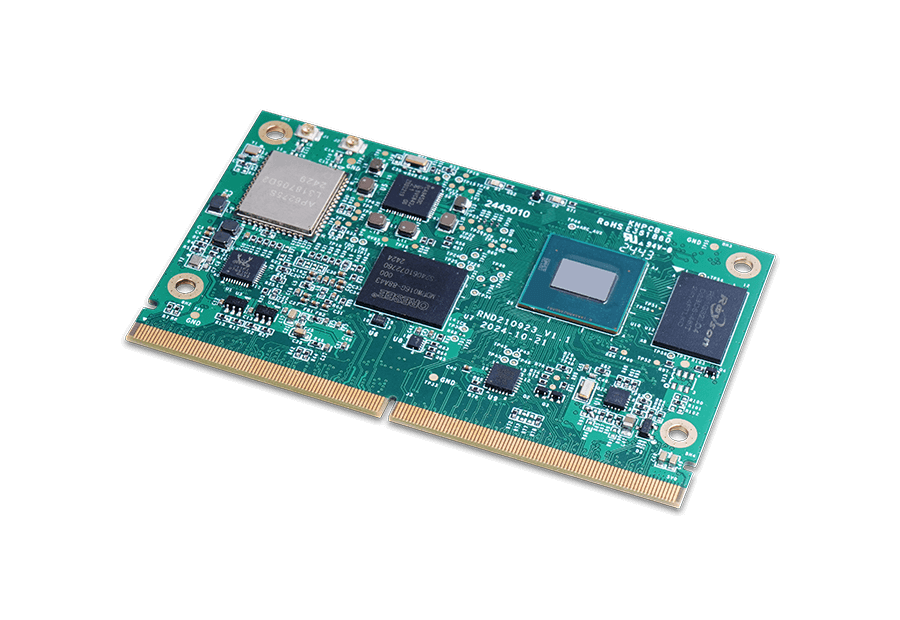

NXP i.MX8MP SMARC SoM

SOM-iMX8MP-SMARC

NXP i.MX8MP SMARC SoM

SoM-MX8MP-SMARC is a compact, high-performance module powered by the NXP i.MX8M Plus. It features a Quad ARM Cortex-A53, Cortex-M7, and a 2.3 TOPS NPU for advanced processing. With dual-band WiFi, BT5.0, and rich I/O options, it’s ideal for AI, multimedia, and industrial applications. Designed to SMARC 2.1 specifications, it ensures compatibility with various development boards.

Compliant with SMARC 2.1 standards, customizable carrier board
Quad-core Cortex-A53@1.8GHz & Cortex-M7@800MHz
2.3 TOPS NPU, scalable up to 40 TOPS AI computing power
Up to 4GB RAM and 128GB eMMC
HDMI^®, LVDS, MIPI-DSI, MIPI-CSI, USB, PCIe, GPIO, UART, I2C, SPI, CAN, I2S, SDIO
2x GbE, Wi-Fi / Bluetooth optional
-40 to +85℃ industrial temperature range

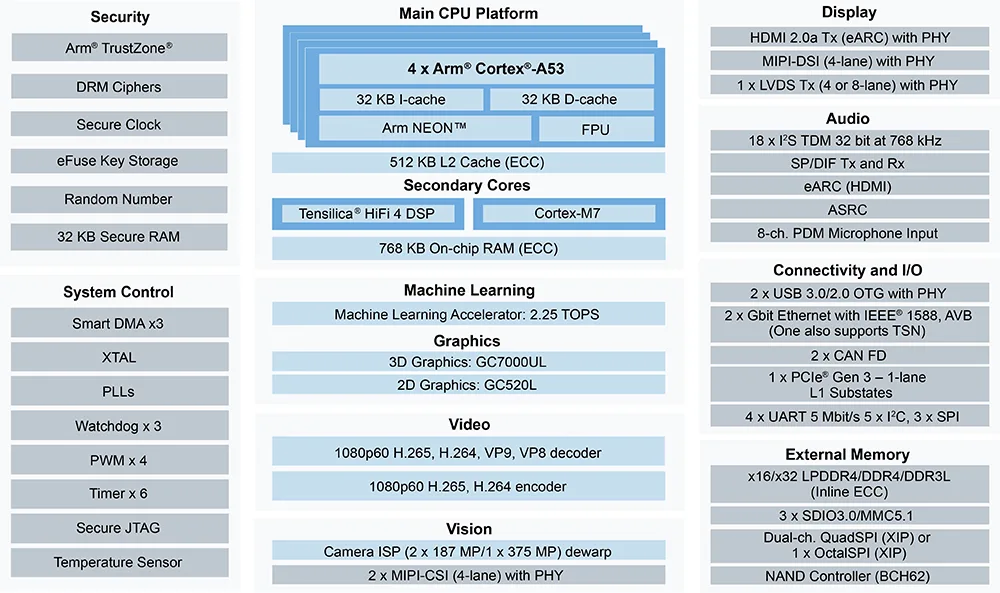

CHIPSET	NXP i.MX8M Plus
MARKET AREA	Global
OSD LANGUAGE	English/Chinese (multi language OSD)
Processor	OS	Android 10.0 and Linux(Yocto)
	CPU	Quad ARM Cortex-A53 up to 1.8GHz& Cortex M7 up to 800MHz
	GPU	GC7000UL with OpenCL and Vulkan support
	NPU	2.3 TOP/s Neural Network performance
	LPDDR4	4GB(1-4G Optional)
	EMMC FLASH	16GB（16-128G Optional）
Wireless Network	WiFi	2.4G/5G IEEE802.11 a/b/g/n/ac/ax
Wireless Network	Bluetooth	BT5.0
SMARC 2.1	Ethernet	2 x RGMII
	PCIe	1 x PCIe Gen3(single lane)
	USB2.0	*4
	USB 3.0	*2
	MIPI CSI	2(14 lane and 1*2 lane)
	HDMI®	*1(HDMI® 2.0)
	LVDS	*2(LVDS0 multiplex with MIPI DSI)
	LVDS Backlight	*1
	I2S	*2
	MIPI DSI	*1(multiplex with LVDS0)
	GPIO	*12
	SDIO	*1
	UART	*4
	SPI	*2
	I2C	*4
	CAN	*2
	Vin	5V/3A
Dimensions	82 x 50 mm

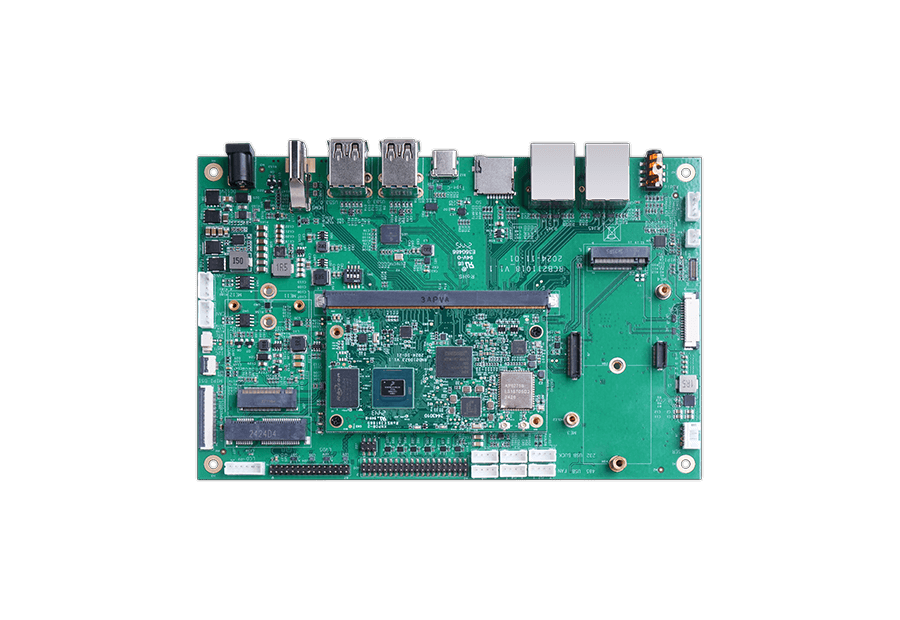

DB820P SMARC Carrier Board

This carrier board unlocks the full potential of the i.MX 8M Plus SMARC module, offering comprehensive industrial I/O and expansion options to rapidly build sophisticated vision AI and automation solutions.
