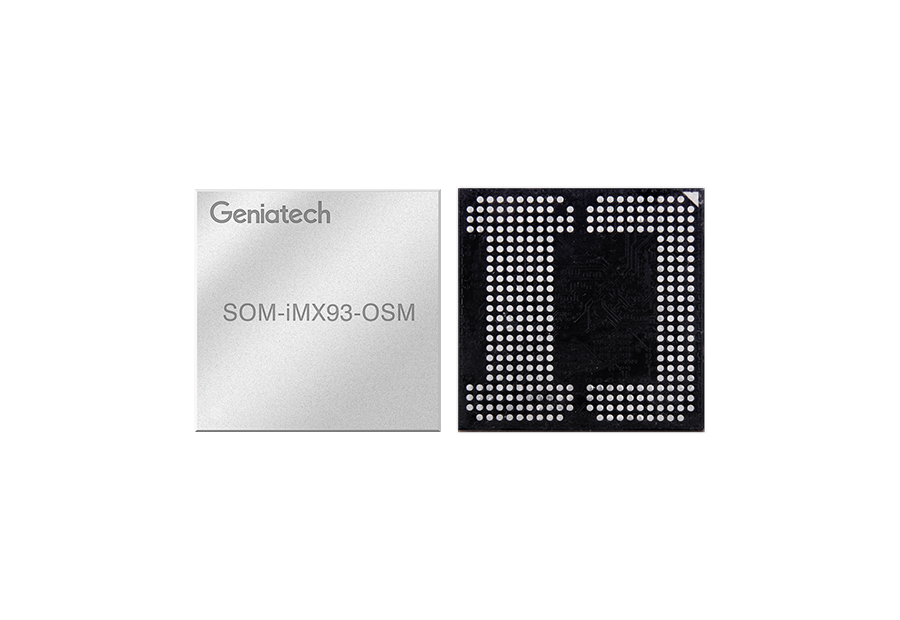

SOM-iMX93-OSM

i.MX93 OSM-S System-on-module

Geniatech SOM-iMX93-OSM is a solderable system on module featuring NXP® i.MX93 processor with an Arm Ethos U-65 microNPU for accelerated machine learning and an Arm Cortex-M33 for real-time control. It is ideal for industrial control, HMI, data gateways, and edge computing.
  • Compliant with OSM-S standards, customizable carrier board
  • Dual-core Cortex-A55@1.8GHz + Cortex-M33@250MHz, 0.5 TOPS Ethos-U65 NPU
  • Up to 2GB RAM and 32GB eMMC
  • 2x GbE, MIPI-DSI, MIPI-CSI, CAN-FD, UART, SPI, PWM, USB, GPIO
  • -40 to 85℃ industrial temperature range
Contact Sales

Standardized OSM Form-Factor

  • Compact OSM Size-S footprint – 30 x 30 mm

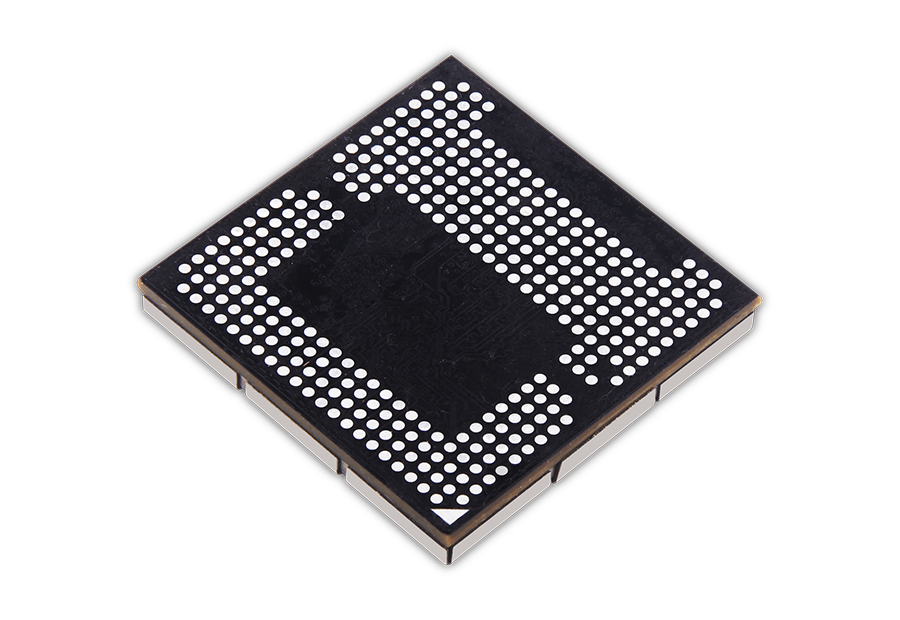

  • Solder-down 332-pin OSM connector for automated assembly
  • Designed for high-volume SMT and reflow soldering
  • Industrial temperature range of -40°C to +85°C

Feature Highlights

  • Dual-Core ARM Cortex-A55 + ARM Cortex-M33

  • Integrated Ethos-U65 NPU for edge AI inference

  • Dual Gigabit Ethernet (RGMII), 2x USB 2.0 with PHYs

  • Comprehensive I/O: CAN-FD, UART, I2C, SPI, PWM, and GPIO

Software and Development Support

  • Linux (Yocto Project) BSP

  • Complete Board Support Package with U-Boot and Linux kernel

  • Enabled for OTA (Over-the-Air) updates

Accelerate Your Product Development

  • Full carrier-board design package – schematics, BOM, and PCB layout

  • Direct technical support from Geniatech engineering team

  • Proven reference designs for all key interfaces

  • Free design review for your custom carrier board

  • Driver adaptation services for custom LCD panels

Carrier Board Design and Manufacturing Services

  • Streamlined service for rapid custom board development

  • Executed by Geniatech’s specialized tools and engineering team

  • Flexible ordering from prototype to mass production quantities

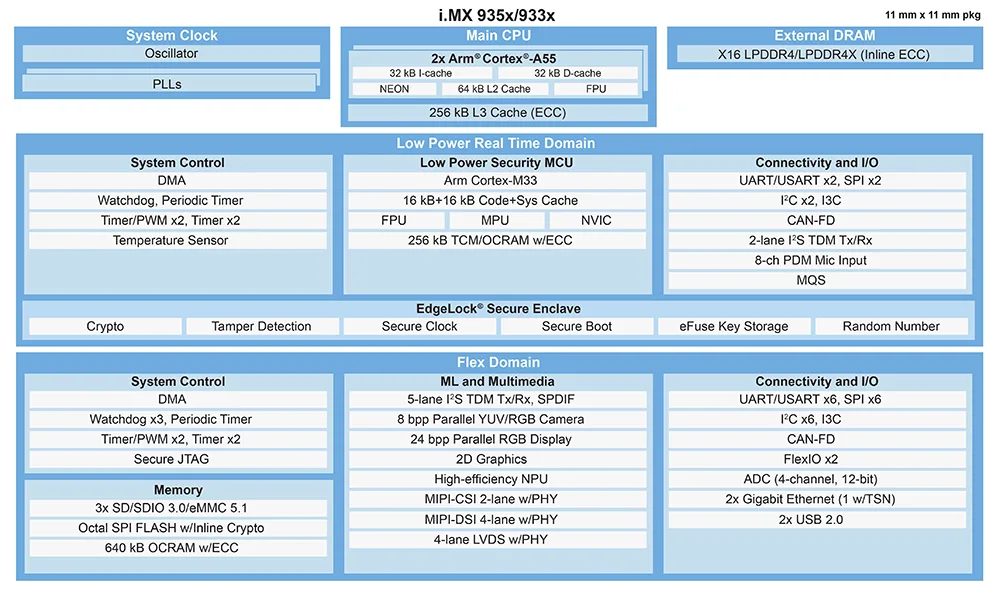

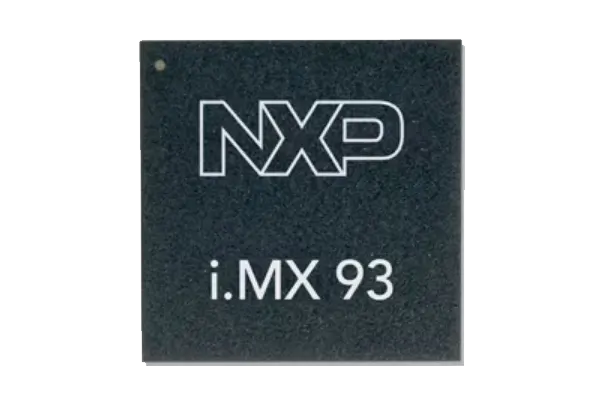

CPU NXP i.MX93 / NXP i.MX95 optional
Dual-Core ARM Cortex-A55+ARM Cotex-M33
NPU Neural Network performance (256 MACs operating up to 1.0 GHz and 2 OPS/MAC)
Memory and Storage RAM: 2GB
Storage: 16GB eMMC (optional 8G/32G)
Operating Systems Linux (Yocto)
Display and Camera Interfaces MIPI-DSI: One 4-lane MIPI DSI display with data supplied by the LCDIF
MIPI CSI: One 2-lane MIPI CSI-2 camera input
Connectivity Ethernet: 2x Gigabit Ethernet ports
USB: 2x USB 2.0 controllers and PHYs interfaces
Other interfaces: CAN-FD, UART, I2C, SPI, PWM, GPIO
OSM Form Factor Sizes: 30*30 mm
Connector: 332 Pin OSM size S
POWER POWER: 5V/2A
Temp Range: -40°C to 85°C (industrial grade)

Specification

SOM-iMX93-OSM Specification
Download

CarrierBoard Specification

SOM-iMX93-OSM CarrierBoard Specification
Download

User Guide

SOM-iMX93-OSM Yocto User Guide
Download

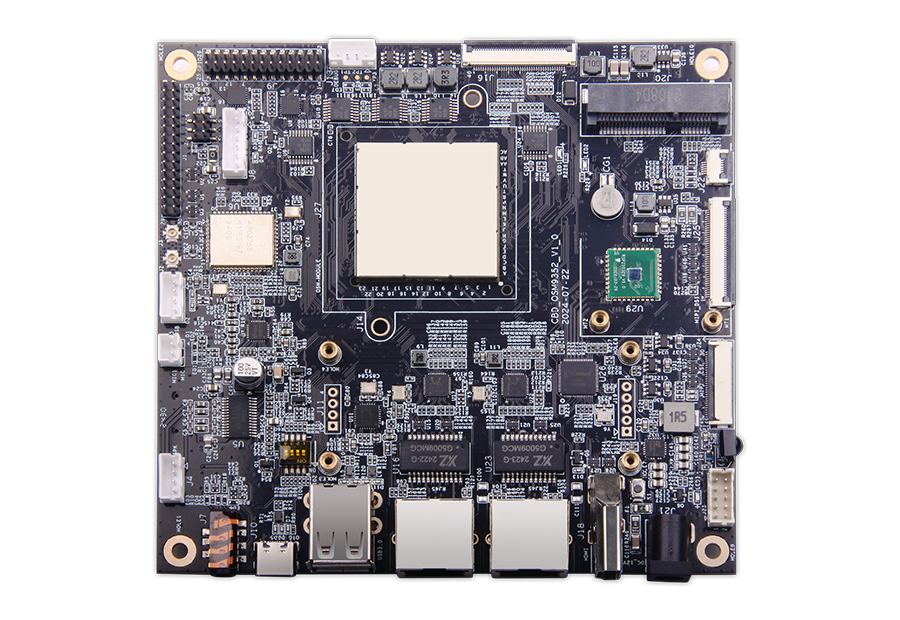

DB-iMX93 Carrier Board for NXP i.MX93 SOM

Industrial carrier board designed for NXP i.MX93 SOM, offering comprehensive I/O interfaces for rapid prototyping and edge system integration. Built to OSM-S standard with compact 120×125mm design for industrial applications.

  • Dual Gigabit Ethernet (2×RJ45, 1000M)
  • HDMI OUT, USB2.0 ×2, Type-C ×1
  • MIPI DSI & MIPI CSI interfaces
  • Wi-Fi 802.11a/b/g/n/ac/ax (2T2R)
  • Audio I/O: Headphone, MIC IN, SPK
  • UART, SPI, PWM, Debug interface
  • DC-IN power input, 120×125mm compact layout

Related Products

i.MX8MM OSM Computer-on-Module
RK3568J OSM-L System-on-module
Renesas RZ/G2L OSM SOM

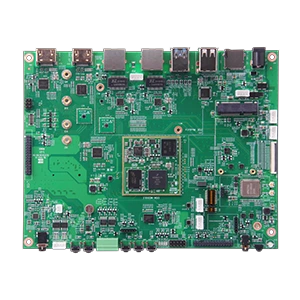

i.MX8MM OSM Evaluation Board
