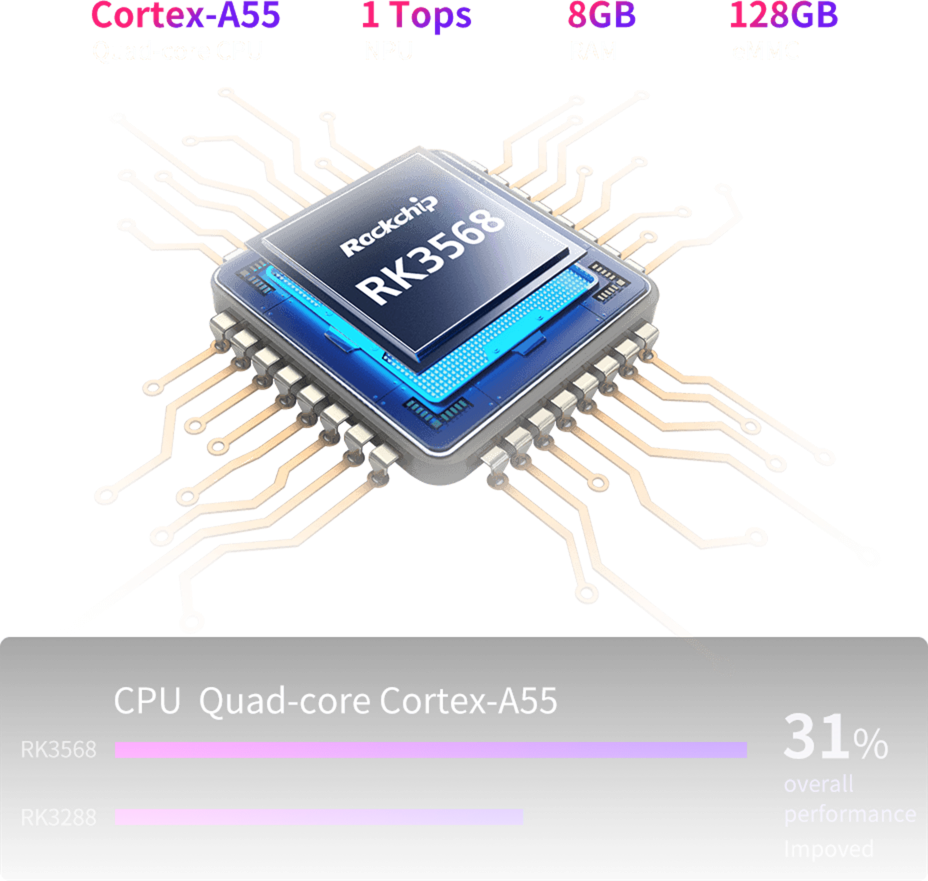

Geniatech SOM-3568-SMARC core board adopts RK3568 quad-core 64-bit Cortex-A55
processor, main frequency up to 2.0GHz, with 22nm lithography process.
1.8 GHz 6-core Cortex-A55 MPU 800 MHz Cortex-M7 MCU 333 MHz Cortex-M33 MCU
Up to 3 independent displays Multi-camera support Hardware image processing
2x 4-lane MPIP-CSI-2 up to 8x cameras with MIPI video encode/decode
High-Performance edge AI via integrated NPU delivering up to 8 TOPS

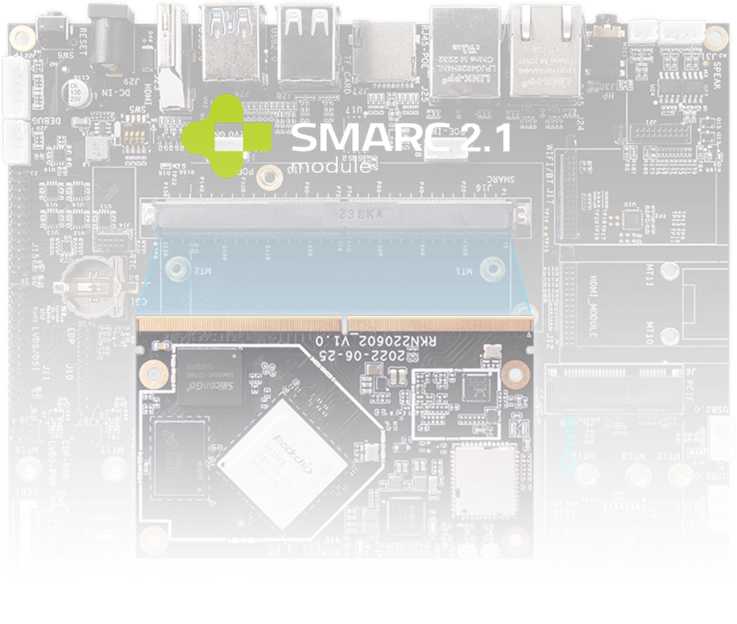

The core board is designed according to SMARC 2.1 standard. It can be directly applied to the product with the Geniatech industry carrier board.
If the customer needs in-depth customization, Geniatech can also provide the reference design material of the carrier board.
So that the user can efficiently carry out secondary development, quickly create self-controllable products and realize the application of industry solutions.
The core board is designed according to SMARC 2.1 standard. It can be directly applied to the product with the Geniatech industry carrier board.
If the customer needs in-depth customization, Geniatech can also provide the reference design material of the carrier board.
So that the user can efficiently carry out secondary development, quickly create self-controllable products and realize the application of industry solutions.
| CPU | Quad-Core 64-bit Cortex-A55, 22nm Lithography Process, Frequency up to 2.0GHz ARM C52 2EE |
| GPU | Supports OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| NPU | 1 Tops@INT8, integrated high-performance AI accelerator RKNN NPU Supports one-click switching of Caffe / TensorFlow / TFLite / ONNX / PyTorch / Keras / Darknet |
| VPU | Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP, supports HDR |
| RAM | 2GB / 4GB / 8GB LPDDR4 |
| ROM | 32GB / 64GB / 128GB eMMC |
| Interface | POWER: 5V / 2A |
| Dimensions | 82 × 50 mm |
| Ethernet | ×2 (Gigabit Ethernet) |
| PCIe | PCIe 2.1 ×1 (1 lane) PCIe 3.0 ×1 (2 lanes) |
| USB | USB2.0 ×2 USB3.0 HOST ×1 USB3.0 OTG ×1 |
| MIPI | MIPI CSI ×1 (4 lanes) MIPI DSI ×1 (DSI0 & DSI1) |
| Video Output | HDMI ×1 (HDMI 2.0) LVDS ×1 (multiplex with DSI) |
| Wireless | Wi-Fi |
| GPIO | GPIO ×4 (or more) |
| Other Interfaces | SDIO UART ×6 SPI ×2 I²C ×4 CAN I²S |
