SOM3588

RK3588 System-on-module

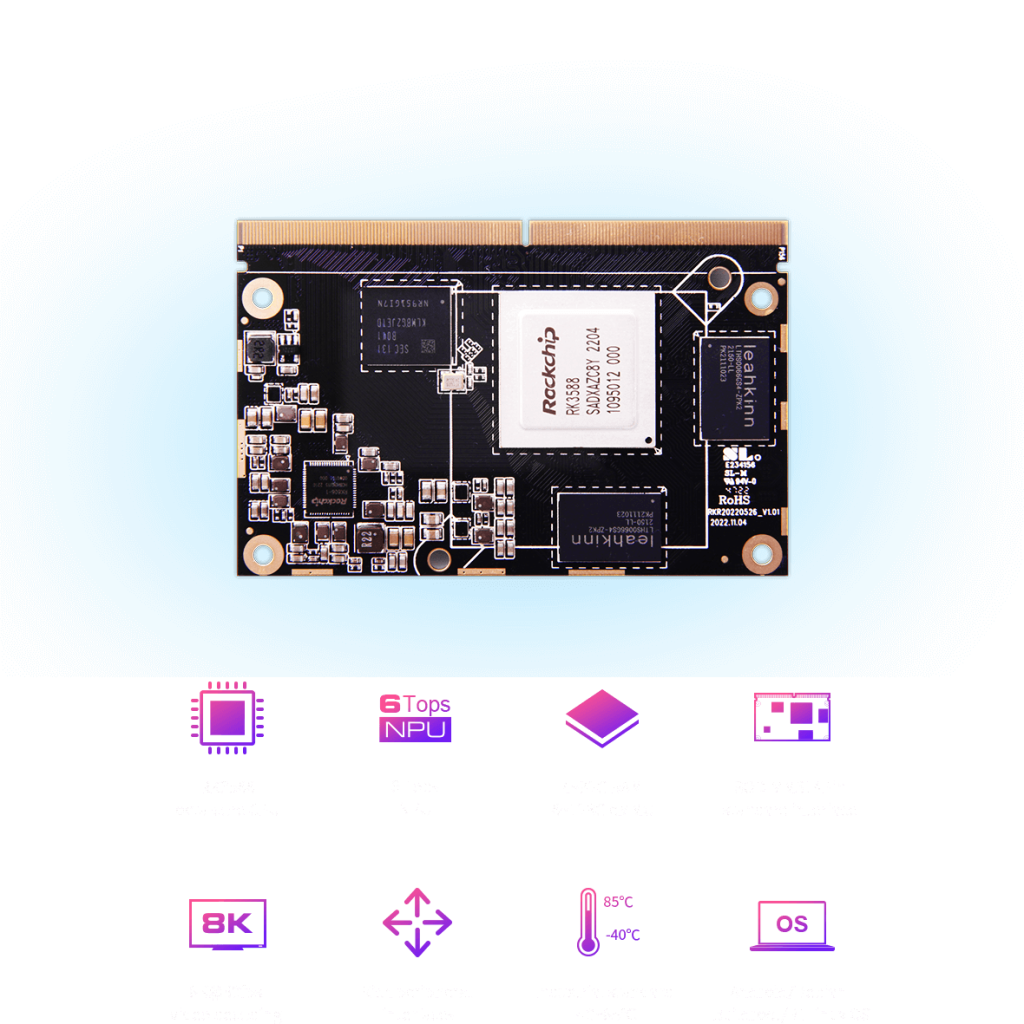

SOM3588 core board is powered by Rockchip RK3588, features a quad-core Cortex-A76 and quad-core Cortex-A55 with a built-in NPU (up to 6TOPS). Supporting SDIO3.0, audio, video, and camera functions, along with a dual-gigabit Ethernet interface, it’s versatile for applications, including embedded artificial intelligence.

  • RK3588 octa-core 64-bit processor with integrated 6Tops AI NPU
  • Optional 4~32GB RAM, 8~128GB eMMC
  • Compact size with SODIMM 314Pin standard interface (82x53mm)
  • Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding
  • Integrated HDMI®, DP, MIPI, PCIe, SATA, GMAC, SDIO, USB, UART, I2C, I2S, and other interfaces
  • Available in a wide temperature range (-40 to 85°C)
  • Comprehensive technical data, including baseboard design data, API/SDK
Contact Sales
Buy Now

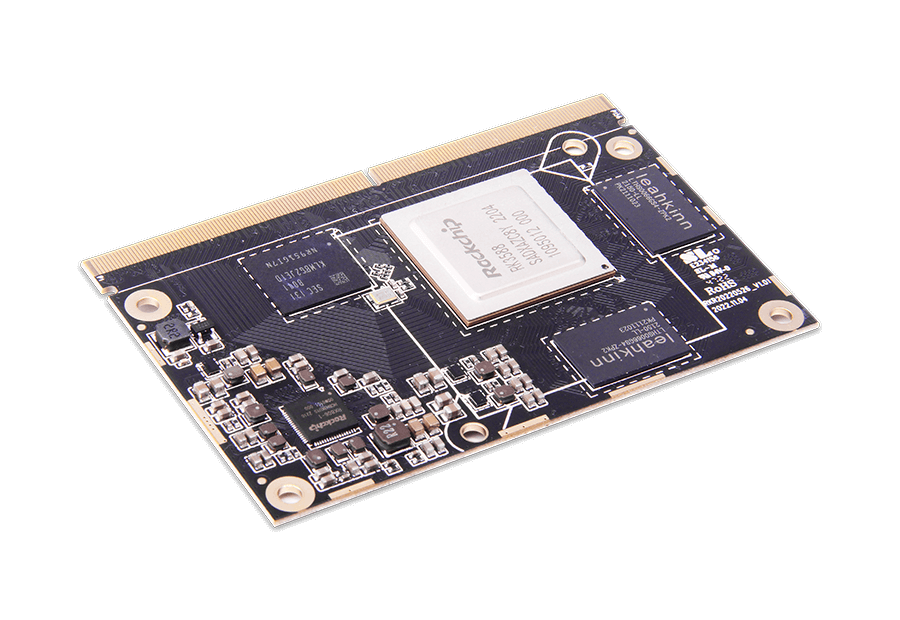

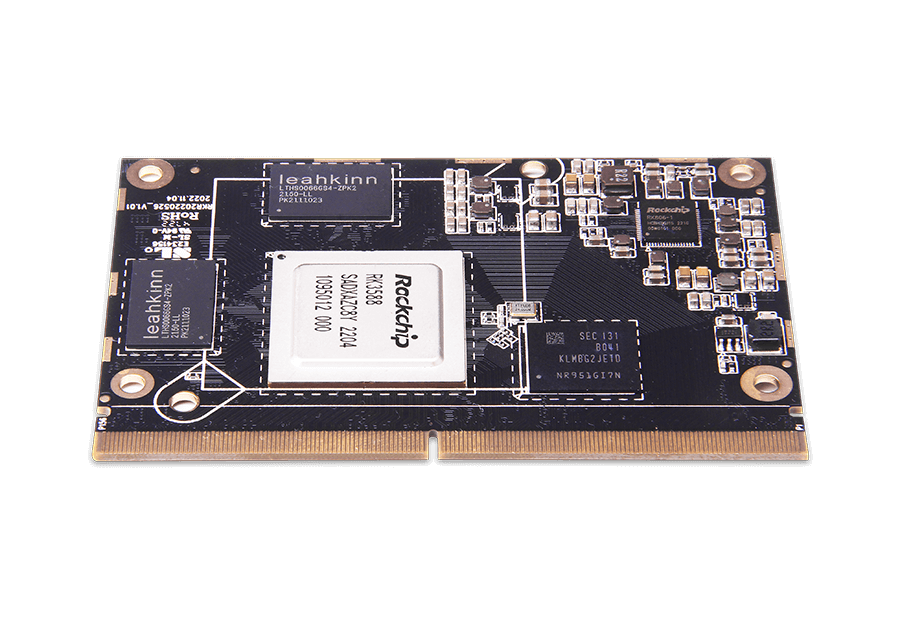

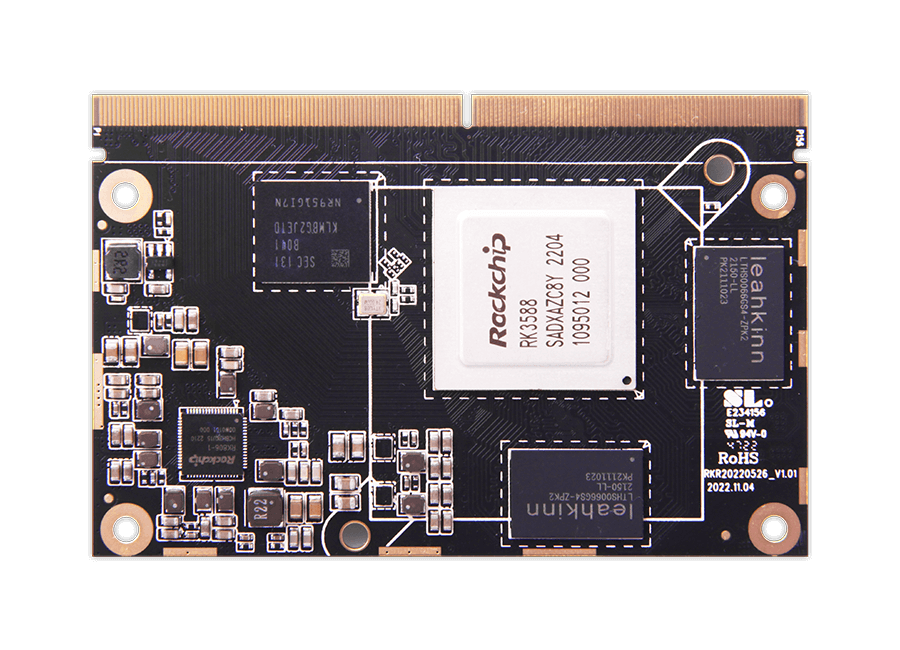

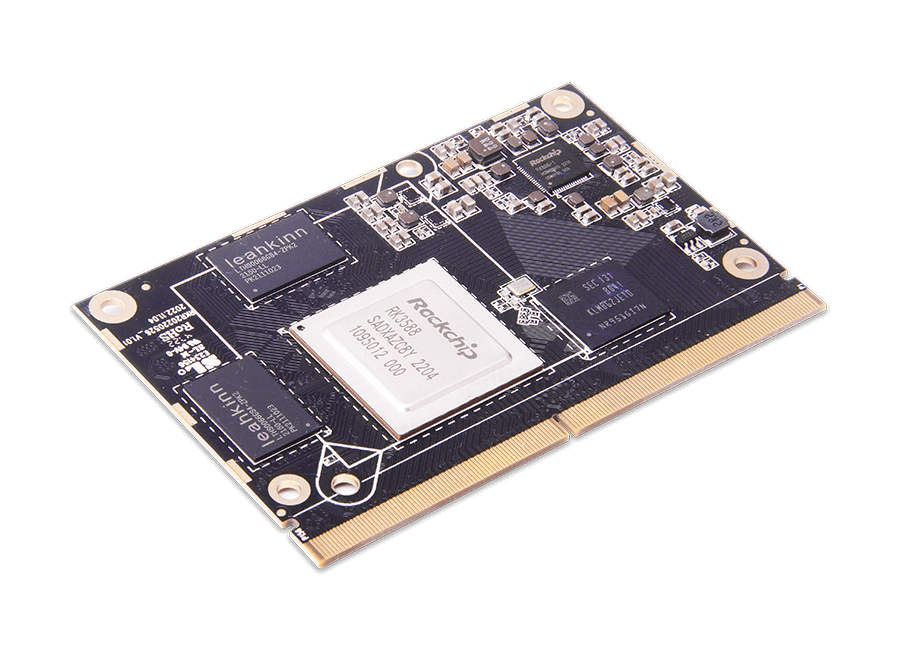

High-Performance AI System-on-Module with RK3588

SOM3588 is a powerful system on module powered by the RockChip RK3588 chip, featuring a 6Tops NPU and a quad-core Mali-G610 MP4 GPU. It comes with a customized carrier board , offering expandable interfaces for diverse displays and industry applications. Compatible with various operating systems, this module suitable for a range of embedded applications.

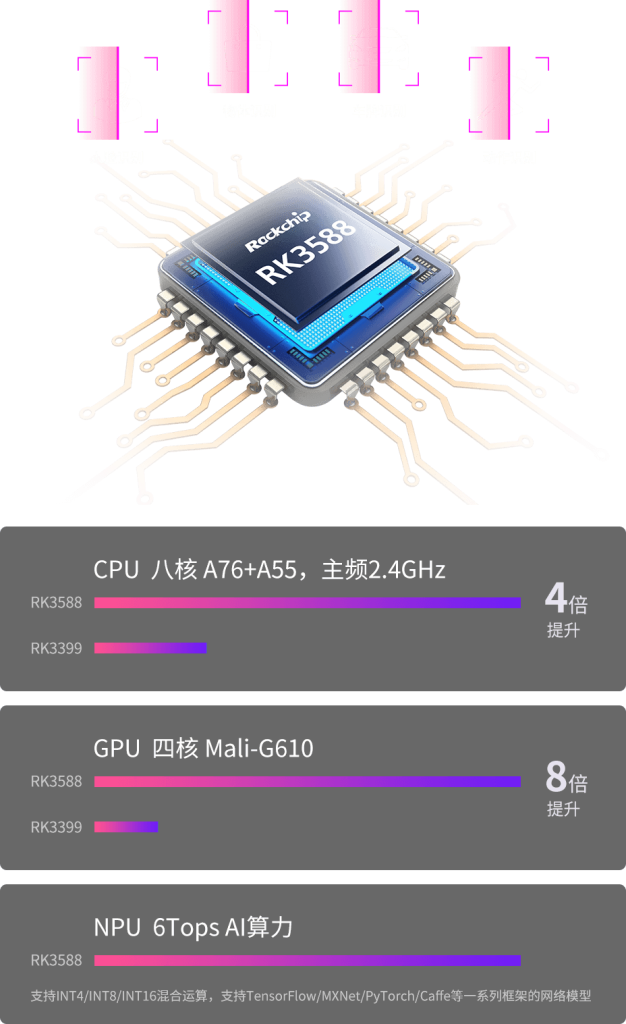

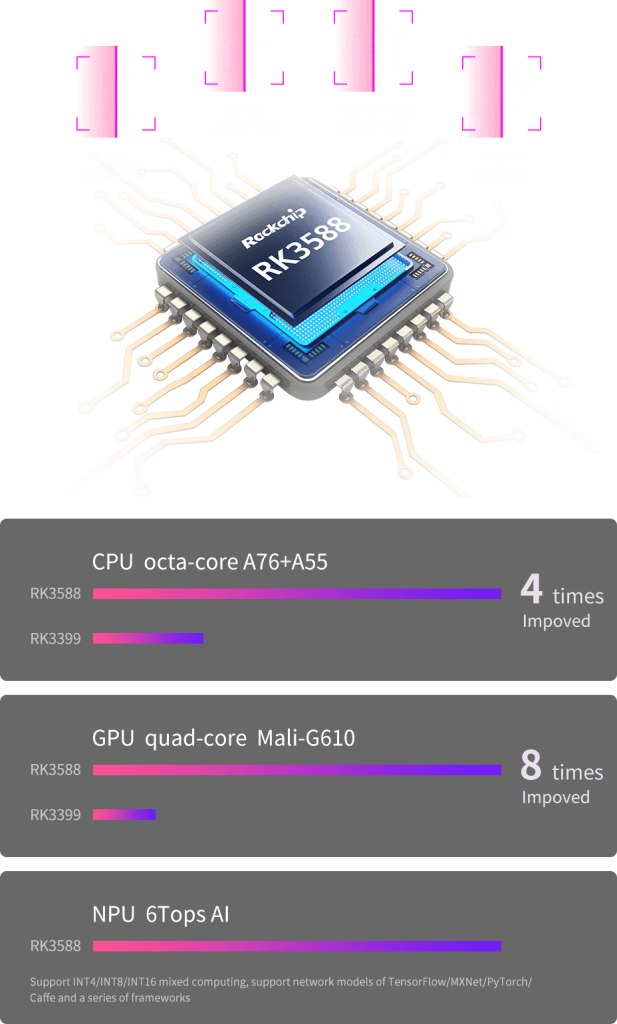

Next-Gen Octa-Core Processor

SOM3588 boasts the RK3588 octa-core 64-bit processor, an integrated ARM Mali-G610 MP4 quad-core GPU, and a built-in 6TOPs AI NPU. Explore new performance for diverse AI scenarios

Unleash 8K video and four-screen HD display

Unlock the potential of 8K video output and 4K video input, facilitating up to four-screen displays. Perfect for immersive, high-definition, multi-screen interactive scenarios.

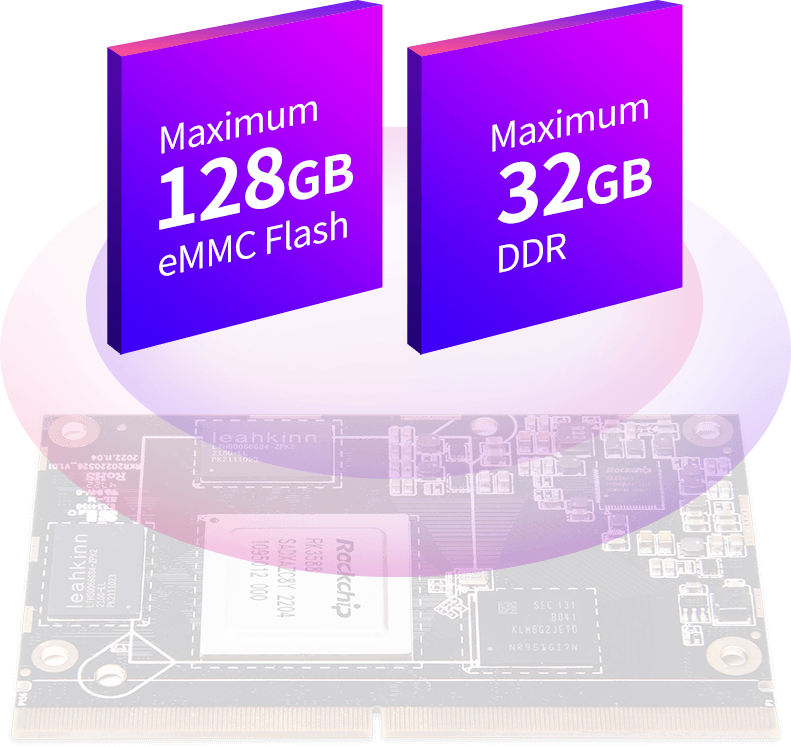

Ample Storage Capacity: Up to 32GB RAM and 128GB eMMC

Enjoy up to 32GB RAM and 128GB eMMC for superior storage. SOM3588 ensures faster response times, catering to applications demanding extensive memory and storage.

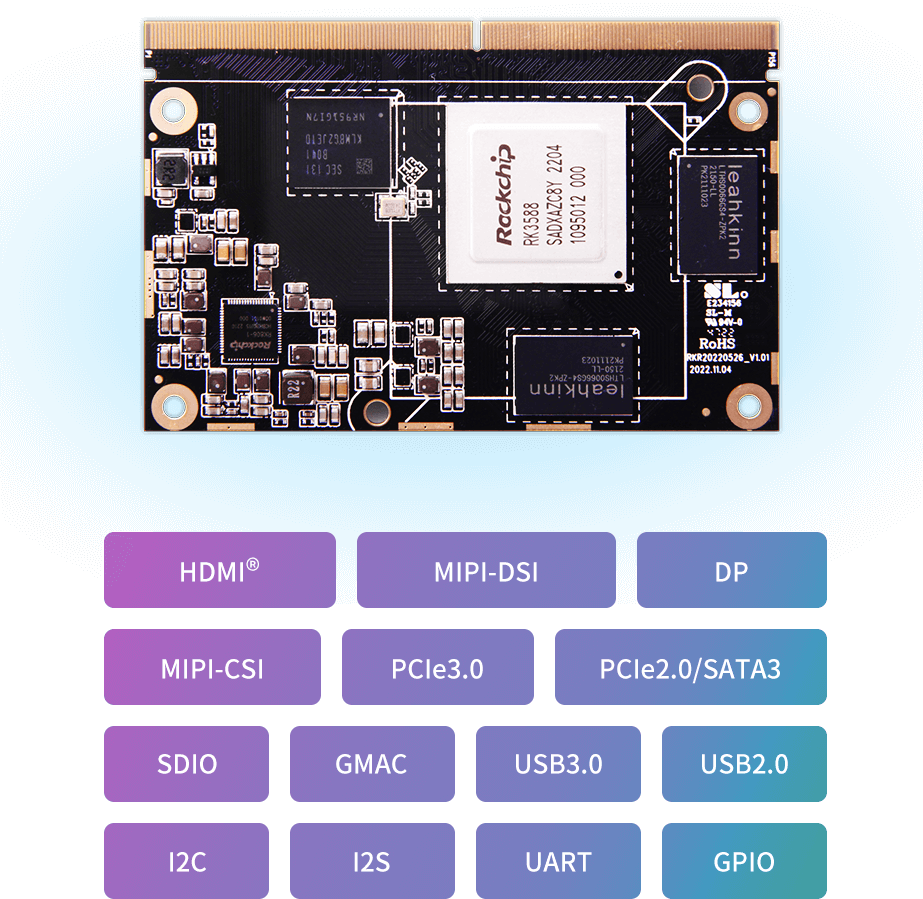

Rich display and peripheral expansion interface

Utilizes a standard SODIMM interface with 314 pins, supports a variety of expansion interfaces including HDMI®, MIPI-DSI, DP, MIPI-CSI, PCIe3.0, PCIe2.0/SATA3, SDIO, GMAC, USB3.0, USB2.0, I2C, I2S, UART, GPIO, and more for versatile industry applications

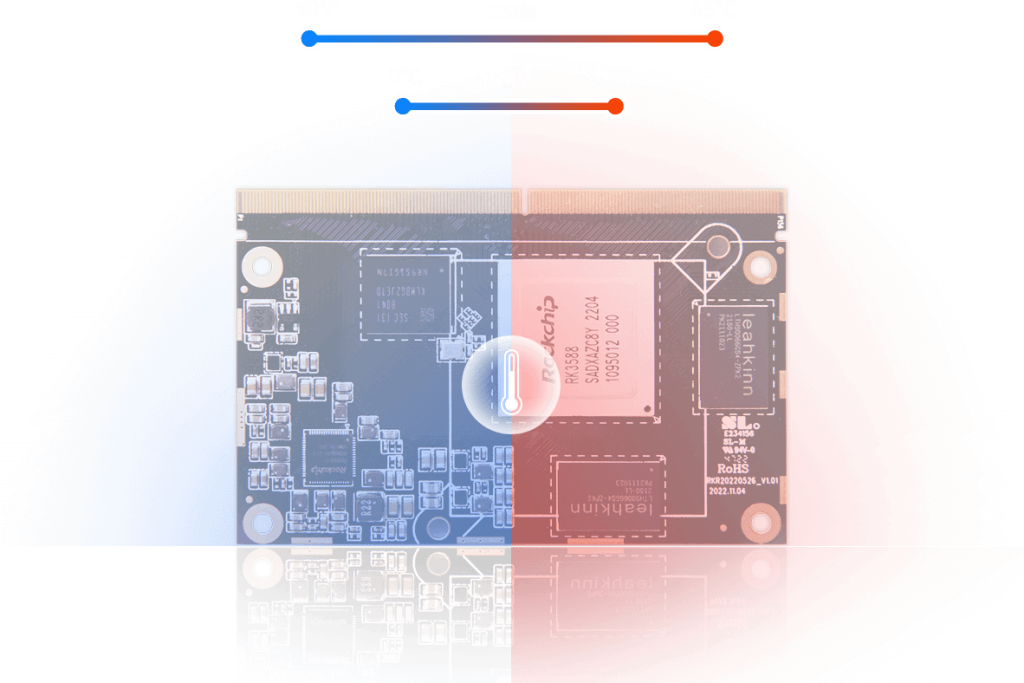

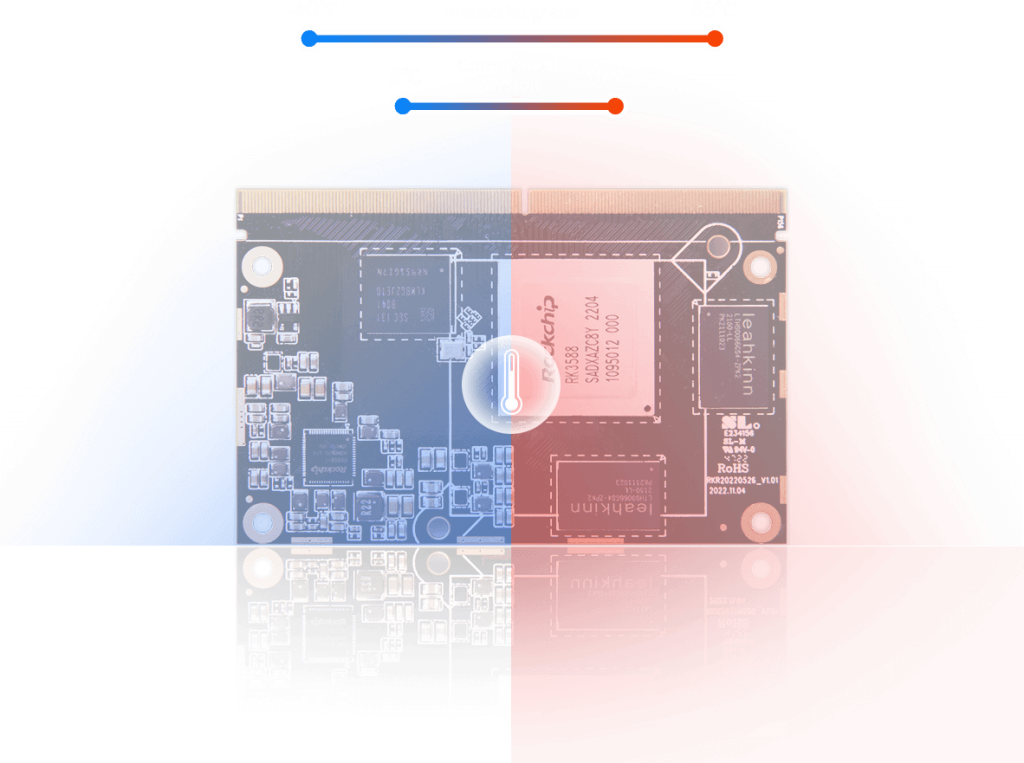

Industrial-grade products for reliable performance in harsh environments

Our industrial-grade processors and components adhere to strict standards, ensuring reliability, safety, and stability in harsh environments. They operate 24/7 in temperatures from -40°C to 85°C, making them ideal for demanding industrial applications.

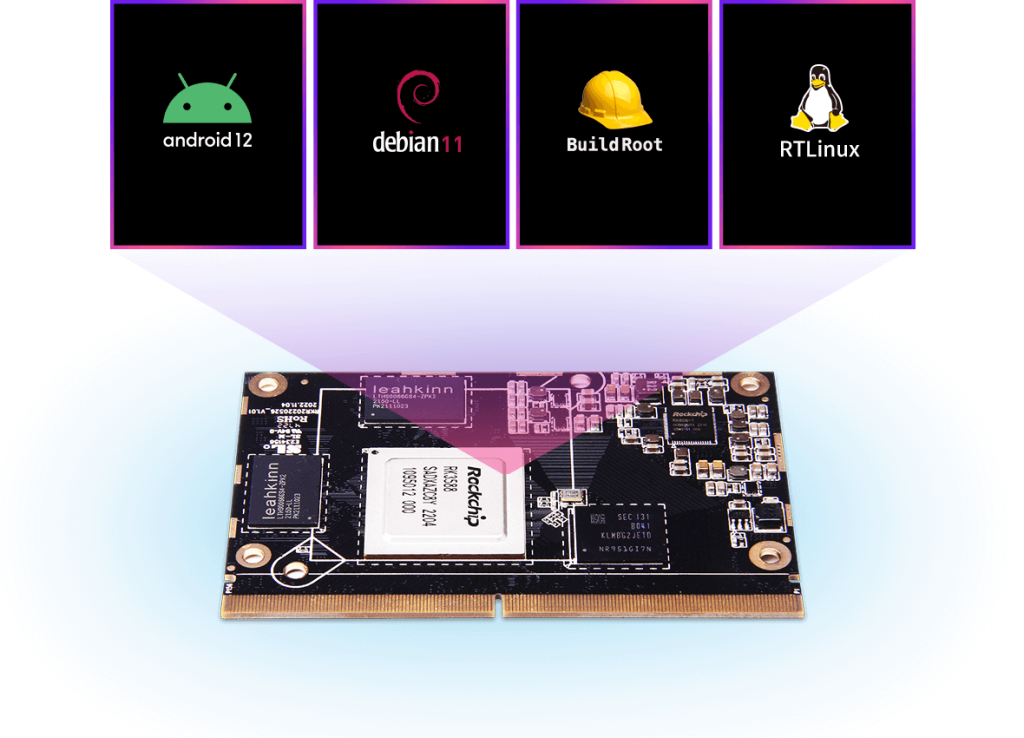

Multiple operating system support with open system architecture

SOM3588 supports multiple operating systems, including Android 12.0,  Debian11, Buildroot, and RTLinux kernel. Its open system architecture also allows for deep customization of the Linux system kernel, enabling remote upgrade and management of the device and enhancing operation and maintenance efficiency.

10-Year delivery period for extended product life cycle

Guaranteeing a 10+ year ultra-long life cycle, In addition to hardware, we provide traceable Linux Kernel maintenance, ensuring stability throughout the extended lifespan of the product.

Provide perfect technical data for efficient secondary development

We offer a wealth of technical information, including PCB layout design materials, supporting source code, technical documentation, API interfaces, and SDK development tools. This comprehensive set of resources makes secondary development easier, more convenient, and more efficient. It helps our customers to quickly create customized products that are independent and controllable.

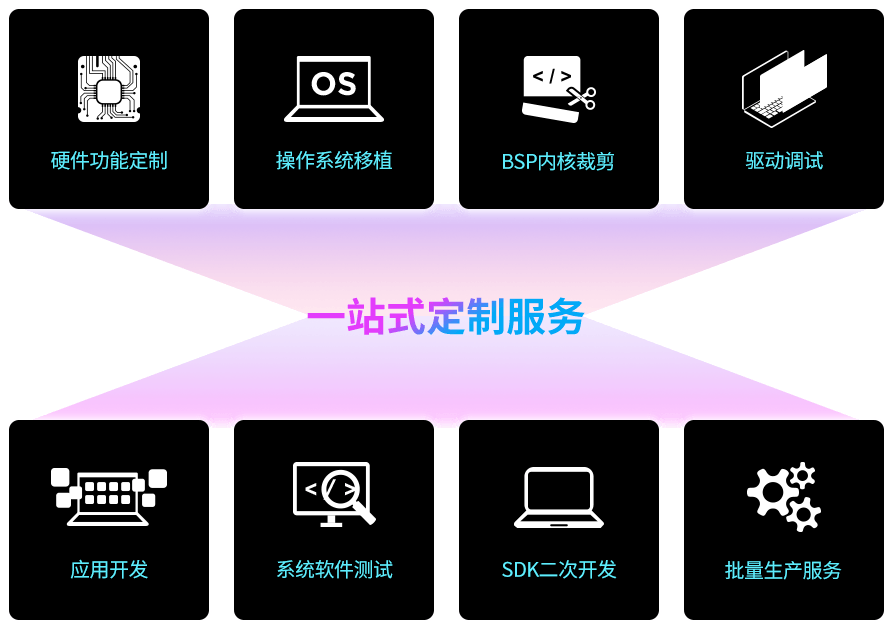

One-stop customized services beyond hardware

We provide not only hardware features and custom designs, but also one-stop customization services including OS porting, kernel trimming, software development, and system testing, to help customers quickly bring their products to market. With over 25 years of ARM product development and a self-built production facility spanning nearly 30,000 square meters, we can greatly shorten the product development cycle and help customers seize market opportunities.

Wide range of application scenarios

SoM3588 SoM Module can be used in edge computing, artificial intelligence, cloud computing, VR/AR, blockchain, smart security, smart industrial control, smart home, etc.

CPU RockChip RK3588
Octa-core 64-bit 4 x Cortex-A76 + 4 x Cortex-A55 8nm advanced process, up to 2.4GHz
GPU Mali-G610 MP4 (4x256KB L2 Cache)
OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.2, 450 GFLOPS
NPU NPU computing power up to 6TOPS, support INT4/INT8/INT16 mixed computing
Network model conversion based on TensorFlow/MXNet/Pytorch/Caffe and other frameworks
ISP Integrated 48MP ISP and HDR & 3DNR multi-algorithm gas pedal
Codecs Video decoding.
8K@60fps H.265/VP9/AVS2
8K@30fps H.264 AVC/MVC
4K@60fps AV1
1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding.
8K@30fps encoding, H.265 / H.264 support
* Up to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding
RAM 4GB LPDDR4(8/16/32G optional)
Storage 32GB（64G/128G/256G optional）
Network Ethernet Interface: 2 x 1000/100/10 Mbps transmission speed
Display Interface HDMI®: 2 x HDMI®2.1 8K@60fps or 4K@120fps with HDCP2.3
DP: 1 DP1.4 7680 x 4320@30Hz
MIPI: 2 MIPI DPHY 4K@60Hz
eDP: 1 shared with one of the HDMI® outputs with HDCP1.2
Video Input HDMI® input: 1 x HDMI®2.0 4K@60fps
MIPI camera input: 2 x MIPI CSI
OS Android 12.0, Linux Ubuntu Desktop, Linux Ubuntu Server, Debian 11.0, Buildroot, RTLinux
USB 1 x USB Host3.0, 2 x USB Host2.0 , 2 x USB OTG 2.0 support up to 480 Mbps
I/O Interface • Scalable standard PCIe 3.0 × 2
• PCIe2.1 or SATA3.0/SATA3.1 × 3
• I2C × 9
• SATA × 2 Standard SATA or PCIe2.0
• I2S × 4
• SDIO × 3
• GPIO × 137
• SPDIF × 2
• SPI × 5
• ADC × 6
• PWM × 16
• DEBUG × 1
POWER 5V/3A
Mechanical Characteristics Size: 82 x 53 mm
Board Structure: SDIOMM 314Pin standard core board
Operating temperature Commercial: 0~80°C
Work gauge: -40~85°C

SOM3588 Specification
Download
SOM3588 Schematic
Download

Carrier Board

DB3588V2 Specification
Download
DB3588V2 HW User Guide
Download

DB3588V2 Carrier Board

This carrier board delivers comprehensive industrial connectivity and expansion capabilities for RK3588 SOM systems. Designed in a compact 150×125mm form factor, it enables rapid deployment of high-performance AI applications across commercial and industrial environments.

  • Multi-display interfaces: Dual HDMI 2.1, MIPI-DSI, eDP outputs
  • High-speed expansion: M.2 Key M, dual SATA, USB 3.0, GbE
  • Industrial I/O: Quad RS232, CAN, GPIO, SPI, I2C
  • Camera inputs: Dual MIPI-CSI, HDMI 2.0 IN
  • Extended temperature operation: -40°C to 85°C
  • Robust power design: 12V DC with 5V/12V power header
  • Audio capability: Microphone array, stereo output
  • Compact carrier board: 150×125mm for space-constrained applications
