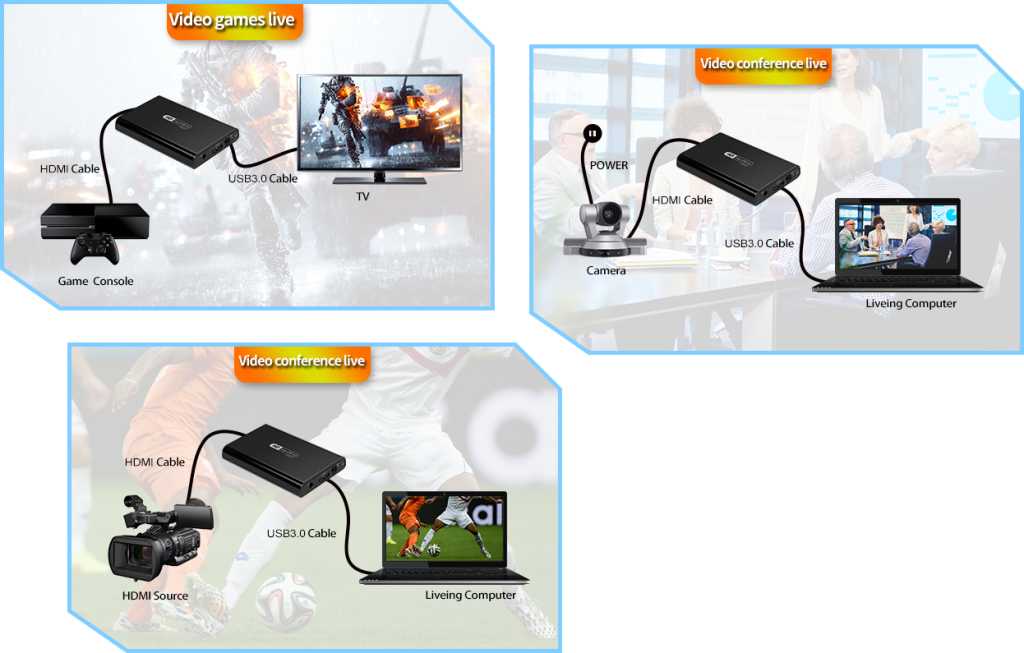

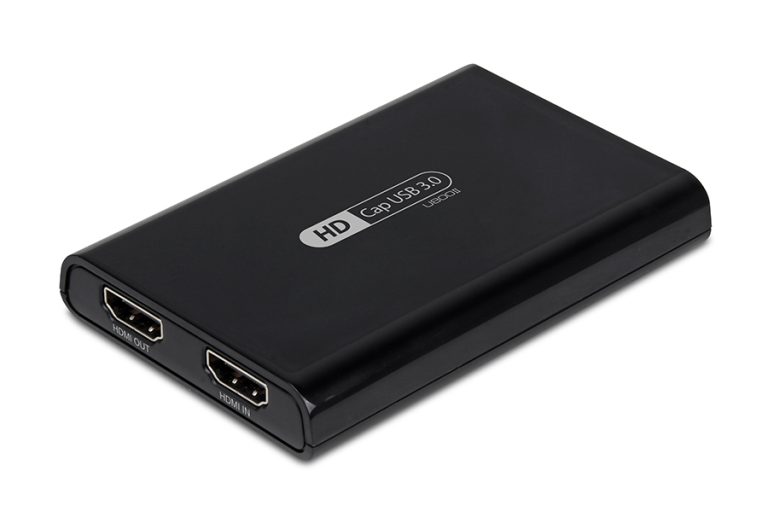

Geniatech U800Ⅱ is a high-performance USB 3.0 HDMI® video capture card that supports full HD 1080p@60fps recording and real-time streaming. With UVC support, it requires no driver installation and is compatible with Windows, macOS, Linux, and Android systems. Featuring seamless integration with major live platforms such as YouTube Live, Facebook Live, Skype, and Wowza Cloud, the U800Ⅱ is ideal for live streaming, video conferencing, and content creation.

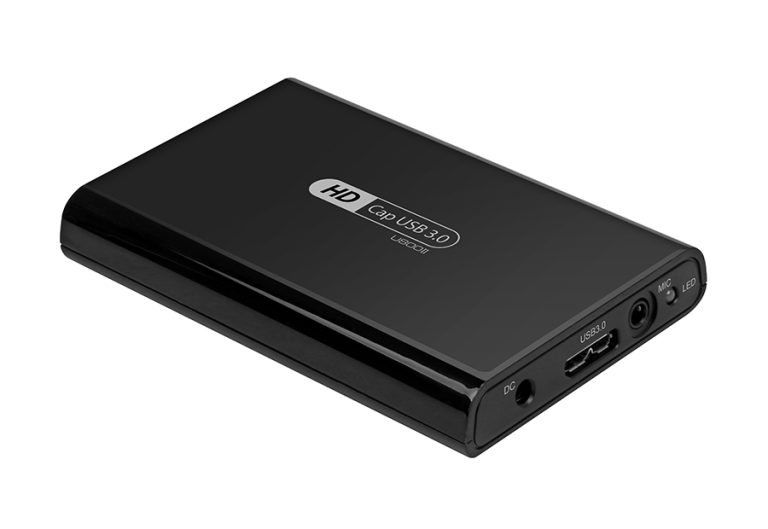

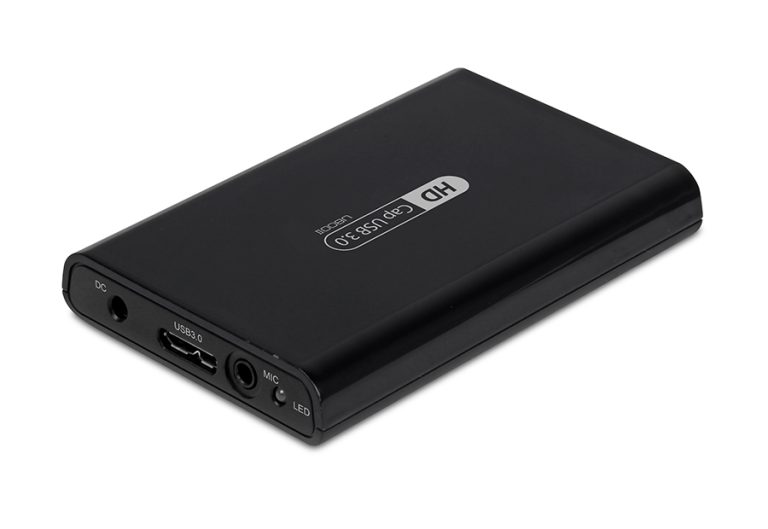

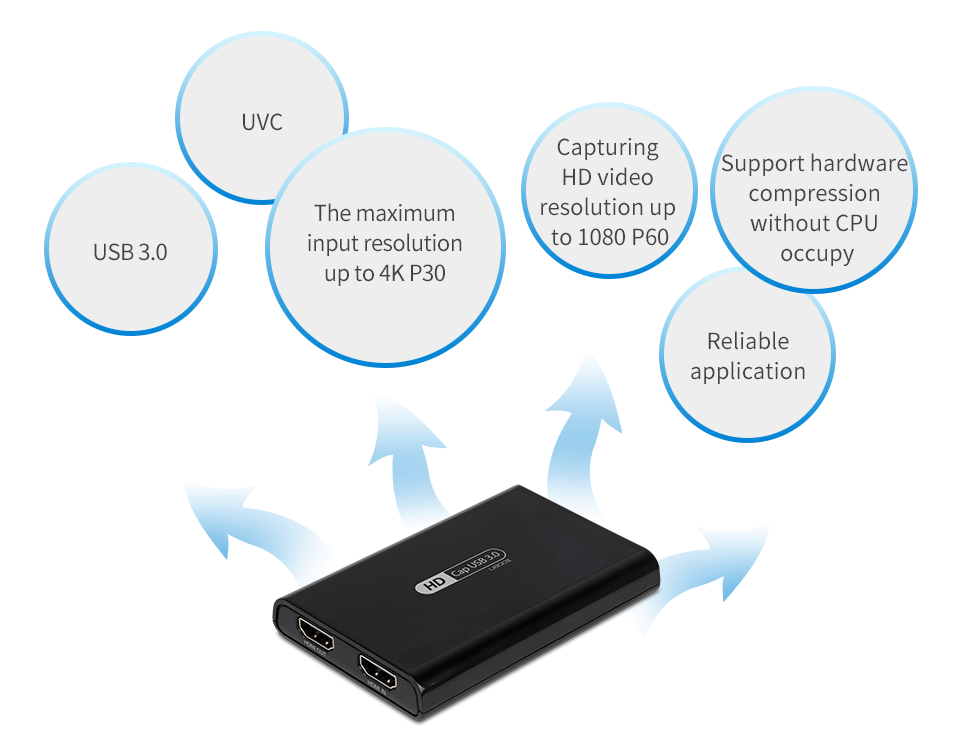

U800II is a USB3.0 hardware compression HDMI® digital video capture, input resolution up to 4K P30 MAX and capturing HD video resolution up to 1080 P60 MAX . UVC is driving-free plug and play
Video Capture uses USB3.0 port, no need power adapter, compatible for USB2.0,low latency, high speed transmission
| Product | U800II |
| Video in | HDMI |
| USB Port | USB3.0 |
| Max input Resolution | 4K (3840*2160@30HZ),HDMI® 1.4b (unencrypend) |
| Max output Resolution | 4K (3840*2160@30HZ) |
| Audio Sampling | Format: 16bit,20bit,24bit L-PCM32khz,44.1khz,48khz |
| Operating Temperature | 0 ºC~ 45 ºC |
| Storage Temperature | -20 ºC~ 60 ºC |
| Dimensions (L x W x H) | 96*64*15mm |
| Weight | 10g |
| Minimum Hardware Requirements | CPU:PC i7-4700 above ;NB i7-3537U 2.0GHZ above) |
| Graphics:PC NVIDIA GTX660 or above; NB NVIDIA GT735M above | |
| DDR:4GDDR | |

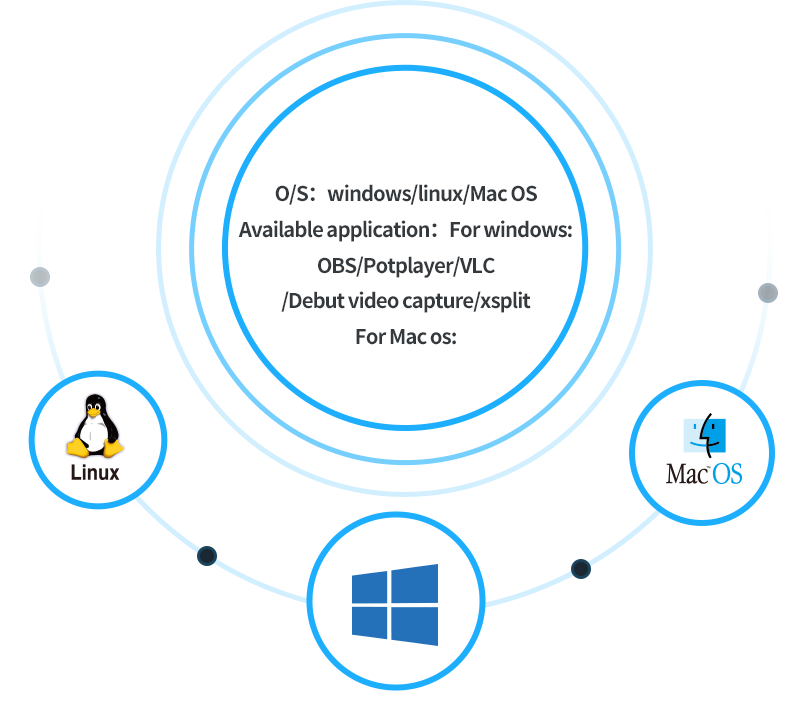

| OS Support | Windows 7/windows10 32bit and 64bit |
| Mac OS X 10.13 and above | |
| Linux:Ubuntu 14.0 and above |
