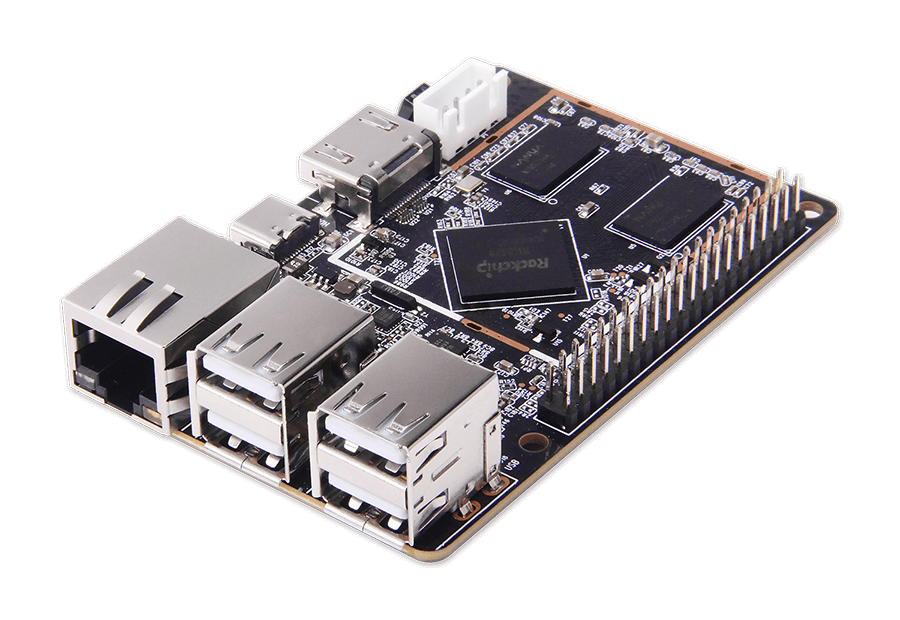

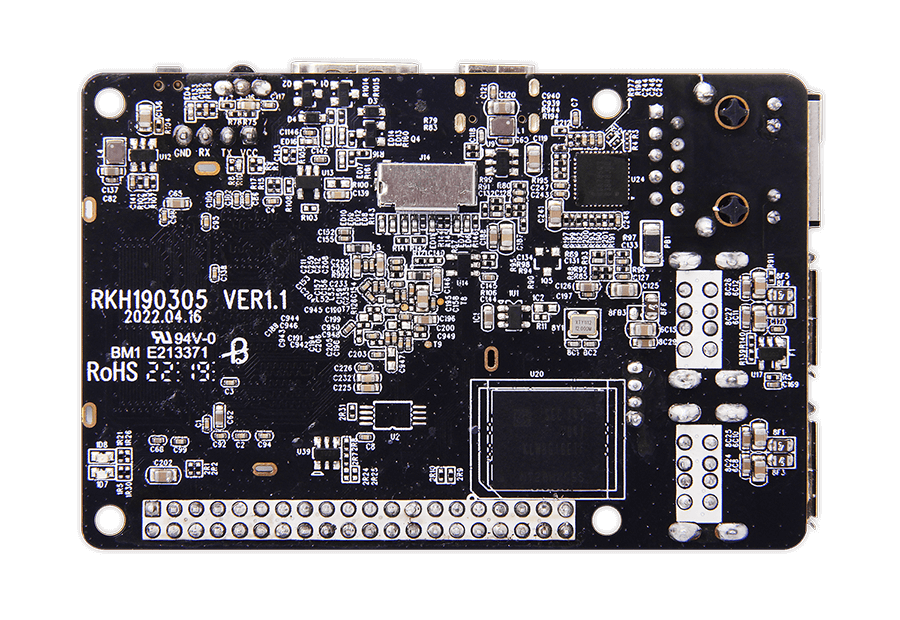

Geniatech’s XPI-3128 is a quad-core Cortex-A7 1.2GHz SOC that integrates a Mali-400MP2 GPU. It has excellent arithmetic and graphics processing capabilities, providing high-performance video output and a smoothly high-resolution (1080p@60fps) display. It supports 2.4G/5GHz Wi-Fi, 802.11a/b/g/n/ac, and BT4.0. It also has an onboard 100M Ethernet port and supports an external 40-pin interface, including UART, I2S, PCM, I2C, GPIO, and PWM, giving users a very flexible solution.
| CPU | Quad-core Cortex-A7，Up to 1.2GHz |
| GPU | Mali-400MP2 GPU，Support OpenGL ES1.1/2.0 |
| RAM | 1 GB DDR3 |
| Storage | 16 GB eMMC |
| OS | Rasberry Pi OS emulater, Linux(Debian 10/buildroot), Android |
| WLAN | 100 M |
| WIFI/BT | 2.4&5.8G IEEE 802.11ac/n/a/g/b, Bluetooth 4.0(WIFI/BT optional) |
| USB | USB2.0*4,TYPE-C*1 |
| TF slot | MAX 64G |
| HDMI® | HDMI®OUT*1 |
| Remote | Support and USB remote |
| I/O | 28 * GPIO Pins 4 * SPI 2 * I2C Bus 4 * Uart 2 * PWM 1 * PCM/I2S 2 * 5V Power Pins 2 * 3.3V Power Pins 8 * Ground Pins |
| 8 * Ground Pins | TYPE-C 5V/2A |
| Size | 85 x 56 x 20 mm |
| Weight | 45g |
