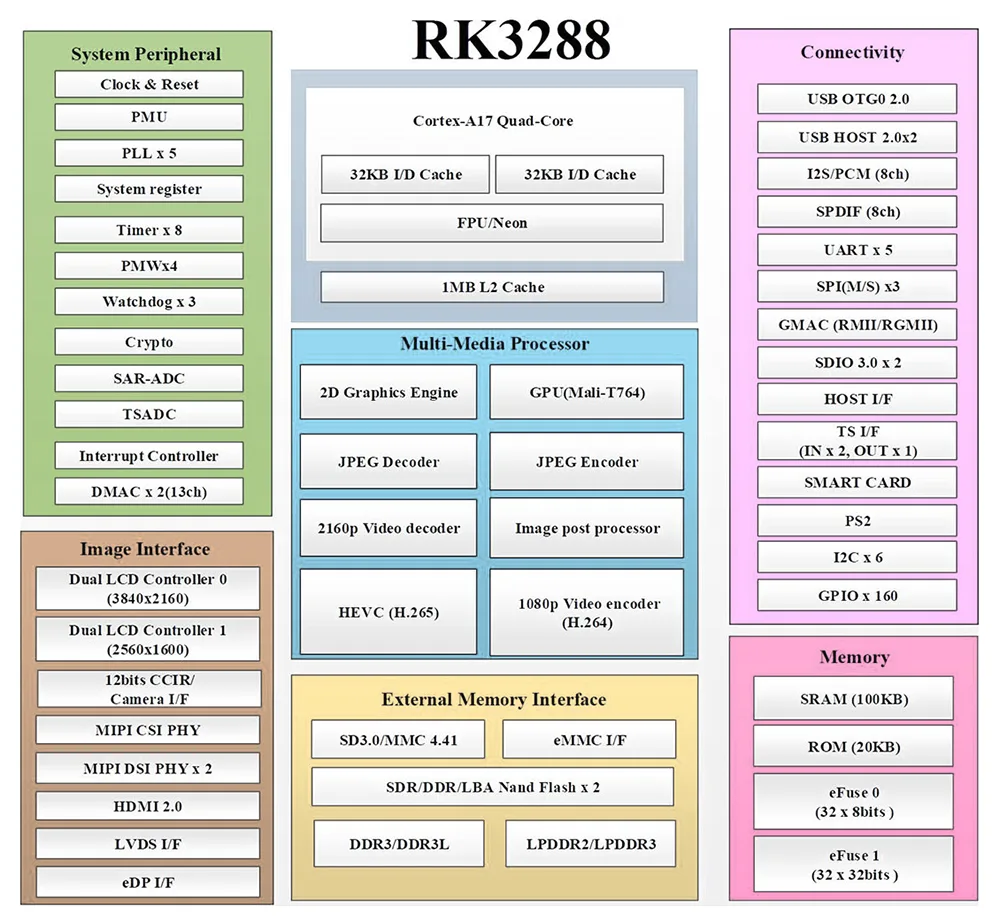

Rockchip RK3288 is a high-performance application processor for high-end tablet computers. It integrates the ARM Cortex-A17 with the Neon and FPU coprocessors, respectively, and has many high-performance interfaces to provide very flexible solutions, such as as a multi-channel display with dual channel LVDS, dual channel MIPI-DSI, eDP1.1, HDMI®2.0, And embedded 13MP ISP dual channel MIPI-CSI2 interface.

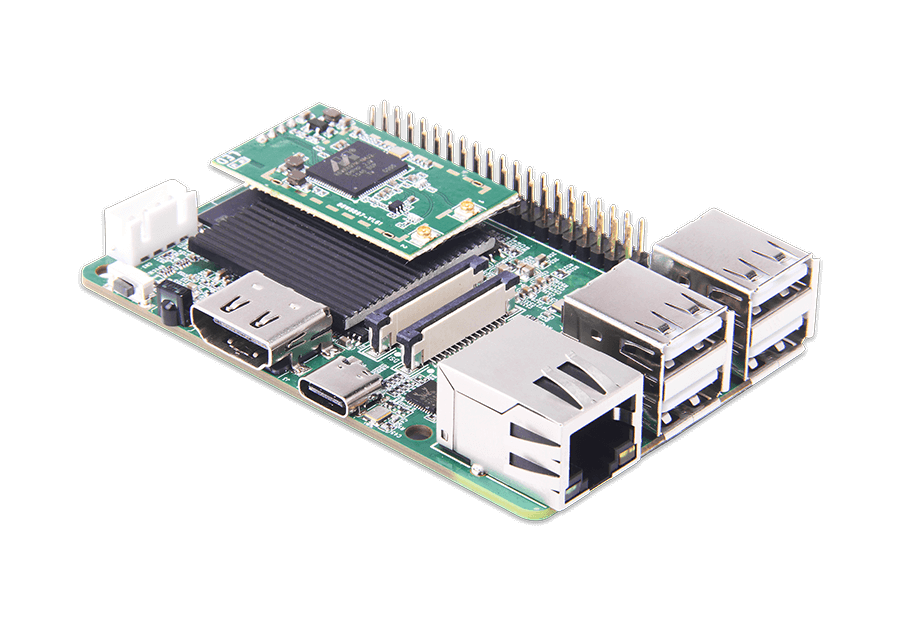

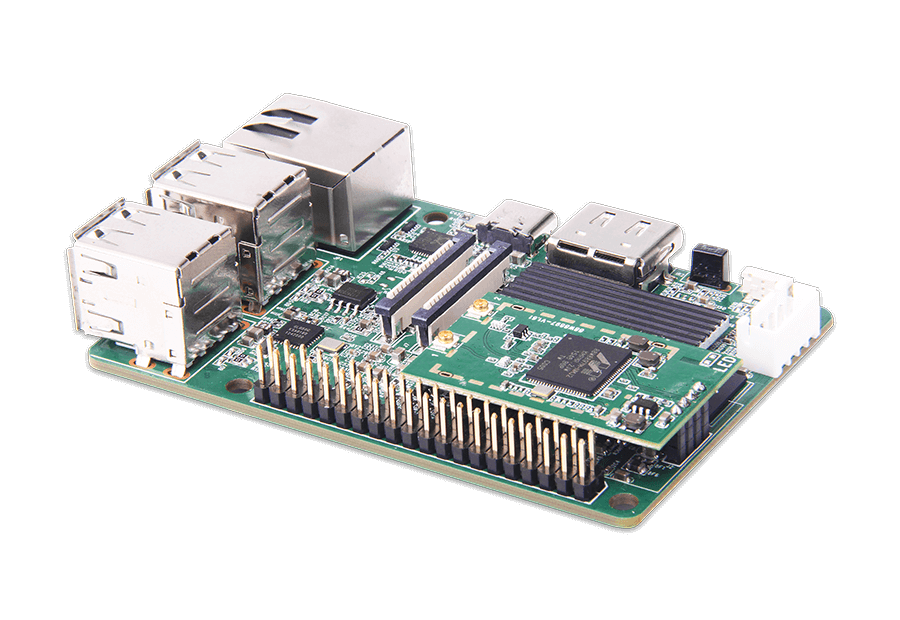

The motherboard specification is like the bank card, which is convenient to use and does not occupy the position. It is also convenient to carry.
Gigabit Ethernet can provide 1Gb/s communication bandwidth, a smoother data transmission experience.
Stable operation of Android, Linux operating system, reliable performance
Can be used for office learning, intelligent embedded, DIY electronics, games and entertainment
| CPU Frequency | Quad-core Cortex-A17 up to 1.8GHz |
| GPU | Mali-T764 GPU |
| Internal Memory | Up to 2 GByte LPDDR3 |
| Internal Storage | Up to 16 GByte eMMC |
| OS | Android 7.1 and Linux(Debian 9) |
| Ethernet | 100/1000M |
| WIFI/BT | Bluetooth/NFC Single-Chip SoC IEEE 802.11ac/n/a/g/b, Bluetooth 4.0 |
| USB | USB2.0*4,Micro USB*1 |
| TF slot | MAX256G |
| HDMI® | HDMI®OUT*1 |

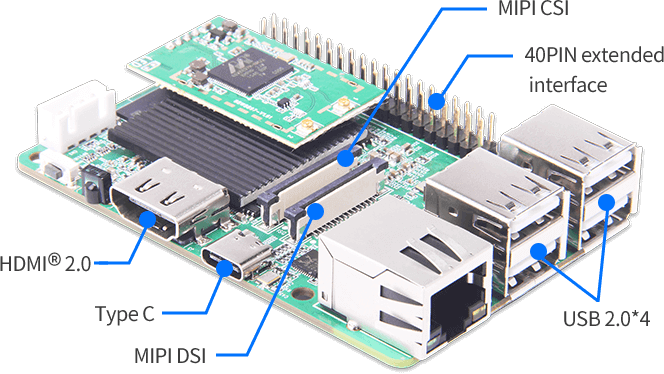

| MIPI | MIPI CSI*1 ,MIPI DSI*1 |
| Remote Control | Support IR and USB remote control |
| I/O | 28 * GPIO Pins 2 * SPI Bus 2 * I2C Bus 4 * Uart 2 * PWM 1 * PCM/I2S 2 * 5V Power Pins 2 * 3.3V Power Pins 8 * Ground Pins |
| Power | Micro USB 5V/2A |
| Size | 88 x 58 x 19.5 mm |
| weight | 53g |
