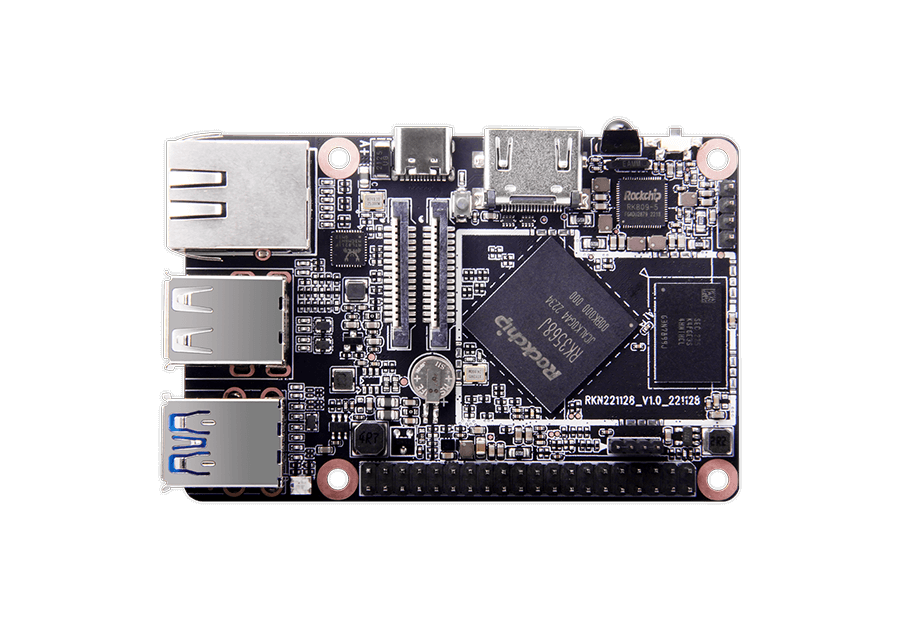

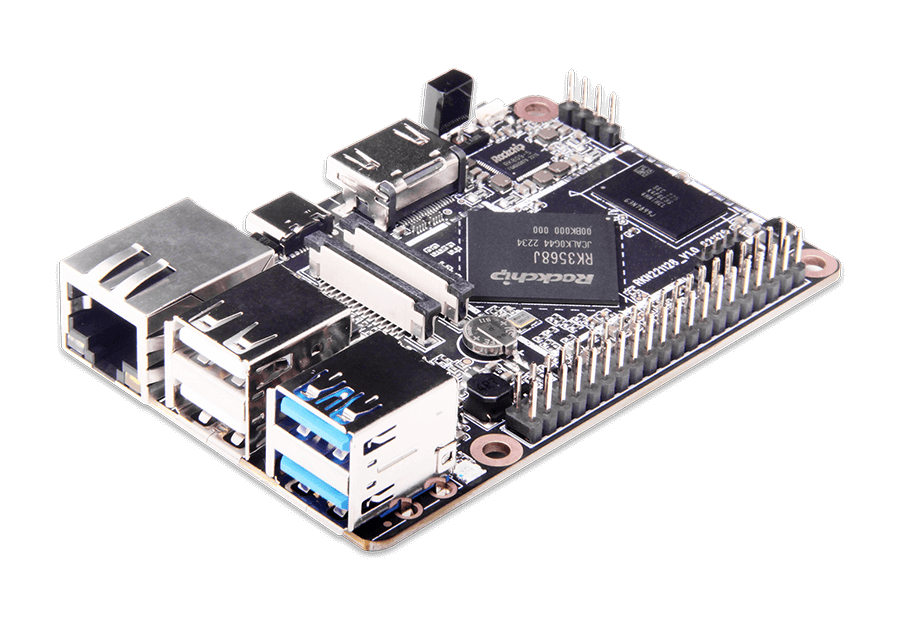

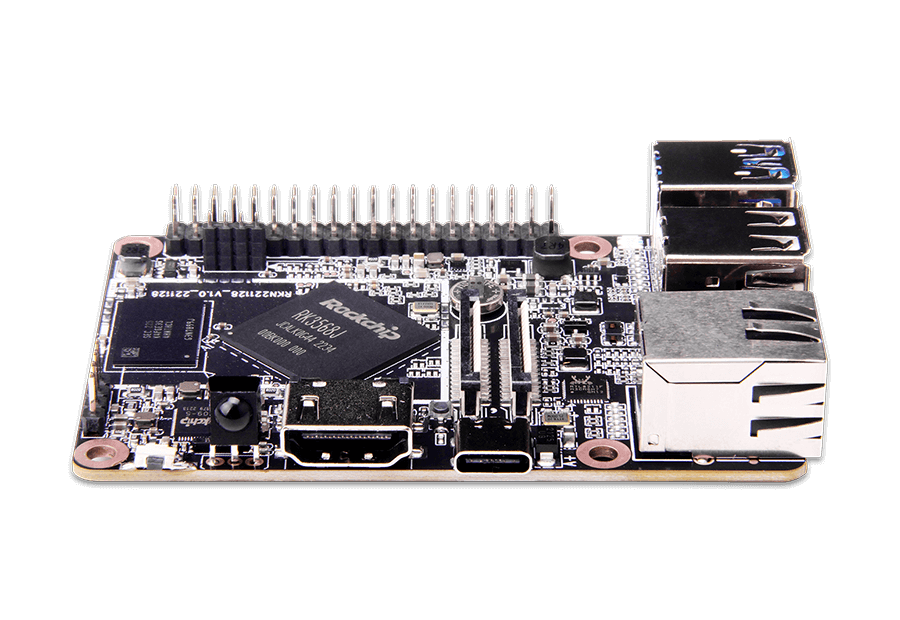

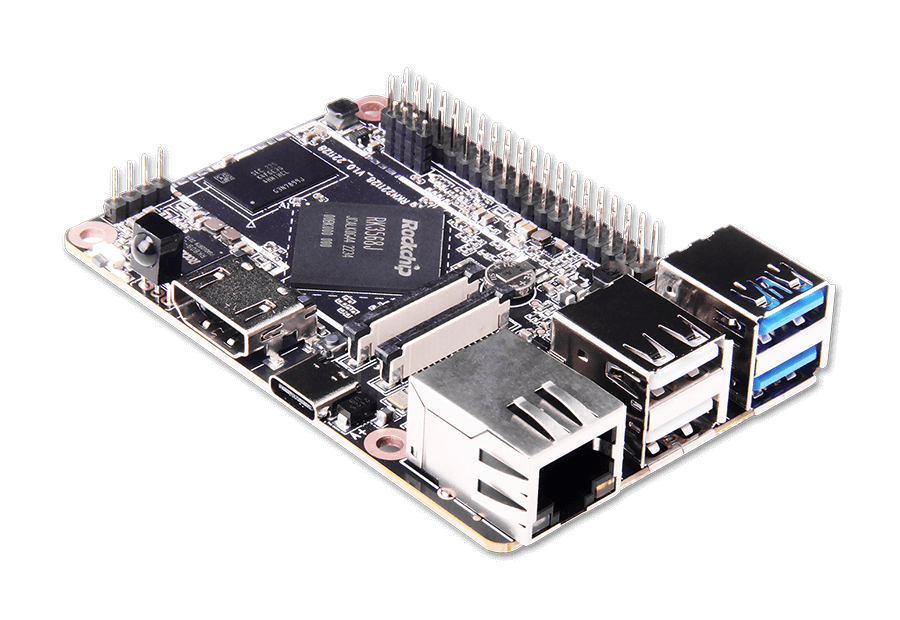

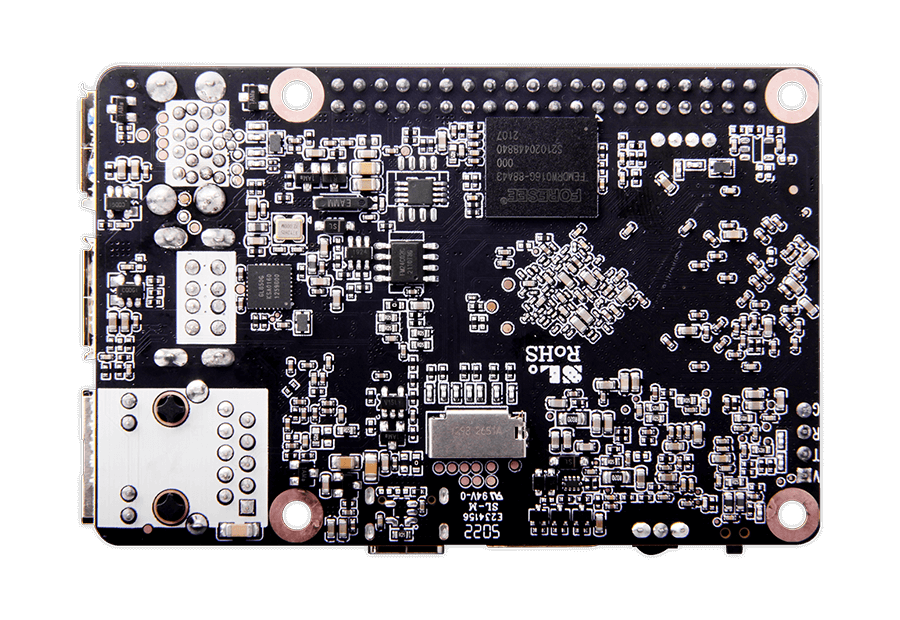

XPI-3568 is a Raspberry Pi-form factor sbc board featuring a Rockchip RK3568 processor, 4K HDMI®, MIPI-DSI/CSI, 40-pin GPIO, onboard RAM and eMMC storage, and 4 USB ports. It includes 1000M Ethernet, Wi-Fi, Bluetooth, and supports Debian, Android, and Raspberry Pi OS.

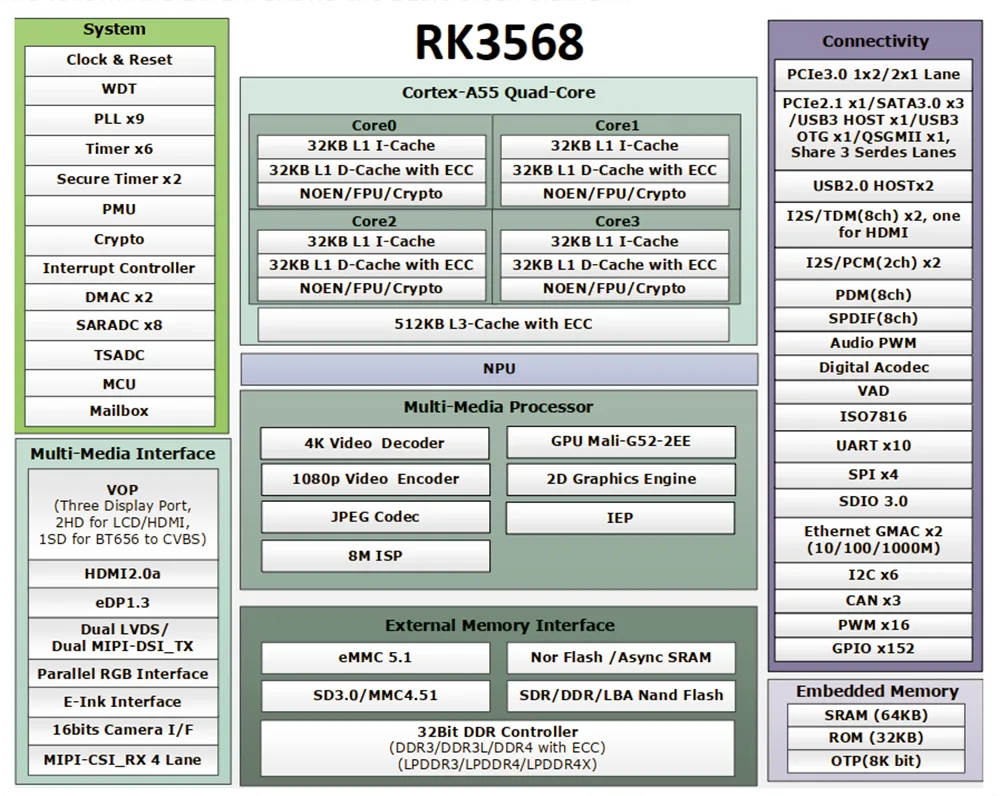

| Chipset | Rockchip RK3568/RK3568J |
| NPU | Integrated RKNN NPU AI accelerator, 1Tops@INT8 |
| CPU | Quad-core ARM Cortex-A55 up to 1.8GHz |
| GPU | Mali-G52-2EE |
| VPU | Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding 8M ISP that supports HDR (High Dynamic Range) |
| Storage | 2GB LPDDR4（1G/4G/8G Optional） 8GB EMMC FLASH（16G/32G/64GB/128GB Optional） |
| NETWORK | Ethernet: RJ45, 1000M WiFi: 2.4G/5G Dual Band Bluetooth: BT4.0 (integrated in the WiFi module) |
| Interface | 1 x HDMI® out, 1 x MIPI-DSI, 1 x MIPI-CSI 1 x USB HOST 3.0, 1 x USB OTG 3.0, 2 x USB Host 2.0 1 x Standard 40-pin GPIO header UART, IR, Micro SD Slot |
| OS | Debian10 / Yocto / Android11 / Rasberry Pi OS emulater |
| Dimensions | 85 mm * 55 mm |
| Adapter | DC 5V / 3A (USB Type-C) |
| Operating Temperature | Commercial：0~70℃ Industrial：-40~85℃ |
