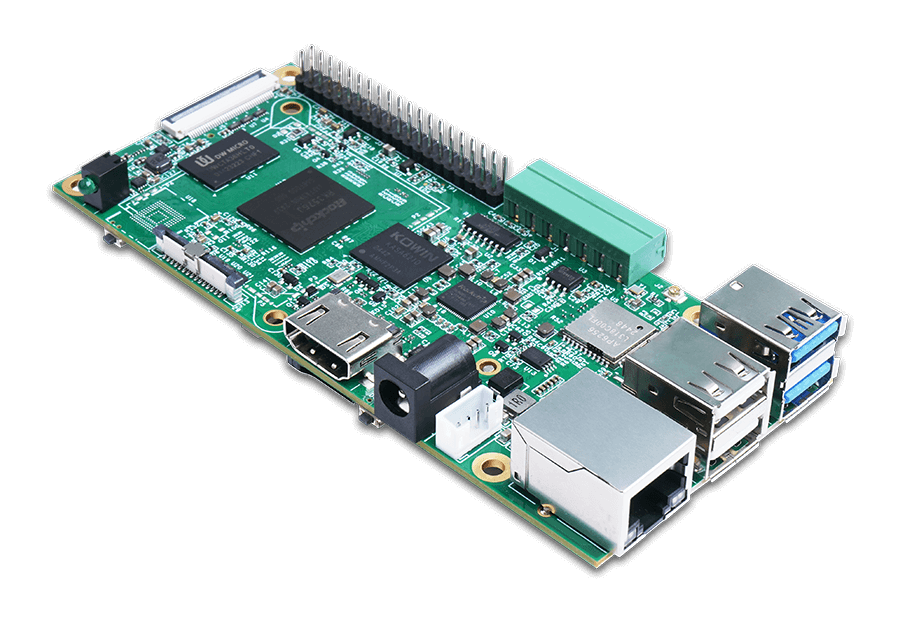

XPI-3576

RK3576 工业AI单板计算机

工业级(-40°C~85°C),RK3576 + Hailo-8 M.2 AI模块,6~26TOPS NPU,兼容树莓派生态系统,10+年生命周期,支持深度BSP及定制I/O。

  • 四核Cortex-A72 + 四核Cortex-A53实时处理器
  • 6 TOPS NPU,可扩展至Hailo-8 26 TOPS AI性能
  • 最高支持16GB内存及128GB eMMC存储,兼容TF卡槽
  • HDMI® 2.1接口、MIPI-DSI(4通道)、MIPI-CSI(4通道)、PCIe 3.0接口
  • 2个USB 2.0接口,2个USB 3.0接口,40针GPIO接口,4个UART接口,CAN总线,RS485接口,RS232接口
  • 1个GbE RJ45网口,可选配2.4G/5.8G Wi-Fi及蓝牙5.0模块
  • 支持 Android 14 和 Debian 12 操作系统
  • -40至85℃工业级工作温度范围

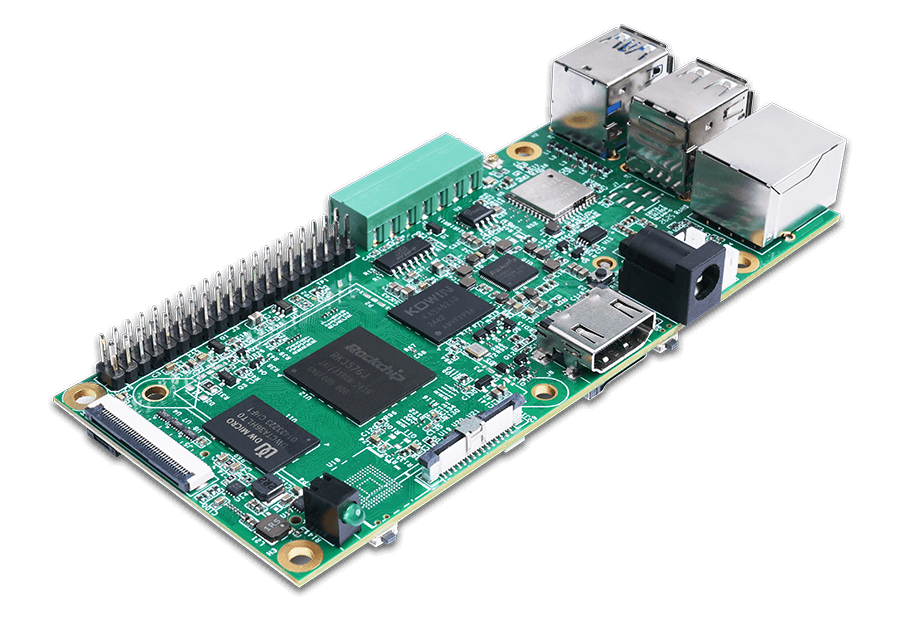

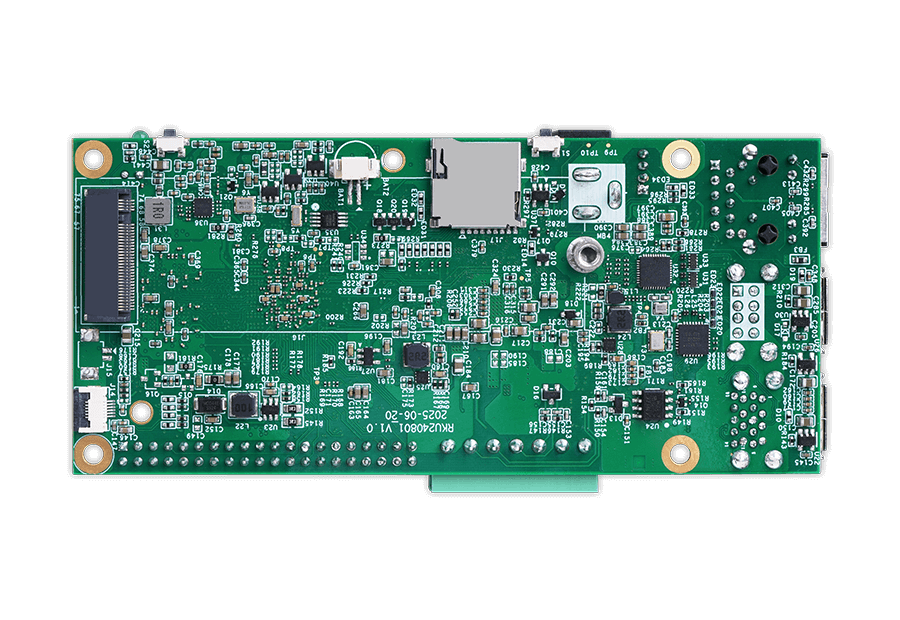

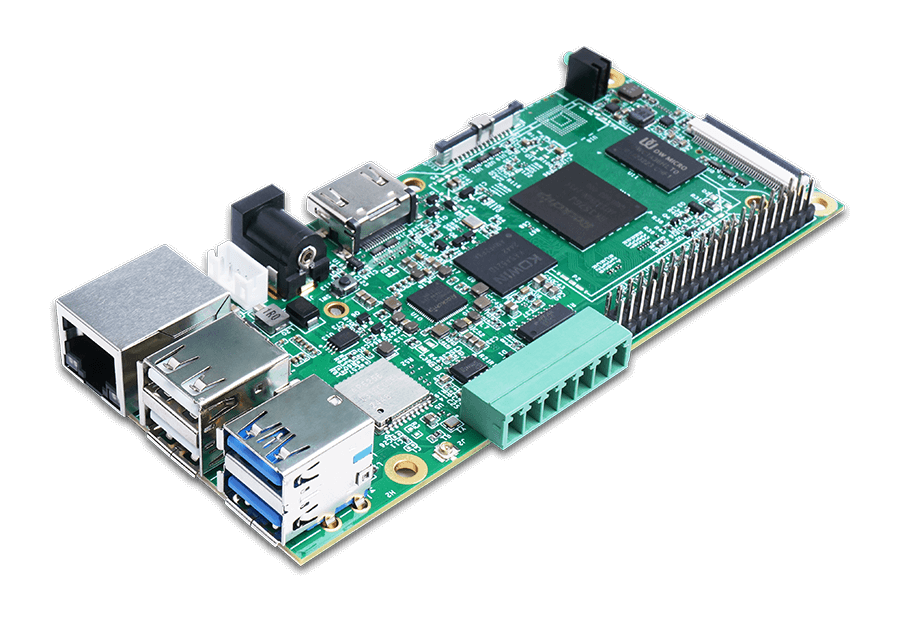

XPI-3576:兼容树莓派的AI增强型工业单板计算机

XPI-3576是一款基于瑞芯微RK3576 SoC的AI增强型单板计算机,可选配Hailo-8神经处理单元(NPU)。其采用四核Cortex-A72与四核Cortex-A53混合架构,提供高达6 TOPS的AI处理性能,实现高性能边缘计算,搭配Hailo-8可扩展至26 TOPS。 该产品完全兼容树莓派配件与应用程序,支持Android 14及Debian 12系统,可实现从树莓派生态的无缝迁移,同时提供更强性能、工业级可靠性及成本优化方案。
可扩展AI性能 内置RK3576 NPU(6 TOPS),通过Hailo-8 M.2模块可扩展至26 TOPS。支持主流框架实现边缘端并行AI推理。 全面I/O与连接能力 标准接口包含40针GPIO、HDMI® 2.1、MIPI-CSI/DSI、USB及PCIe,通过千兆以太网、Wi-Fi和蓝牙5.0提供强劲网络选项。同时支持CAN、RS485、RS232等工业协议。 Android、Debian及深度学习支持 支持预集成BSP和即用型镜像的Android 14及Debian 12系统,包含针对Hailo-8的深度学习BSP,实现快速开发、评估与部署。
处理器 瑞芯微 RK3576
NPU 神经网络性能(提供6TOPS的INT8计算能力)
CPU 四核ARM Cortex-A72处理器 + 四核ARM Cortex-A53实时核心
多媒体 支持H.264/AVC视频解码(最高4K@60fps)及H.264/AVC视频编码(4K@60fps)
存储 4GB内存(可选8G/16G)
32GB eMMC存储(可选64G/128G)
网络 以太网:RJ45接口,1000M
WiFi:2.4G/5G双频
蓝牙:BT5.0(集成于WiFi模块)
接口 1 x HDMI®输出接口,1 x MIPI-DSI接口,1 x MIPI-CSI接口
2 x USB 3.0接口,2 x USB 2.0接口
1个标准40针GPIO接口
1×CAN,1×485/422,1×232, 1×PCIe3.0(M.2 B+M-key)
UART, RTC, TF卡槽, 看门狗
操作系统 Debian12 / Android14
尺寸 125mm×56mm×22.6mm
适配器 直流12V
工作温度 -40~85℃

XPI-3576 规格书
XPI-3576 硬件用户指南

aaaa

bbb

ccc

应用场景

Frequently Asked
Questions

Q: What is Geniatech’s long-term supply plan and supply chain stability assurance for the XPI-3576 series?

A: We fully understand that product lifecycle stability is critical to enterprise projects. As a core strategic partner of Rockchip, Geniatech guarantees a long-term supply commitment of at least 7–10 years for the XPI-3576. We have established a diversified supply chain system and strategic safety stock to ensure continuity. In addition, we regularly release Product Lifecycle Status notifications to help customers plan their production schedules with confidence. For detailed supply timelines and long-term support agreements, our sales team can provide a tailored proposal for your project.

Q: Beyond the hardware itself, what technical support and services does Geniatech offer to ensure smooth mass production?

A: Geniatech provides a comprehensive ecosystem of technical services that go far beyond hardware delivery:
Deep Technical Support: For volume production projects, we offer system-level assistance, including customized BSP development, driver porting and optimization, and technical troubleshooting during system bring-up.
Dedicated Resources: For large-scale orders, we assign a dedicated technical account manager to provide direct, efficient, and continuous communication.
Our goal is to serve as your trusted technology partner, not just a hardware supplier.

Q: During the product lifecycle, how does Geniatech ensure hardware and software (BSP) stability and forward compatibility? How is version management handled?

A: We recognize that hardware consistency is essential for mass production. Geniatech enforces strict version control and design freeze policies for the XPI-3576 once it enters mass production, ensuring hardware uniformity throughout its lifecycle.
For software, we provide Long-Term Support (LTS) BSP versions. Any critical updates or security patches are clearly documented with compatibility notes and advance customer notifications, preventing unexpected impacts on production units. Detailed release notes and revision histories are available to maintain full transparency and traceability across all product versions.

Q: If our product requirements evolve in the future, does the XPI-3576 platform support scalability? Is there an upgrade path based on higher-performance chips?

A: Geniatech is deeply committed to supporting our customers’ long-term product evolution. The XPI-3576, built on Rockchip’s flagship RK3576 platform, shares a high level of software compatibility with higher-end SoCs such as the RK3588. Moreover, our design ecosystem supports cross-platform scalability, enabling migration from the Rockchip series to NXP, Renesas, Qualcomm, and other platforms with minimal software adaptation. This ensures that software developed on the XPI-3576 can be seamlessly upgraded to more powerful platforms when needed. Geniatech provides a comprehensive product roadmap to help you plan future technology upgrades with confidence.
