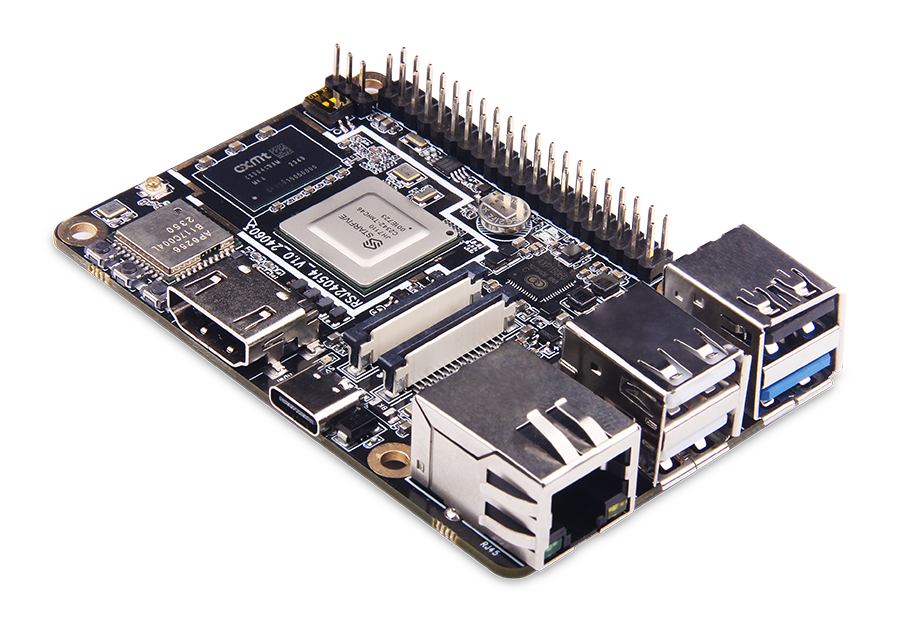

Geniatech XPI-7110 is a compact, high-performance RISC-V SBC built on the StarFive JH7110, similar to the Raspberry Pi. It features 2GB to 8GB LPDDR4 RAM, up to 256GB eMMC storage, 4 USB ports, HDMI® 2.0 for 4K, 1000M Ethernet, UART, Wi-Fi/BT, MIPI CSI/DSI, and a 40-pin GPIO.
| Chipset | StarFive JH7110 |
| CPU | RISC-V 64-bit U74 Dual core 1GHz |
| GPU | Imagination BXE-4-32 GPU with support for OpenCL 1.2, OpenGL ES 3.2, Vulkan 1.2 |
| DDR | 2GB LPDDR4 (Up to 8GB) |
| EMMC FLASH | 16GB (Up to 256GB) |
| OS | Debian |
| NETWORK | Ethernet: RJ45, 1000M WiFi: 2.4G/5G Dual Band Bluetooth: BT5.0 (integrated in the WiFi module) |
| Interface | 1 x HDMI® out, 1 x MIPI-DSI, 1 x MIPI-CSI 1 x USB 3.0, 3 x USB 2.0 1 x Standard 40-pin GPIO header UART, IR, TF Card Slot, Type-C power Supply(5V/3A) |
| Dimensions | 85 mm * 56 mm |
| Operating Temperature | Commercial：0~60℃ Industrial：-40~85℃ |
