XPI-S905X3

Open Source Android SBC

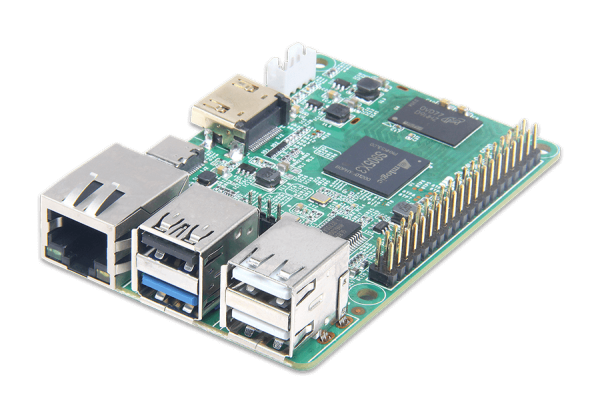

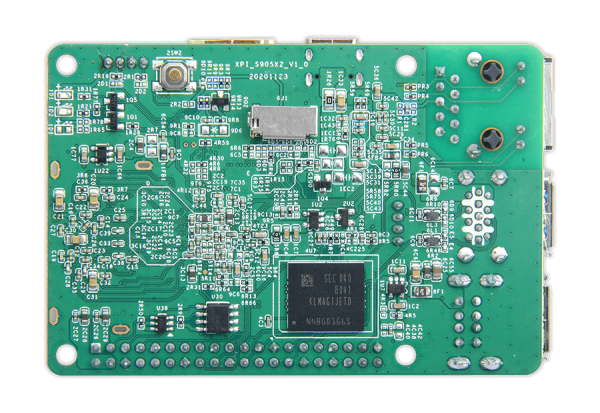

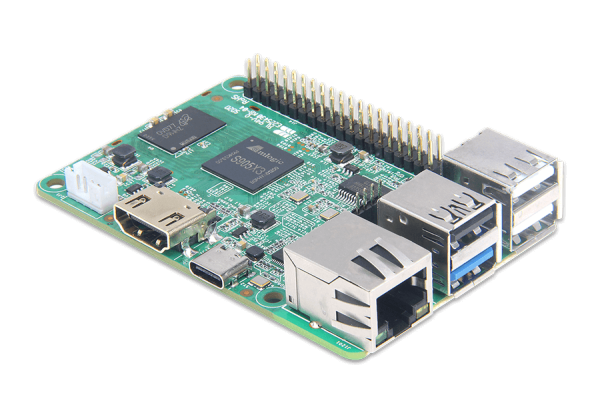

Geniatech XPI-S905X3 is a Raspberry Pi-like single board computer with an Amlogic S905X3 quad-core processor, 2GB of RAM, 8GB of eMMC storage, a 40-pin GPIO header, and a lot of I/O ports.

Raspberry Pi Form Factor, 85*56mm, Only the size of a bank card.
Amlogic S905X3 with Quad-core Cortex-A55
1~4GB RAM + 8~32GB eMMc flash
4*USB HOST, 1*HDMI® Out, 1* USB-C Power supply, 1*40-pin GPIO header
WiFi and Gigabit ethernet interface
Max display resolution: 4K@120fps
Android 9.0 OS

Chipset	Amlogic S905X3 (S905, S905X, S905X2, S905X4 optional)
Market area	Global
OSD Language	English/Chinese (multi language OSD)
Processor	CPU	Quad-core Cortex-A55
	GPU	ARM G31 MP2 GPU
	RAM	2GB(1GB Optional)
	EMMC FLASH	8GB（16G/32G Optional）
Network	Ethernet	RJ45, 1000M
	WiFi	Optional
	Bluetooth	Optional
Interface	TF Card Slot	TF card *1(max. 64GB)
	HDMI®	HDMI® out*1
	USB	USB 2.03 and USB3.01
	MicroUSB	Power IN*1
	Extension GPIO	GPIO*28
Dimensions	85 mm * 56 mm
Adapter	DC5V / 2A Cooling fin WIFI Module（Optional (2.4G&5.8G / BT4.0)）
Accessory	Adapter and USB power line

Product Specification

XPI-S905X3 Specification

Manual

XPI-S905X3 Normal User's Guide (Android 9.0 OS)

XPI-S905X3 Develop User Guide (Android 9.0 OS)

Tools

XPI-S905X3 USB Burning Method

Images

XPI-S905X3 Android Images
